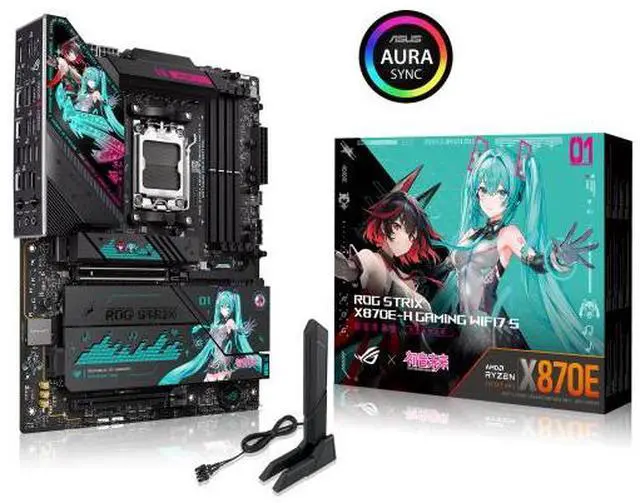

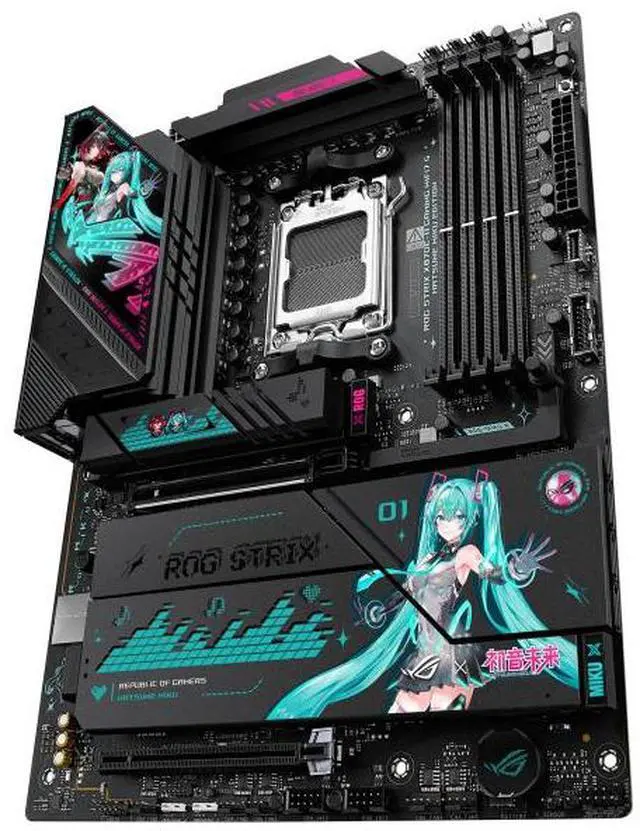

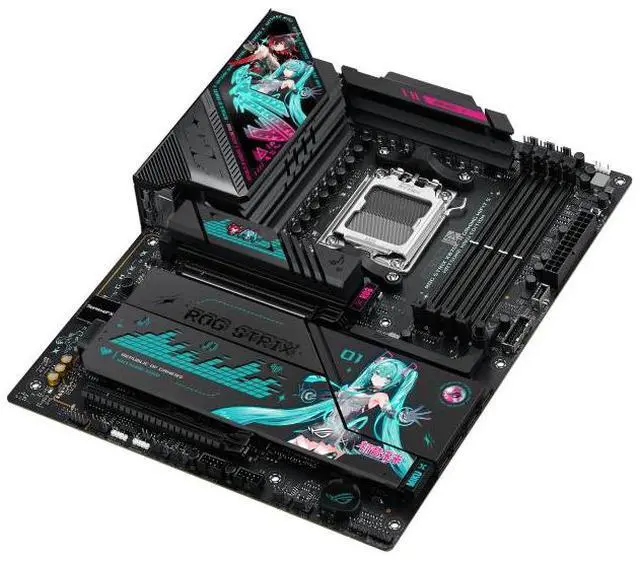

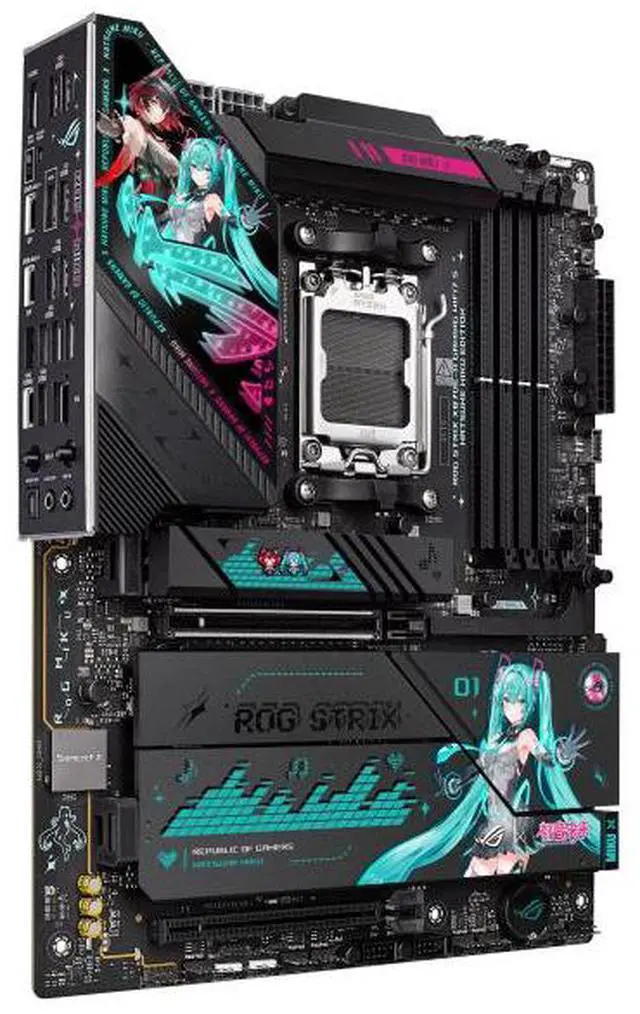

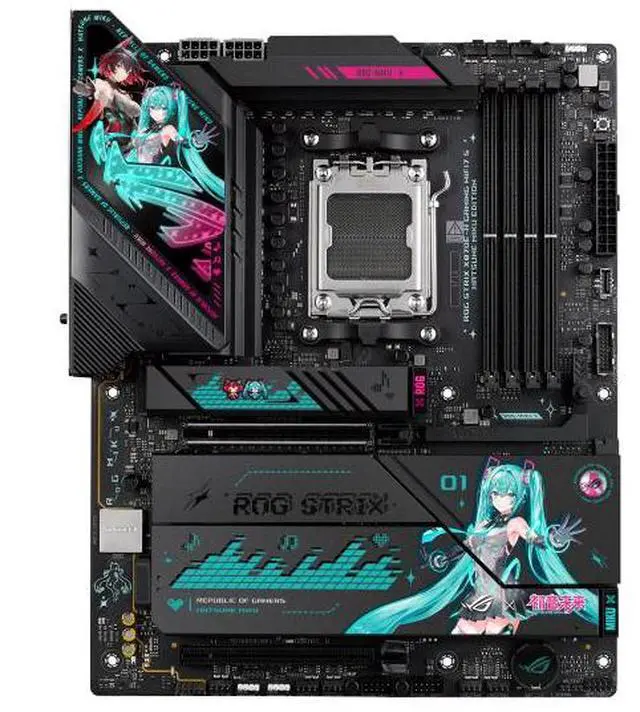

ASUS ROG STRIX X870E -H GAMING WIFI7 S RO JI x HATSUNE MIKU Edition AMD AM5 X870 ATX motherboard,16+2+1 80A power stages,DDR5,PCIe 5.0 x16, 4x M.2 , Wi-Fi 7,5 Gb LAN,2xUSB4, USB Type-C, BIOS FlashBack

Processor

Compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors*

*See

https://www.asus.com/support/download-center/ for a list of supported CPUs.

Chipset

AMD X870E

Memory

4 x DIMM slots, up to 256GB, DDR5

Supports Ryzen 9000 & 8000 processors, up to 8000+ MT/s (OC)

7000 series processors

Dual-channel memory architecture

Supports AMD Extended Profile

Overclocking (EXPO)

Supports DIMM Fit / DIMM Fit Pro

ASUS Enhanced Memory Profile (AEMP)

*Supported memory type, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, refer to the "CPU/Memory Support List" under the "Support" tab on the product information website or visit https://www.asus.com/support/download-center/.

Subject to adjustments based on the specifications of mass-produced memory products in the market. ** Non-ECC, unbuffered DDR5 memory

Supports on-die ECC

Display features

1xHDMI port**

2xUSB4® (40Gbps) ports support USB

Type-C® display output***

* Graphics card specifications may vary depending on CPU type. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports up to 4K@60Hz with DisplayPort 1.4a

**** VGA resolution support depends on the processor or graphics card resolution.

Expansion Slots

AMD Ryzen 9000 and 7000 Series Desktop Processors*

1 PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors*

1 PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870E Chipset

1 PCIe 4.0 x16 slot (supports x4 mode)

* Please refer to the PCIe bifurcation table

(URL: https://www.asus.com.cn/support/FAQ/1037507/).

** Specifications vary by CPU type.

- To ensure compatibility of installed devices,

please visit https://www.asus.com.cn/support/download-center/ for a list of supported peripherals. Storage Slots

Supports 4 M.2 slots and 4 SATA 6Gb/s ports

AMD Ryzen 9000 and 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280

(Supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280/22110

(Supports PCIe 5.0 x4 mode)*

AMD Ryzen 8000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280

(Supports PCIe 4.0 x4/x2 mode)

M.2_2 slot (Key M), type 2280/22110 (not supported)**

AMD X870E Chipset

M.2_3 slot (Key M), Type 2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), Type 2280 (supports PCIe 4.0 x4 mode)

Four SATA 6Gb/s ports

* M.2_2 shares bandwidth with PCIEX16(G5).

When M.2_2 is occupied by an SSD device, PCIEX16(G5) can only operate at x8 speed.

** When using AMD Ryzen 8000 series desktop processors, M.2_2 will be disabled. RAID Support

AMD RAIDXpert2 Technology*

Ryzen 9000 Series Processors: RAID 0/1/5/10

Ryzen 8000 Series Processors: RAID 0/1

Ryzen 7000 Series Processors: RAID 0/1/10

*Specifications vary by CPU type.

Networking

1 x Realtek 5Gb Wired LAN

ASUS LANGuard

Wireless/Bluetooth

Wi-Fi 7 (MediaTek MT7925)

2x2 Wi-Fi 7* (802.11be)

Supports 2.4/5/6GHz bands**

Supports Wi-Fi 7 160MHz bandwidth

Bluetooth® v5.4***

*Wi-Fi functionality may vary depending on the operating system.

For Windows 11, Wi-Fi 7 requires 24H2 or later for full operation.

Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For Windows 10, please note that drivers are not currently available. Please refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth

Regulatory requirements may vary in different regions.

*** Bluetooth® versions may vary. Please visit the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (14 ports total)

2 x USB4® (40Gbps) ports (2 x USB Type-C® ports)

4 x USB 10Gbps ports (3 x Type-A ports + 1 x USB Type-C® port, supports up to 30W PD/PPS fast charging)**

6 x USB 5Gbps ports (6 x Type-A ports)

2 x USB 2.0 ports (2 x Type-A ports)

Front USB (7 ports total)

1 x USB 20Gbps port (supports USB Type-C®)

1 x USB 5Gbps port, supports 2 additional USB 5Gbps ports

2 x USB 2.0 ports support 4 additional USB 2.0 ports

* USB Type-C® Power Delivery: Maximum 5V/3A

** USB Type-C® Power Delivery: Maximum 5V/9V 3A, 12V maximum 2.5A, 15V maximum 2.0A

Sound

Realtek ALC1220P 7.1 Surround Sound

HD Audio Codec*

- Front and rear headphone impedance sensing

Headphone output

- Built-in audio amplifier for the highest sound quality from headphones and speakers

- Supports: jack detection, multiple audio streams, front panel jack re-tasking

- High-quality 120 dB SNR stereo playback output and 113 dB SNR record input (Line-in)

- Supports up to 32-bit/192 kHz playback*

Audio Features

- SupremeFX shielding technology

- Savitech SV3H712 amplifier

- Rear-mounted optical S/PDIF output port

- High-quality audio capacitors

- Audio cover

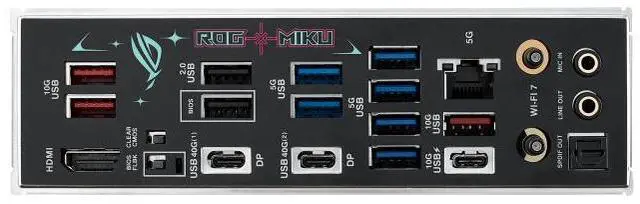

* The rear panel LINE OUT port does not support spatial audio. If you require spatial audio, ensure that the audio output device is connected to the audio jack on the front panel of the chassis or use a USB audio device. Back Panel Device Connectors

2 x USB4® (40Gbps) Ports (2 x USB Type-C® Ports)

4 x USB 10Gbps Ports (3 x Type-A Ports + 1 x USB Type-C® Port, Supports up to 30W PD/PPS Fast Charging)**

6 x USB 5Gbps Ports (6 x Type-A Ports)

2 x USB 2.0 Ports (2 x Type-A Ports)

1 x HDMI Port

1 x Wi-Fi Module

1 x Realtek 5Gb Ethernet Card

2 x Audio Jacks

1 x Optical S/PDIF Out Port

1 x BIOS FlashBack Button

1 x Clear CMOS Button

Internal I/O Device Connectors

Fan and Cooling Headers

1 x 4-pin CPU Fan Header

1 x 4-pin CPU OPT Fan Header

1 x 4-pin AIO Fan Header

5 x 4 1 x 24-pin chassis fan header

Power connectors

1 x 24-pin main power connector

2 x 8-pin +12V CPU power connectors

Storage connectors

4 x M.2 slots (key M)

4 x SATA 6Gb/s ports

USB connectors

1 x USB 20Gbps header (supports USB Type-C®)

1 x USB 5Gbps header, supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers, supports 4 additional USB 2.0 ports

Other connectors

3 x Gen 2 addressable RGB headers

1 x chassis intrusion header

1 x CPU overvoltage jumper

1 x front panel audio header (F_AUDIO)

1 x power button

1 x 10-pin front panel system header

1 x thermal sensor header
