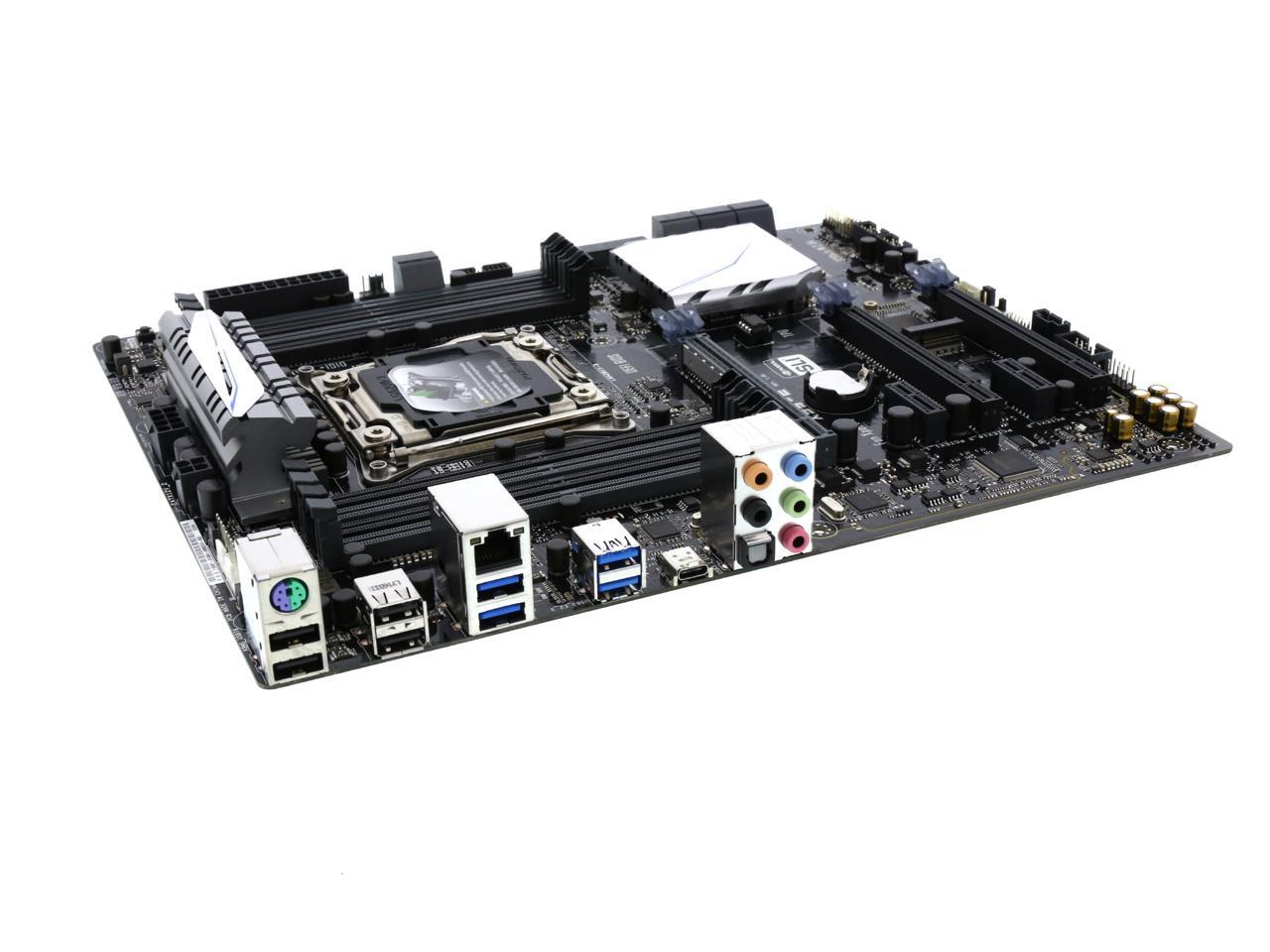

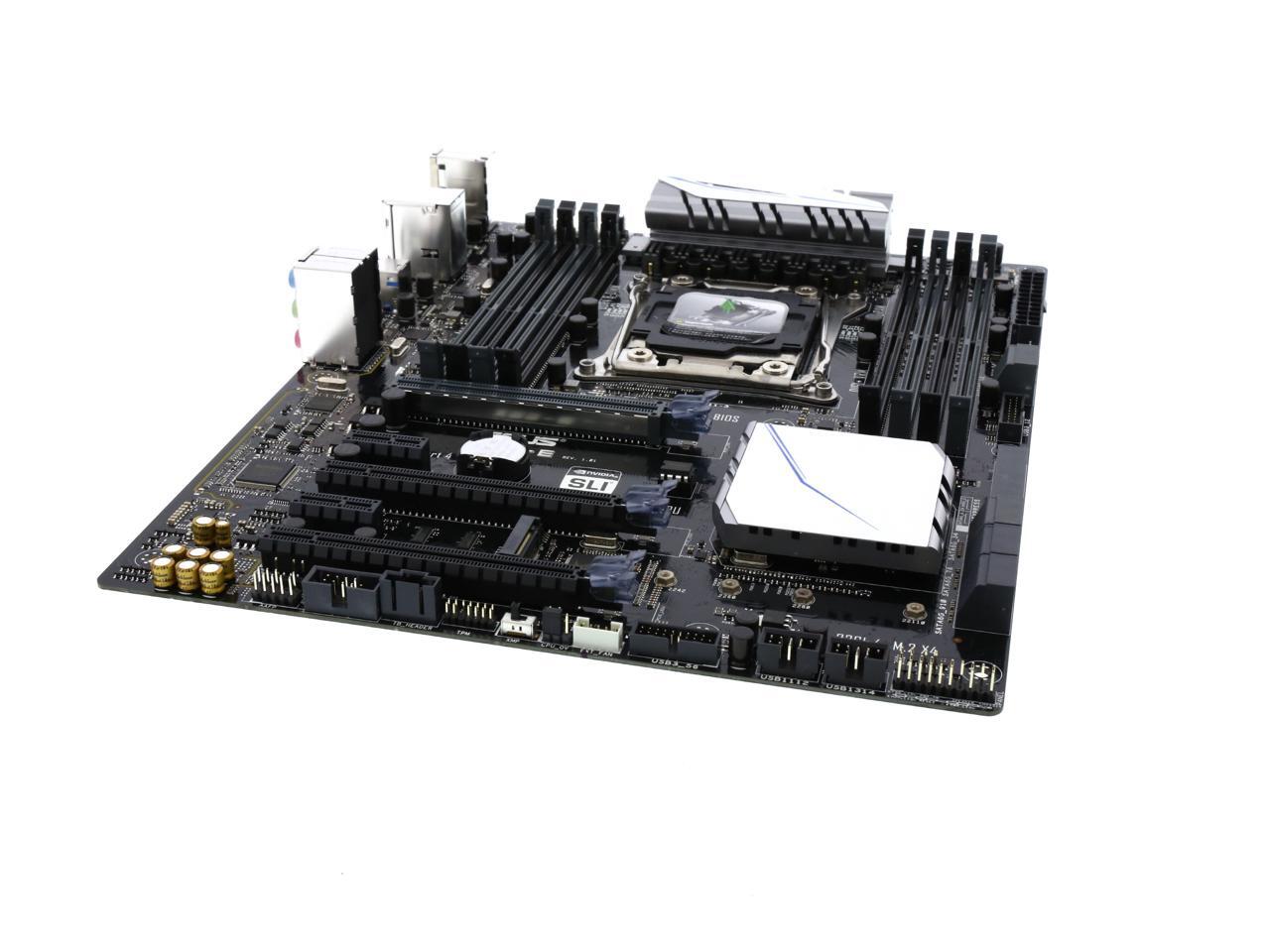

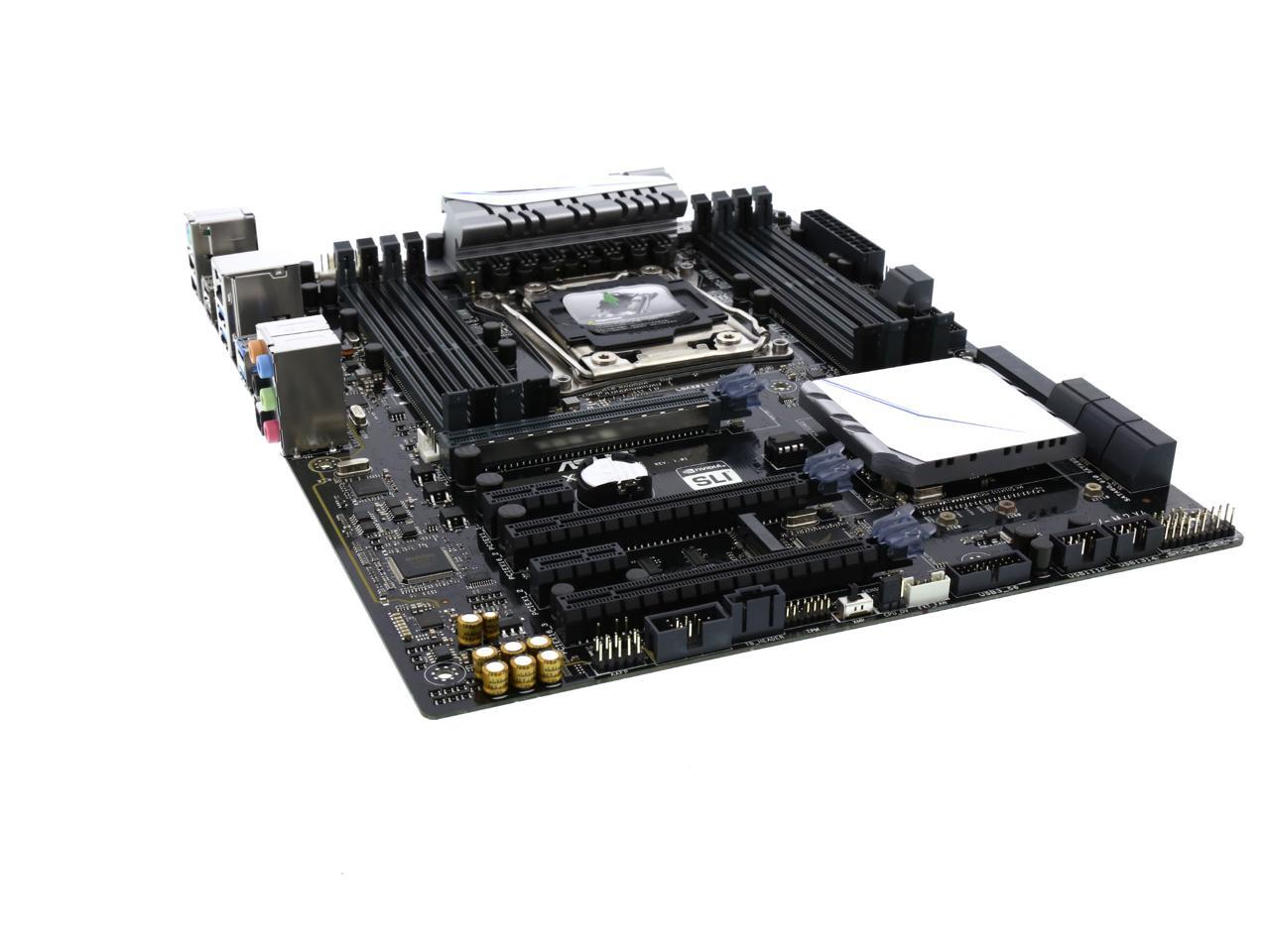

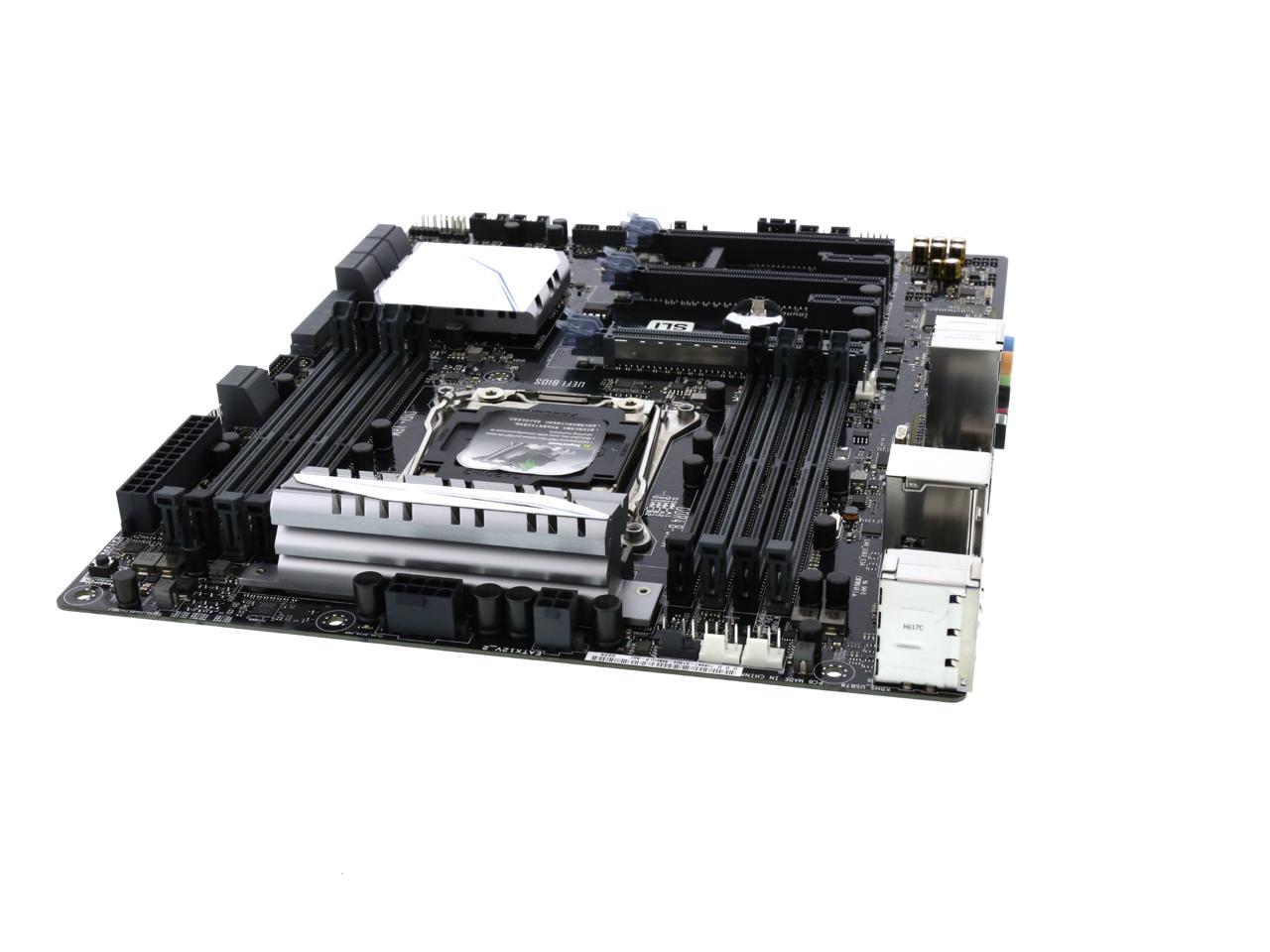

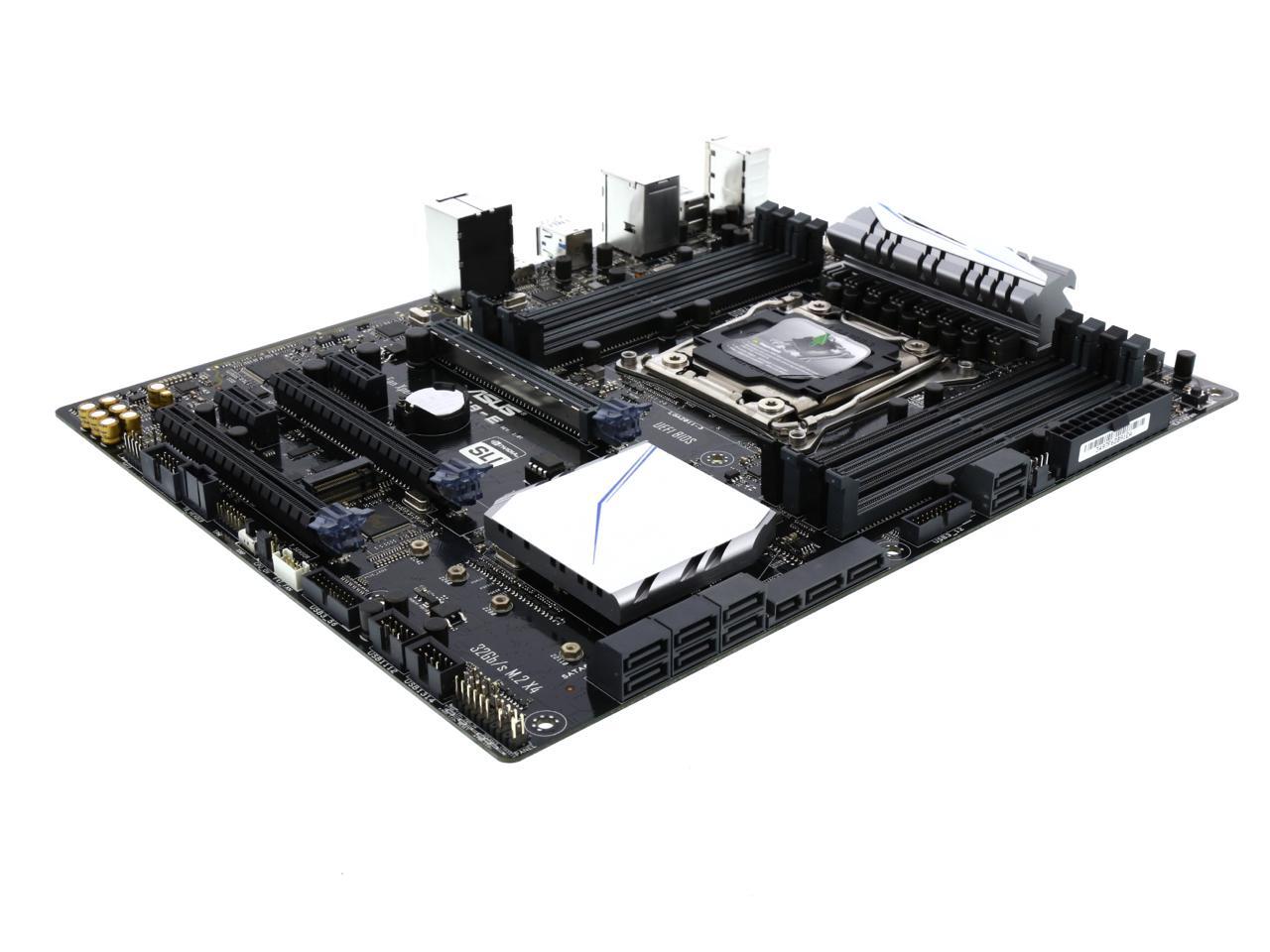

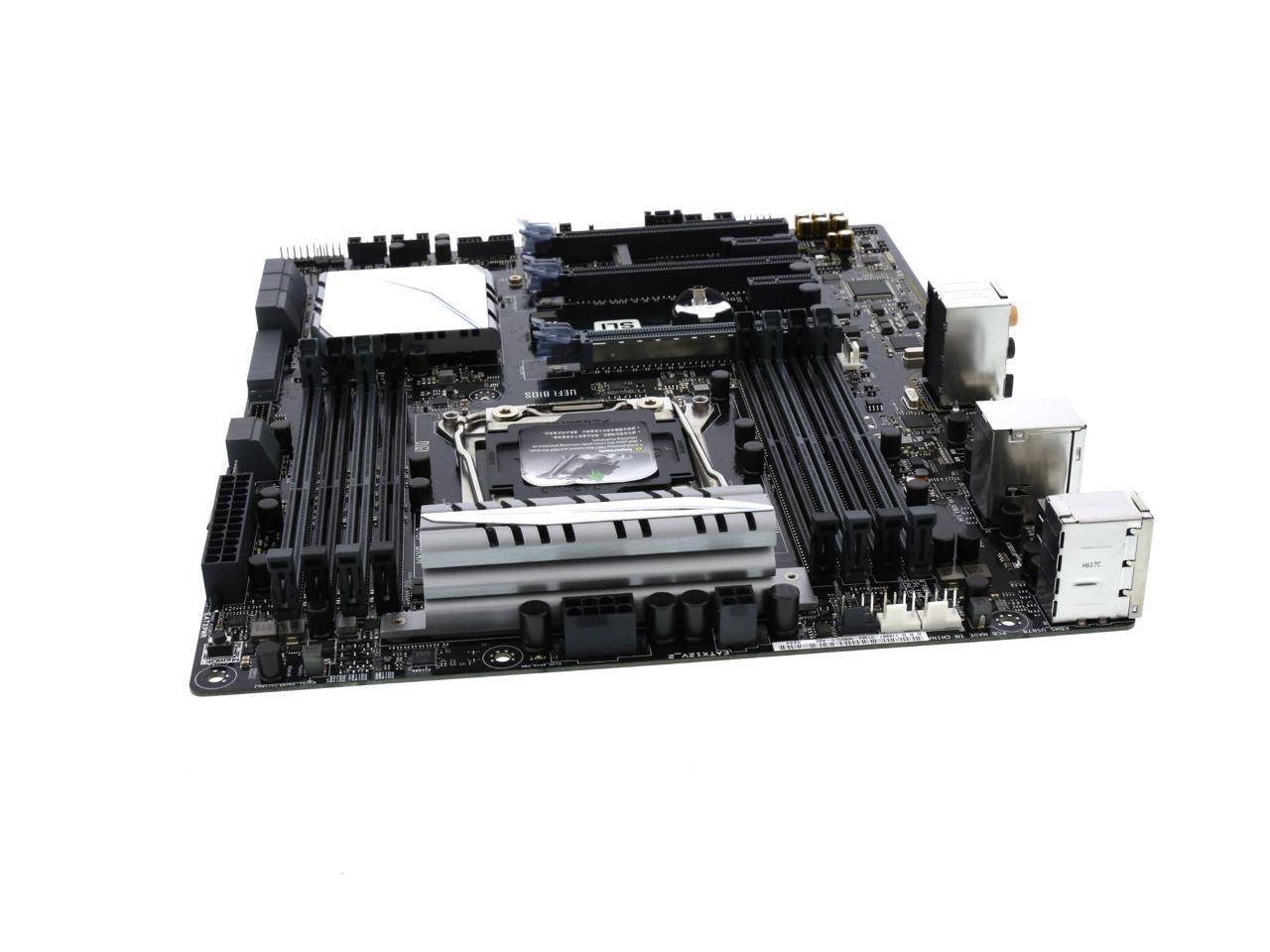

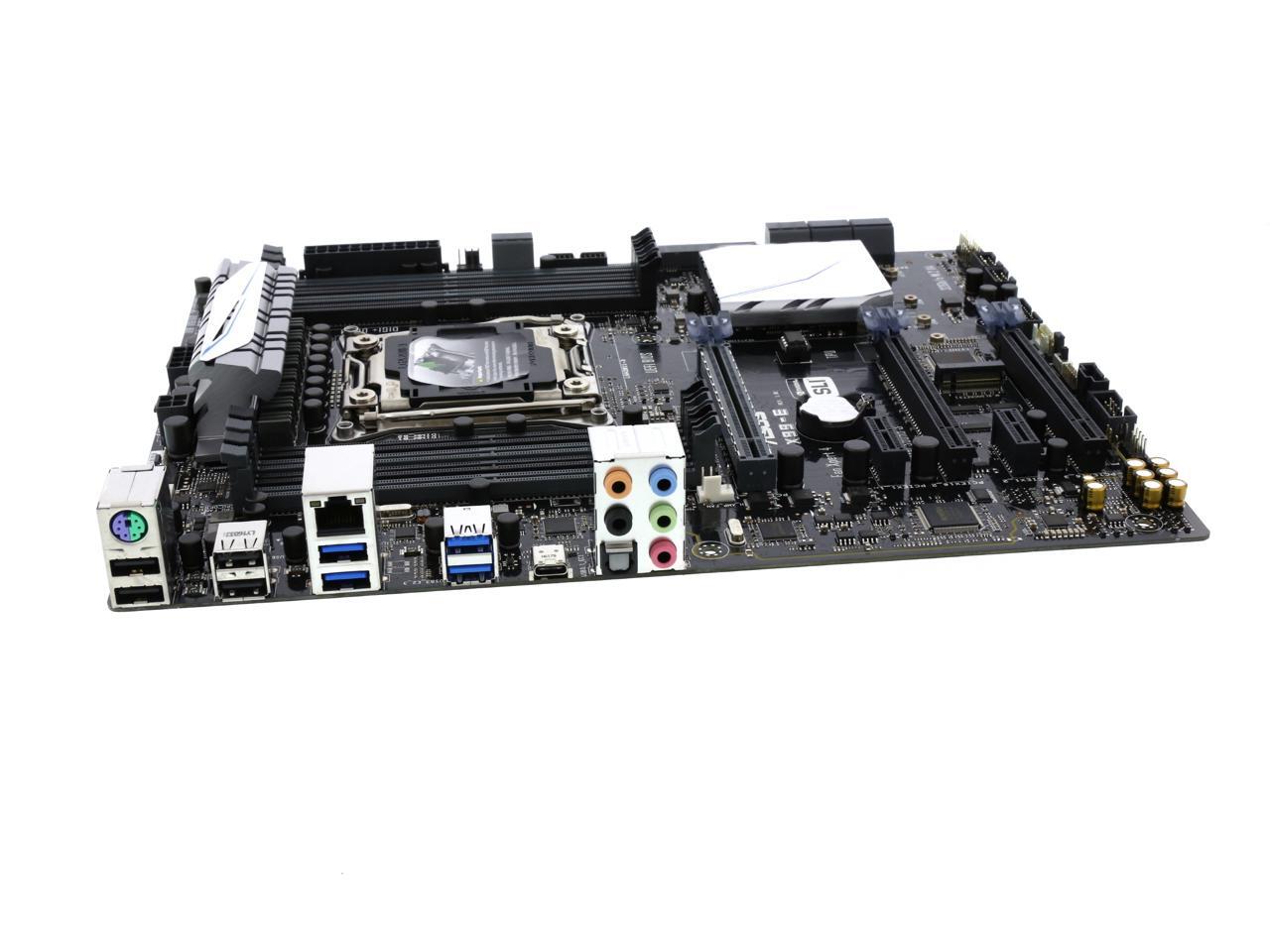

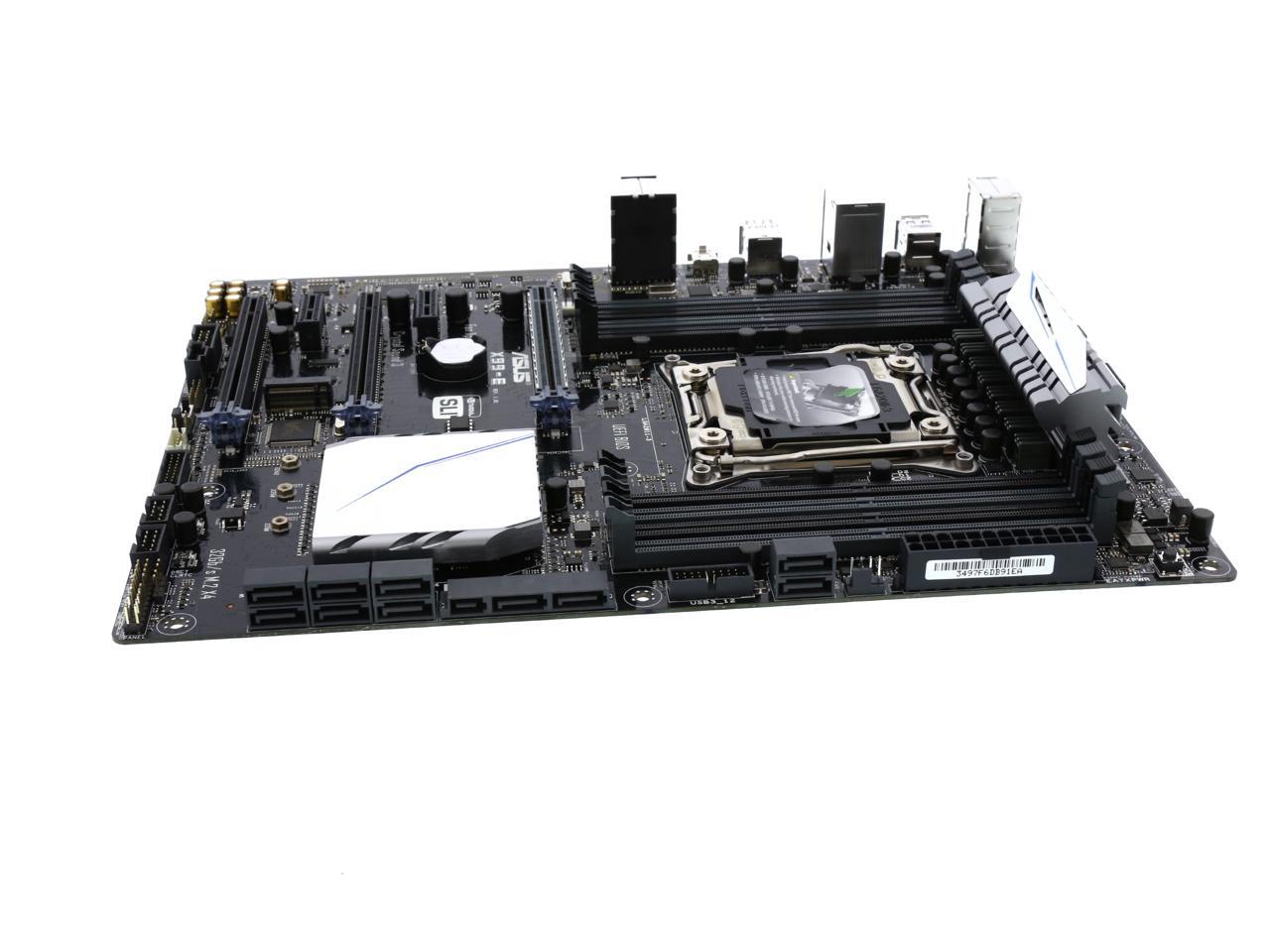

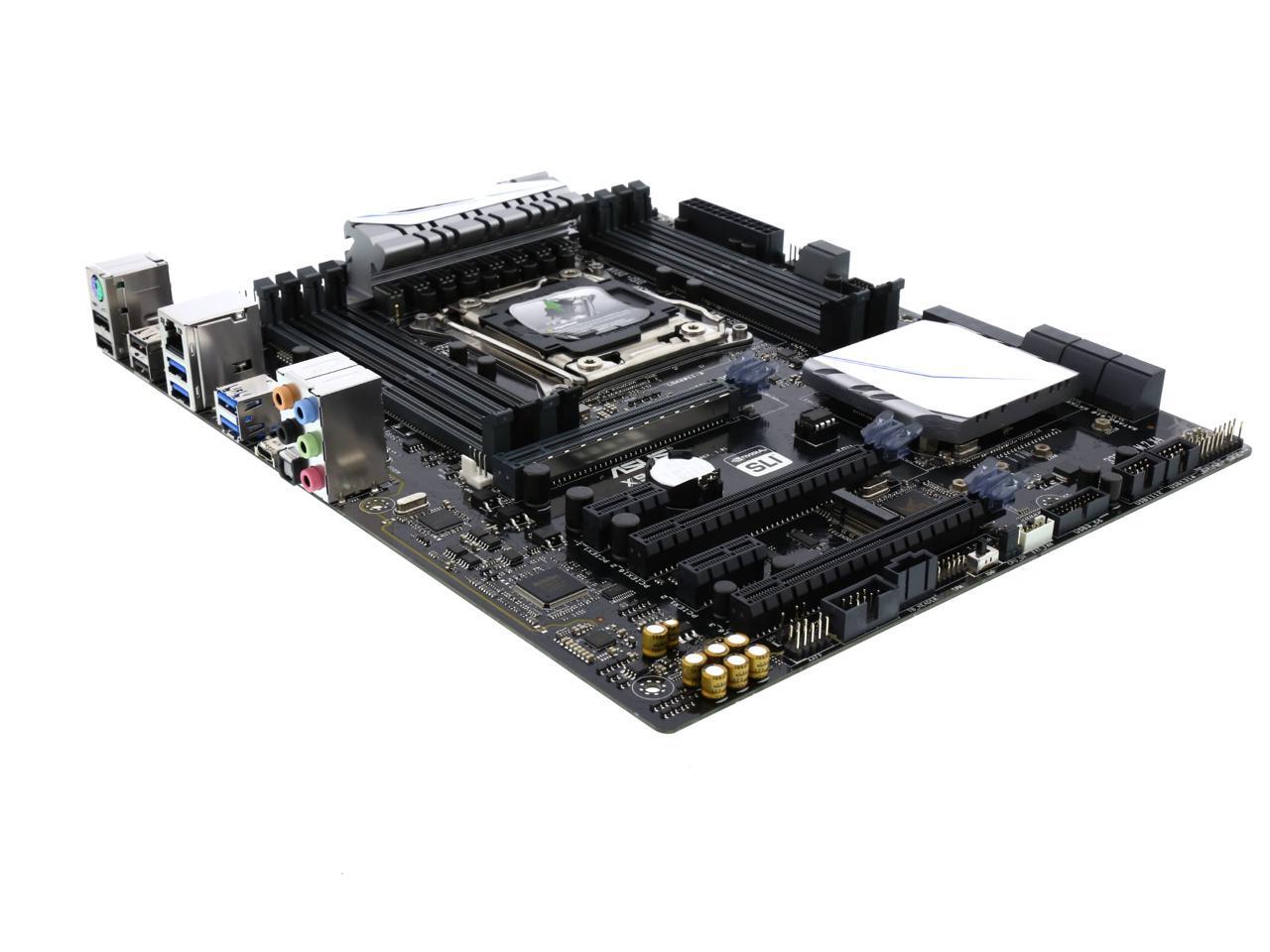

Main image of ASUS X99-E LGA 2011-v3 Intel X99 USB 3.1 ATX Motherboards - Intel

100%

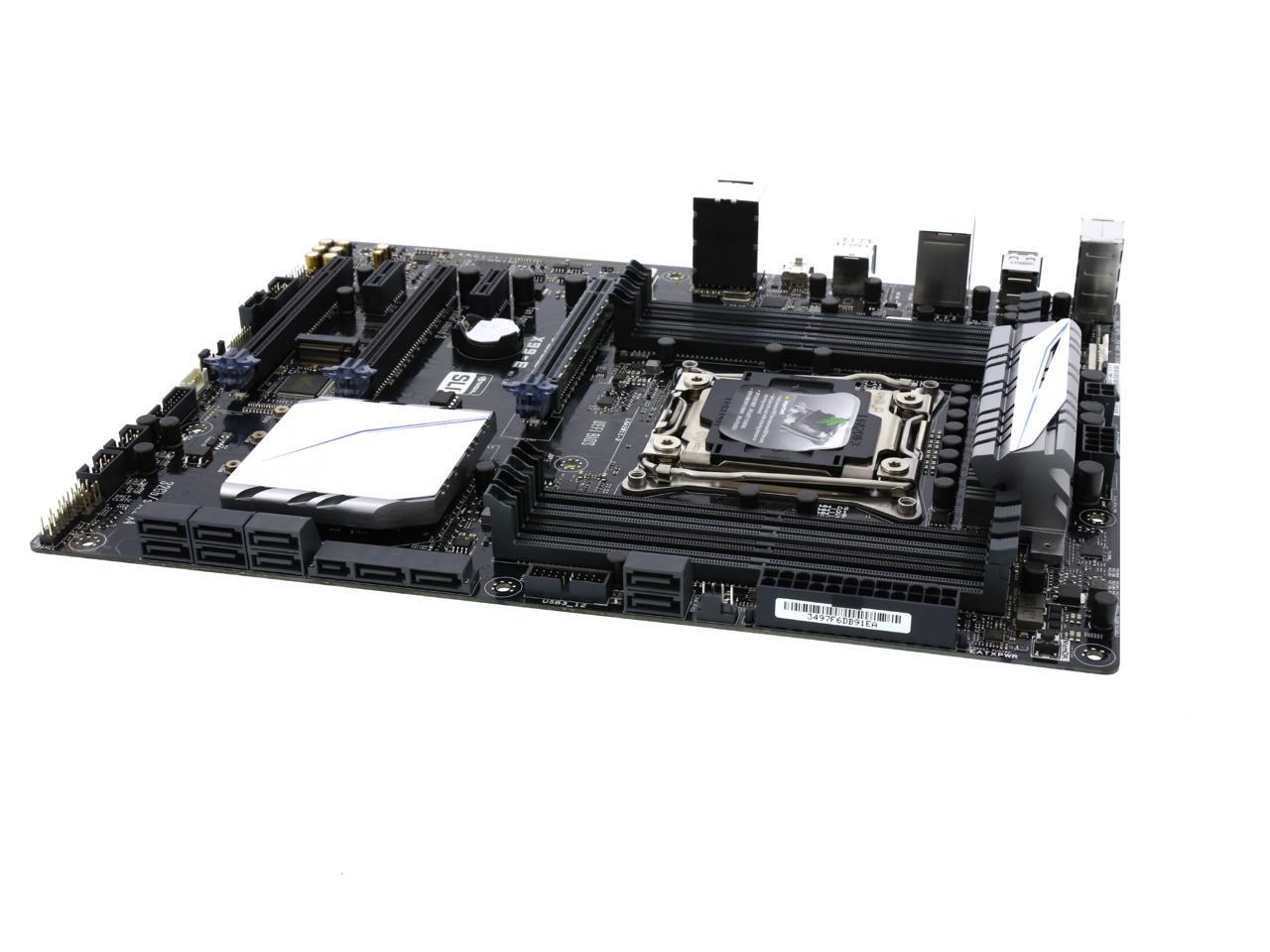

Alt view image 2 of 5 - ASUS X99-E LGA 2011-v3 Intel X99 USB 3.1 ATX Motherboards - Intel

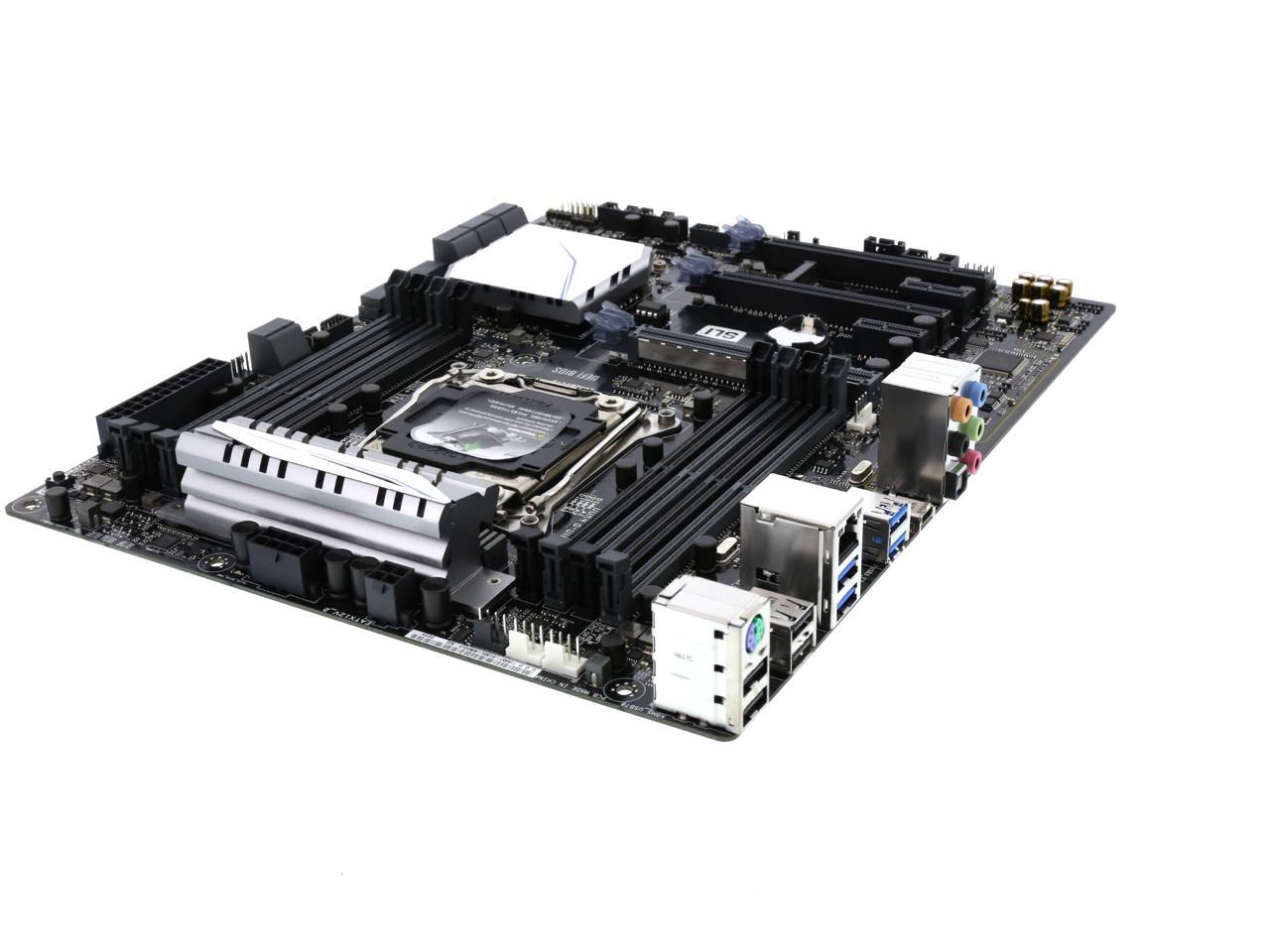

Alt view image 3 of 5 - ASUS X99-E LGA 2011-v3 Intel X99 USB 3.1 ATX Motherboards - Intel

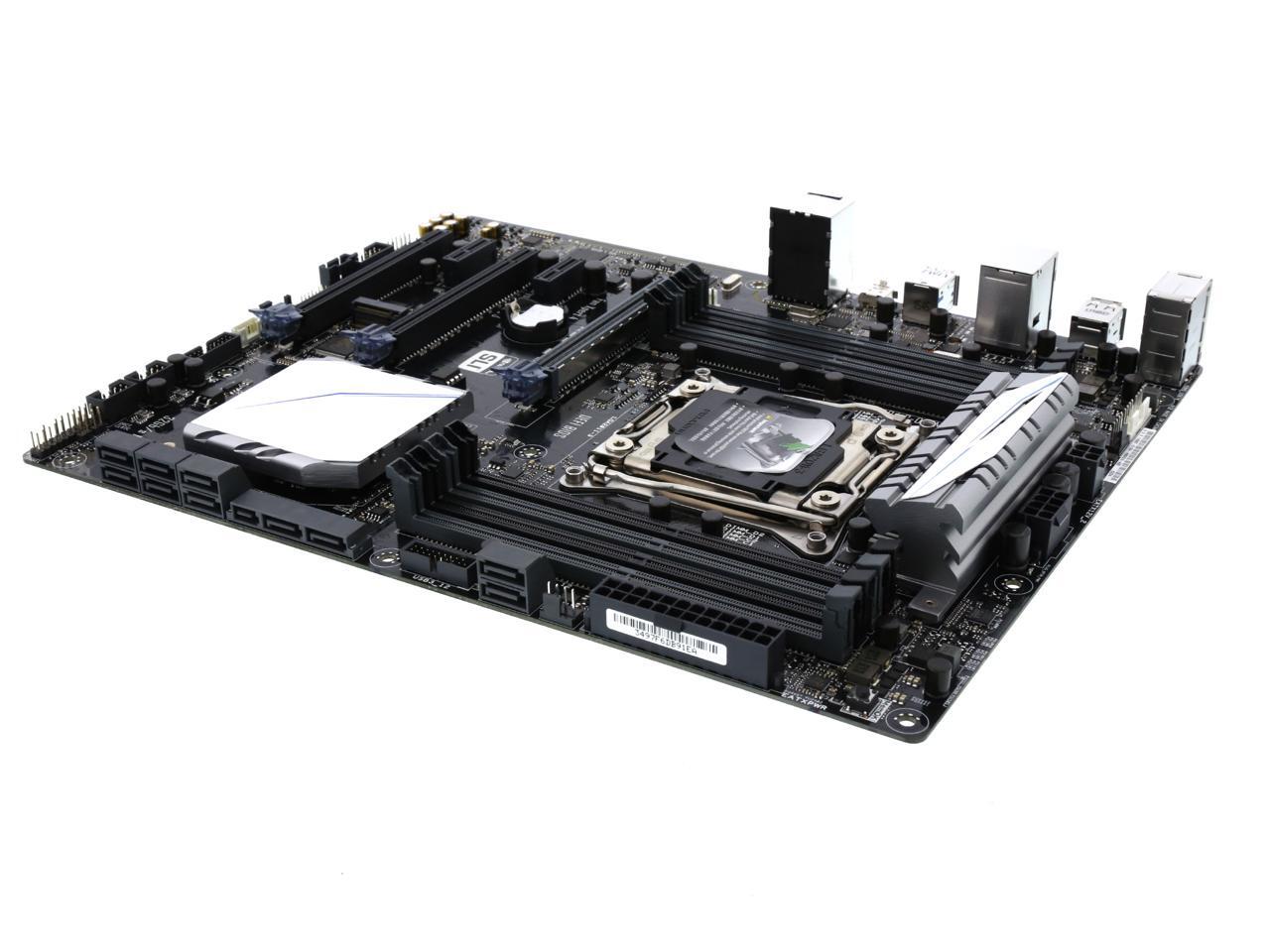

Alt view image 4 of 5 - ASUS X99-E LGA 2011-v3 Intel X99 USB 3.1 ATX Motherboards - Intel

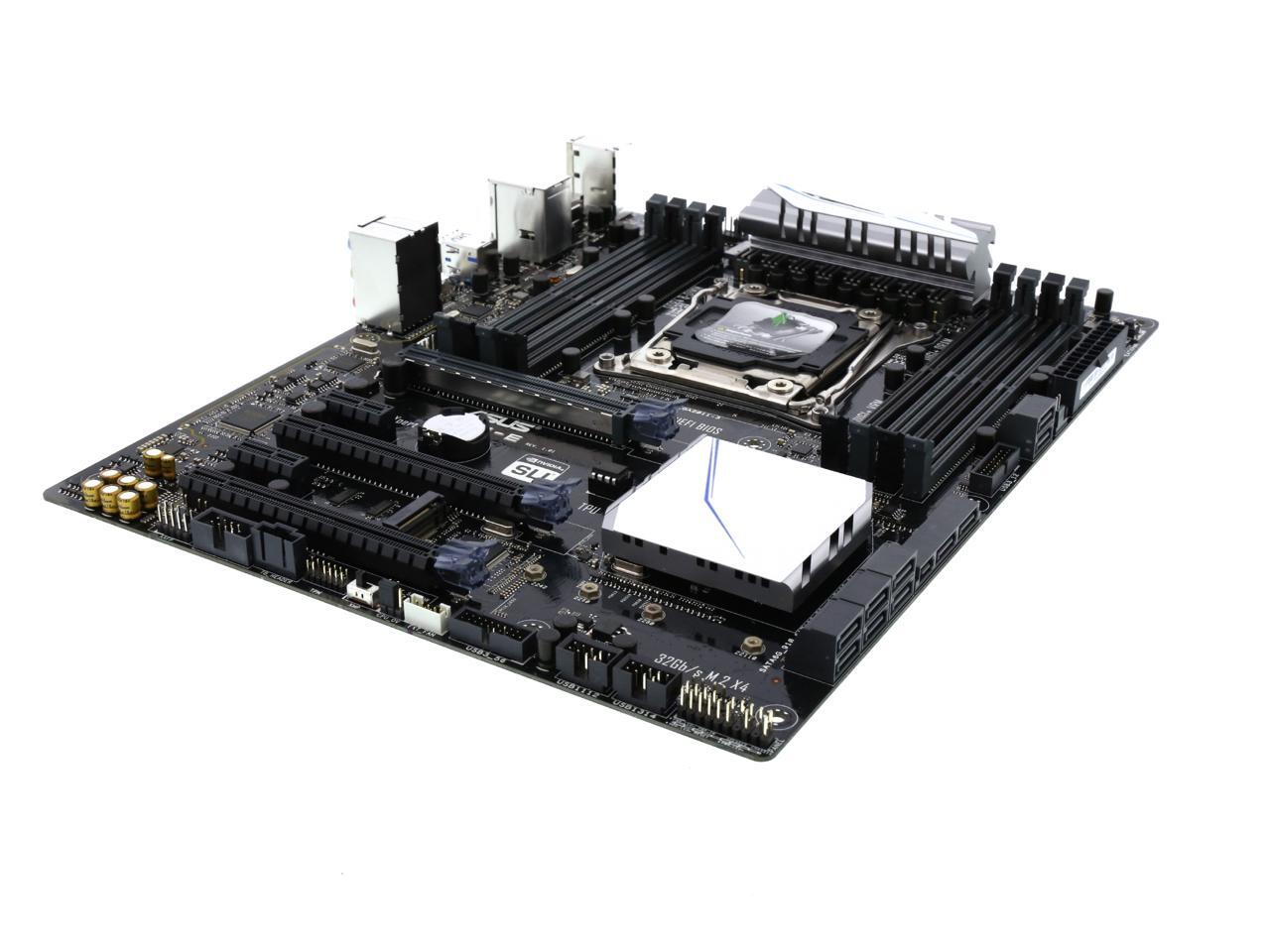

Alt view image 5 of 5 - ASUS X99-E LGA 2011-v3 Intel X99 USB 3.1 ATX Motherboards - Intel

360^°

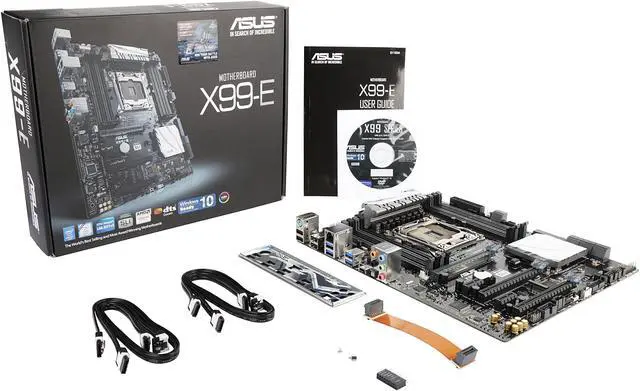

Images from RETAIL item, box contents may vary.

Shop All ASUS Products

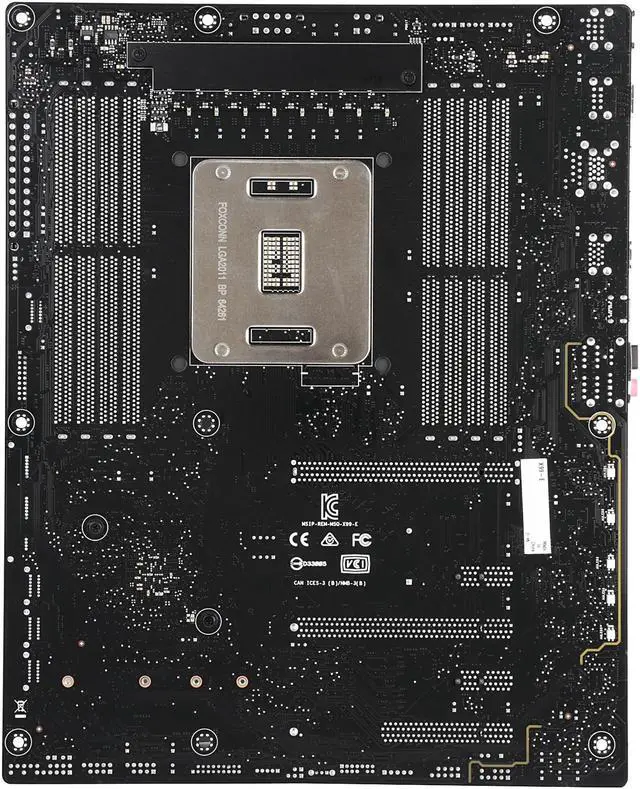

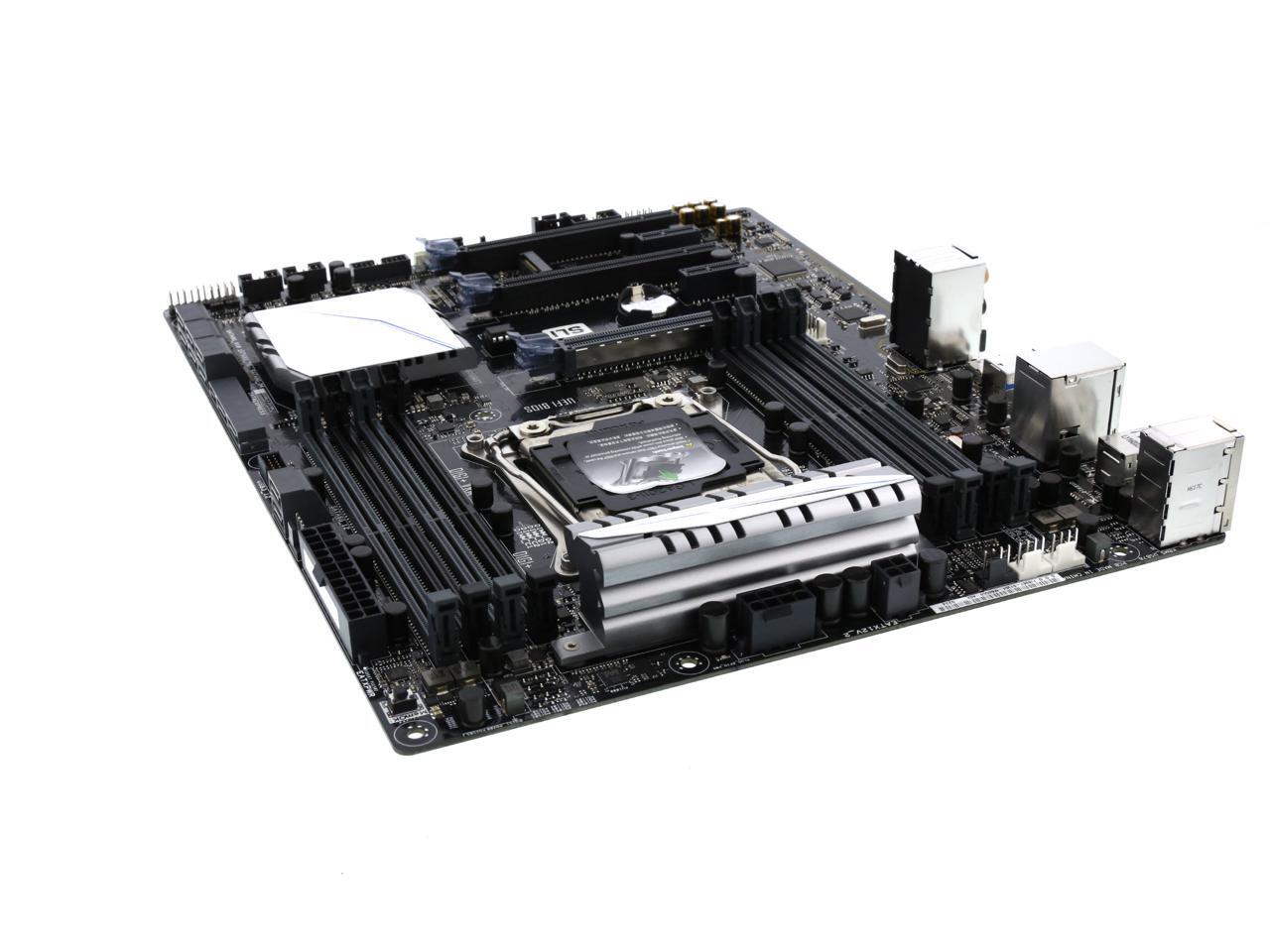

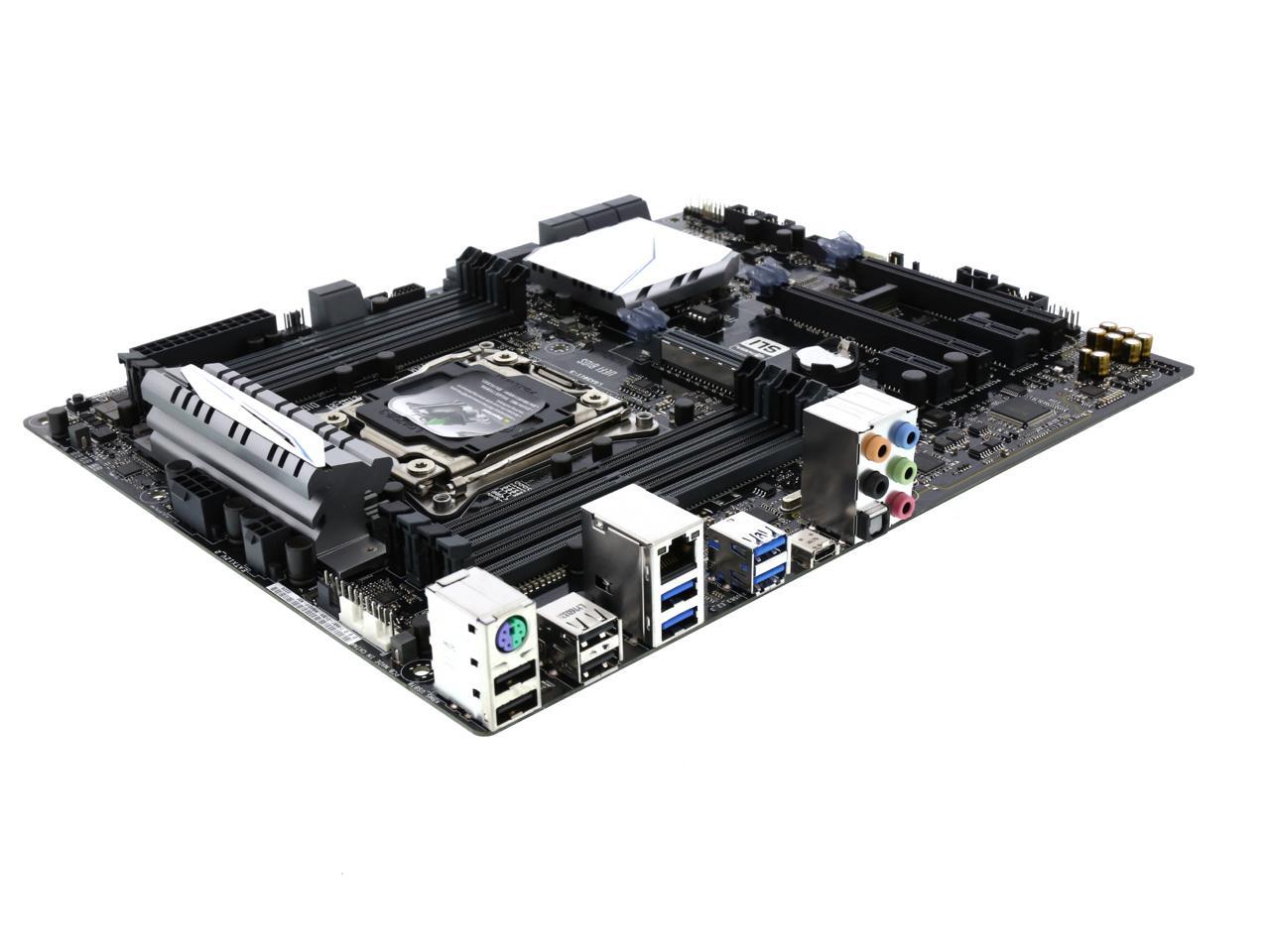

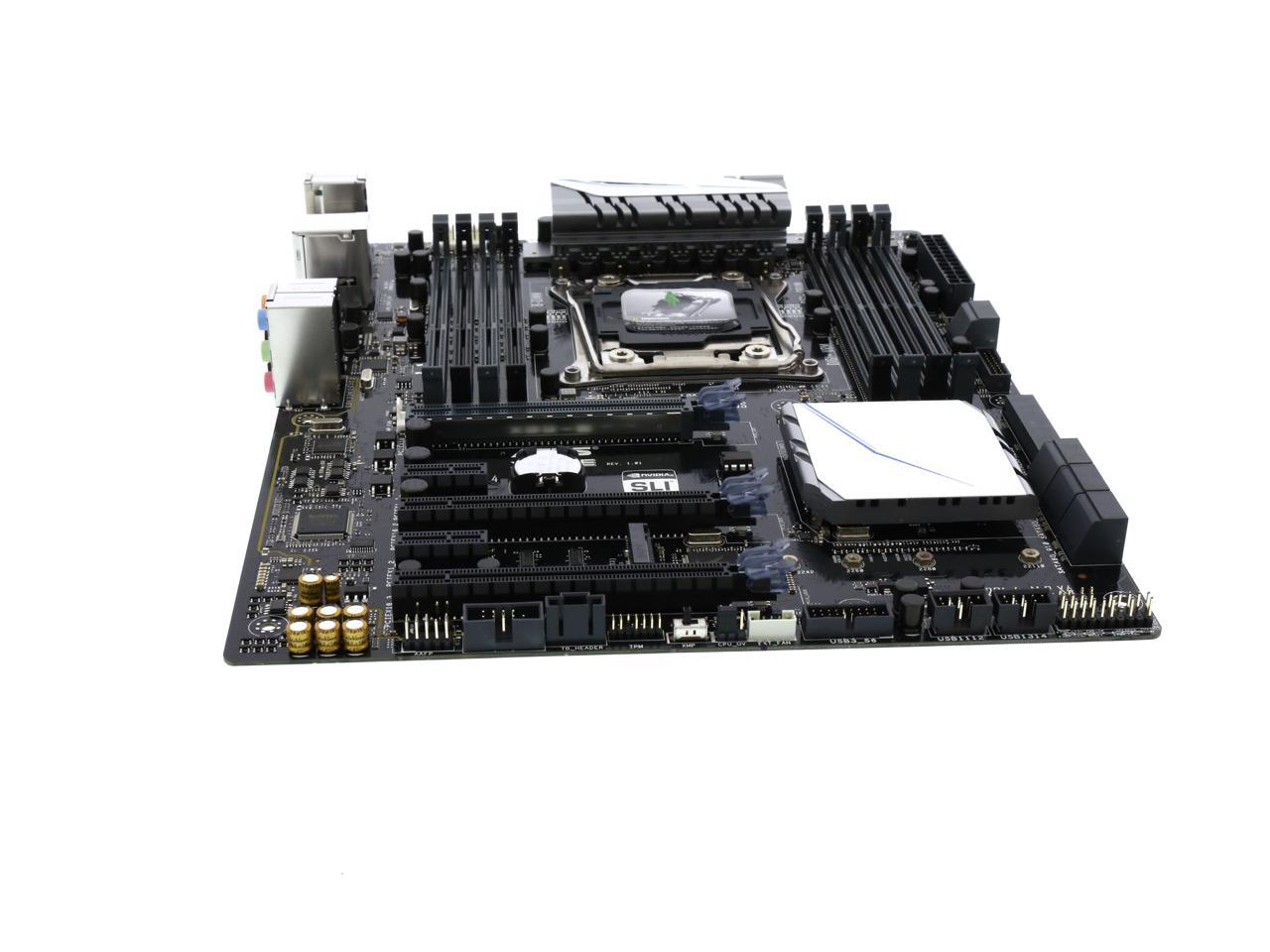

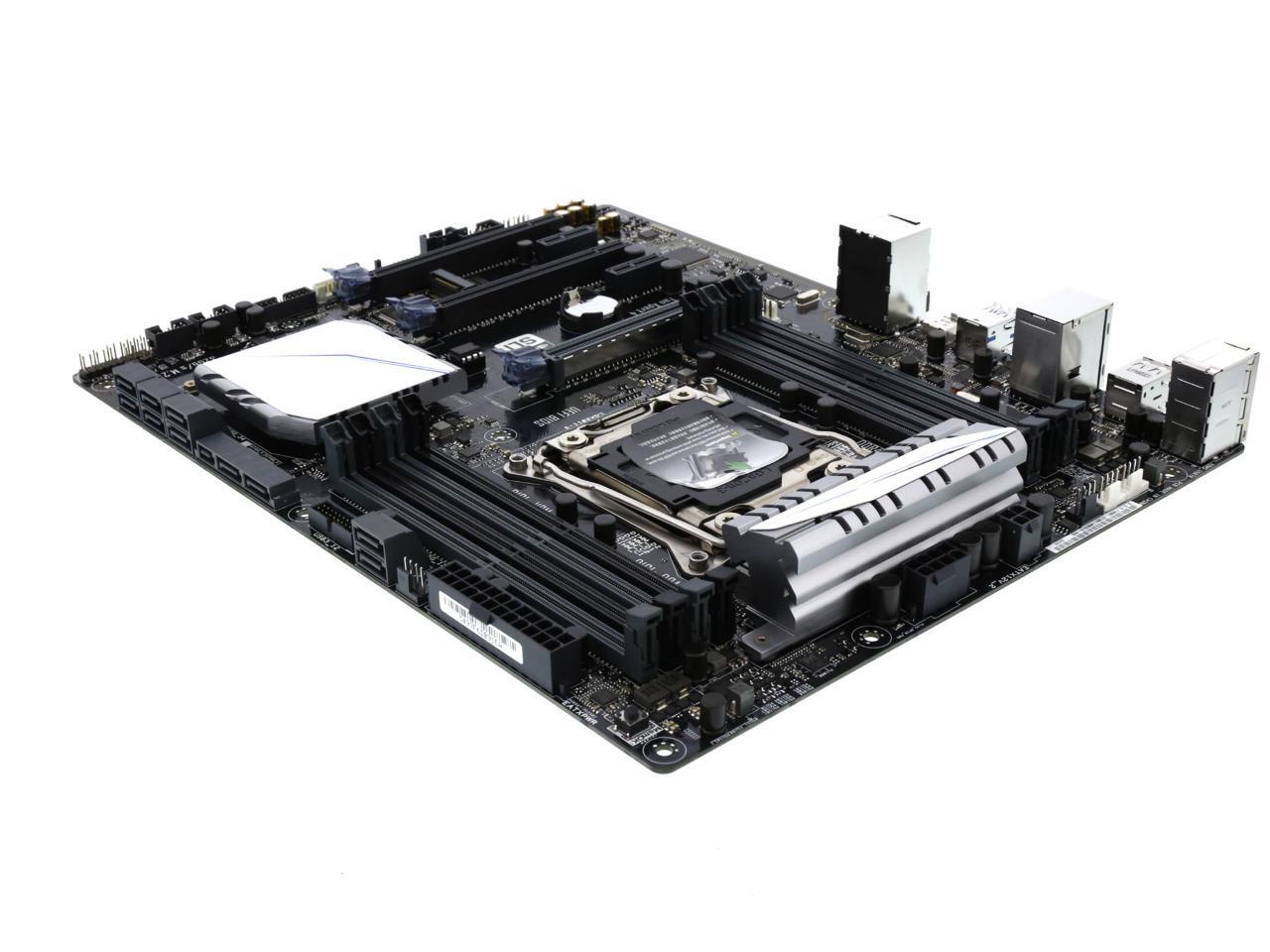

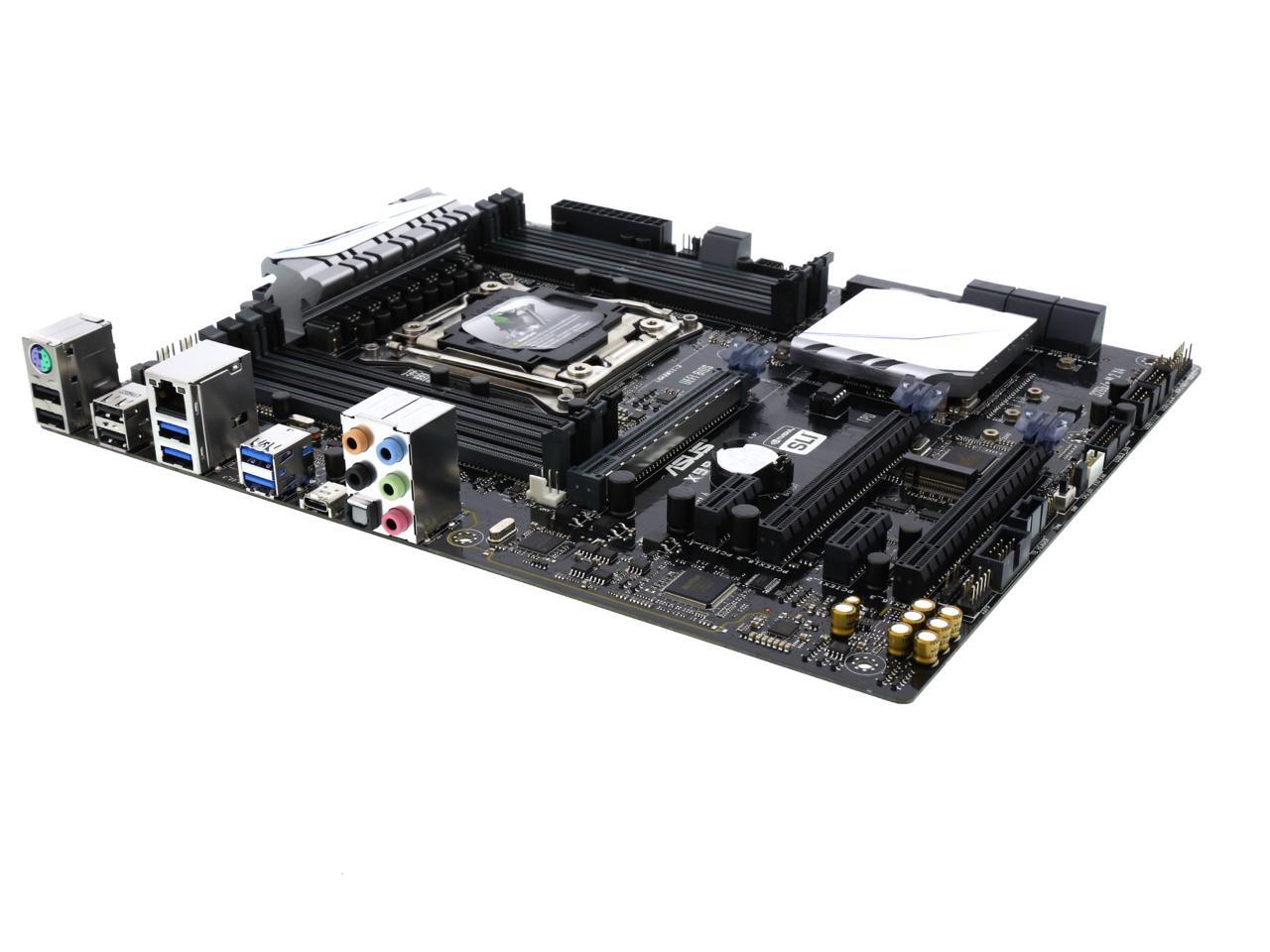

ASUS X99-E LGA 2011-v3 Intel X99 USB 3.1 ATX Motherboards - Intel

OPEN BOX

Intel X99
Core i7 (LGA2011-v3) / Xeon (LGA2011-v3)
DDR4 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	X99-E

Supported CPU
CPU Socket Type	LGA 2011-v3
CPU Type	Core i7 (LGA2011-v3) / Xeon (LGA2011-v3)
Supported CPU Technologies	The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types

Chipsets
Chipset	Intel X99

Onboard Video
Onboard Video Chipset	None

Memory
Number of Memory Slots	8x288pin (DDR4)
Memory Standard	DDR4 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Quad Channel

Expansion Slots
PCI Express 3.0 x16	40-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 1 28-Lane CPU- 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) 1 *1 The PCIe x16_3 shares bandwidth with M.2.
PCI Express x1	2 x PCIe 2.0 x1

Storage Devices
Serial ATA (SATA)	8 x SATA 6Gb/s port(s) 2 2 Due to chipset behavior, The SATA6G_78, SATA6G_910 ports do not support IRST including RAID configuration.
SATA Express	1 x SATA Express port, Compatible with 2 x SATA 6.0Gb/s ports
M.2	1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 1 1 The PCIe x16_3 shares bandwidth with M.2.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I218V
Max LAN Speed	1Gbps

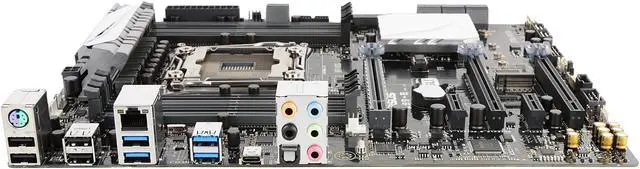

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
RJ45	1 x RJ45
USB 3.1	1 x USB 3.1 Gen 2 (black) USB Type-C 4 x USB 3.1 Gen 1 (blue)
USB 1.1/2.0	4 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x AAFP connector 1 x TPM connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x EZ XMP switch 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x CPU/DRAM overvoltage jumper(s) 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x Water Pump header (4-pin) 1 x COM port header 1 x High AMP Fan header (4-pin)

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

Features
Features	Multi-GPU Support: Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology Special Features: 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App ASUS 5X Protection II: - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS EPU: ASUS Exclusive Features: - Remote GO! - MemOK! - AI Suite 3 - Ai Charger+ - M.2 & SATA Express - Anti-Surge - USB 3.1 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 3 - EZ XMP ASUS Exclusive Features - Mobo Connect - PC Cleaner Remote Entertainment - Media Streamer - HyStream ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY: - DirectKey - Precision Tweaker 2 - ASUS CrashFree BIOS - ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS - Push Notice ASUS Q-Design: - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design Media Streamer AURA: RGB Lighting Control Operating System Support: Windows 10, 64-bit Windows 8.1, 32/64-bit Windows 7, 32/64-bit BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Support Disc: Drivers ASUS Utilities EZ Update Anti-virus software (OEM version)

Additional Information
First Listed on Newegg	August 12, 2016
