Question 1

can this motherboard utilize geforce cards , like gtx 1060 with full potential? i can not see any supported geforce card on the motherboard web page

Accepted Answer

Yes-  I have a 980ti in mine.  If you're running linux, just check for any driver support issues

Question 2

Is it possible to only install  only one processor?

Accepted Answer

Can confirm, single processor can be used. I'm using an E5-2620V3 and I'm having no problems at all.

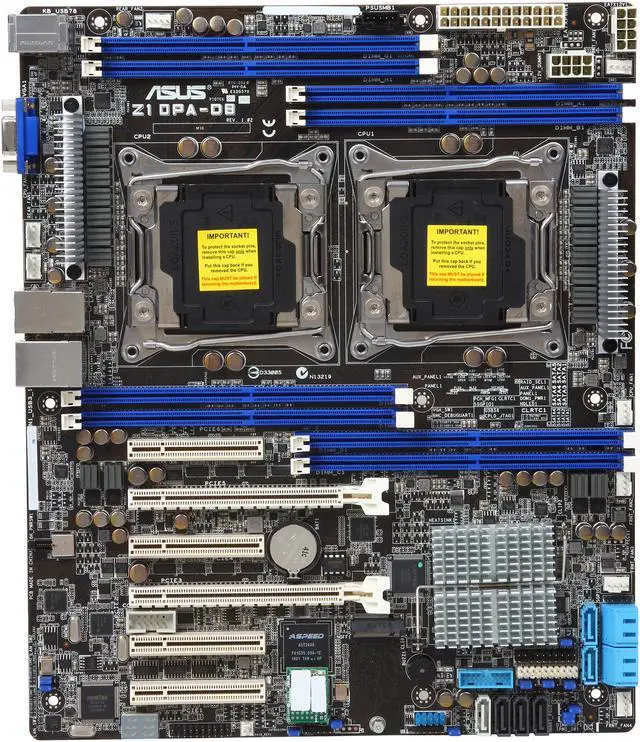

What's cool about this motherboard, is that you don't lose any extension functionality with only 1 processor installed. Check out the manual for this motherboard on ASUS' website, and you can see the board layout for yourself.

Btw, CPU1 slot is the one that is furthest from all the backside IO connections.

Question 3

Is this mobo support E5-2620 V4 processor ?

Accepted Answer

Dulsara,

Go to Asus website, and look up the product page and manual. It will tell you which processors match. I didn't use the exact one you mentioned but similar. However, I confirmed first before buying.

That's where I found what other parts were matching the mobo.

Best!

/Jonah

Question 4

Can I install Intel® Xeon® Processor E5-2660 v2 or E5-2650L v3 CPUs on this motherboard?

Accepted Answer

ASUS says it takes the entire E5-2600 v3 family

Question 5

What CPU cooler did you use?

Accepted Answer

I installed two CPUs on the Z10PA-D8, which is a great server mobo. I used the Intel BXSTS200C thermal solution for both CPUs. They work great, fit perfectly, quiet, plenty of cooling, etc.

Question 6

What is the size of this mobo? ATX? Extended ATX?

Accepted Answer

Actually it suprized us that it was ATX. We too had expected to be Extended however it fits well in a mid tower ATX case

Question 7

does this motherboard support i7 47XXK family processers?

Accepted Answer

i7 really should not be used in the C chipset series. You can only use one CPU as the i7 has no QPI link. Just get a Z97 or X99 board depending on the i7 you want to use.

Question 8

The processors I want to use (dual E5-2620 V4) are supported on this board as of BIOS 3107, according to the Asus product page. The processors are not supported in some earlier BIOS versions. What BIOS level does the board ship with today?

Accepted Answer

Hi Mark, I a regular buyer like use... I did a bios upgrade in order to install the CPU.

I am running windows 10 on this server and its working fine.

Question 9

hi, dose this motherboard support dual xeon v4 cpus? although single cpu is stated to be supported in asus webpage , i see many reports that dual xeon v4 is not supported out of the box and need service in asus center( not easy to have one here in Denmark), so dose any one have dual xeon v4 cpus on this motherboard?

Accepted Answer

Hello, Thank you for contacting us with your question. We apologize that we are unable to provide you with direct technical assistance; however, we recommend visiting our online community forum. www.eggxpert.com. At EggXpert you can chat with someone who may assist you with your question. Hope this information is helpful. Have an Eggcellent Day! Newegg.com

Question 10

Is this motherboard compatible with 2x noctua NH-U12DX i4 coolers?

Accepted Answer

Alex,
You have to look at product page site (asus + Noctua). There is a difference between Noctua fans that fit gaming / workstation boards and there those that fit server board. Please check both sites to confirm matching at both ends.

Best!

/Jonah

CPU Socket Type	Dual LGA 2011-3
CPU Type	Intel Xeon processor E5-2600 v4 product family Intel Xeon processor E5-2600 v3 product family
QPI	Up to 6.4 / 8.0 / 9.6 GT/s

Number of DDR4 Slots	8
DDR4 Standard	DDR4 2400 / 2133 / 1866 / 1600 / 1333 RDIMM DDR4 2400 / 2133 / 1866 / 1600 / 1333 LRDIMM
Maximum Memory Supported	512GB
Channel Supported	Quad Channel

PCI Express 3.0 x16	Slot Location 3 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied
PCI Express x8	Slot Location 1: PCI-E x8 (Gen2 X4 Link) Slot Location 2: PCI-E x8 (Gen3 X8 Link) Slot Location 4: PCI-E x8 (Gen3 X8 Link) Slot Location 6: PCI-E x8 (Gen3 X8 Link), MIO supported

SATA	10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector
SATA RAID	Intel RSTe (for Windows only; Support software RAID 0, 1, 10 & 5) LSI MegaRAID driver supports software RAID 0, 1 & 10 (Windows & Linux)

Number of LAN	2 x Intel I210AT + 1 x Mgmt LAN
LAN Chipset	Intel I210-AT
Second LAN Chipset	Intel I210-AT

Best Sellers

Meet Your Seller

ASUS Z10PA-D8 ATX Server Motherboard Dual LGA 2011-3

Used - Very Good

Learn more about the ASUS Z10PA-D8

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x VGA Port
RJ45	3 x RJ45
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

Model
Brand	ASUS
Model	Z10PA-D8

Dimensions
Form Factor	ATX
Dimensions (W x L)	12" x 10"

Item#: 9SIA4REKE75981
