Question 1

Do I absolutely need to use ECC registered ram from the supported list? Or is regular ram worth a shot?

Accepted Answer

Generally, yes you absolutely need ECC ram. It will fail to boot in most scenarios if non-ECC is used.  Went through that myself and found that the Xeon processor that I had used required ECC ram.  The non-ECC I had tried wouldn't work.  Check Intel ARK for your selected Xeon processor, but to be on the safe side I'd go ECC to avoid having to return the RAM and re-order the correct kind later.

Question 2

Does this board support e5-2680 V2 2.8Ghz 10 Core?

Accepted Answer

Per the product description, this board supports the E5-26xx v3 product family, so no. You can confirm this on the ASUS support site.

Question 3

i heard that this works with a lot of the QS/ES cpu?  The CPU i have in mind to run with it is the E5-2686 v3.  if anyone runs this cpu with this MB, please let me know your experience.  thanks

Accepted Answer

I do not run the E5-2686 v3, but I do run dual e5-2698 v3 and they are engineering samples. Both run great and have no issues with running the CPUs on this specific motherboard.  I would presume that since both the E5-2686 v3 and the E5-2698 v3  are similar in nature, you should not have any issues if properly installed and cooled. For CPU cooling I am using two Corsair Hydro H110v2 liquid cooling kits.  I hope this helps!

Question 4

Does this really support that much ram!?

Accepted Answer

With the correct Ram modules it is possible however extremely expensive. I can't really think of any reason why it would really be necessary to have that much in one system though. If really curious these are the only two compatible sticks, (M386A8K40BMB-CRC) and (MTA72ASS8G72LZ-2G3A1PG)

Question 5

can i use just one cpu for now ? i'm planning to use it with e5 2696 v4 xeons.

Accepted Answer

I have an E5-2620 v4 singled out at the moment.  So yes.  Just make sure to only install ram in the slots that serve the single proc.

Question 6

Would that motherboard support:
GTX TITAN X 12GB GDDR5,
Intel XEON E5-2670 2.6 GHz 20 MB 8-Core CPU,
CORSAIR Vengeance LPX 128GB (8 x 16GB) 288-Pin DDR4 SDRAM DDR4 2133 (PC4 17000) Memory Kit - Black Model CMK128GX4M8A2133C13
 ?  Thank you

Accepted Answer

I don't think that ram is on the supported  list. Make sure you check the asus product site for the approved. Ram. It's going to be an ECC type ram.

Question 7

will this accept xeon e5-2600 v4 processors?

Accepted Answer

Yes, it will  run E5 v3 and v4 processors.

Question 8

I've seen this board supports E5-1600 v4 series on the Asus global website and in Geekbench has an entry. Asus Switzerland said the list is cannonical, which only supports the E52600 v4 series. 1. Does it support the E5-1600 series in single processor mode? (Newegg has the parts to test this.). Can all the DIMM's be populated?

Accepted Answer

I don't really recommend it but this motherboard will accept a E5-1600 v4/3 series CPU in single configuration only. Doing so limits you to only 8 DIMMs of the 16 slot this motherboard has available. Also note that half of the PCI-E slots will not run because they are buses to the second CPU socket.

CPU Socket Type	LGA 2011-v3
CPU Type	Xeon E5-2600 v3 product family (LGA 2011-v3)

Number of Memory Slots	16x288pin (DDR4)
Memory Standard	DDR4 2133 / 1866 / 1600
Maximum Memory Supported	1TB
Channel Supported	Quad Channel

PCI Express 3.0 x16	4 x PCIe 3.0/2.0 x16 (x16 mode) 3 2 x PCIe 3.0/2.0 x16 (x8 mode) 3 *3 This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details.
PCI Express x16	6 x PCI Express x16

Serial ATA (SATA)	10 x SATA 6Gb/s port(s), gray 4 4 6 x right angle connectors from SATA controller, 4 x vertical connectors from sSATA controller, LSI MegaRAID only support SATA Controller.
M.2	1 x M.2 Socket 3, black 5 5 M.2 Socket 3 supports M Key and type 2260/2280/22110 storage devices.
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC1150
Audio Channels	8 Channels

Meet Your Seller

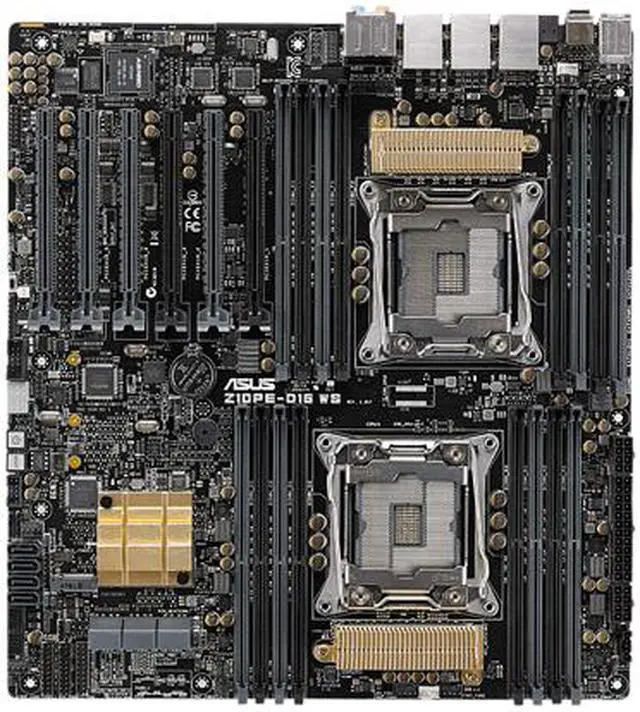

ASUS Z10PE-D16 WS LGA 2011-v3 Intel C612 PCH USB 3.0 SSI EEB Intel Motherboard

Used - Good

Learn more about the ASUS Z10PE-D16 WS

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

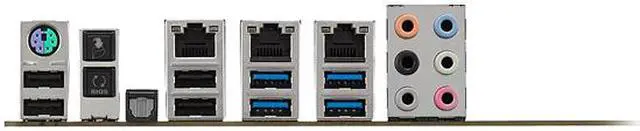

PS/2	1 x PS/2 keyboard/mouse port
RJ45	2 x LAN (RJ45) port(s)
USB 3.0	4 x USB 3.0 (blue)
USB 1.1/2.0	4 x USB 2.0 6 6 1 x Chassis intrution (2-pin)
S/PDIF Out	1 x Optical
Audio Ports	1 x 8-channel Audio I/O

Onboard USB	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	1 x AAFP connector 1 x TPM connector(s) 1 x COM port(s) connector(s) 2 x CPU Fan connector(s) (2 x 4-pin) 7 x Chassis Fan connector(s) (7 x 4-pin) 1 x S/PDIF out header(s) 2 x 8-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x RAID key header(s) 1 x VGA connector(s) 1 x AUX panel header(s) 1 x SMBus header(s) 2 x System panel(s) (Q-Connector) 1 x Chassis Intrusion connector(s) 6 1 x TPU switch(es) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es) 2 x Serial Port header 1 x ASMB8-iKVM connector 6 1 x Chassis intrution (2-pin)

Form Factor	SSI EEB
Dimensions (W x L)	12.01" x 13.00"
Power Pin	24 Pin

Onboard LAN
LAN Chipset	Intel I210-AT
Max LAN Speed	2 x 1Gbps

Item#: 9SIAWFGKEE6450
