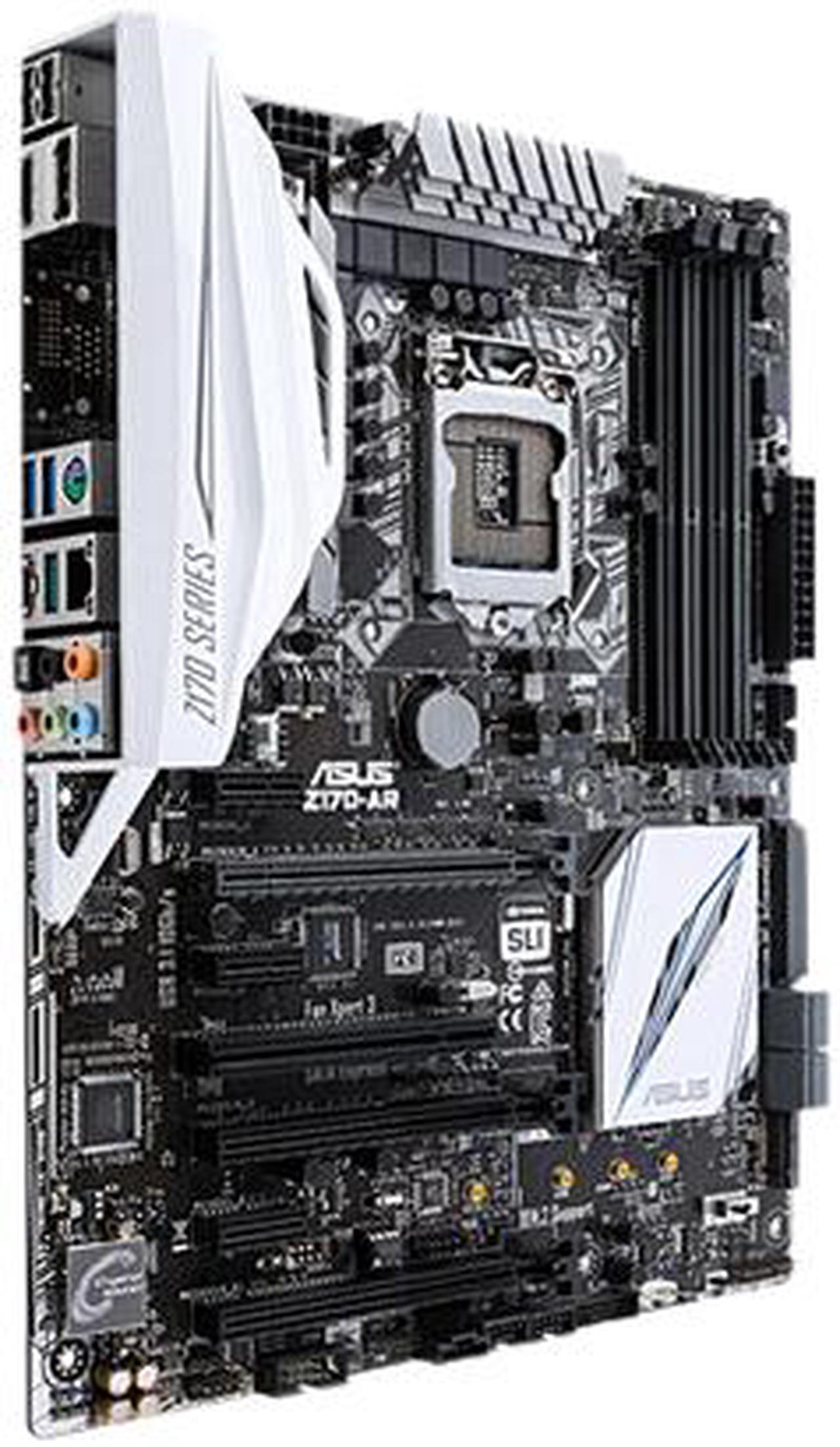

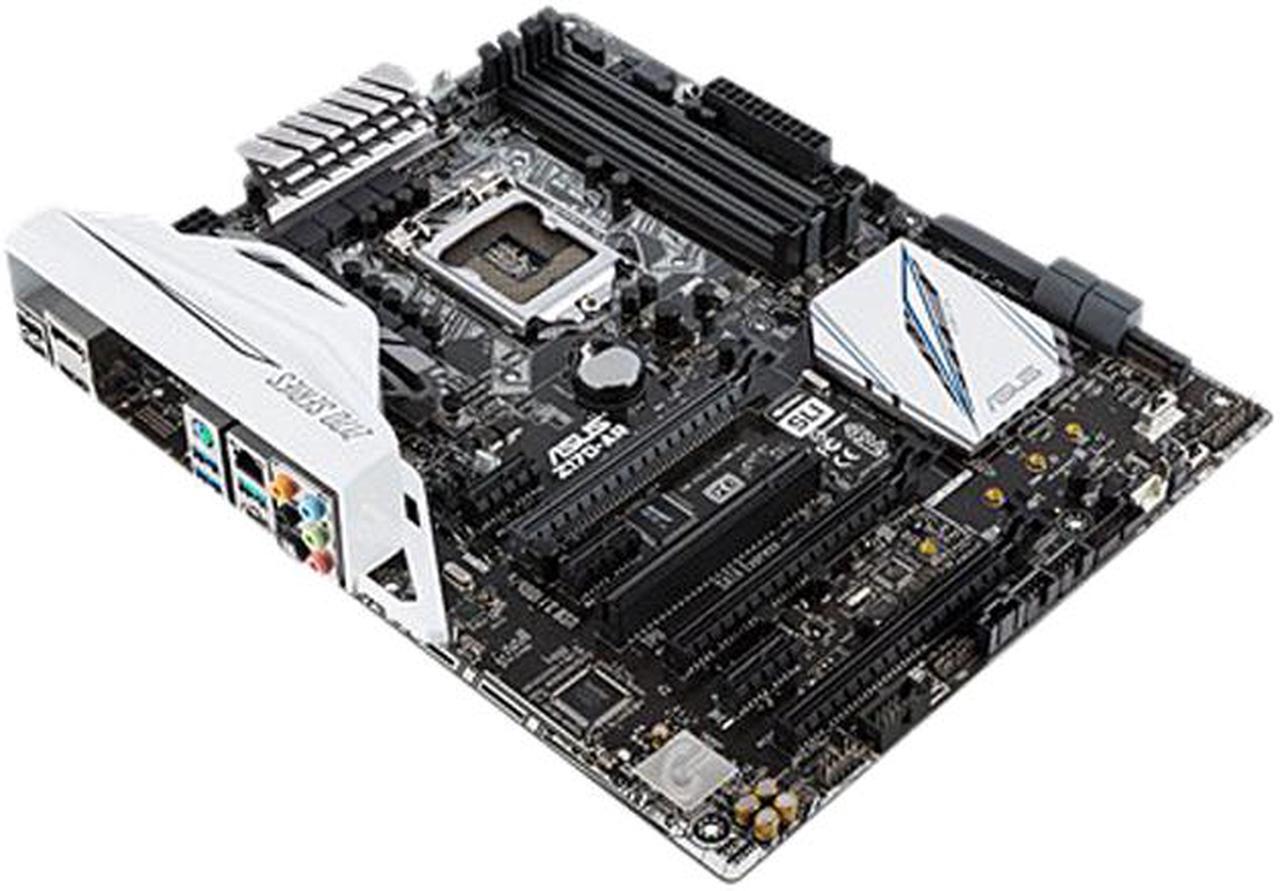

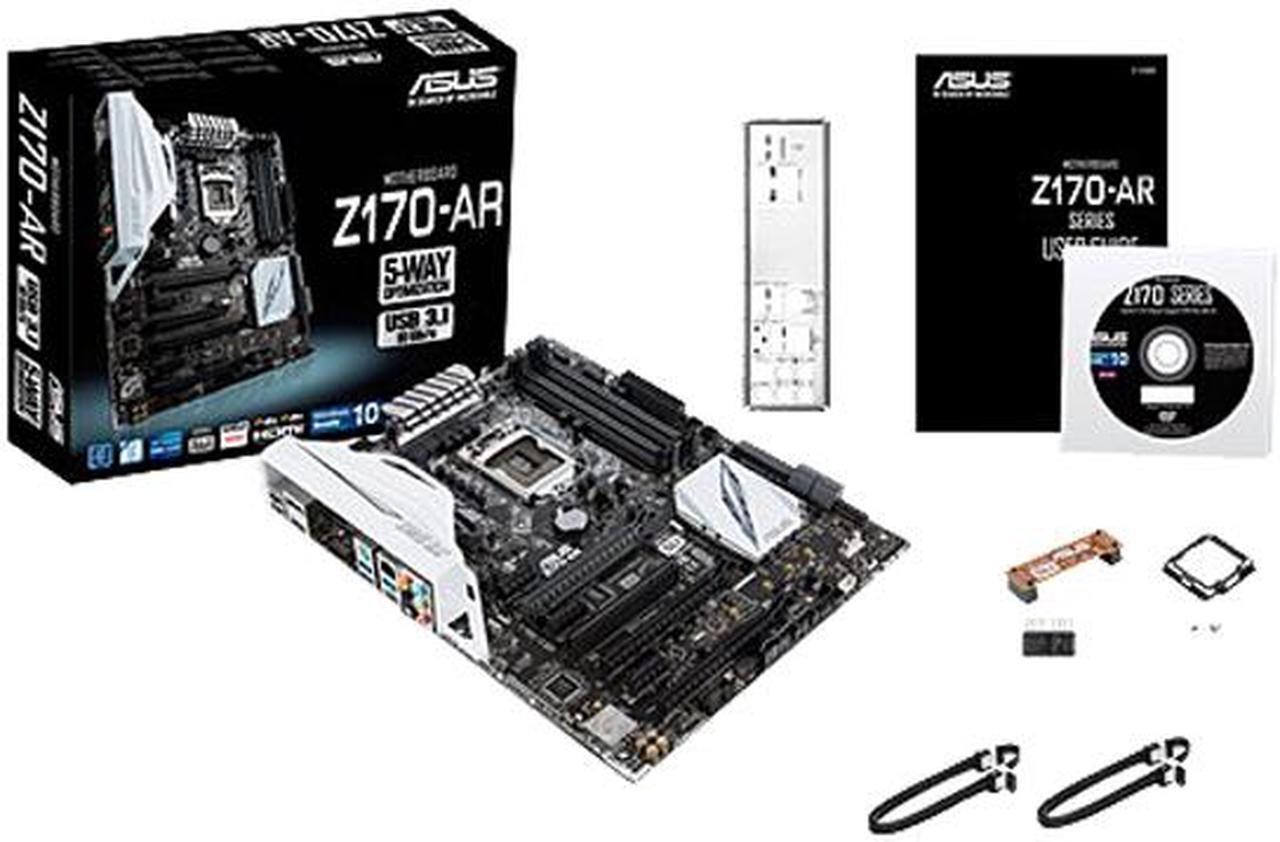

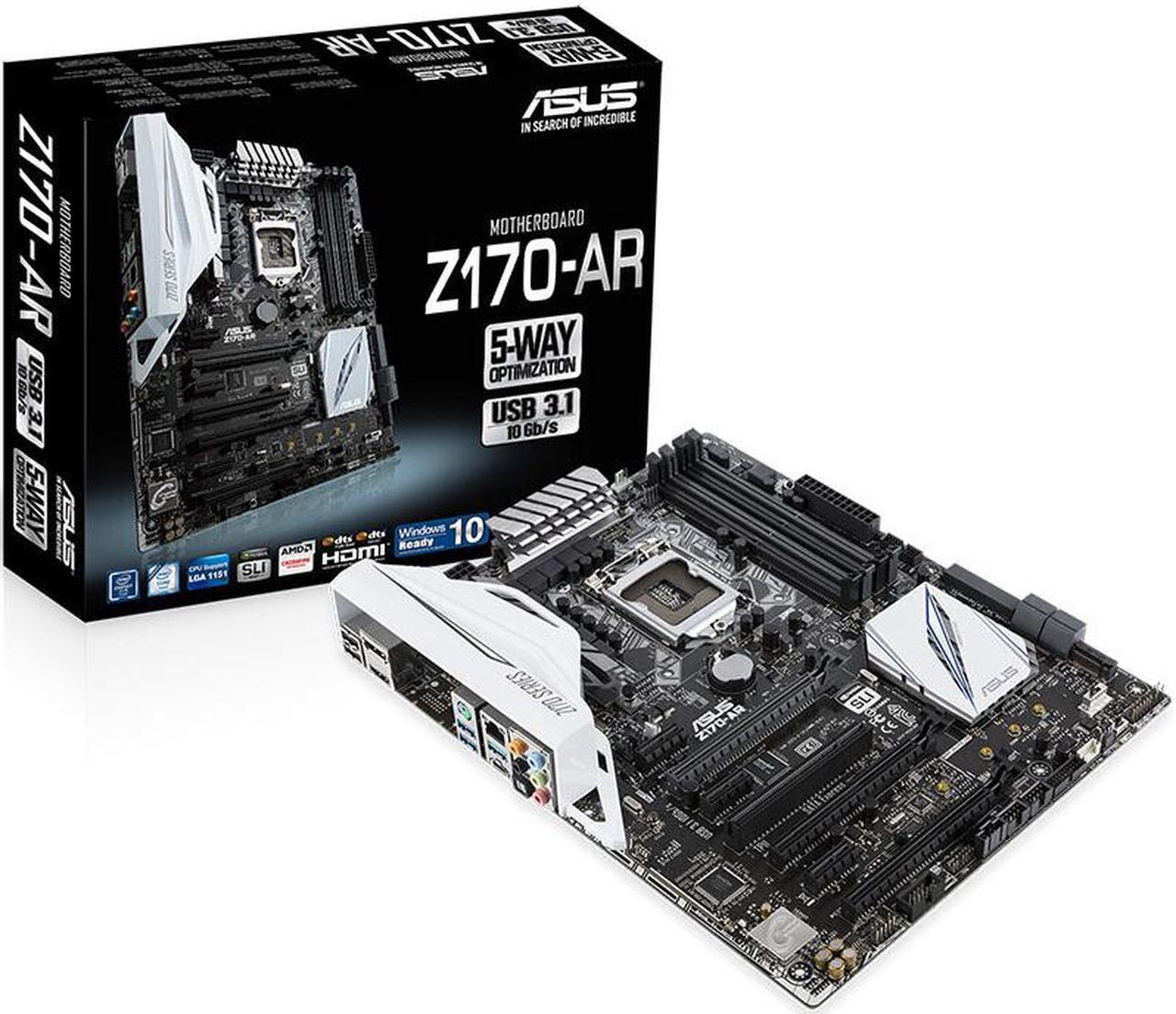

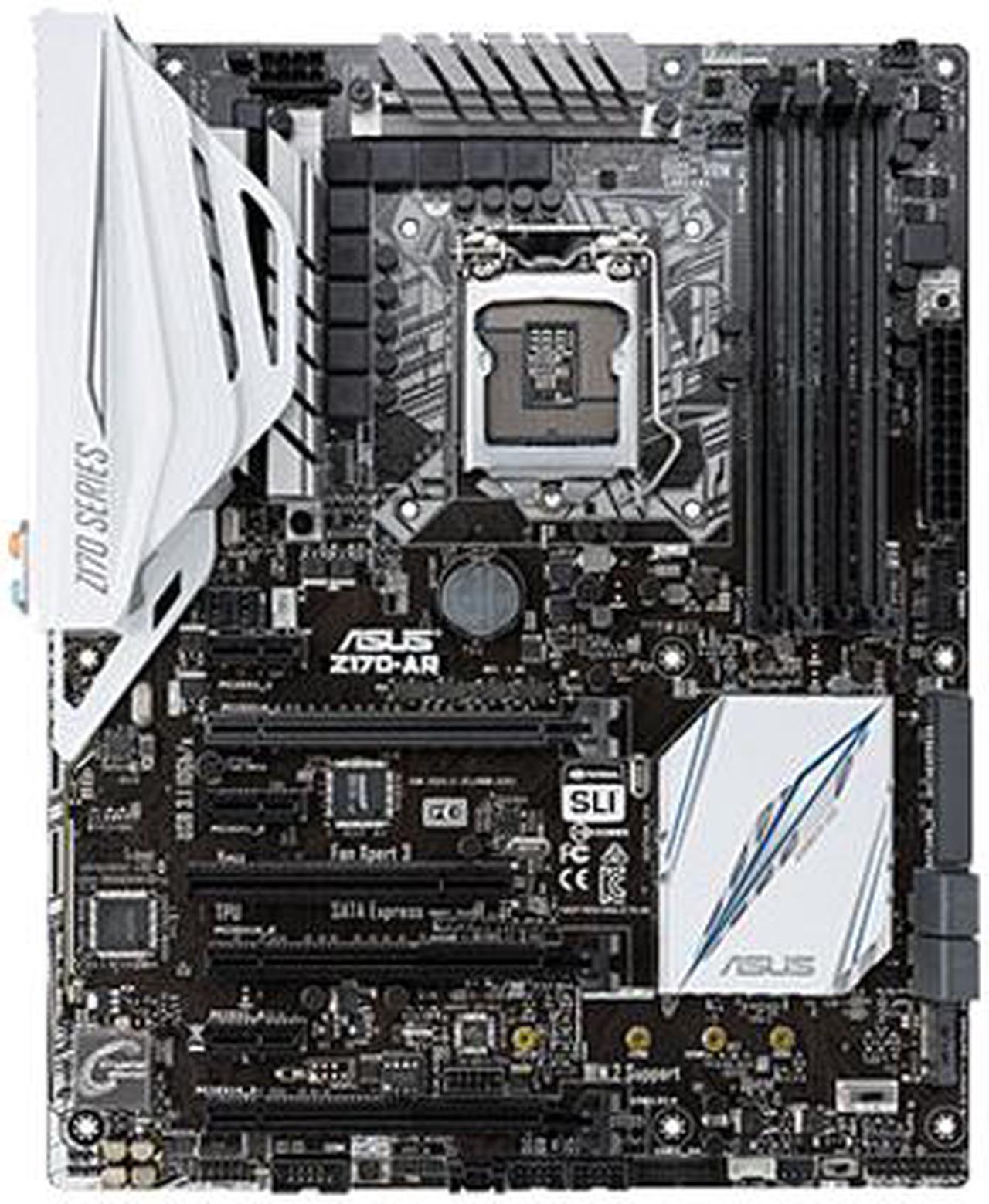

Main image of ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 2 of 8 - ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 3 of 8 - ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 4 of 8 - ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 5 of 8 - ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 6 of 8 - ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 7 of 8 - ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 8 of 8 - ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Shop All ASUS Products | Visit Corn Electronics Store

ASUS Z170-AR LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Used - Like New

Intel Z170
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Pentium
DDR4 3466 (O.C.) / 3400 (O.C.) / 3333 (O.C.) / 3300 (O.C.) / 3200 (O.C.) / 3000 (O.C.) / 2800 (O.C.) / 2666 (O.C.) / 2400 (O.C.) / 2133 (O.C.)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Corn Electronics Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	4 x DIMM
Memory Standard	DDR4 3466 (O.C.) / 3400 (O.C.) / 3333 (O.C.) / 3300 (O.C.) / 3200 (O.C.) / 3000 (O.C.) / 2800 (O.C.) / 2666 (O.C.) / 2400 (O.C.) / 2133 (O.C.)
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x1	3 x PCIe 3.0/2.0 x1
PCI Slots	1 x PCI Slot

Serial ATA (SATA)	6 x SATA 6Gb/s
SATA Express	1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
M.2	1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

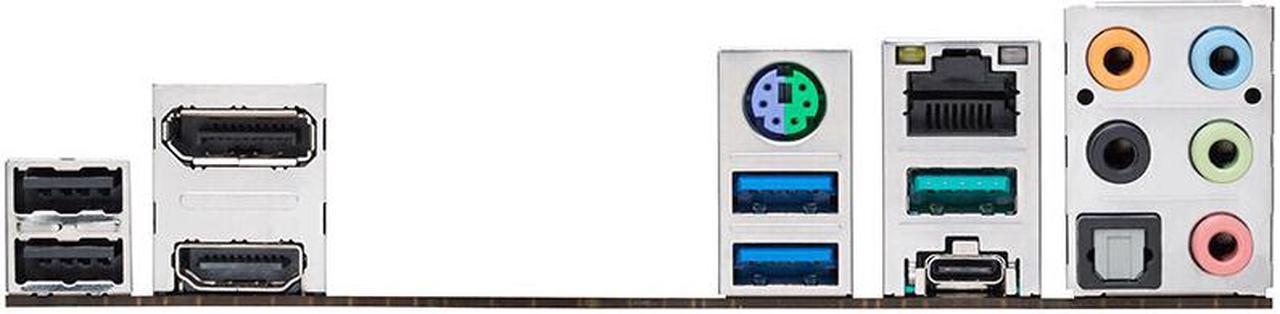

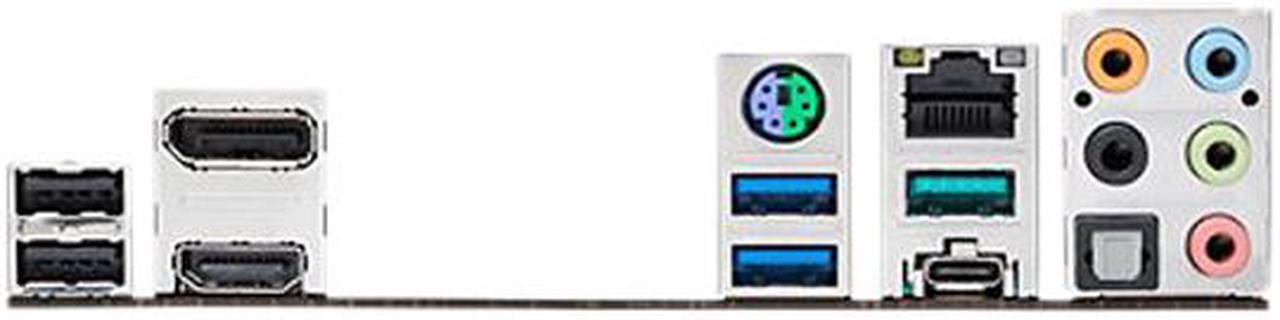

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 2 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
HDMI	1 x HDMI
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort
USB 3.1	1 x USB 3.1 ()Type-C 1 x USB 3.1 (teal blue)Type-A
USB 3.0	2 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Onboard USB	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x TPU switch(es) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 5 x 5-pin EXT_FAN(Extension Fan) connector 1 x USB BIOS Flashback Card header 1 x Water Pump header (4-pin) 1 x 14-1 pin TPM connector

Form Factor	ATX

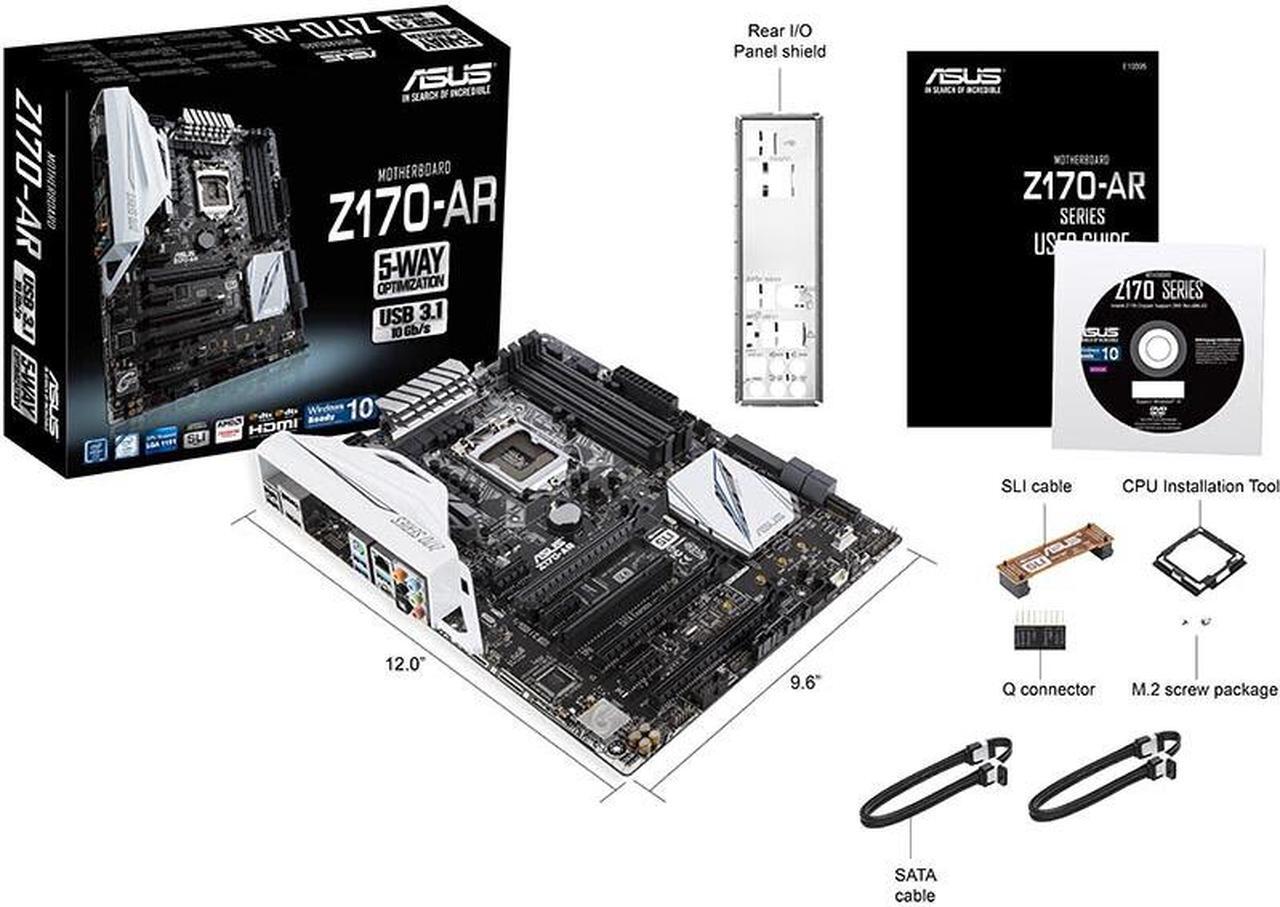

Dimensions (W x L)	12.0" x 9.6"
Power Pin	24-pin EATX Power connector(s) 8-pin ATX 12V Power connector(s)

Model
Brand	ASUS
Model	Z170-AR

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Item#: 9SIA4REKC78680
