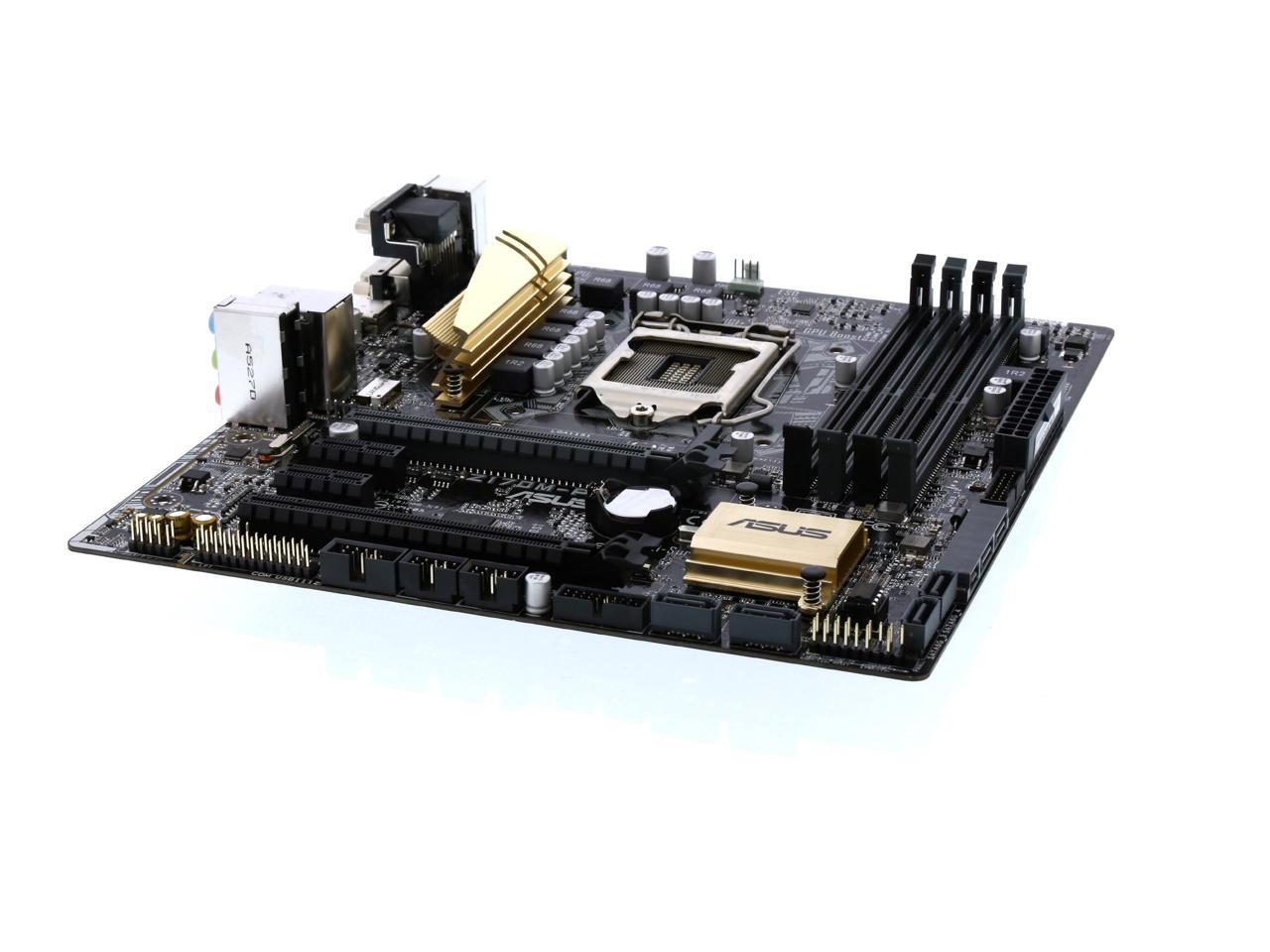

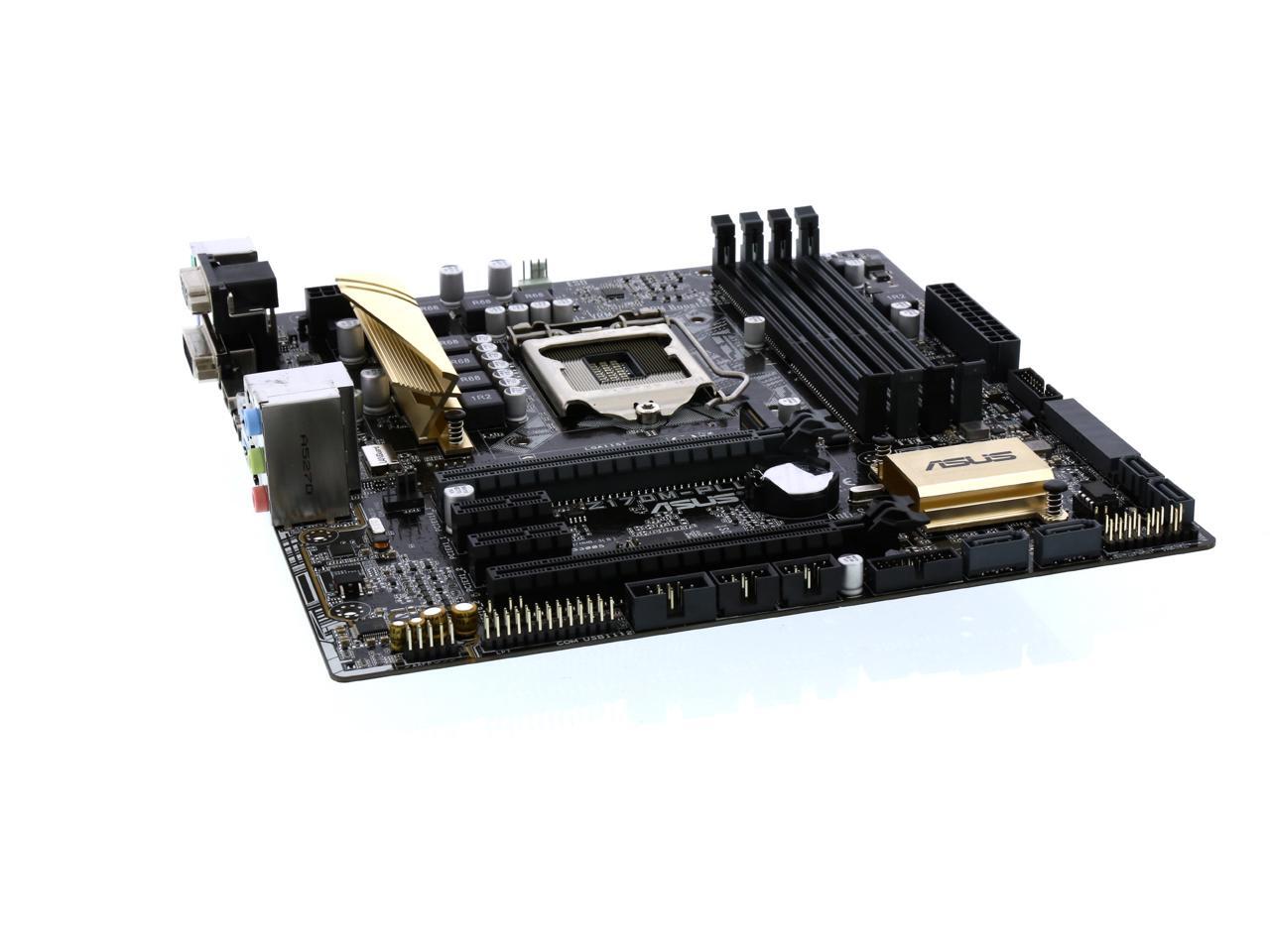

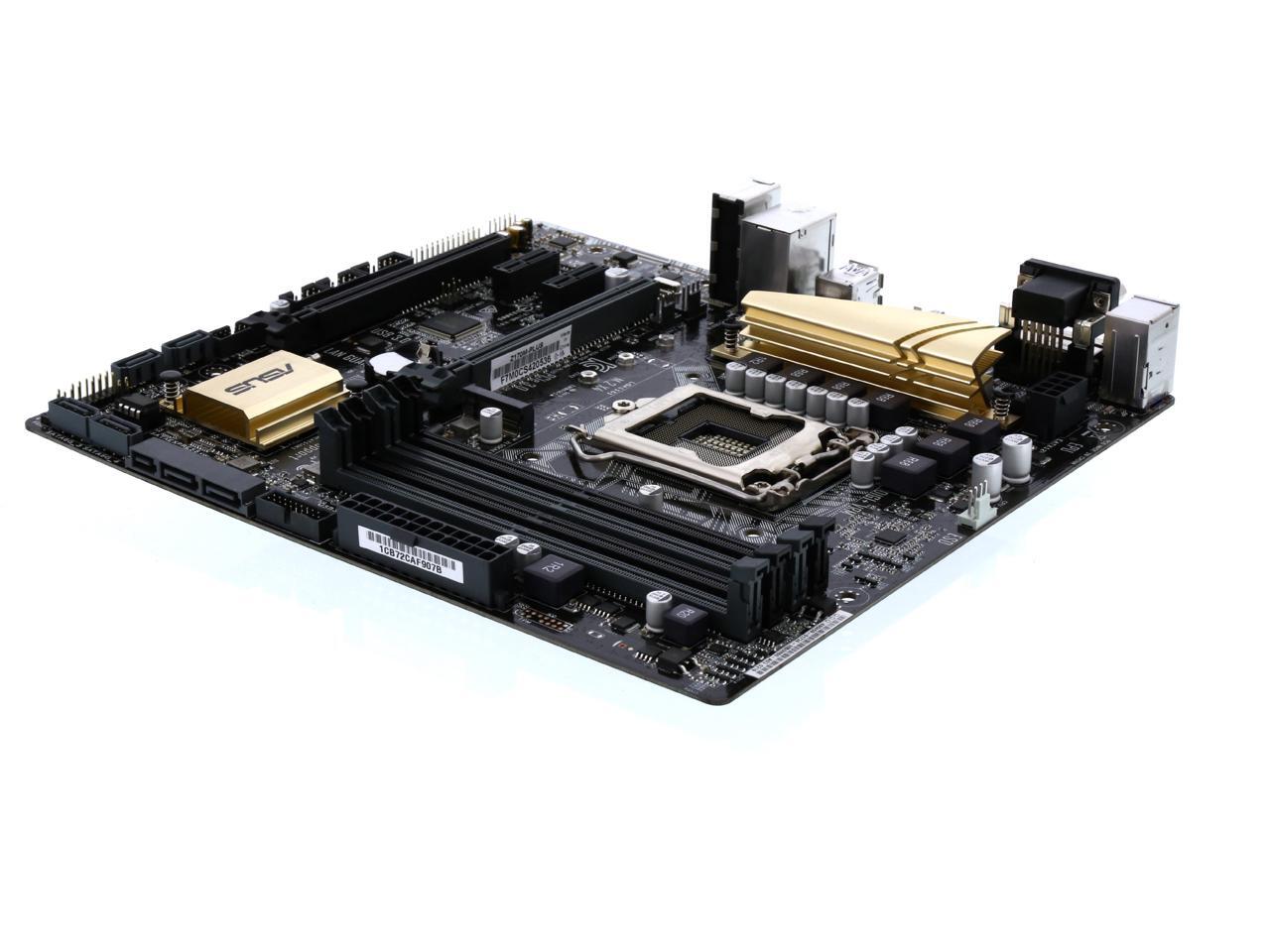

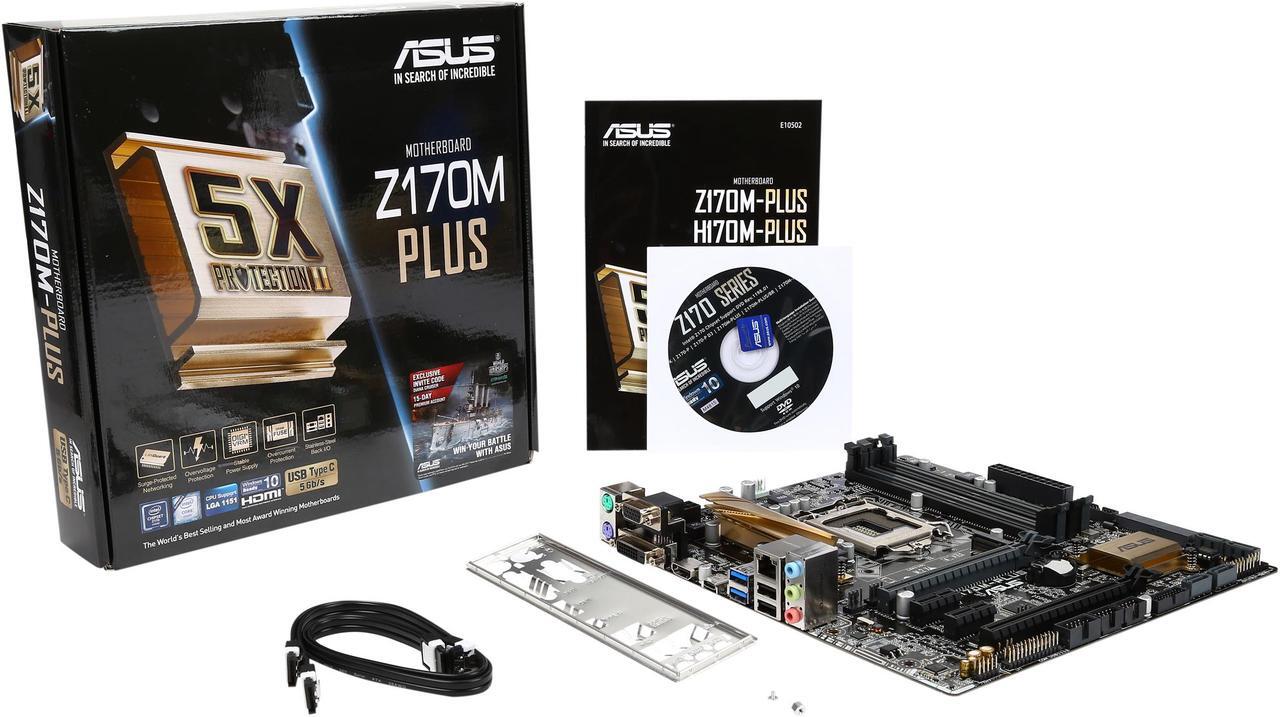

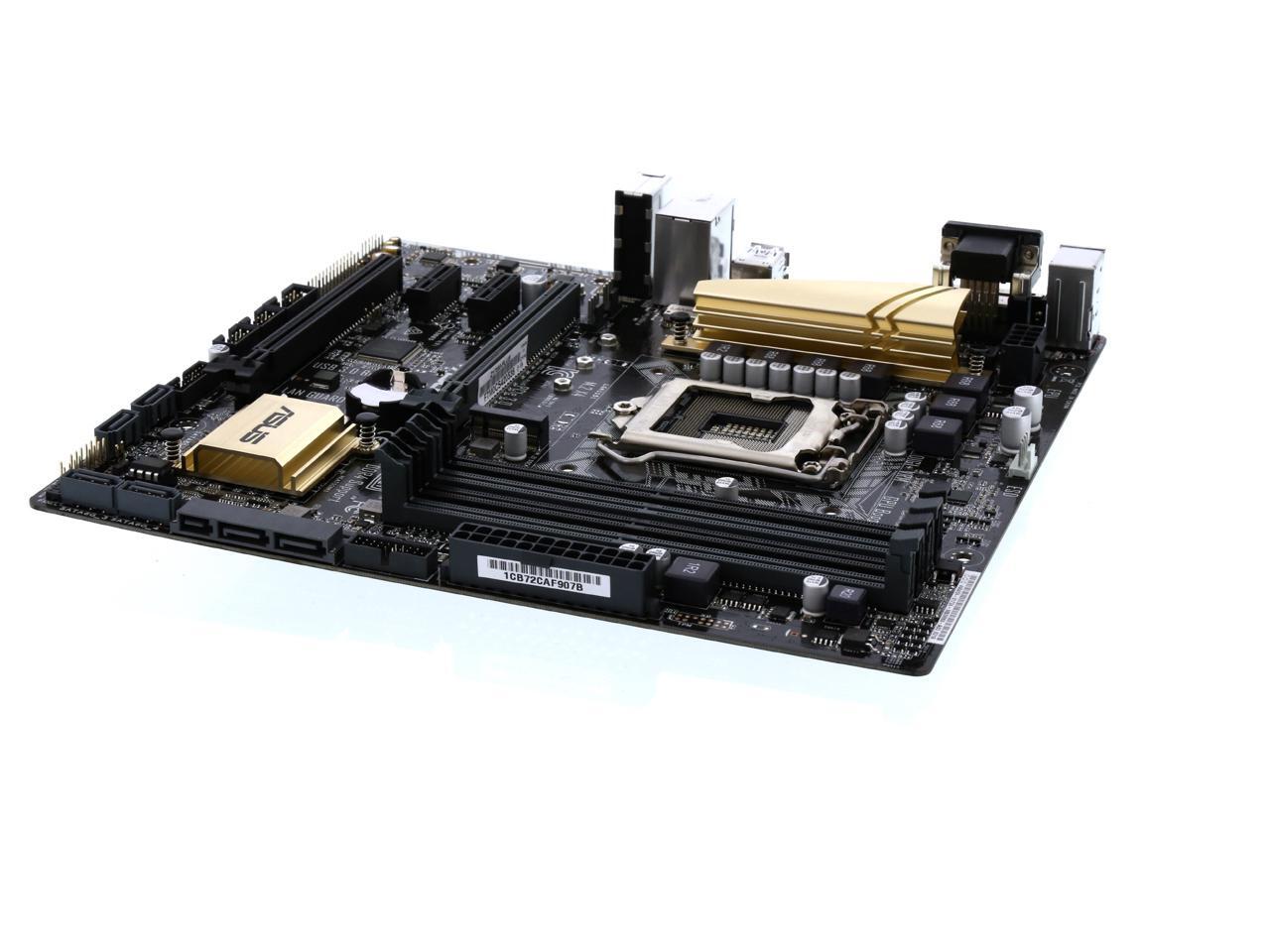

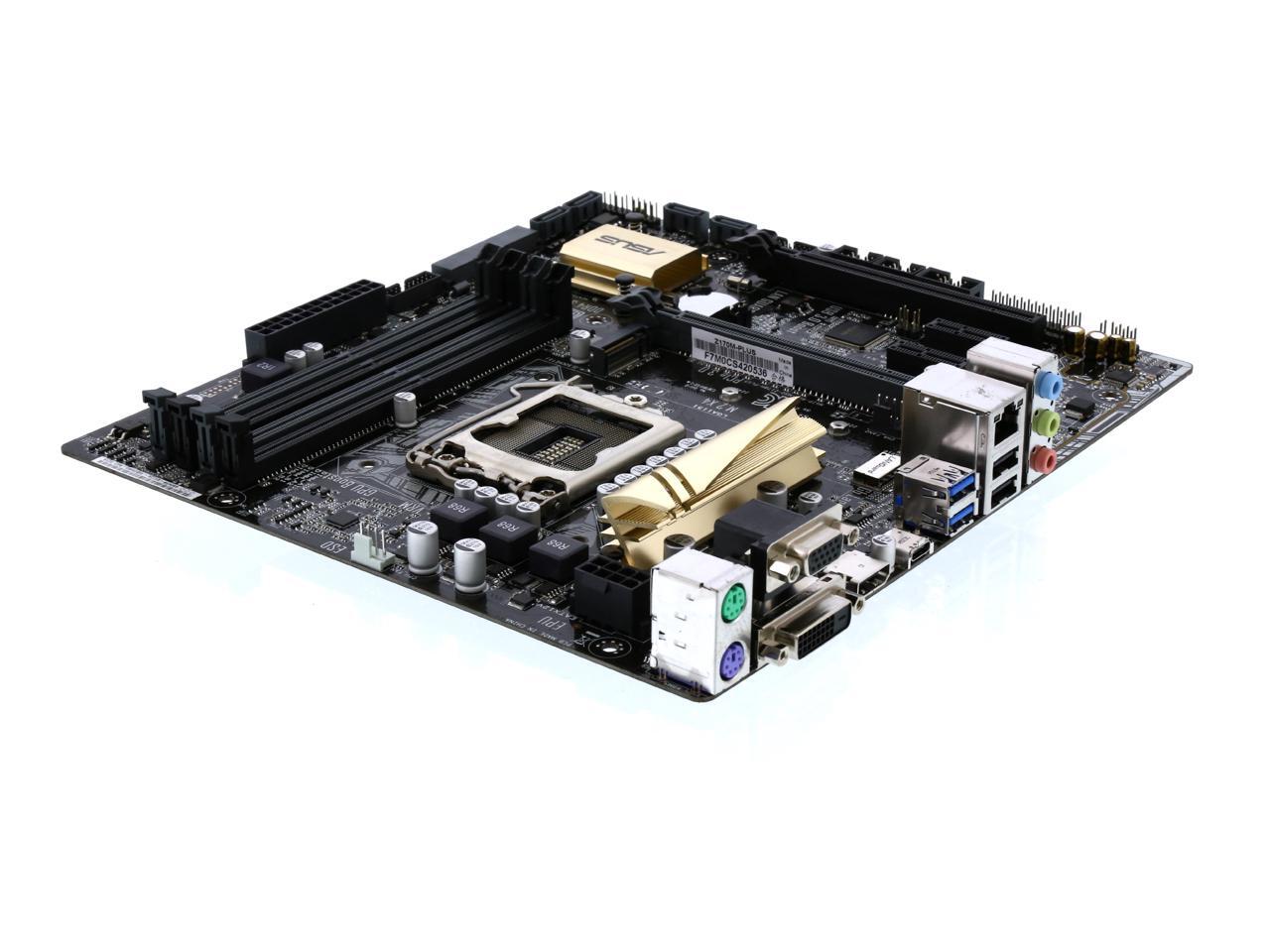

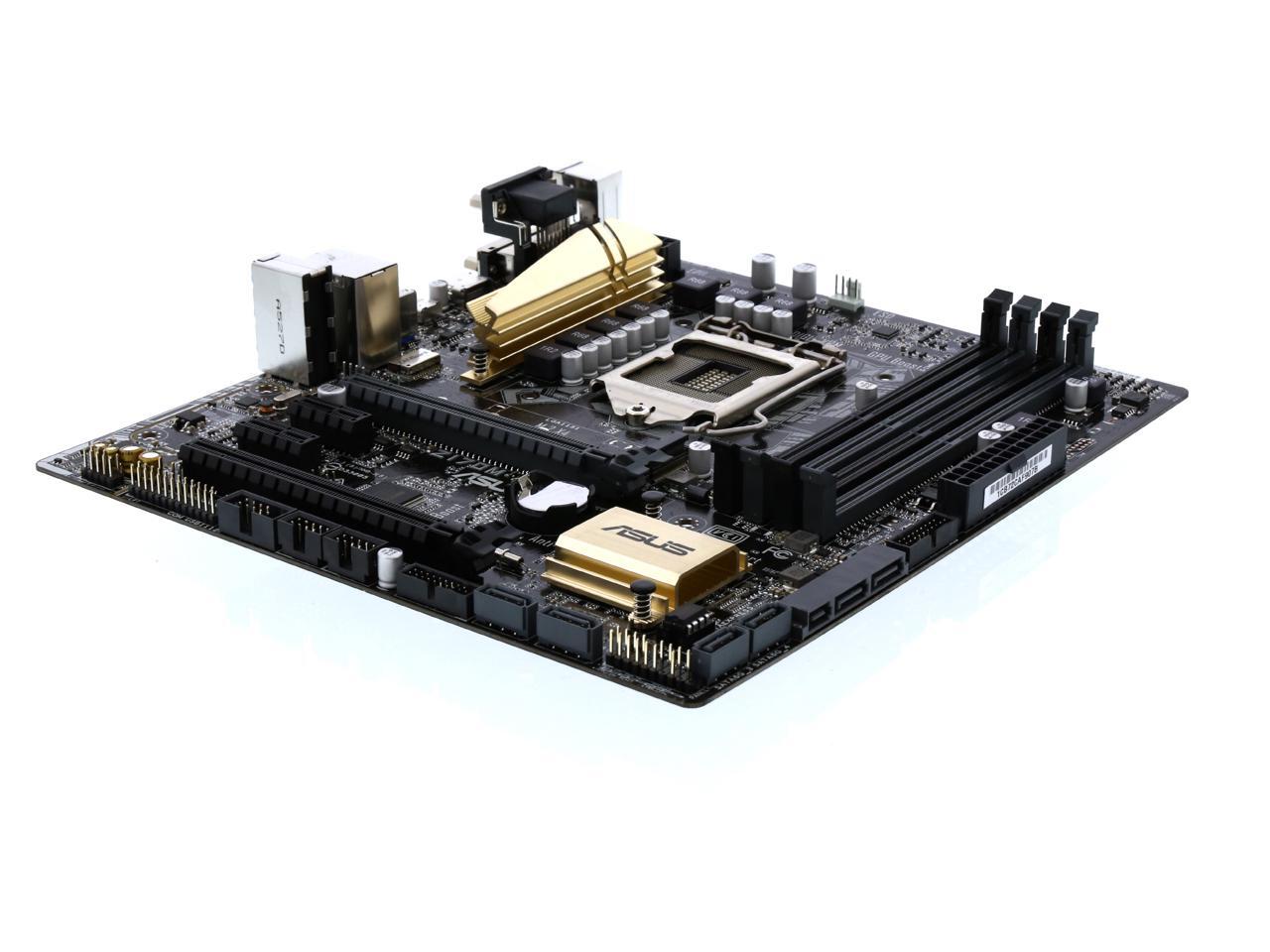

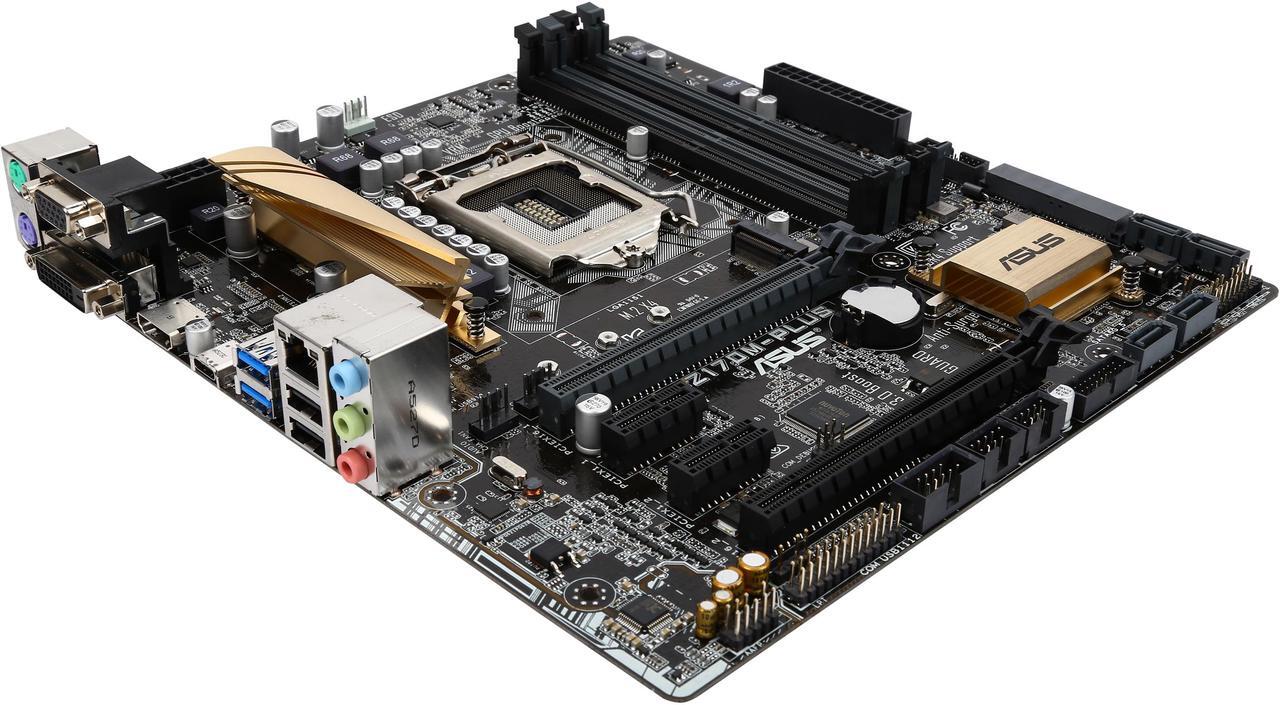

Main image of ASUS Z170M-PLUS LGA 1151 Intel Z170 HDMI USB 3.0 Micro ATX Intel Motherboard

100%

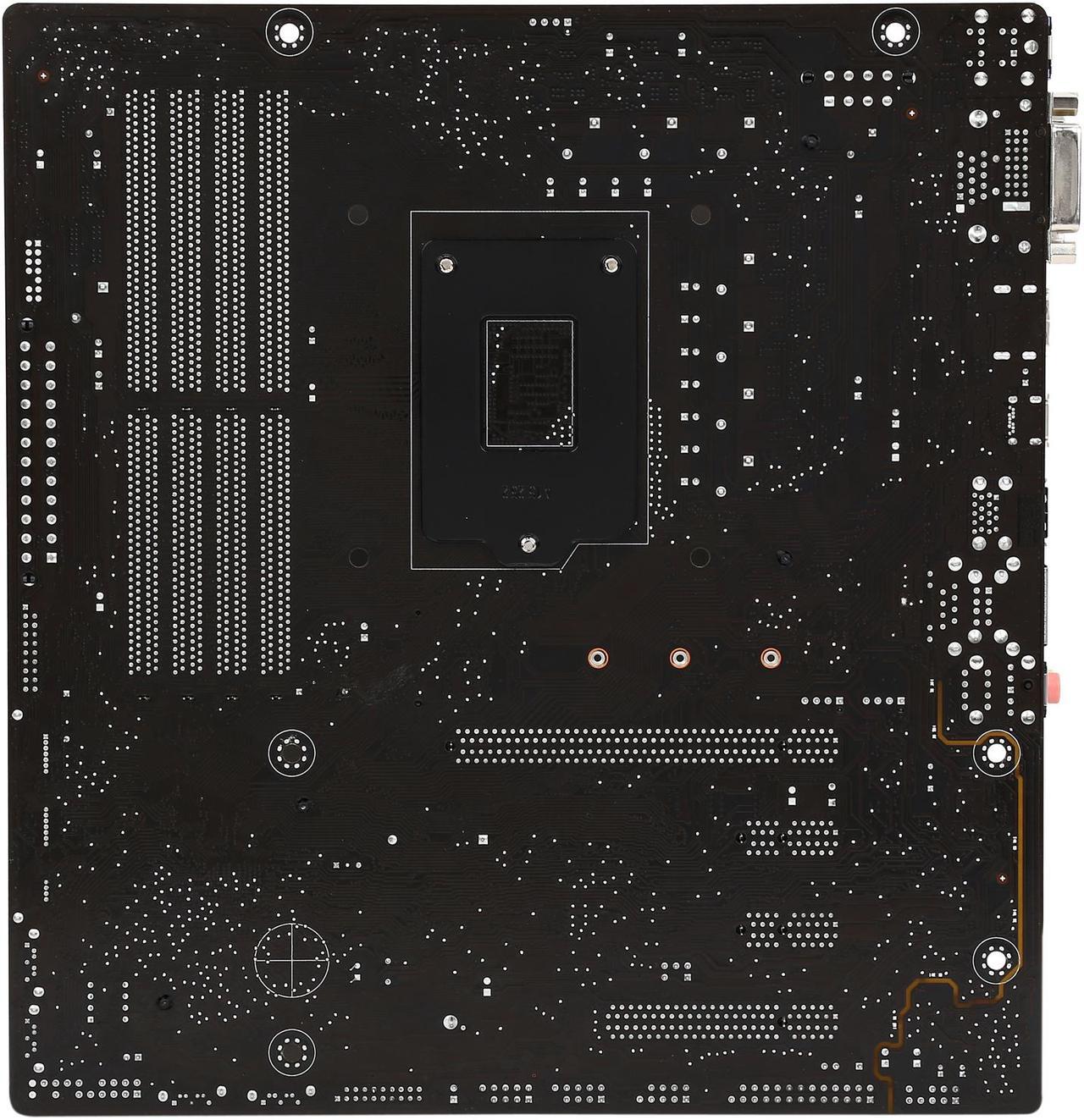

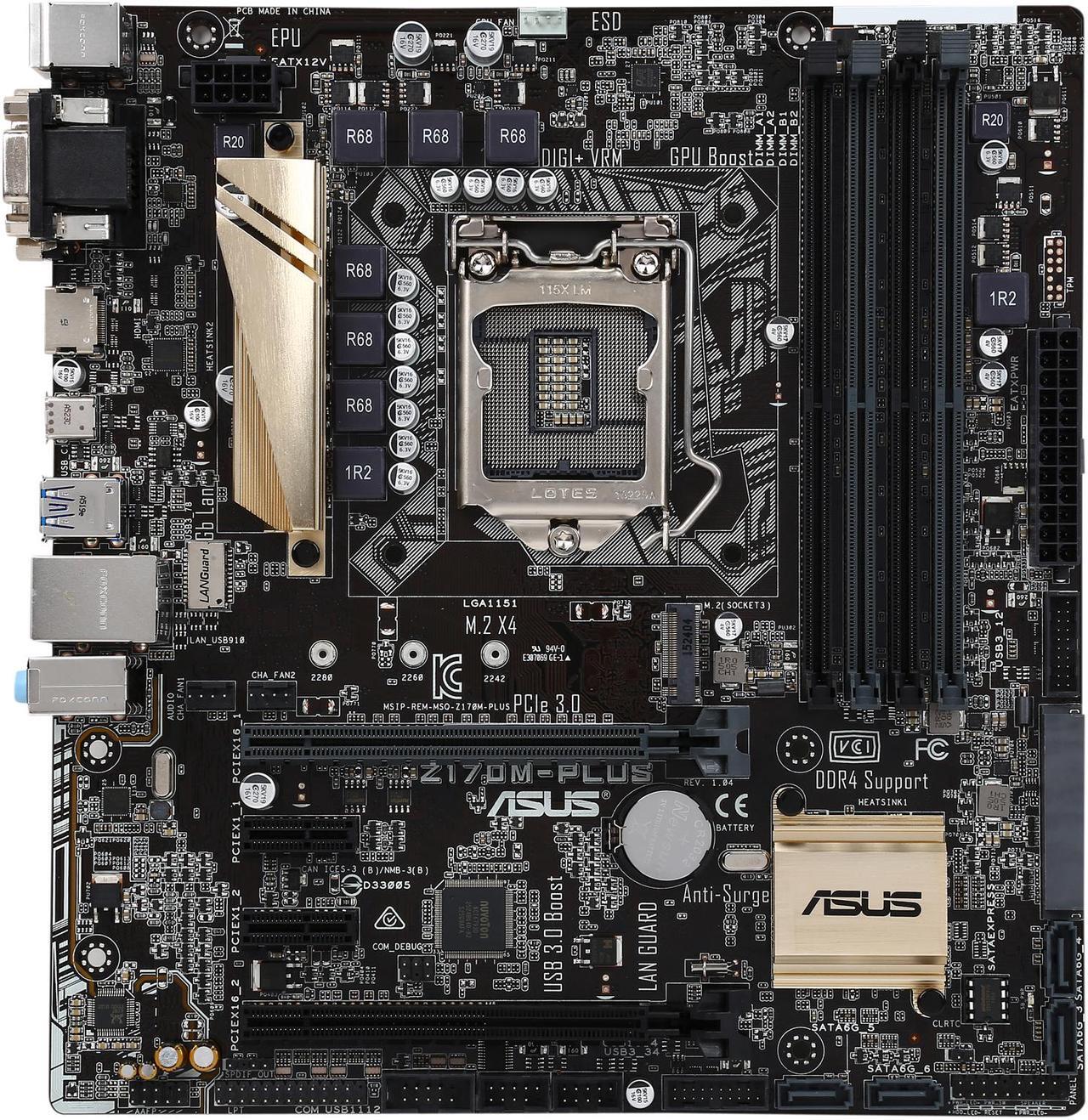

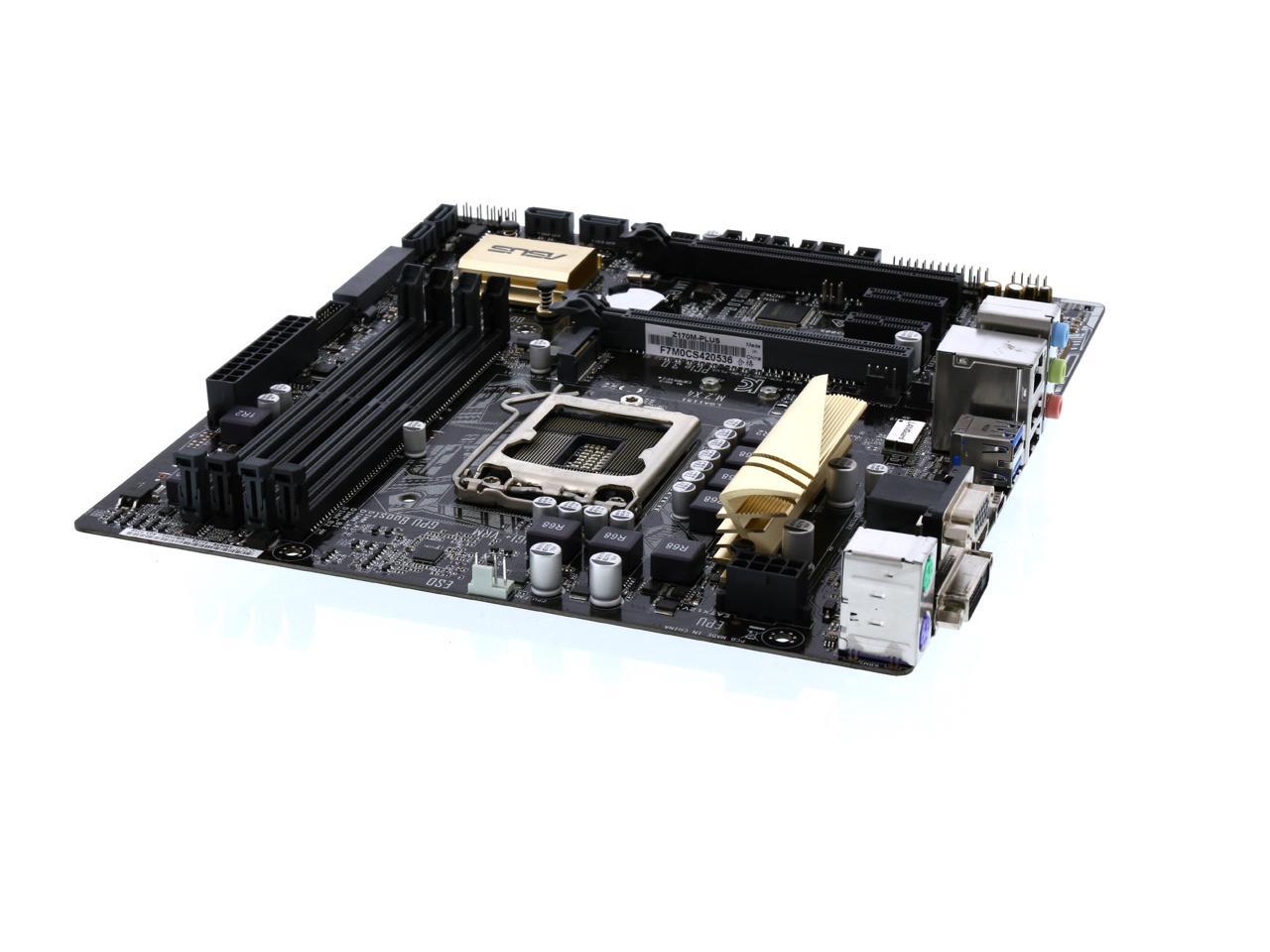

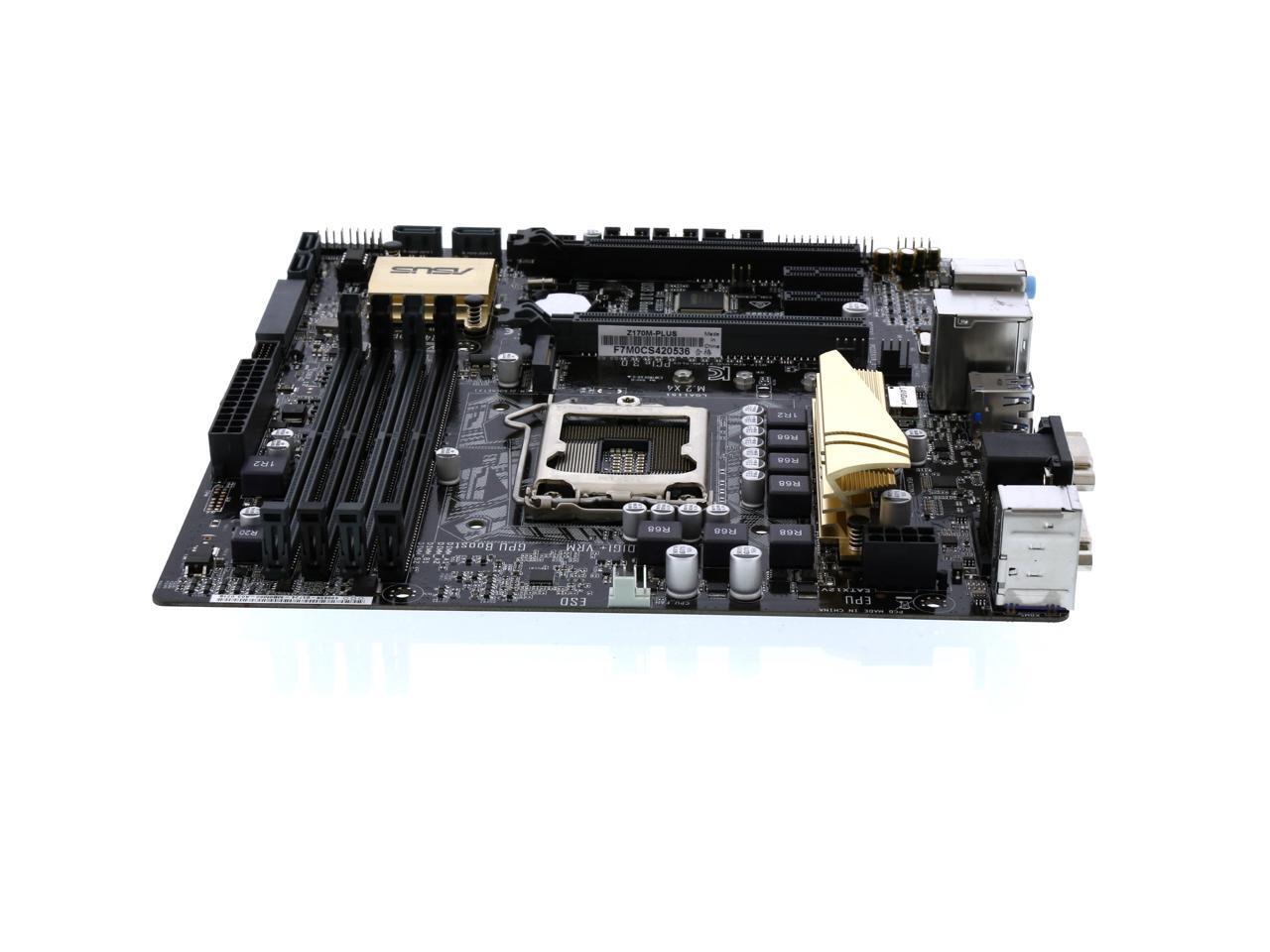

Alt view image 3 of 5 - ASUS Z170M-PLUS LGA 1151 Intel Z170 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 4 of 5 - ASUS Z170M-PLUS LGA 1151 Intel Z170 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 5 of 5 - ASUS Z170M-PLUS LGA 1151 Intel Z170 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 6 of 5 - ASUS Z170M-PLUS LGA 1151 Intel Z170 HDMI USB 3.0 Micro ATX Intel Motherboard

360^°

Customer images

Shop All ASUS Products | Visit LESCOLTON Store

ASUS Z170M-PLUS LGA 1151 Intel Z170 HDMI USB 3.0 Micro ATX Intel Motherboard

Name: ASUS Z170M-PLUS LGA 1151 Micro ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813132573
Price: 136.36 USD
Availability: InStock
Rating: 4 (861 reviews)

(861)(5) Write a Review

Option: Z170M-PLUS

SABERTOOTH Z170 MARK 1
Z170 PRO GAMING
Z170-A
Z170-DELUXE
Z170-K
Z170-P
Z170-P D3
Z170I PRO GAMING
Z170M-PLUS

5X Protection II
DDR4 memory compatibility
Lightning-fast M.2 with PCIe 3.0 x4 interface
Epic gaming audio with noise-isolation design
Media-acclaimed UEFI BIOS with EZ Flash 3
Fan Xpert 2+

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (861)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by LESCOLTON Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3466(O.C.)/ 3400/ 3333/ 3300/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0/2.0 x16 slot (at x16) 1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices)
PCI Express x1	2 x PCI Express 3.0/2.0 x1 slots

Serial ATA (SATA)	6 x SATA 6.0Gb/s ports (gray, 2 from SATA Express)
SATA Express	1 x SATA Express port (compatible with 2 x SATA 6.0Gb/s ports)
M.2	1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Meet Your Seller

ASUS Z170M-PLUS LGA 1151 Intel Z170 HDMI USB 3.0 Micro ATX Intel Motherboard

Learn more about the ASUS Z170M-PLUS

Customer Reviews of the ASUS Z170M-PLUS

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

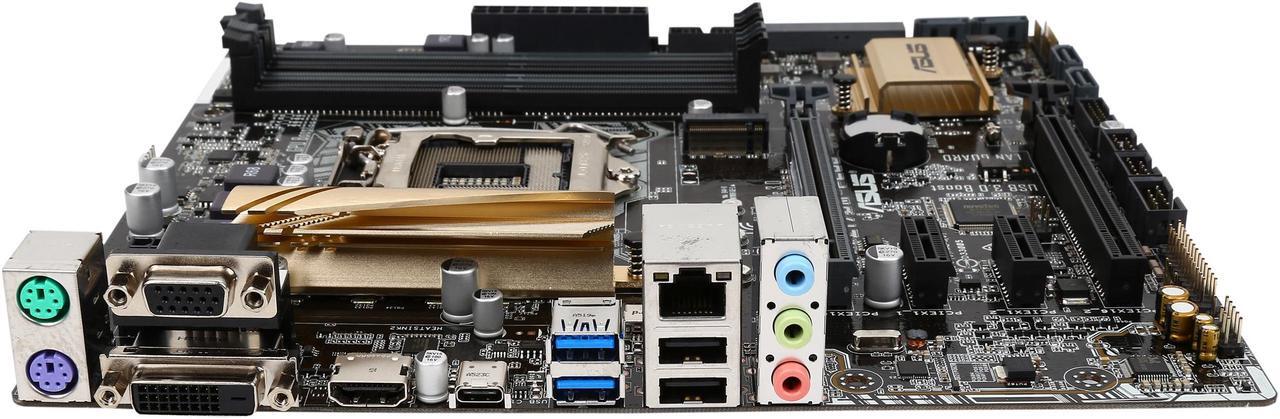

PS/2	1 x PS/2 keyboard port 1 x PS/2 mouse port
Video Ports	1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x LAN (RJ45) ports
USB 3.0	2 x USB 3.0/2.0 ports (blue, Type A)
USB 1.1/2.0	2 x USB 2.0/1.1 ports
USB Type-C	1 x USB 5Gb/s Type C port
Audio Ports	3-Jack 8-Channel Audio I/O ports

Onboard USB	2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin) 2 x USB 2.0/1/1 connectors support additional 4 USB ports
Other Connectors	1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control* 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control 1 x Front panel audio connector 1 x System panel connector 1 x S/PDIF out header 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x COM header 1 x LPT connector 1 x Clear CMOS jumper * The CPU Q-Fan control setting is set as default in Auto mode for detecting the type of CPU fan installed and switches to the control mode automatically.

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.95"
Power Pin	24 Pin

Model
Brand	ASUS
Model	Z170M-PLUS

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Item#: 9SIBGW3KHN7857
