Will this support an intel i9 10850k 10 core processor? I’m new to building PCs and want to know if I could use this board for the i9 I have chosen.

I don't see why it wouldn't. Both this board and the 10850k are both 1200

I see the Gundam splash screen on boot. Does it have sound effects on boot as well?

Sadly no... possibly can be modded someway

Will it run 4k at 120HZ?

That mostly depends on your Graphics Card... if you're just using integrated graphics from your CPU, no, it will not be able to run 4K @ 120Hz.

$207^.18

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by Yongrui electronic Commerce Co., Limited

Shipped by Yongrui electronic Commerce Co., Limited

Best Sellers

Precision Build

5 (1 total rating)

$238^.56
+ $39.99 Shipping

roboshine

Hot Seller

4.5 (234 total ratings)

$431^.54
+ FREE SHIPPING

Meet Your Seller

Yongrui electronic Commerce Co., Limited

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 2 of 9 - ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 3 of 9 - ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 4 of 9 - ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 5 of 9 - ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 6 of 9 - ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 7 of 9 - ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 8 of 9 - ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Alt view image 9 of 9 - ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

Customer images

Shop All ASUS Products | Visit Yongrui electronic Commerce Co., Limited Store

ASUS Z590 WIFI GUNDAM EDITION LGA 1200 Intel Z590 ATX Intel Motherboard

(646)(82) Write a Review

Option: Z590 WIFI GUNDAM EDITION

PRIME Z590-A
PRIME Z590-P
PRIME Z590M-PLUS
ROG MAXIMUS XIII HERO
ROG STRIX Z590-A GAMING WIFI
ROG STRIX Z590-A GAMING WIFI II
ROG STRIX Z590-E GAMING WIFI
ROG STRIX Z590-F GAMING WIFI
ROG STRIX Z590-I GAMING WIFI
TUF GAMING Z590-PLUS
TUF GAMING Z590-PLUS WIFI
Z590 WIFI GUNDAM EDITION

Intel Z590
Supports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors
DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
Next-gen connectivity: PCIe 4.0, USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 support
Made for online gaming: Intel WiFi 6, Intel 2.5 Gb Ethernet, LANGuard and TurboLAN technology
Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (646)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	Z590 WIFI GUNDAM EDITION

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core Processors* Supports Intel Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z590

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * Supports x4 mode.
PCI Express x1	2 x PCIe 3.0 x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)** * M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. ** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.
Intel Optane Ready	To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

Onboard Audio
Audio Chipset	Realtek ALC S1200A
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.0

Rear Panel Ports

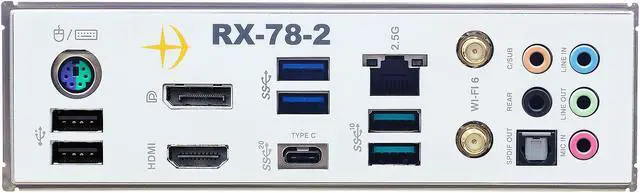

Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 2 x Addressable Gen 2 RGB headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3-pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Features
Features	Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - TUF LANGuard - Overvoltage Protection ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 192 (128+64) MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows10 64-bit

Packaging

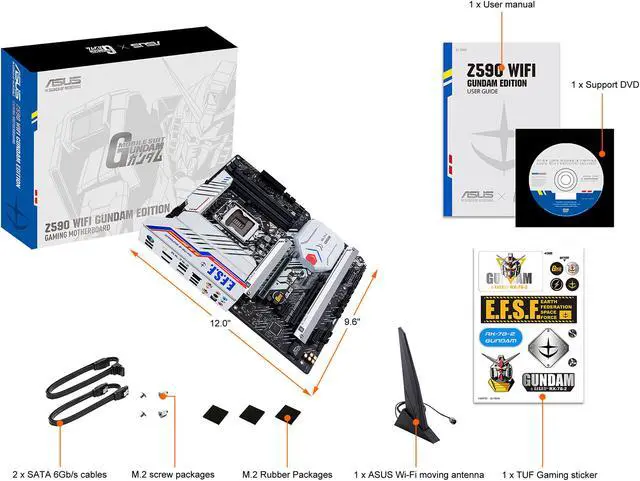

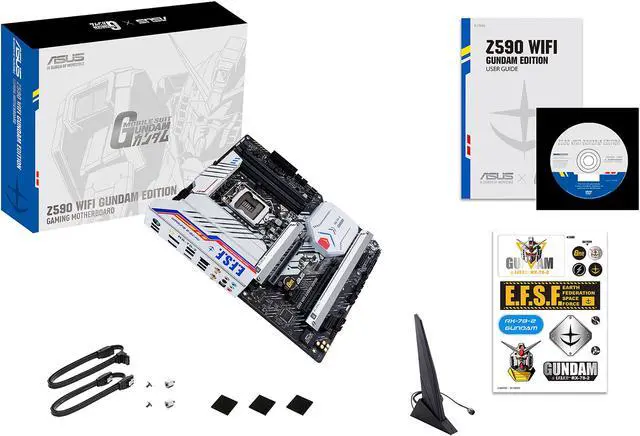

Package Contents	Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual
