What are the dimensions and weight of the Asustor AS6704T v2?

The dimensions of the Asustor AS6704T v2 are 185.5mm x 170mm x 230mm, and it weighs 6.48 lb.

What type of processor does the Asustor AS6704T v2 use?

The Asustor AS6704T v2 uses a Quad-Core Intel Celeron N5105 CPU.

$681^.99

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by PlatinumMicro

Top Rated

4.5 (7,175 seller ratings)

Shipped by PlatinumMicro

Best Sellers

NothingButSavings

Top Rated

4.5 (8,990 total ratings)

$703^.48
+ FREE SHIPPING

Newegg

$699^.99
+ FREE SHIPPING

antonline

Top Rated

4.5 (17,968 total ratings)

$720^.12
+ FREE SHIPPING

Meet Your Seller

PlatinumMicro

See Seller Store

Sponsored Products

WD Elements 16TB USB 3.0 Desktop External Hard Drive WDBWLG0160HBK-NESN Black

$359^.99 –

UGREEN NASync DXP480T Plus, All-Flash Thunderbolt 4 NAS Intel® 10-Core i5 CPU (Up to 4.40 GHz), 8GB DDR5, 4x M.2 PCIe Slots, 1x 10GbE, (Diskless)

$849^.99 –
Save: 15%

UGREEN NASync DXP4800, 4-Bay NAS with Intel® N100 Quad-Core CPU (Up to 3.4GHz) 8GB DDR5, 2x M.2 PCIe Slots, 2.5GbE Port, SD Card Reader (Diskless)

$467^.99 –
Save: 6%

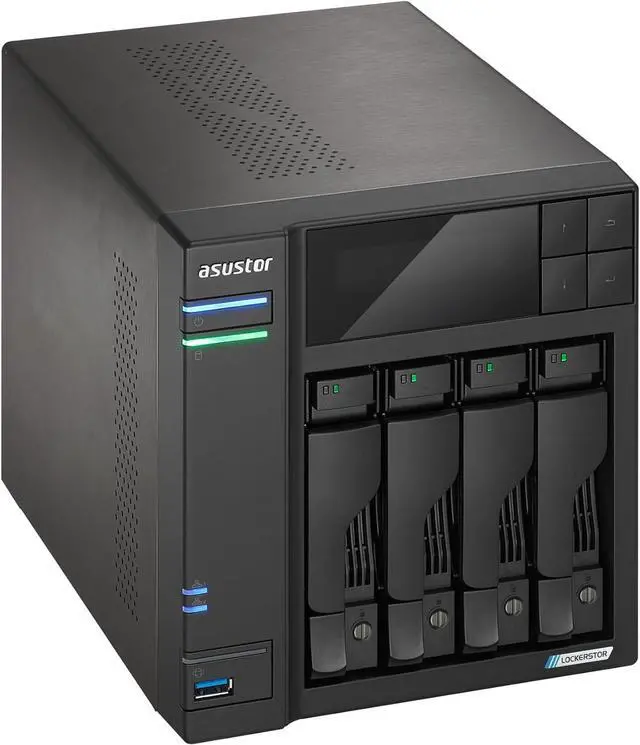

Main image of Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

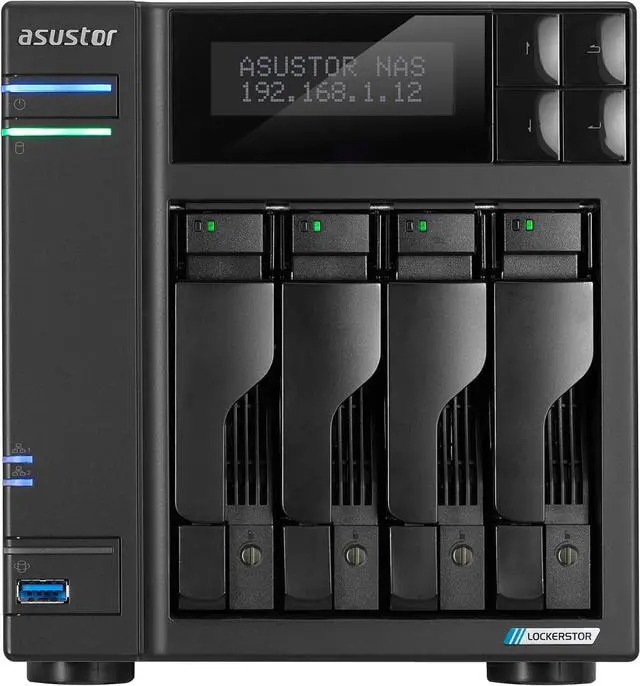

Alt view image 2 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

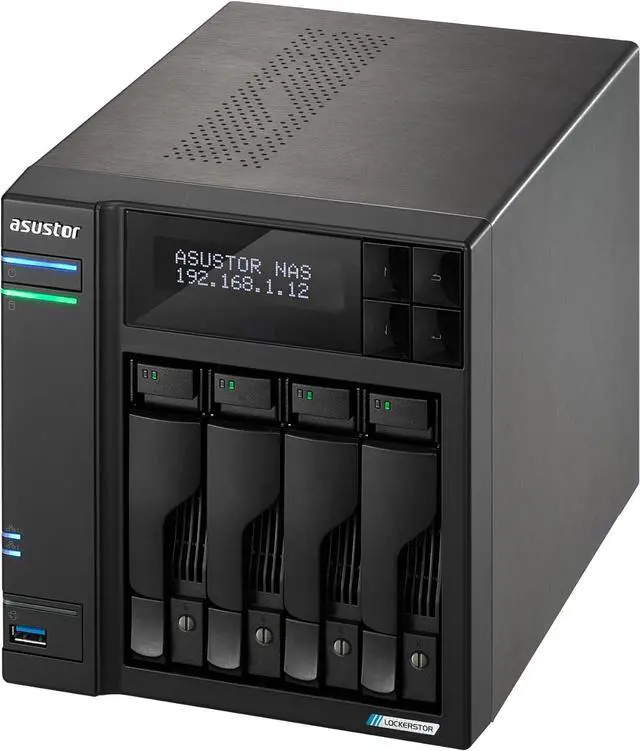

Alt view image 3 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

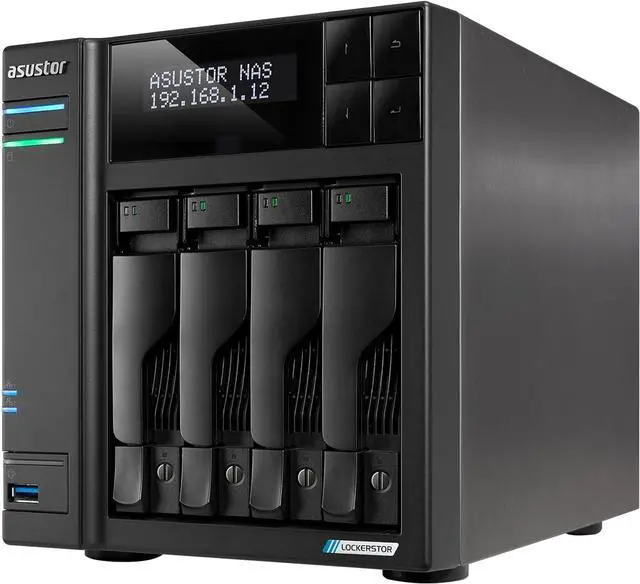

Alt view image 4 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

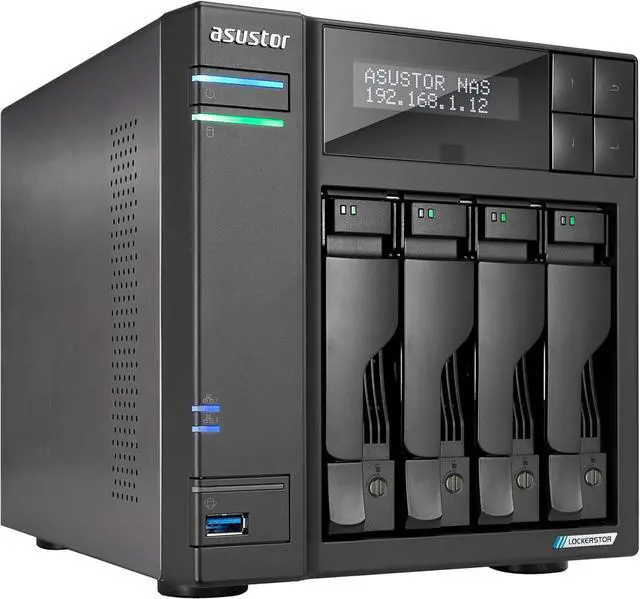

Alt view image 5 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

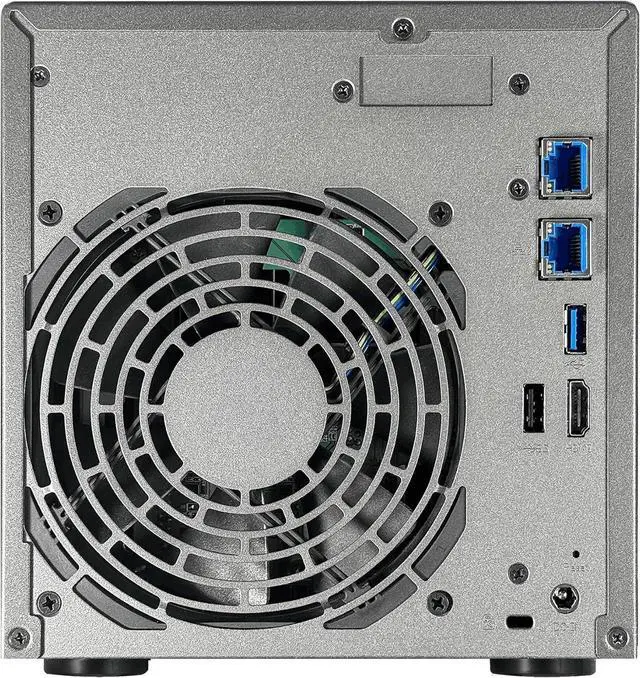

Alt view image 6 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 7 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 8 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 9 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 10 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 11 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 12 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 13 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 14 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Alt view image 15 of 15 - Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Shop All ASUSTOR Products | Visit PlatinumMicro Store

Asustor AS6704T v2 Lockerstor 4 Gen2+ 4 Bay NAS - Quad-Core 2.0GHz CPU - 2x5GbE - 4GB RAM DDR4 - 4x M.2 SSD Slots (Diskless)

Be the first to review this product...

Quad-Core 10 nm Intel Celeron N5105 CPU
Dual 5-Gigabit Ethernet ports
4x M.2 slots for NVMe SSDs
4 GB of DDR4-2933 RAM
2x USB 10Gbps
Supports Wake on LAN and Wake on WAN

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

The Lockerstor Gen2/Gen2+ comes with Intels newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Model
Brand	Asustor
Series	Lockerstor 4 Gen2+
Model	AS6704T v2
Type	Desktop NAS

Configuration
Form Factor	4-Bay
Processor	Intel Celeron N5105
Installed Memory	4GB SO-DIMM DDR4
Max Memory Capacity	8GB
Memory Slot	2 x DDR4 SODIMM

Hard Drive Performance
Included HDD Capacity	Diskless System
Drive Compatibility	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe

Convenience
Supported Protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

Power
Power	100-240 VAC 50/60Hz
Power Consumption	35 W (Operation); 17.3 W (Disk Hibernation); 0.88 W (Sleep Mode

Environmental
Temperature	Operation Temperature :0°C~40°C (32°F~104°F) Storage Temperature :-20°C~70°C (-4°F~158°F)
Humidity	5% to 95% RH

Features
Usage	Backup & stream media through personal cloud

Dimensions & Weight
Dimensions	185.5'' x 170'' x 230''mm
Weight	6.48 lb

Package Contents
Package Contents	AS6704T v2 Unit x1 Quick Installation Guide AC Power Cord x1 AC Power Adapter x1 RJ-45 LAN Cable(Cat 5e) x2 Flat Head Screw (for 3.5" HDD) x16 Flat Head Screw (for 2.5" HDD) x16
