Does this unit include cables?

There is single KVM cable for the Local end, VGA and USB. You have to provide the Cat5e cable between the 2 devices. The Remote end will need to use VGA cable from the monitor and then a mouse and keyboard USB connection. I have several sets installed at AM broadcast radio stations. These devices handle the high RF environments well.

would this unit allow me to connect a pc in one area to a monitor keyboard and mouse at a remote location? What connects the pc to the unit? a serial port? Or a CAT cable?

Yes it will. Think of it as a VGA extender with keyboard capability. It comes with a special VGA/USB cable that connects to your computer then its cat5 between boxes and then VGA and USB on the other end. I even paired mine with a wireless keyboard/mouse combo and it works great!

$256^.40

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by antonline

Top Rated

4.5 (17,926 seller ratings)

Shipped by antonline

Best Sellers

Technology Galaxy

Top Rated

4.2 (2,305 total ratings)

$231^.06
+ FREE SHIPPING

NothingButSavings

Top Rated

4.5 (8,938 total ratings)

$231^.31

BeachAudio

Top Rated

4.4 (8,536 total ratings)

$235^.57

Volume Discounts Available

Meet Your Seller

antonline

See Seller Store

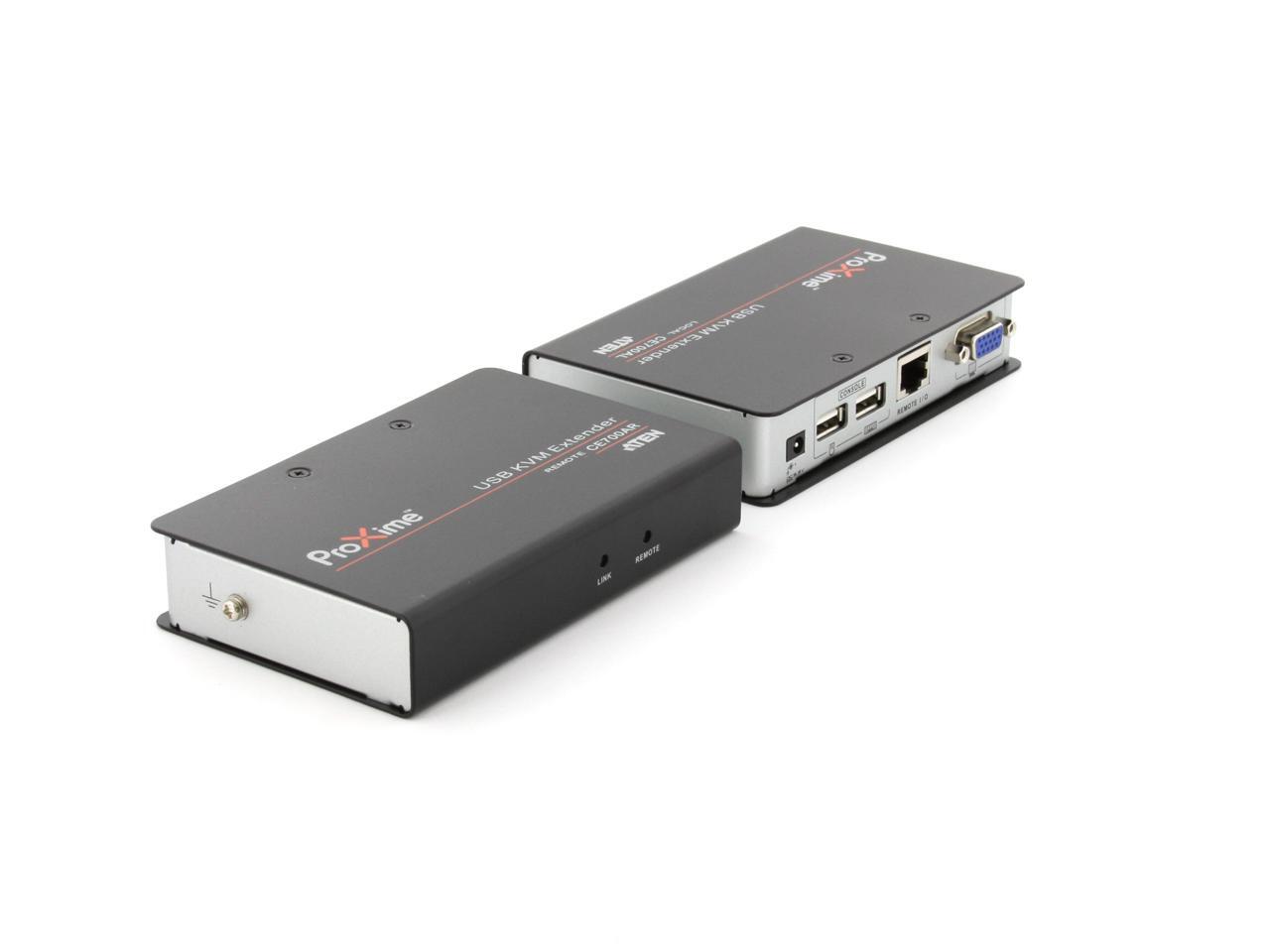

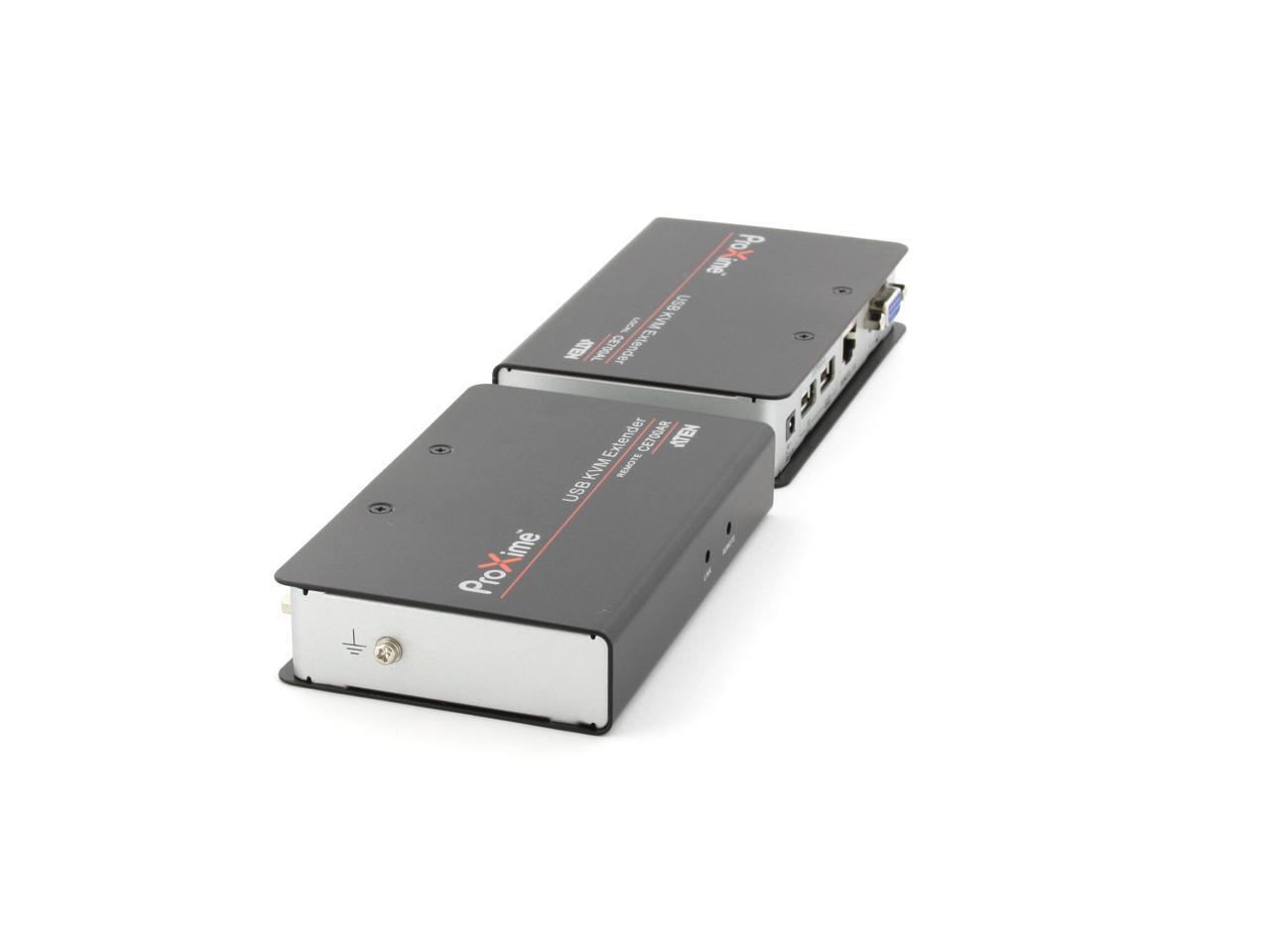

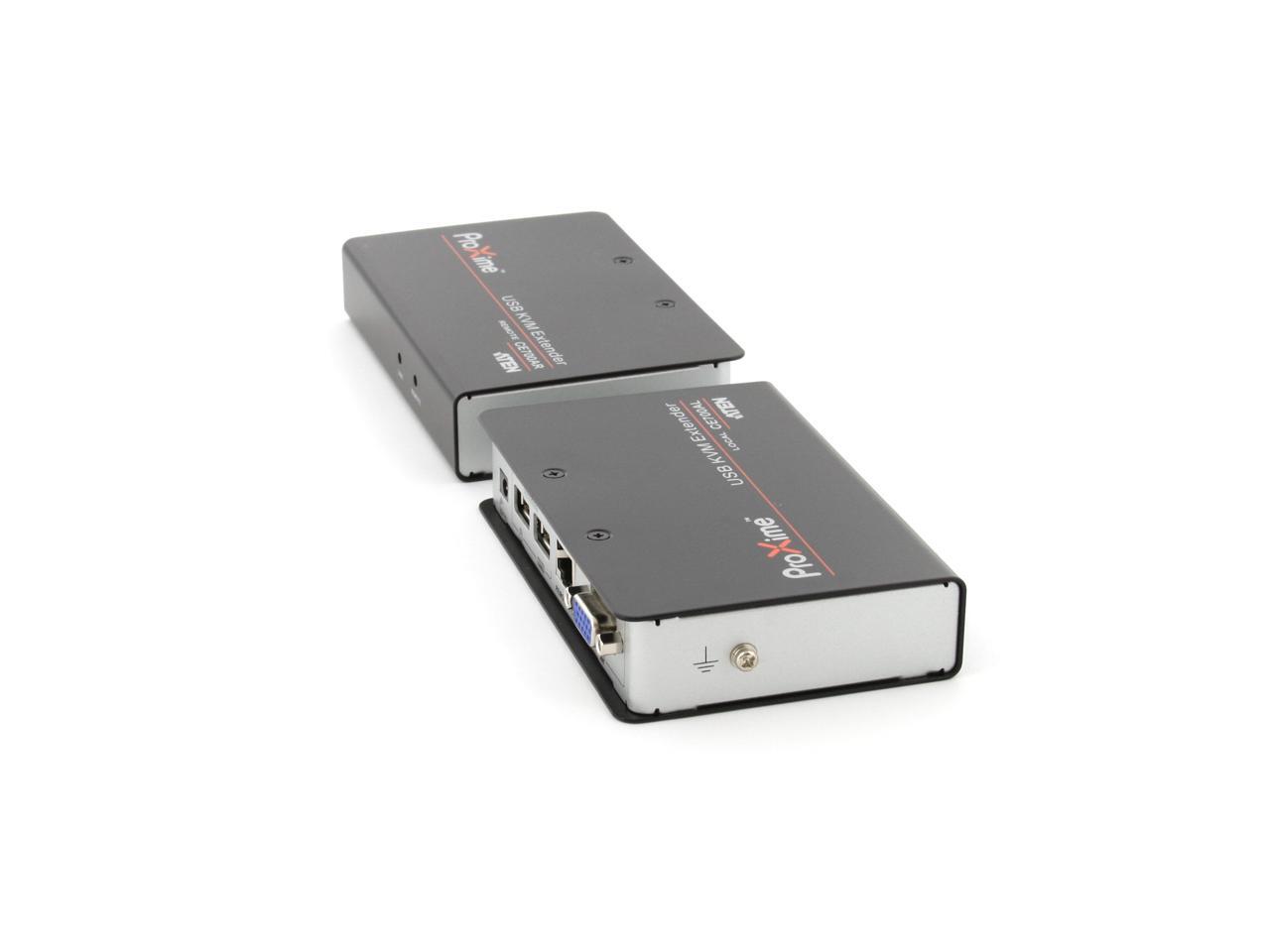

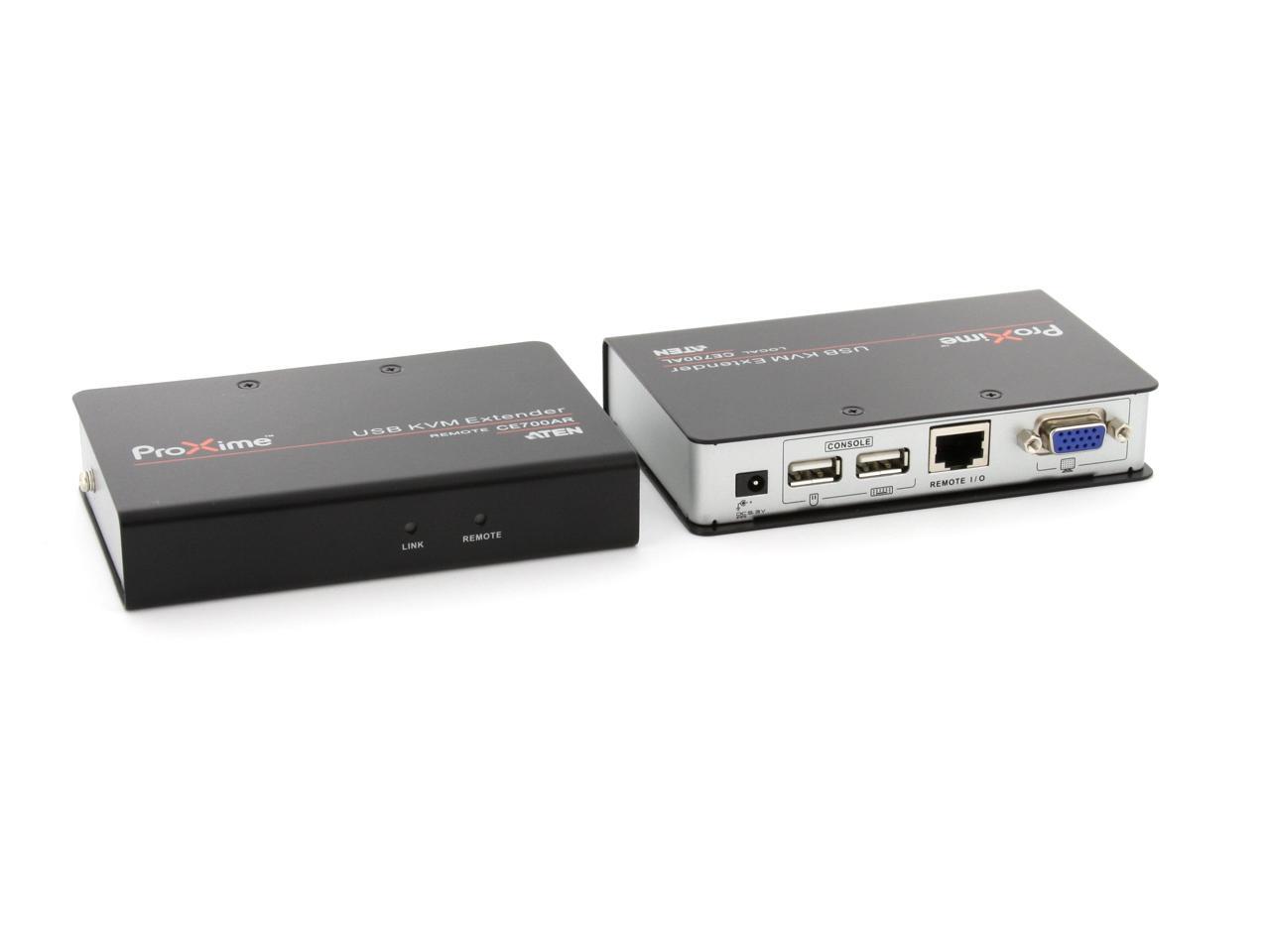

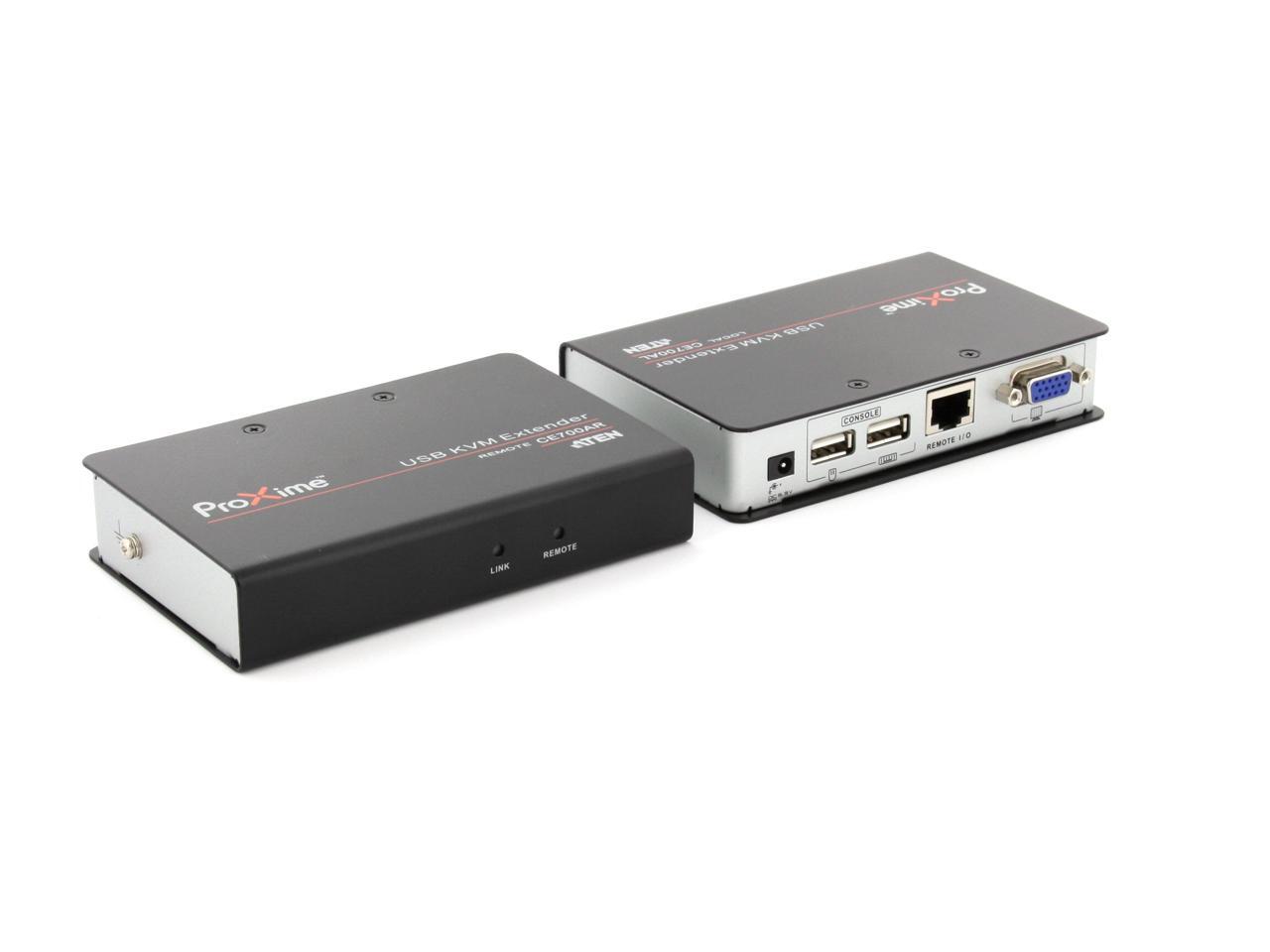

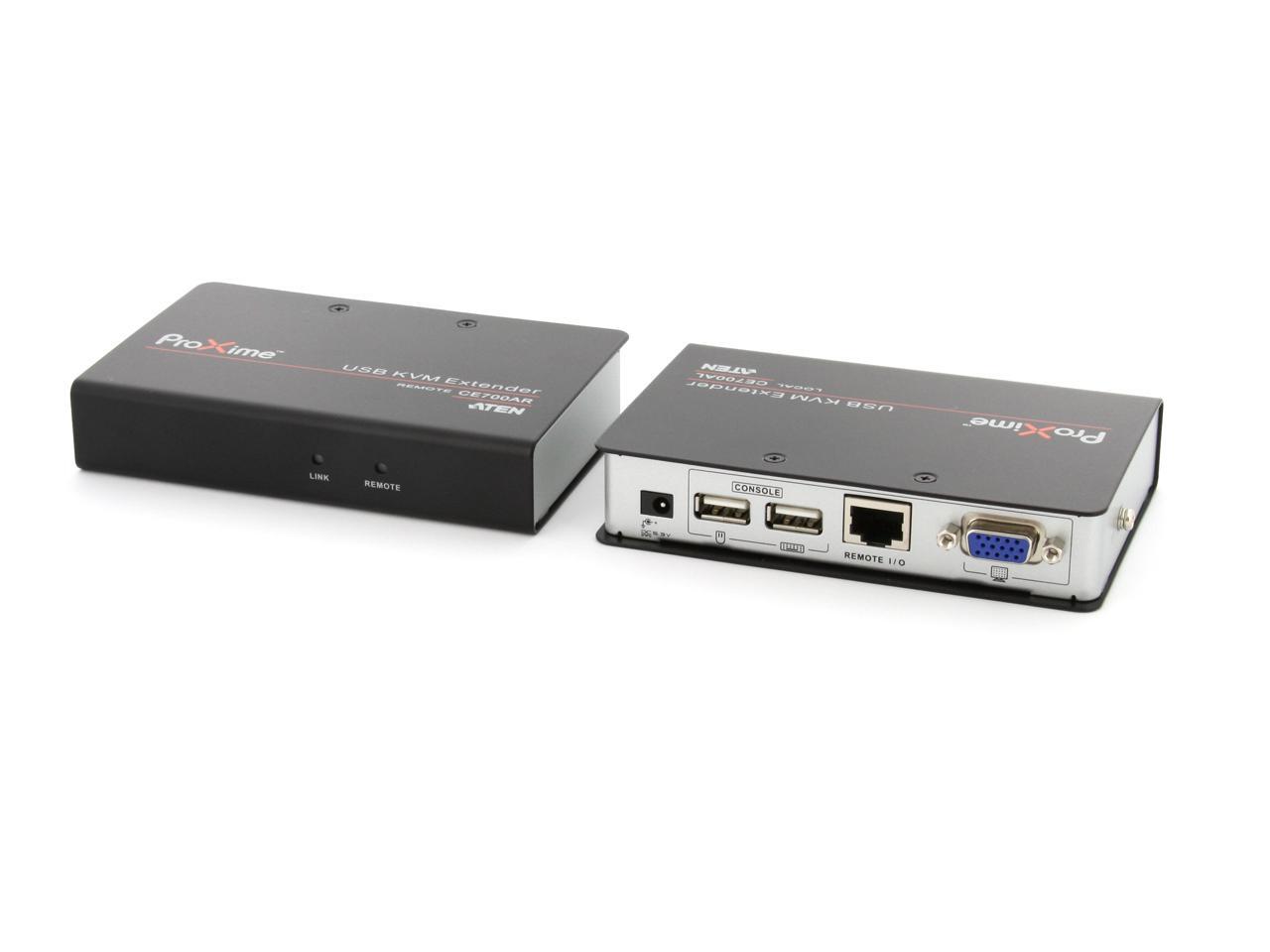

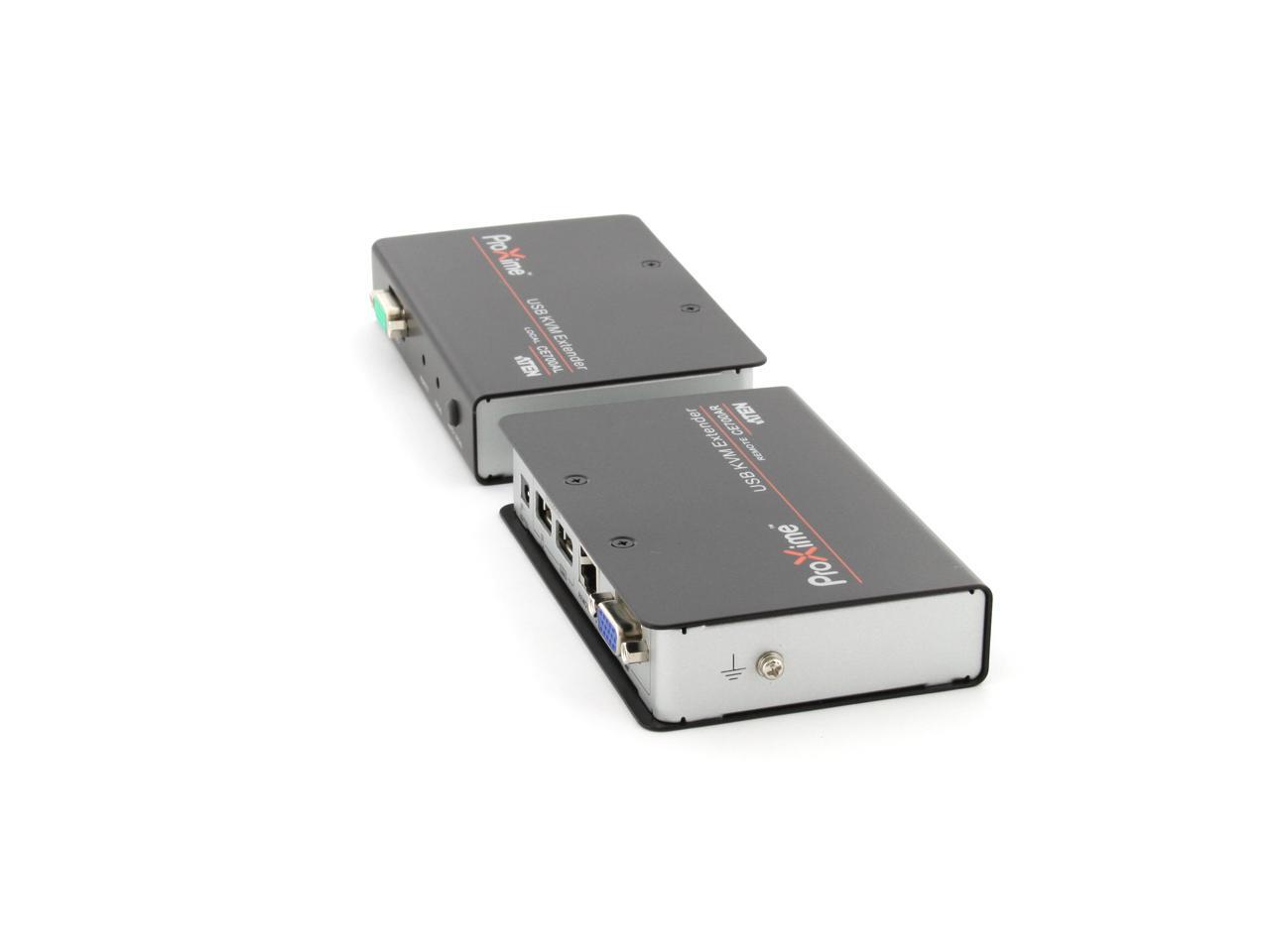

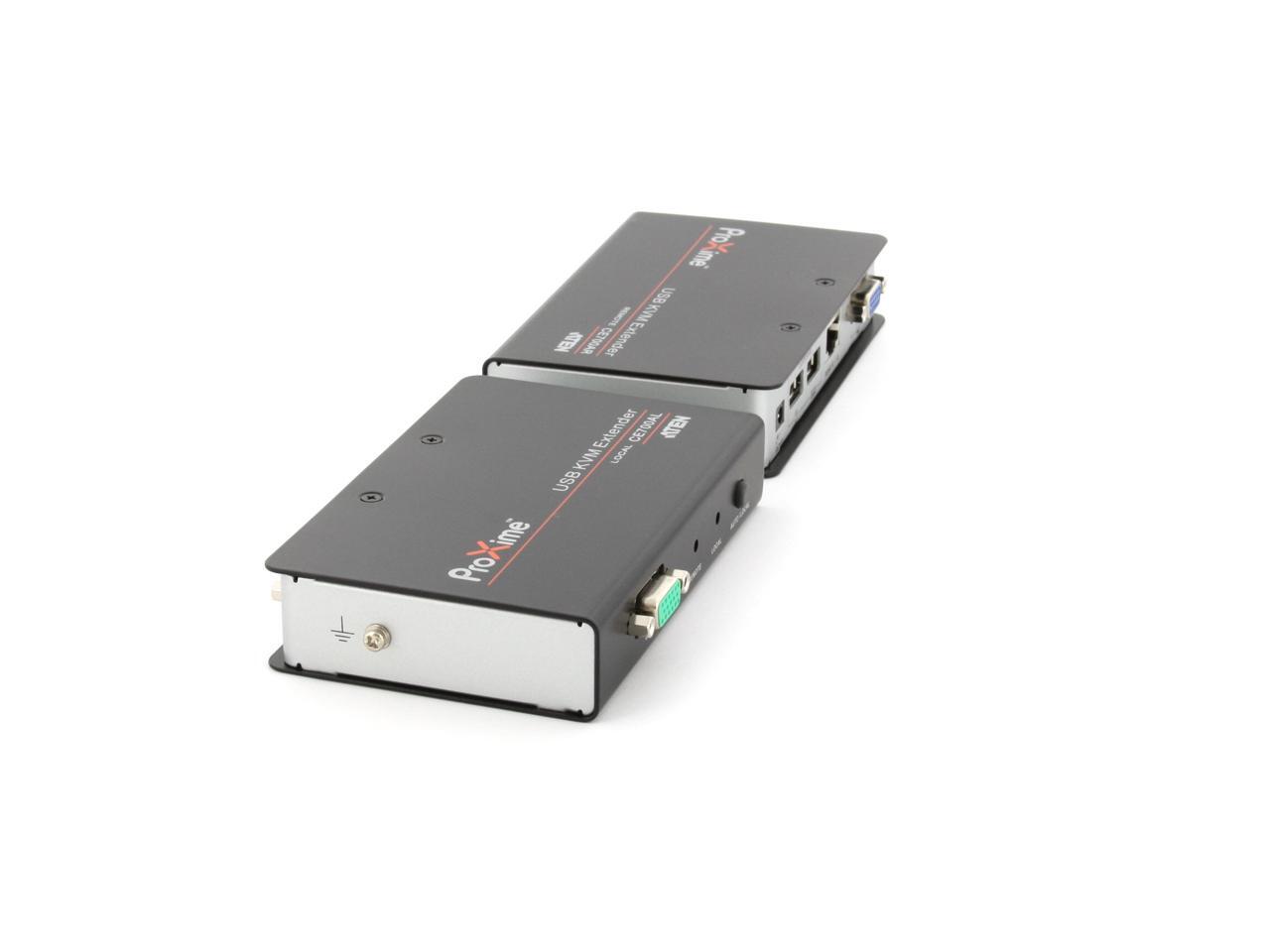

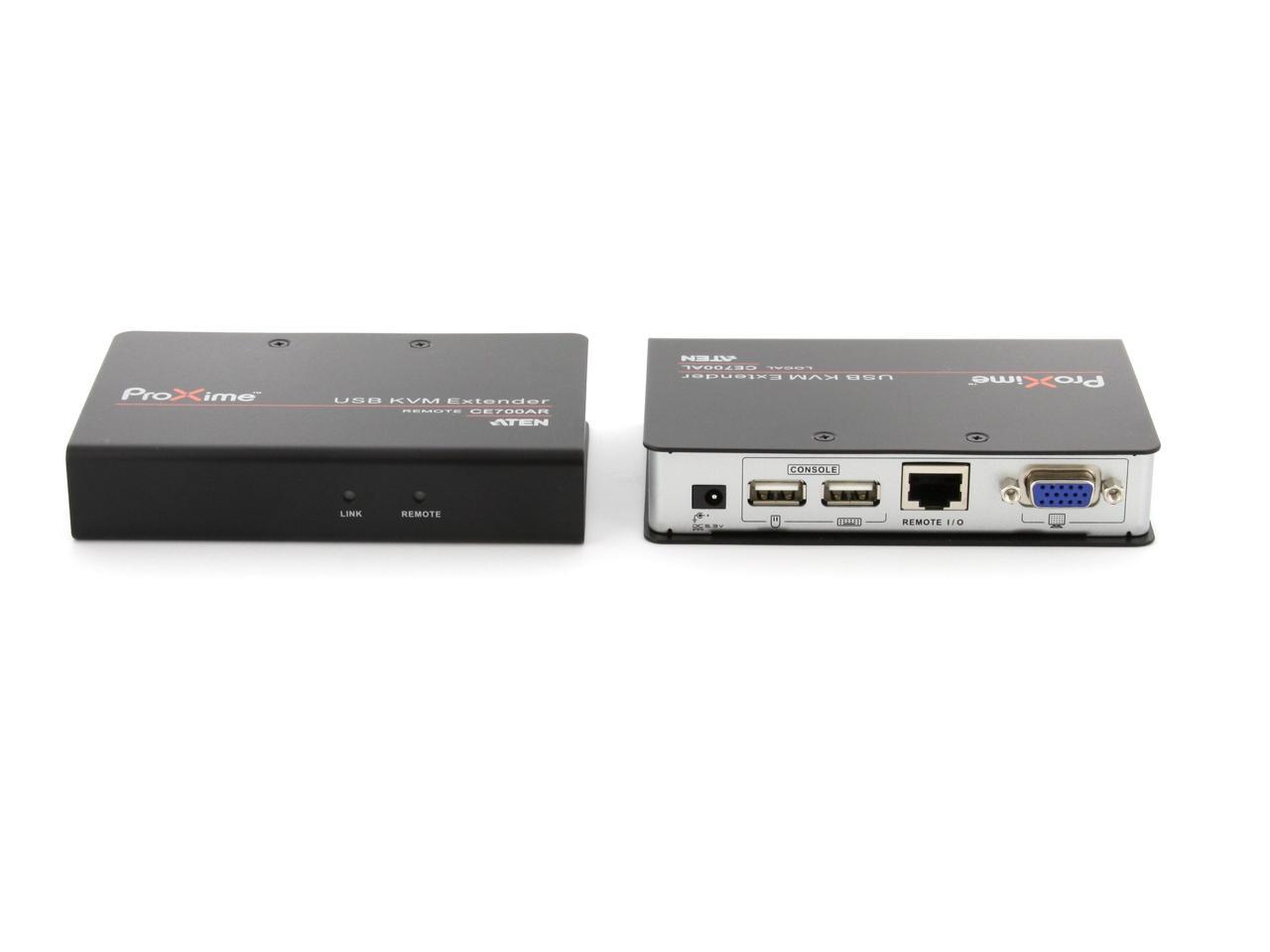

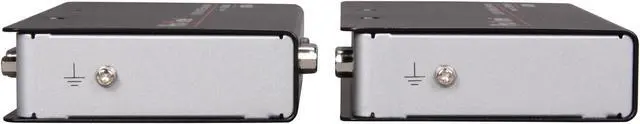

Main image of ATEN CE700A USB KVM Extender

100%

Alt view image 3 of 6 - ATEN CE700A USB KVM Extender

Alt view image 4 of 6 - ATEN CE700A USB KVM Extender

Alt view image 5 of 6 - ATEN CE700A USB KVM Extender

Alt view image 6 of 6 - ATEN CE700A USB KVM Extender

Alt view image 7 of 6 - ATEN CE700A USB KVM Extender

360^°

Shop All ATEN Products | Visit Antonline Store

ATEN CE700A USB KVM Extender

(1) Write a Review

1 Port Computer Connections
Video Resolution 1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m)

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

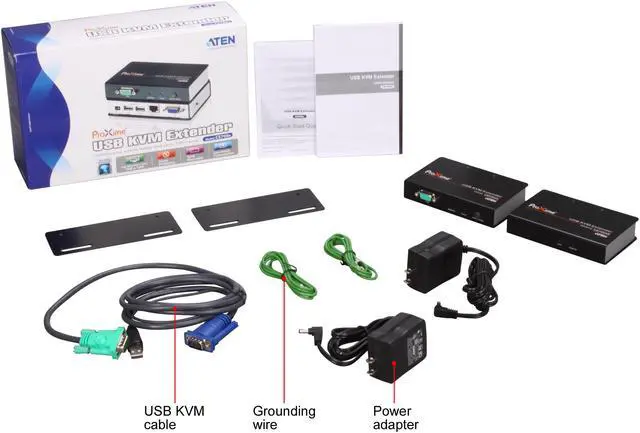

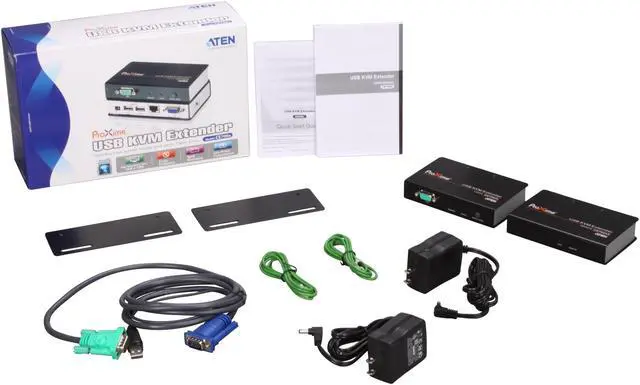

MAIN OVERVIEW FEATURES: Connectivity Technology: WiredKVM Technology: AnalogNumber of Computers Supported: 1Number of Local Users Supported: 1Number of Remote Users Supported: 1Maximum Operating Distance: 492.13 ftGraphic Mode: WUXGAMaximum Video Resolution: 1920 x 1200Network (RJ-45): YesUSB: YesVGA: YesProprietary Interface: YesNumber of VGA Ports: 2Number of Network (RJ-45) Ports: 2Number of USB Ports: 4Input Voltage: 5.3 V DCForm Factor: Rack-mountablePackage Contents: Proxime CE700A KVM Console/Extender2 x Power Adapters1 x USB KVM Cable2 x Grounding Wires1 x Rack Mount Kit1 x User Manual1 x Quick Start GuideEnvironmentally Friendly: YesEnvironmental Certification: WEEE,RoHSCountry of Origin: China

Model
Brand	ATEN
Model	CE700A

Details
Type	D-Sub, USB
Console Connectors	Keyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (White)
Computer Connections	1 Port
Video Resolution	1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m)
PC Selection	Push Buttons

Environmental
Temperature	0ºC to 50ºC(32ºF to 122ºF)
Humidity	0-80% RH, Non-condensing

Features
Features	Cat 5e cable connects the Local and Remote Units - up to 150m apart Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles Built-in ASIC for greater reliability and compatibility Auto Signal Compensation (ASC) USB Keyboard and USB Mouse Ports USB overcurrent detection and prevention Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes. Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection Automatic gain control - adjusts signal strength to compensate for distance High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m) Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes Multiplatform support - Windows, Linux

Dimensions & Weight
Dimensions	4.9" x 3.2" x 0.9"
Weight	1.4 lbs.

Additional Information
Date First Available	July 03, 2021
