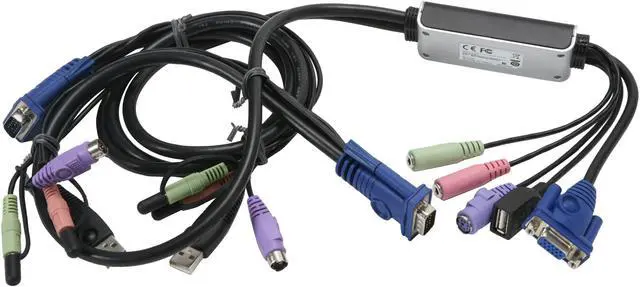

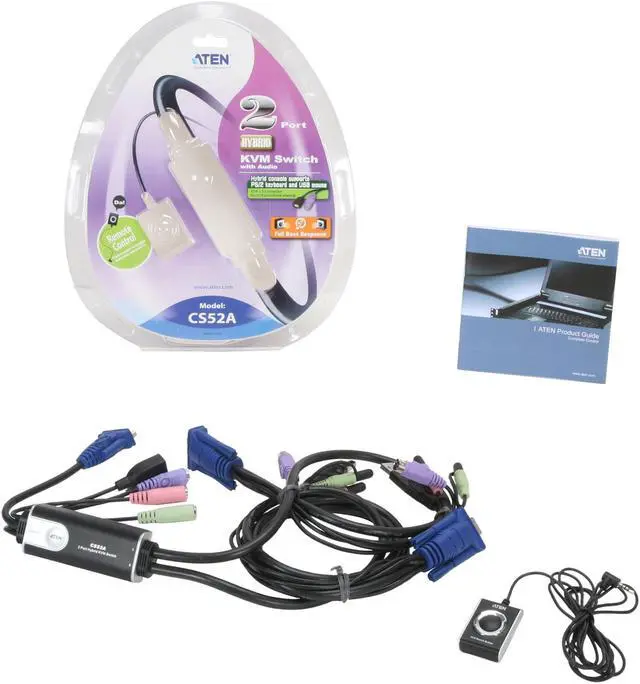

ATEN CS52A 2-Port Hybrid KVM Switch with Audio

(5) Write a Review
  • 2 Ports Computer Connections
  • 1 Port Monitor Connections
  • AutoScan Interval 3, 5, 10, 20 Seconds
  • Video Resolution 2048 x 1536
Specs
Reviews (5)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ATEN CS52A

Model
Brand ATEN
Model CS52A
Details
Type D-Sub, USB, PS/2
PC Connectors Keyboard 1 x 6-pin Mini-DIN Female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (Black)
Speaker 1 x Mini Stereo Jack Female (Green)
Console Connectors Microphone 1 x Mini Stereo Jack Female (Pink)
Keyboard 2 x 6-pin Mini-DIN Male (Purple)
Video 2 x HDB-15 Male (Blue)
Mouse 2 x USB Type A Male (Black)
Speaker 2 x Mini Stereo Plug Male (Green)
Microphone 2 x Mini Stereo Plug Male (Pink)
Computer Connections 2 Ports
Monitor Connections 1 Port
Video Resolution 2048 x 1536
PC Selection Push Buttons/Hot Keys
AutoScan Interval 3, 5, 10, 20 Seconds
Environmental
Humidity 0% to 80%,Non-Condensing
Features
Features One console (monitor, PS/2 keyboard, and USB mouse) controls two computers

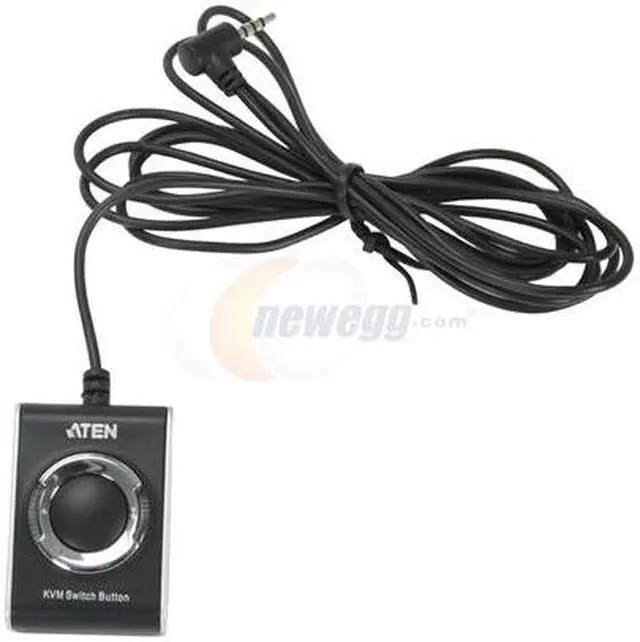

Remote port selection switch for convenient switch placement
Supports multi-function mice
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
Compact design, built in all-in-one cables (console 0.15m; computers 0.6m, 1.2m)
Audio (microphone and speaker) enabled -full bass response provides a rich experience for 2.1 surround sound systems
Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
Superior video quality- up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Non-powered
OS Compatibility includes Windows 2000/XP/Vista, Linux and FreeBSD
Dimensions & Weight
Dimensions 8.45 x 3.40 x 2.13 cm / 0.33" x 0.33" x 0.08"
Additional Information
First Listed on Newegg April 24, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
