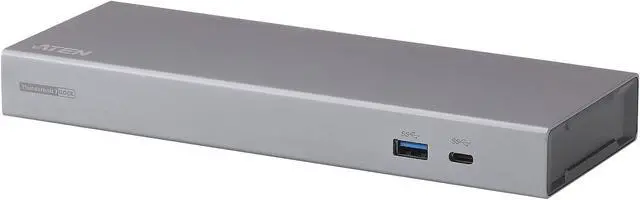

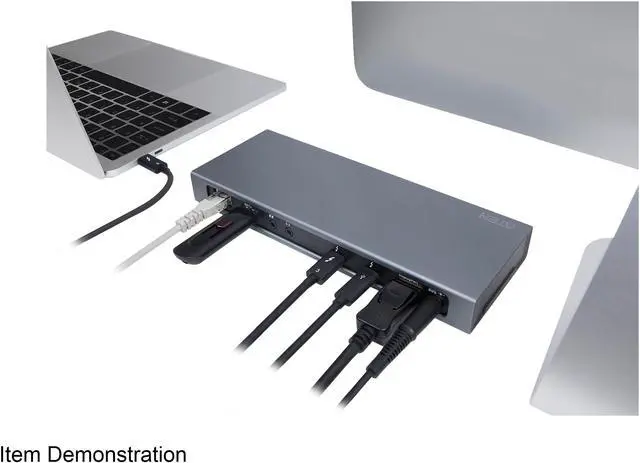

Aten Technology UH7230 Thunderbolt 3 Multiport Dock with Power Charging

Be the first to review this product...
  • Computer: 1 x Thunderbolt 3 (USB-C) Female (Black)
  • Device:
  • 1 x Thunderbolt 3 (USB-C) Female (Black)
  • 3 x USB3.1 Gen1 Type-A Female (Blue)
  • 1 x USB3.1 Gen1 Type-C Female (Black)
  • LAN Ports: 1 x Gigabit Ethernet Female (Black)
  • Audio Inputs: 1 x 3.5mm Stereo Input Female (Black)
  • Audio Outputs: 1 x 3.5mm Stereo Output Female (Black)
  • Power Jack: 1
  • Video Output:
  • 1 x DisplayPort Female
  • 1 x Thunderbolt 3 (USB-C) Female
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ATEN UH7230

Model
Brand Aten Technology
Model UH7230
Details
Thunderbolt 3 Yes
Ports Spec Computer: 1 x Thunderbolt 3 (USB-C) Female (Black)
Device:
1 x Thunderbolt 3 (USB-C) Female (Black)
3 x USB3.1 Gen1 Type-A Female (Blue)
1 x USB3.1 Gen1 Type-C Female (Black)
LAN Ports: 1 x Gigabit Ethernet Female (Black)
Audio Inputs: 1 x 3.5mm Stereo Input Female (Black)
Audio Outputs: 1 x 3.5mm Stereo Output Female (Black)
Power Jack: 1
Video Output:
1 x DisplayPort Female
1 x Thunderbolt 3 (USB-C) Female
Dimensions & Weight
Dimension 1.02" x 3.23" x 8.74"
Weight 0.82 lb.
Features
Features Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen2 (10Gbps) protocol through a single Thunderbolt 3 cable.

Connect up to 8 devices to a laptop via a single Thunderbolt 3 cable / can daisy-chain 5 additional Thunderbolt devices.

Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one USB-C / Thunderbolt 3 display.

85W Universal Power Delivery for charging a Thunderbolt 3 laptop or Macbook pro; supports 20V/4.25A, 15V/3A, 9V/3A and 5V/3A power specifi cation for the output power.

Compatible with legacy Thunderbolt devices via adapter.

Gigabit Ethernet port.

Audio line-in and line-out.

OS Support: Windows 10 32/64 bit, and OS X Sierra 10.12 later.
Additional Information
First Listed on Newegg May 18, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
