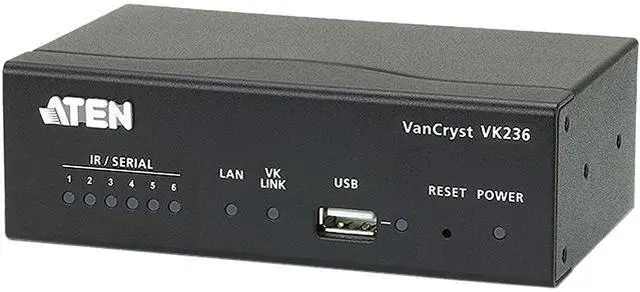

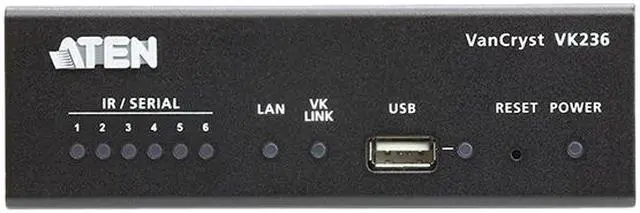

ATEN VK236 6-Port IR/Serial Expansion Box

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ATEN VK236

Model
Brand ATEN
Model VK236
Details
Color Black
Specifications Interfaces

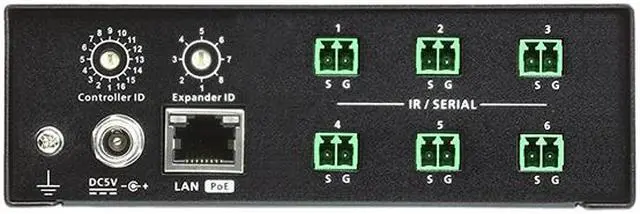

IR/Serial 6 x Programmable IR / Uni-directional RS-232 Port
6 x 2-Pole Terminal Block Connector
IR: TTL level (0 to 5 V)
Carrier Frequency: 10 - 455 KHz;
Serial: Uni-directional RS-232 ( + - 5 V)
Baud Rate: 300 to 115200 (default: 9600);
Data Bit: 8 (default) or 7;
Stop Bit: 1 (default) or 2;
Parity: None (default), Even or Odd

Ethernet
1 x RJ-45 Female, 10/100Base-T
Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH
DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0

Switches
Controller ID: 1 x 16-segment Switch
Expander ID: 1 x 8-segment Switch

Reset Button: 1 x Semi-recessed Pushbutton
USB: 1 x USB Type A (Firmware upgrade only)
Power: Consumption 5VDC, 8W(adapter); 48V, 10.5W (PoE, PoE 802.3 AF/AT compatibility)
Features
Features Provides 6 IR/Serial ports to expand the ATEN Control System

Up to eight VK236 expansion boxes can be added to a single VK2100 Control Box

Flexible Deployment: Connects to a VK2100 Control Box via an Ethernet connection

ID Switch pairs the VK236 with a controller to instantly configure the network settings

Supports Power over Ethernet (PoE) or DC power supply

Firmware upgradable through USB or Web interface
Dimensions & Weight
Dimensions 1.65" x 2.98" x 5.12"
Weight 0.99 lbs.
Package Contents
Package Contents 1 x VK236 6-Port IR/Serial Expansion Box
1 x Power Adapter
1 x Mounting Kit
6 x Terminal Blocks
1 x User Instructions
