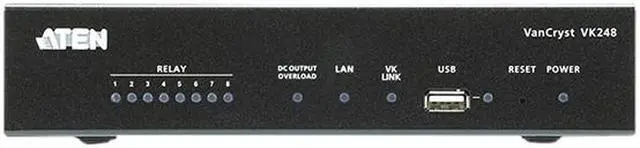

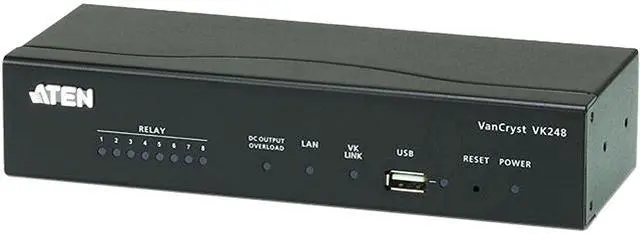

    ATEN VK248 8-Channel Relay Expansion Box

    Be the first to review this product...
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ATEN VK248

    Model
    Brand ATEN
    Model VK248
    Details
    Color Black

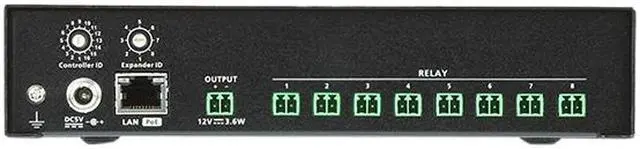

    Specifications Interfaces
    Relay
    8 normally open relays (8 x 2-pole terminal block)
    Contact Rating: Max 24 VDC, 2A
    Ethernet
    1 x RJ-45 Female, 10/100Base-T
    Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH
    DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
    IP: 192.168.0.60
    Subnet Mask: 255.255.255.0

    Switches
    Controller ID: 1 x 16-segment Switch
    Expander ID: 1 x 8-segment Switch

    Reset Button: 1 x Semi-recessed Pushbutton
    USB: 1 x USB Type A (Firmware upgrade only)

    Power
    Consumption 5 VDC, 10 W (Adapter); 48 VDC, 13 W (PoE, PoE 802.3 AF/AT compatibility)
    Output 12 VDC, 300 mA
    Features
    Features Provides 8 relay channels to expand the ATEN Control System

    Up to eight VK248 expansion boxes can be added to a single VK2100 Control Box

    Flexible Deployment: Connects to a VK2100 Control Box via an Ethernet connection

    ID Switch pairs the VK248 with a controller to instantly configure the network settings

    Provides DC power to power an AC relay module or other device

    Supports Power over Ethernet (PoE) or DC power supply

    Firmware upgradable through USB or Web interface
    Dimensions & Weight
    Dimensions 1.65" x 2.98" x 7.87"
    Weight 1.43 lbs.
    Package Contents
    Package Contents 1 x VK248 8-Channel Relay Expansion Box
    1 x Power Adapter
    1 x Mounting Kit
    9 x Terminal Blocks
    1 x User Instructions
    Additional Information
    First Listed on Newegg August 21, 2025
