ATEN 4-Port VGA Splitter with Audio VS0104

Be the first to review this product...
  • One video input to 4 video outputs
  • Superior video quality - up to 1920 x 1440 @ 60Hz
  • Supports up to 450MHz bandwidth for high performance video
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ATEN VS0104

Model
Brand ATEN
Model VS0104
Details
Splitter Type VGA

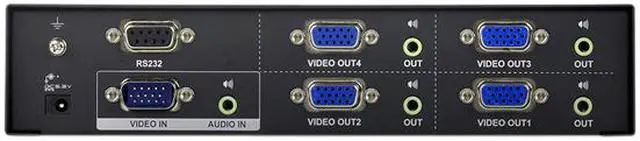

Specification Input Video: 1 x HDB-15 Male (Blue)
Input Audio: 1 x Mini Stereo Jack Female (Green)

Output Video: 4 x HDB-15 Female (Blue)
Output Audio: 4 x Mini Stereo Jack Female (Green)

RS-232 Port: 1 x DB-9 Female (Black)

Power: 1 x DC Jack

Operating Temp: 0 - 50 C
Storage Temp: -20 - 60 C
Humidity: 0 - 80% RH, Non-condensing

Housing: Metal
Performance
Resolution Support 1920 x 1440 @ 60Hz
Indicater
LED Indicator Power 1 (Green / Orange)
Power
Power Consumption DC5.3V, 1.2W
Feature
Feature One video input to 4 video outputs

Superior video quality - up to 1920 x 1440 @ 60Hz

Supports up to 450MHz bandwidth for high performance video

Long distance transmission - up to 65m

Supports VGA, SVGA, UXGA, WUXGA, and multisync

EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display

Expandable - provides up to 64 video displays

Features RS-232 serial port for command controls

RS-232 chain control - use RS-232 commands to control cascaded devices via VGA cable

Supports stereo audio

Plug-and-play - no software installation required
Dimensions & Weight
Dimensions 7.87" x 3.0" x 1.73"
Weight 1.5 lbs.
Package Contents
Package Content 1 x 4-Port VGA Splitter with Audio
1 x Power Adapter
1 x User Instructions
Additional Information
First Listed on Newegg November 05, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
