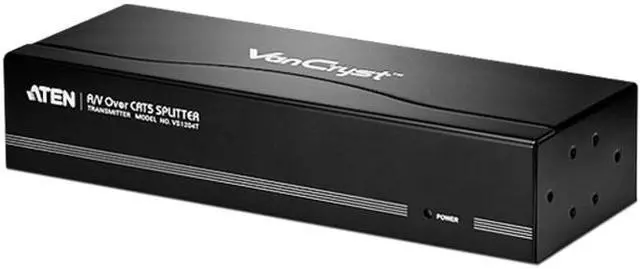

Main image of ATEN 4-Port VGA/Audio Cat5e/6 Splitter VS1204T

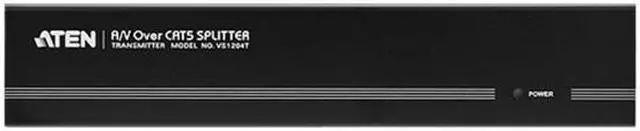

Alt view image 2 of 3 - ATEN 4-Port VGA/Audio Cat5e/6 Splitter VS1204T

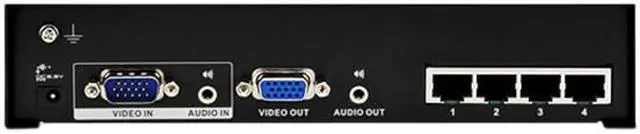

Alt view image 3 of 3 - ATEN 4-Port VGA/Audio Cat5e/6 Splitter VS1204T

Shop All ATEN Products

ATEN 4-Port VGA/Audio Cat5e/6 Splitter VS1204T

Be the first to review this product...

One audio/video input to 4 audio/video outputs via Cat 5e cable
Supports local display + 4 remote displays
Supports up to 225 MHz bandwidth

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The VS1204T splitter is a cost-effective and efficient solution to send audio and video content from one input source to multiple audio/video output devices. The transmission distance can be 1000 feet (300m) via a Cat 5e/6 cable. It supports one local and four remote displays. Video and audio quality will be uncompromised after transmission. The built-in 8KV/15KV ESD protection keeps your investment well protected.

The VS1204T is rack-mountable, perfect for any professional A/V installation that requires multimedia content to be delivered to multiple destinations.

image for this item

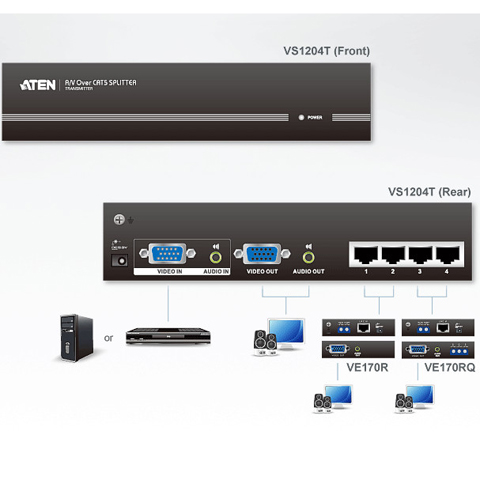

One audio/video input to four outputsThe ATEN VS1204T splitter lets users easily transmit high-quality audio and video content from a single input source to multiple audio/video outputs via a single Cat 5e/6 cable. It supports one local display, and four remote displays. The ATEN VS1204T splitter transmits your video to remote displays located up to 300m (1000ft) away.
Superior video qualityThe ATEN VS1204T splitter supports high-definition content of up to 1920 x 1200 @60Hz. Up to 225MHz bandwidth eliminates signal delay for superior video quality.

Model
Brand	ATEN
Model	VS1204T

Details
Splitter Type	VGA
Specification	Video Input: 1 x HDB-15 Male Video Output: 1 x HDB-15 Female Audio Input: 1 x Mini Audio Jack Female Audio Output: 1 x Mini Audio Jack Female Cable Distance: 1000 ft Housing Case: Metal Operating Temperature: 32 - 122 F Storage Temperature: -4 - 140F Humidity: 0 - 80% RH, Non-condensing

Performance
Resolution Support	1920 x1200 @ 60Hz

Connection
Network Interface	4 x RJ-45 Female
Other Connector	1 x DC Jack

Power
Power Consumption	1.33 W 4.538 BTU / hr
Power Supply	5.3 VDC 300mA

Feature
Feature	One audio/video input to 4 audio/video outputs via Cat 5e cable Supports local display + 4 remote displays Supports up to 225 MHz bandwidth Uses Cat 5e cable to extend displays up to 300 m Superior video quality - up to 1920 x 1200@60Hz Audio enabled (mono) Built-in 8KV/15KV ESD protection Rack-mountable

Dimensions & Weight
Dimensions	7.9" x 2.9" x 1.7"
Weight	1.3 lbs.

Package Contents
Package Content	1 x VS1204T A/V Over Cat 5 Splitter 1 x Power Adapter 1 x Rack Mount Kit 1 x Foot Pad Set (4 pcs) 1 x Grounding Wire 1 x User Guide

Additional Information
First Listed on Newegg	November 18, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
