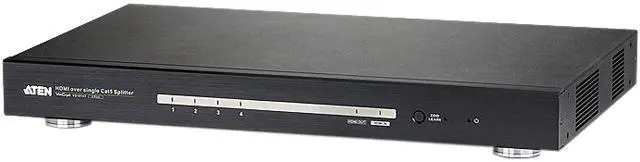

Main image of ATEN 4-Port HDMI HDBaseT Splitter (HDBaseT Class A) VS1814T

Alt view image 2 of 3 - ATEN 4-Port HDMI HDBaseT Splitter (HDBaseT Class A) VS1814T

Alt view image 3 of 3 - ATEN 4-Port HDMI HDBaseT Splitter (HDBaseT Class A) VS1814T

Shop All ATEN Products | Visit Compute4Less Corp Store

ATEN 4-Port HDMI HDBaseT Splitter (HDBaseT Class A) VS1814T

HDMI
HDMI In 1 x HDMI Type A Female (Black)
HDMI Out 1 x HDMI Type A Female (Black)
RS-232: 1 x DB-9 Female (Black)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Compute4Less Corp Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Splitter Type	HDMI
Specification	Video Input Impedance: 100 ohms Max. Distance: 1.8m Video Output Impedance: 100 ohms Max. Distance: Up to 100m (Depends on connected receiver) Control RS-232: - Serial Control Pin Configurations: Pin 2 = Tx, Pin 3 = Rx, Pin 5 = Gnd - Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No EDID Settings EDID Mode: Default / Port 1 / Auto / Learn Environmental Operating Temperature: 0 - 50 celsius degree Storage Temperature: -20 - 60 celsius degree Humidity: 0 - 80% RH, Non-Condensing Physical Properties Housing: Metal

Resolution Support	Up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4) (Depends on connected receiver)
Video	Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane) Max. Pixel Clock: 340 MHz Compliance: HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) HDBaseT Compatible

HDMI	HDMI In 1 x HDMI Type A Female (Black) HDMI Out 1 x HDMI Type A Female (Black)
Serial Interface	RS-232: 1 x DB-9 Female (Black)
Network Interface	4 x RJ-45 Female

Power Consumption	120 VAC, 20W; 230 VAC, 23W
Power Supply	1 x 3-Prong AC Socket (Black)

Dimensions	1.73" x 17.21" x 10.28"
Weight	7.64 lbs.
