Question 1

WILL THIS POWER SUPPLY FIT MY HP PAVILION SLIM LINE PC?BECAUSE MY PC HAS A SATA HARD DRIVE PLUG COMING FROM THE PORWE SUPPULY AND ALL THE WIRES ARE COMING OUT FROM THE SIDE NOT THE REAR OF THE POWER SUPPULY?AND THE SIZE POWER SUPPULY IS 9"X1.8X3AND1/4?
THANK YOU VERY MUCH.

Accepted Answer

The unit should work.... If not, you would need to invest in transferring the components in a slimline system to a traditional atx case where power supplies are standard. If you do not know how to do this, then get someone whom is knowledgeable in doing this... I am pretty sure this will help preserve your pc that was purchased.... Look at all the pros and cons of going from a slimline to a regular atx...   Now buying this power supply, I cannot guaranteee it will work on this model...

Question 2

I am looking for a replacement for "HP 5188-7520 160w Mini ITX" for an HP Pavilion Slimline model # S3720Y and would like to confirm that this is a match prior to purchasing?

Accepted Answer

The power supply has held up fine. I would just caution that you are absolutely certain about your dimensions and whether it is a proper fit for your case.

Question 3

Will this work in a gateway SX2801 desktop?

Accepted Answer

The physical dimensions of your Gateway power spply are a little bigger than this particular power supply.  Could you get it to work? Probably.  However, the failure rate of this particular brand of power supply is rather high and if you have other options I suggest you persue them.

Question 4

Is this compatible with an emachines EL152G?

Accepted Answer

that wasn't my application.look at the power supplies form factor to see if it will physically fit then make sure it has all the connections you need. From there I'm pretty sure it will meet your power requirements

Question 5

Would this product be compatible with an HP pavilion slimline s5220y PC?

Accepted Answer

I wouldn't recommend this psu because the dimensions on this one and the psu that you need are different in size... On the psu that you are looking for the size of it is 3.4 x 2.5 x 7 and  it has a 40mm fan on it where this one don't ... On this psu that your looking at the dimensions are 3.2 x 1.7 x 6  it's a little smaller than what you need...

Question 6

Hello, will this replace a 220W HP Pavilion Slimline s3431 s3431uk s3440la?

Accepted Answer

It looks to be the similar issue I ran into, the hp uses a mini ATX connector not a mini ITX. Check a few references to be sure I had to return mine because i didn't pay attention.

Question 7

what are the dimensions?

Accepted Answer

The Dimensions, should be in the Specifications, I no longer have this computer, but I used the power supply to replace one in a HP Mini Computer case.

Question 8

hello I have a HP slimline s7620n computer with AC Bell AP15PC14 power supply, this appears to be a match but could you confirm?

Accepted Answer

Model numbers don't matter much. Check the dimensions of your current PSU with this one and compare wattage. If the dimensions match, and the wattage is equal or below 220, then this PSU should be fine.

Question 9

Can you please tell me what the dimensions of this power supply are? I want to incorporate it into a pc chassis I will soon be mass producing.

Accepted Answer

Dimension	 L150 x W81.5 x H40.3 (mm)

Question 10

Is it compatiable to HP pavillion slimline S5-1224?
What is the dimension of the power supply (lxwxd)?
What type of connectors to HDD, Dvd ?

Accepted Answer

I don't know enough about it.  I had a slimline and thought they were the same.  But they weren't and I couldn't make it fit.  From what I understand now they have to match exactly. For example of you have a ps 1225-60 the ps 1225-62 won't match.  Sorry I can't be of more help. I don't know all the tech terms either.

Brand	Athena Power
Model	AP-MFATX22

Type	Mini ITX / Micro FLEX ATX / ATX12V
Maximum Power	220 W
PFC	Active
Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	No
SLI	No
Haswell Support	No
CrossFire	No
Hold-up Time	17ms min.
Input Voltage	88 -264 V
Input Frequency Range	47 - 63 Hz

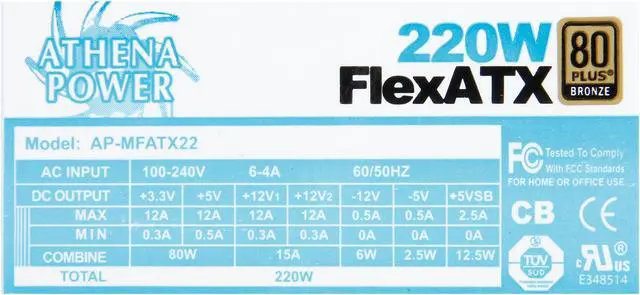

Output	+3.3V@12A, +5V@12A, +12V1@12A, +12V2@12A, [email protected], [email protected]
MTBF	100,000 hours on maximum load at +25 Degrees C
Approvals	Mini ITX / Micro FLEX ATX / ATX12V

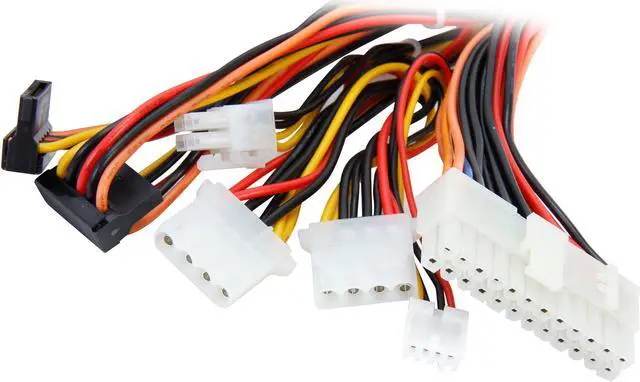

Connectors	ATX Connector 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 SATA 15 Pin x 2 Molex 4 Pin x 2 Floppy 4 Pin x 1

Dimensions	3.2" x 1.7" x 6"
Weight	2 lbs.

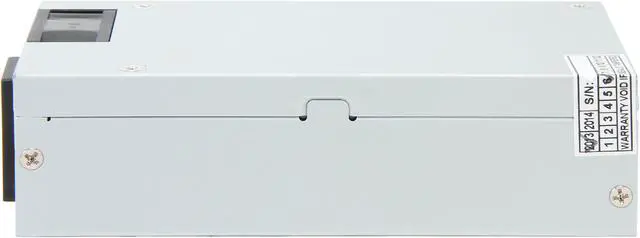

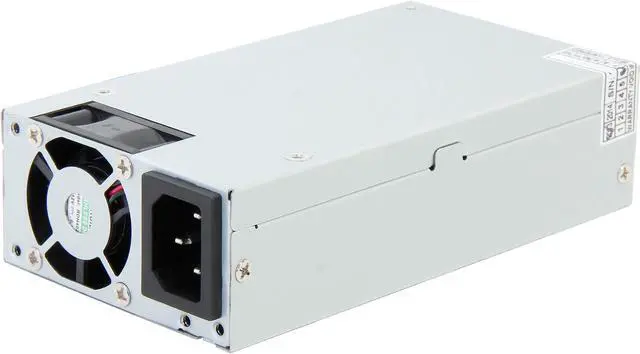

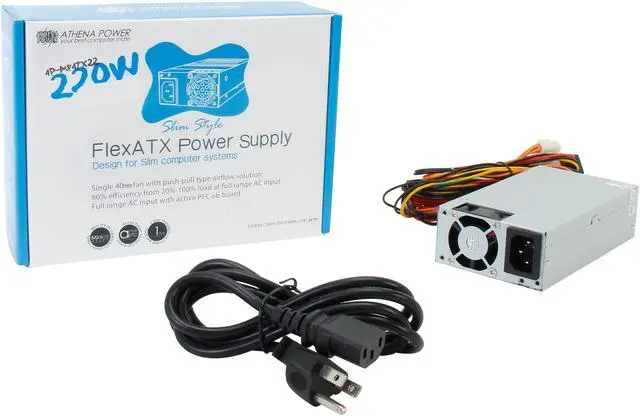

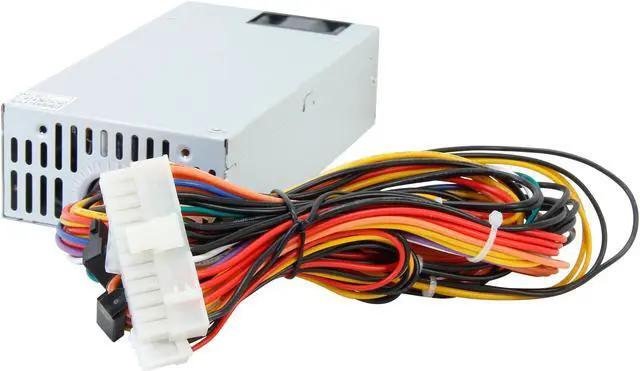

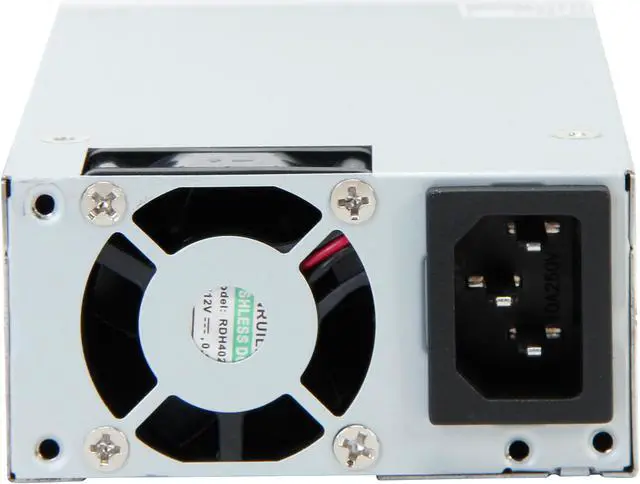

Athena Power AP-MFATX22 220W Mini ITX / Micro FLEX ATX / ATX12V Active PFC Power Supply for many HP Slimline System Upgrades/Replacement - OEM
