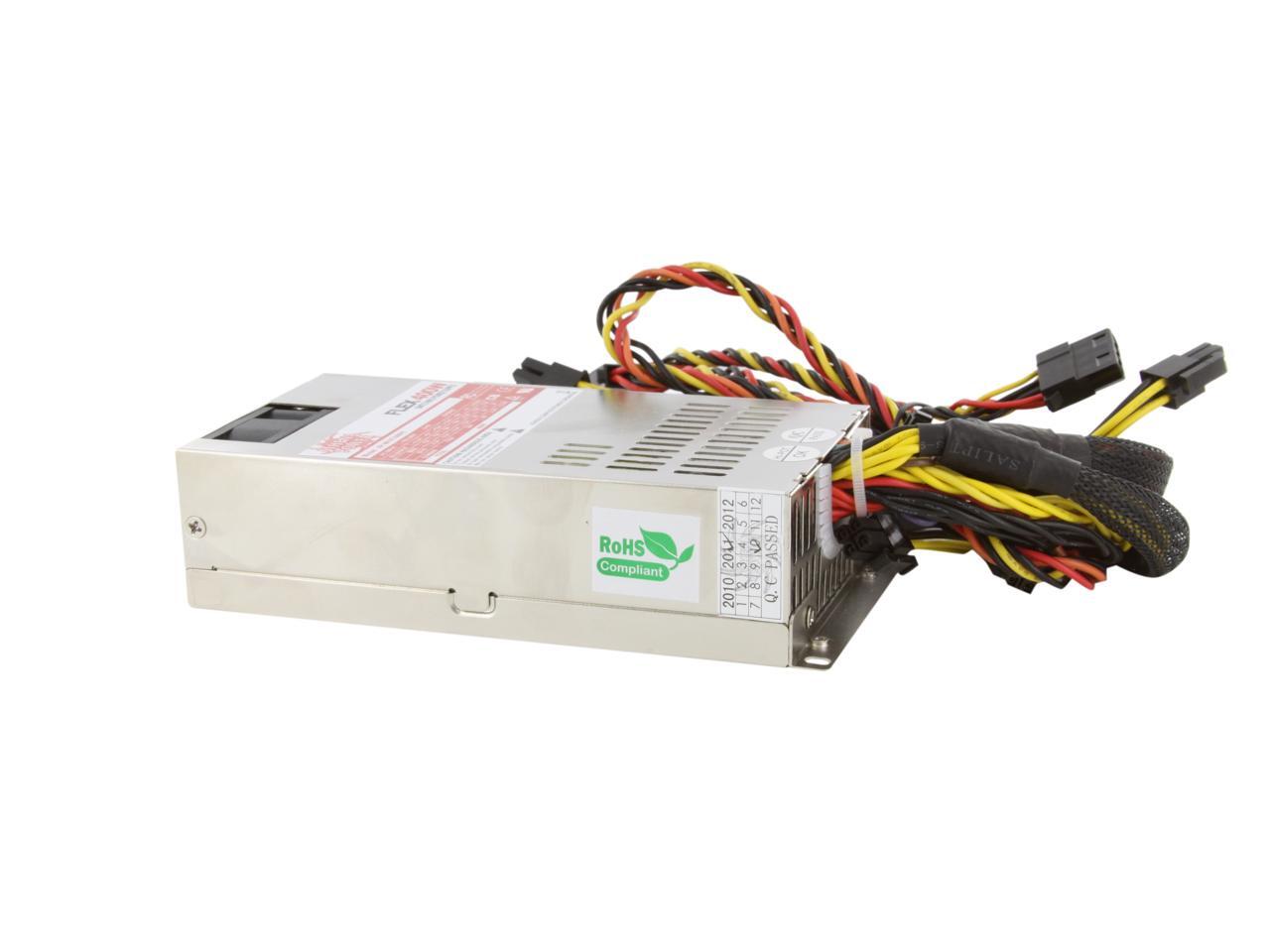

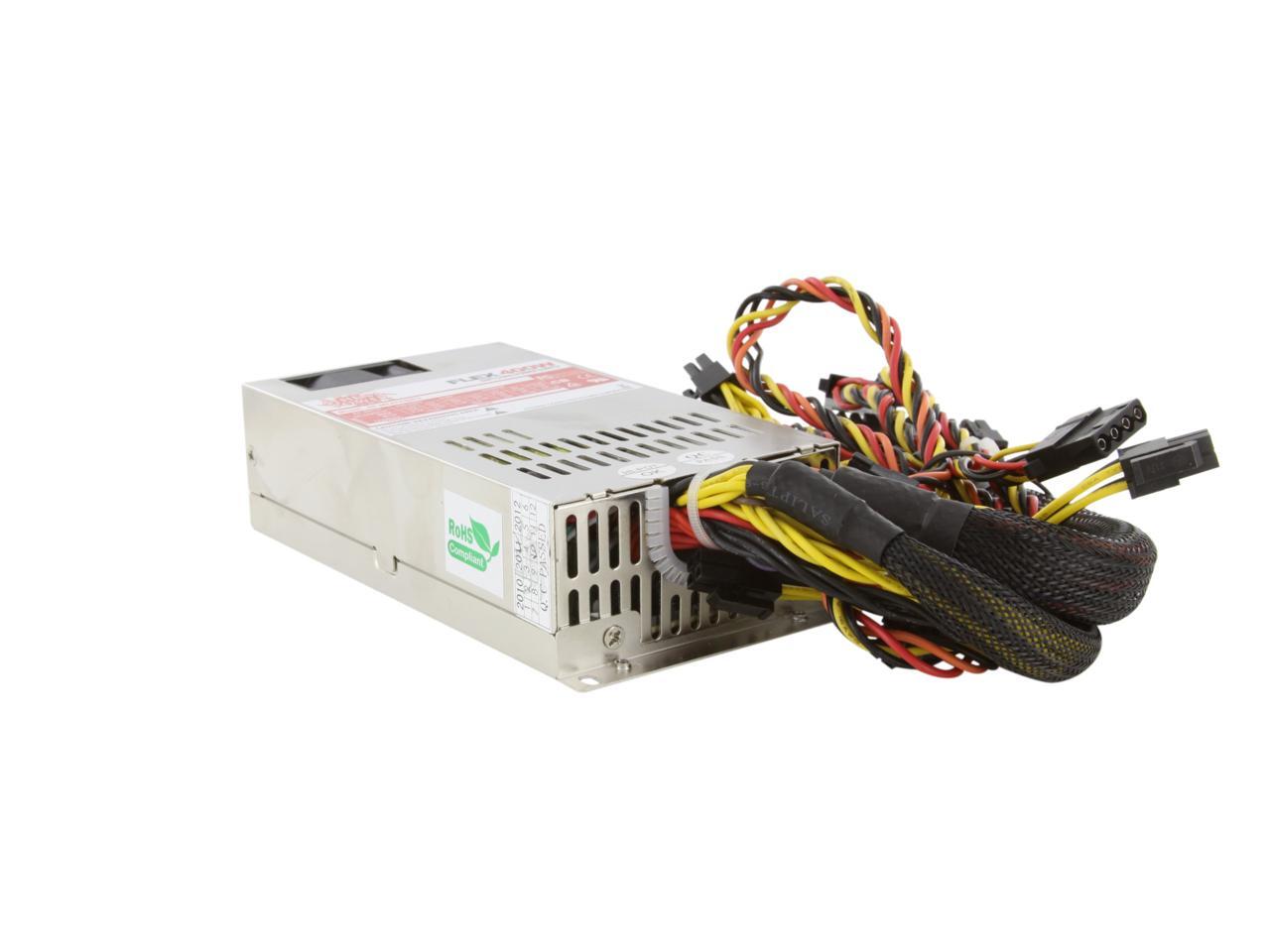

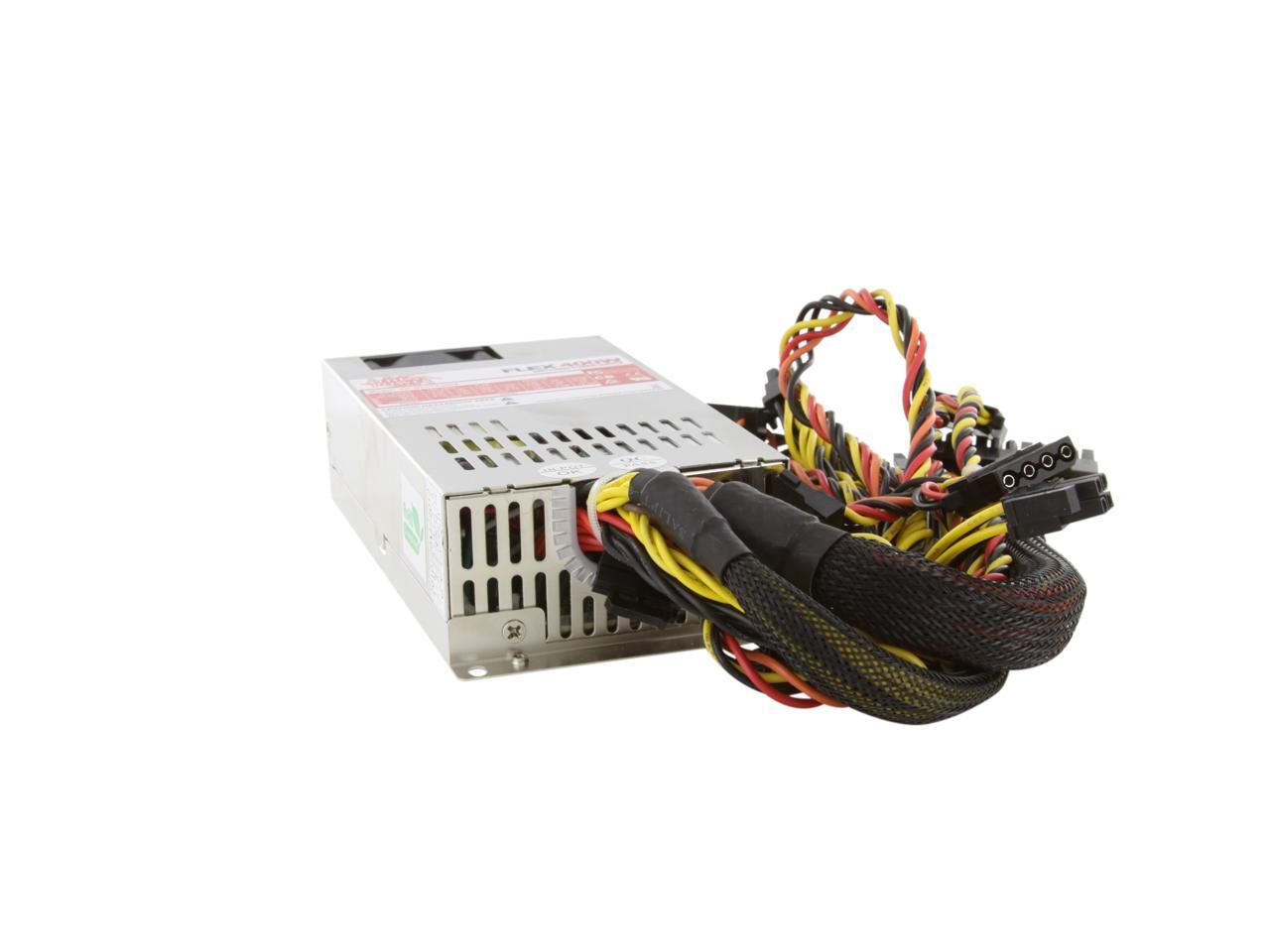

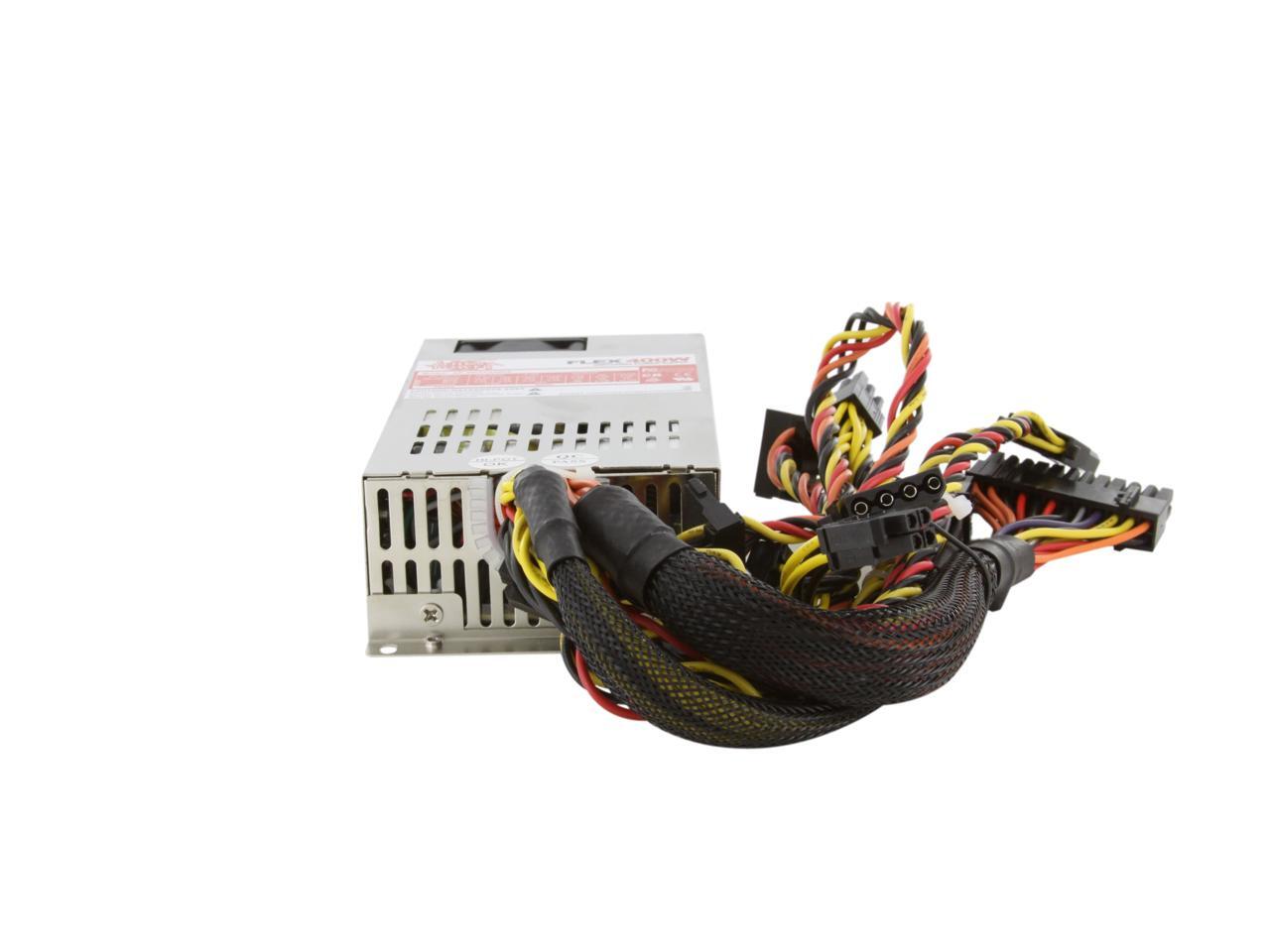

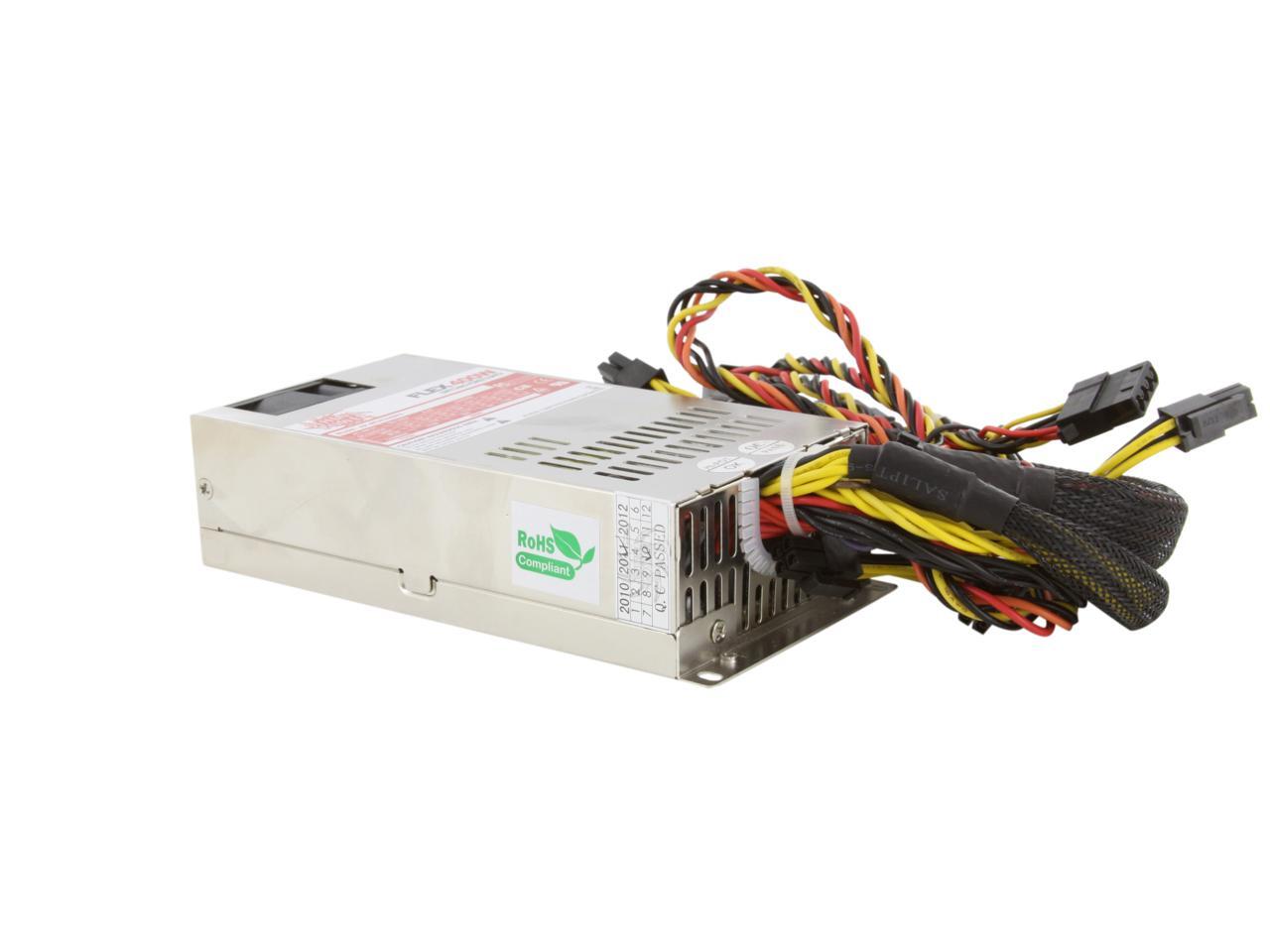

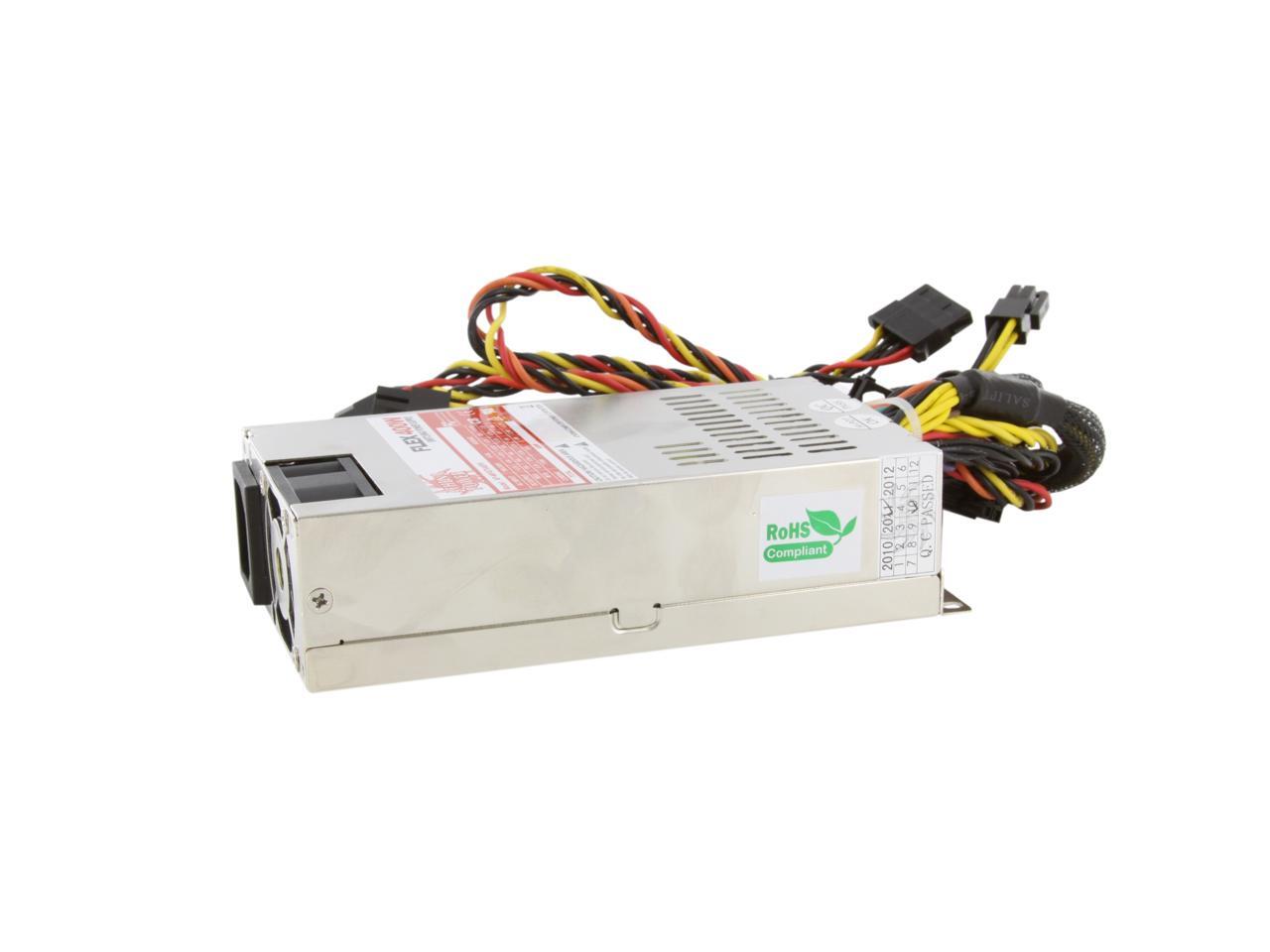

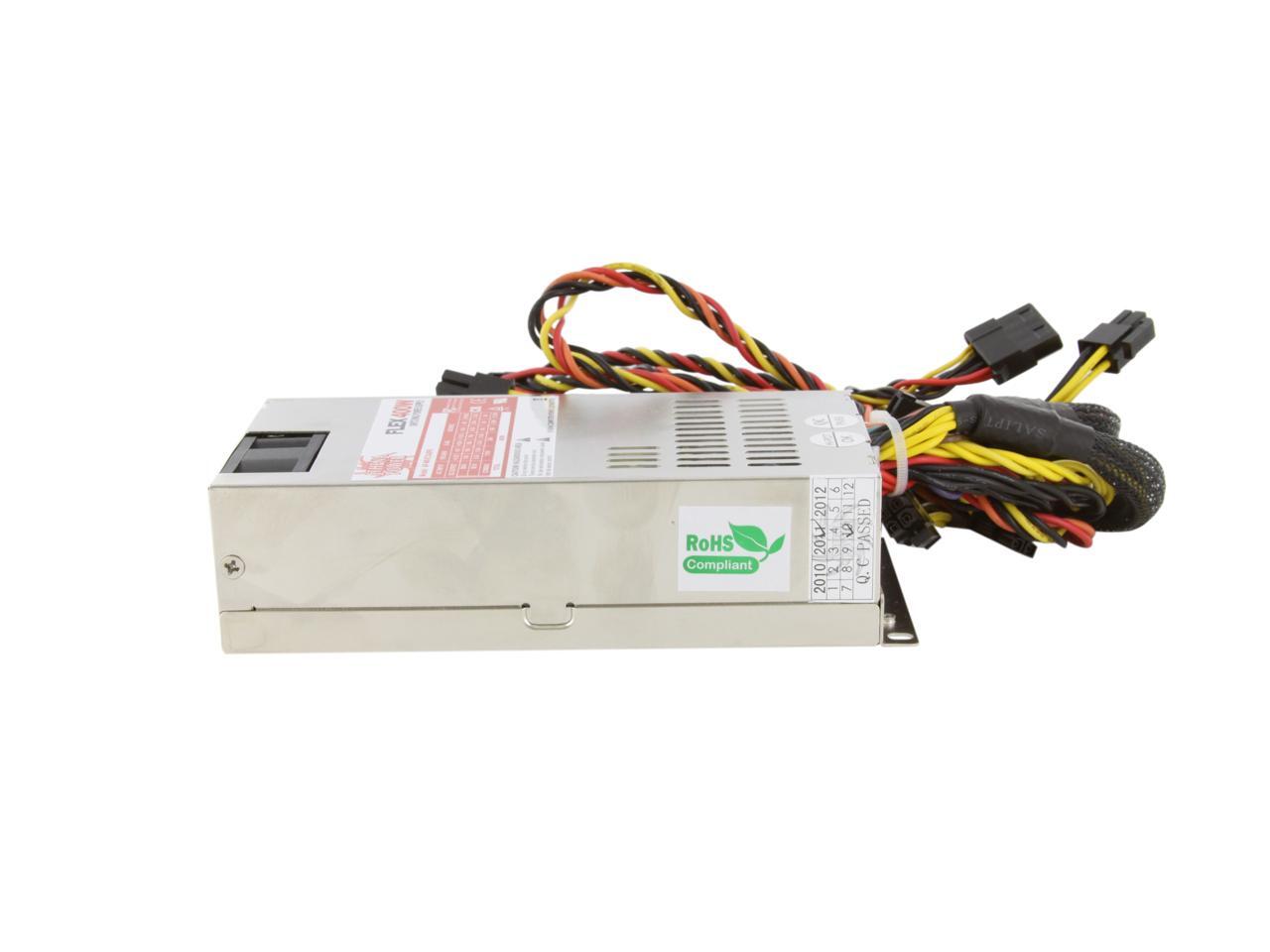

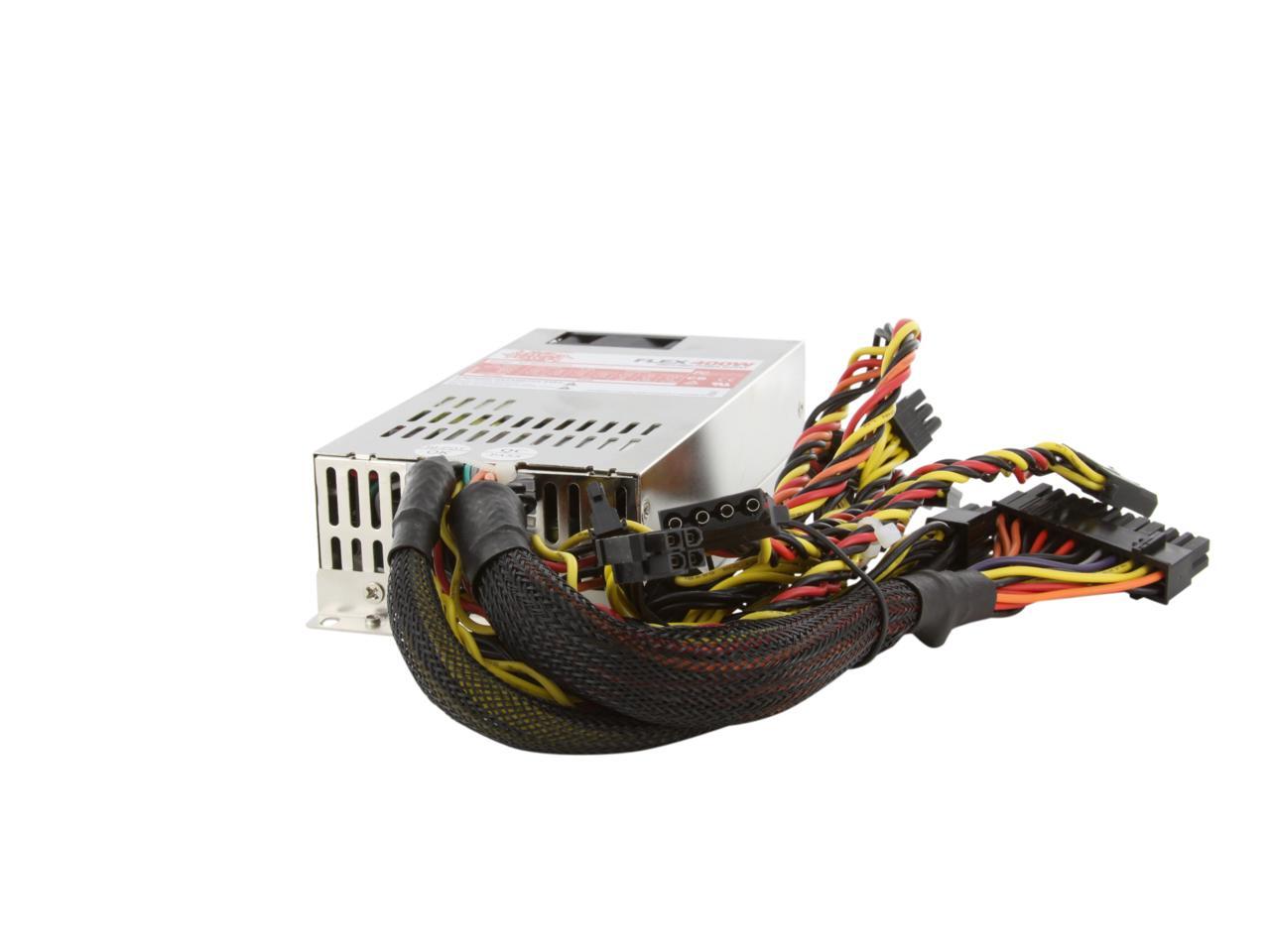

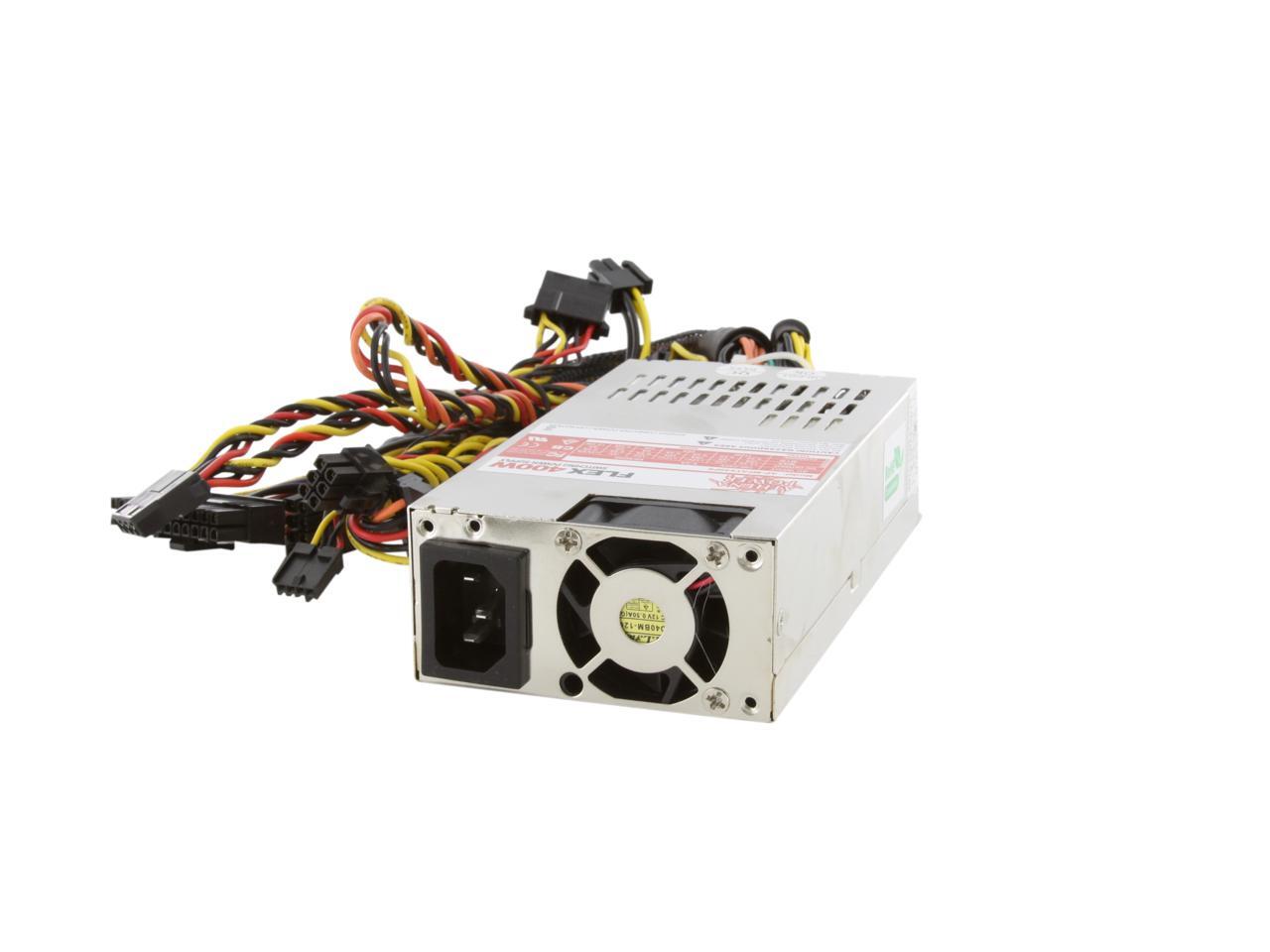

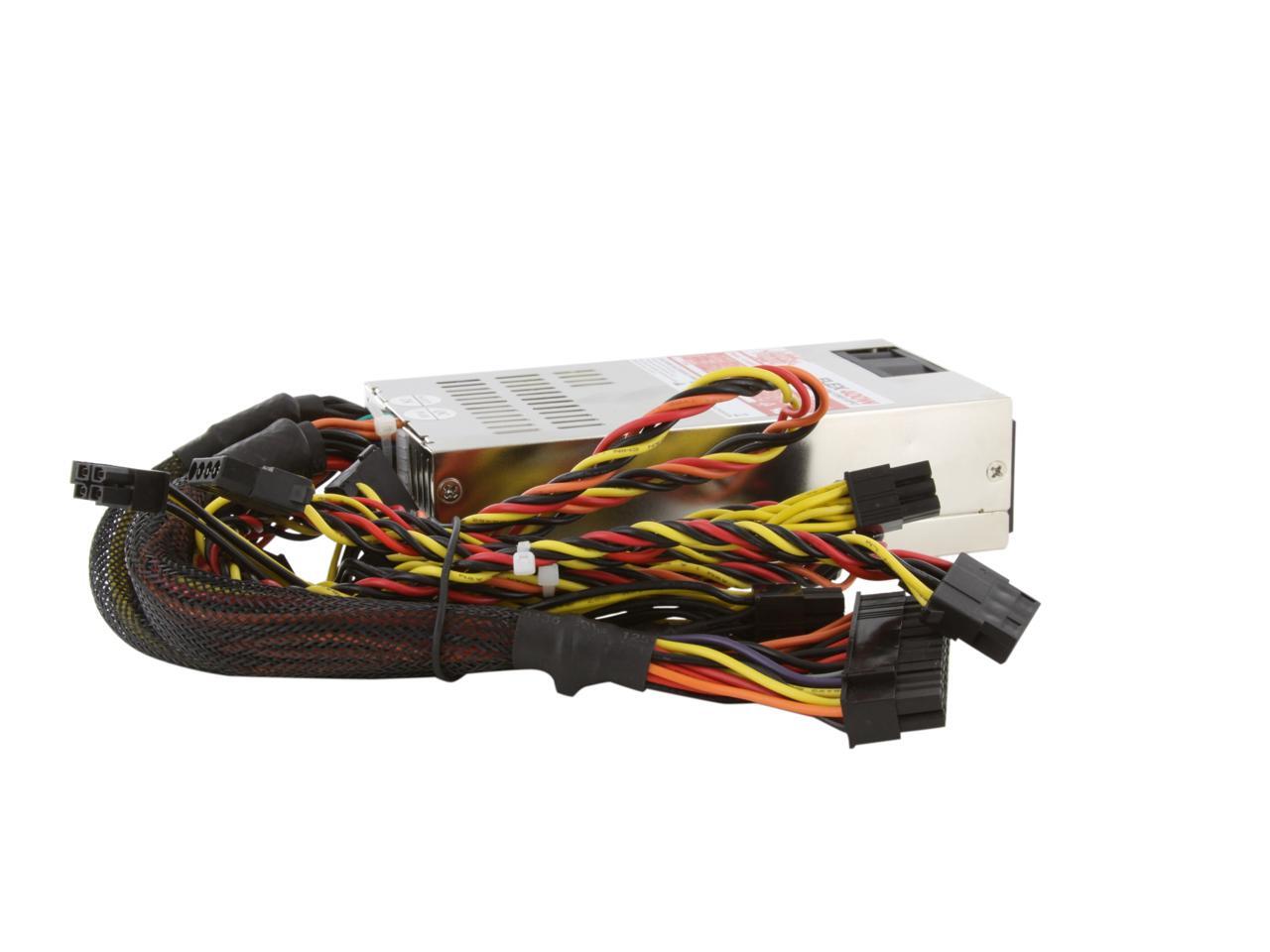

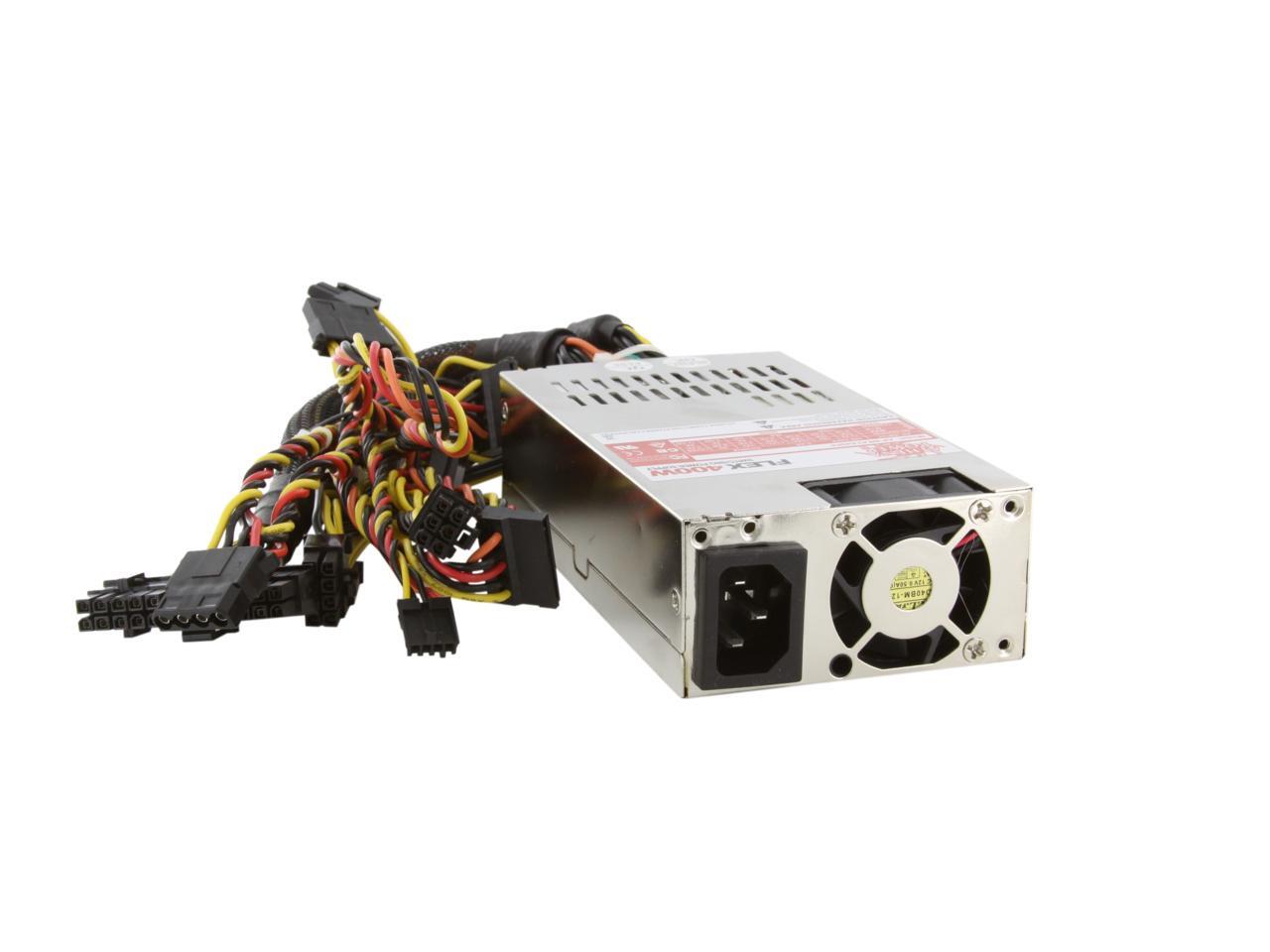

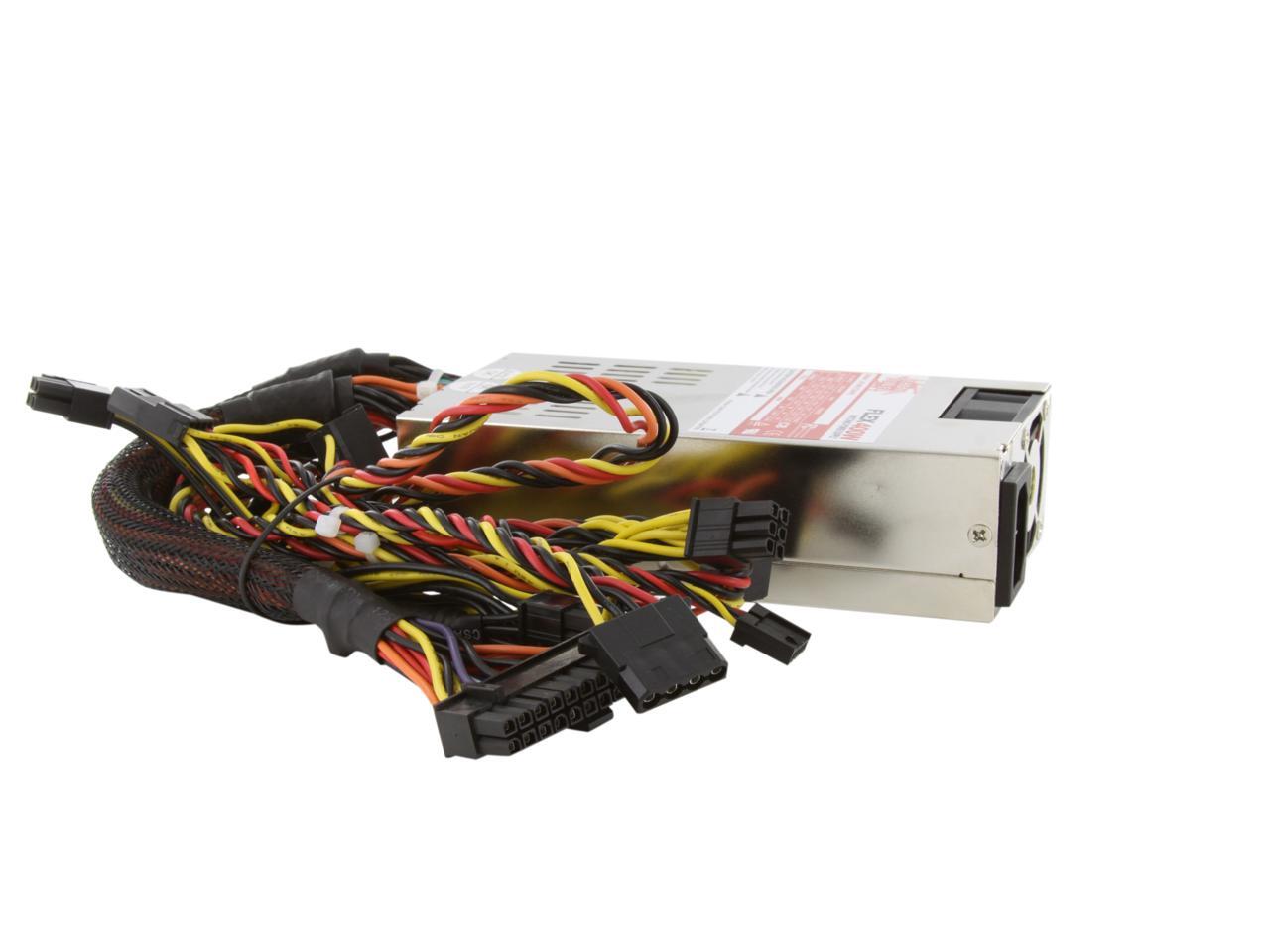

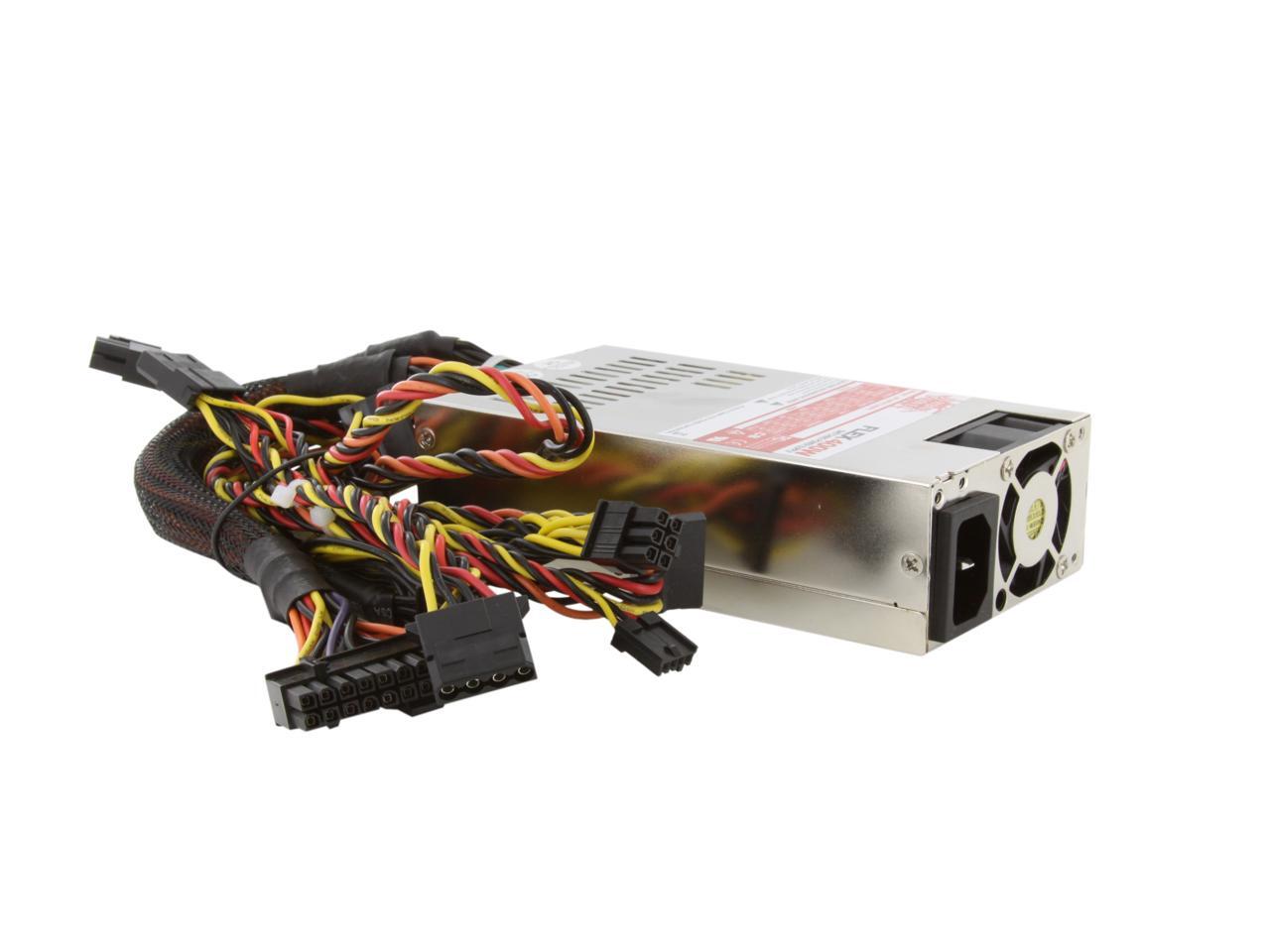

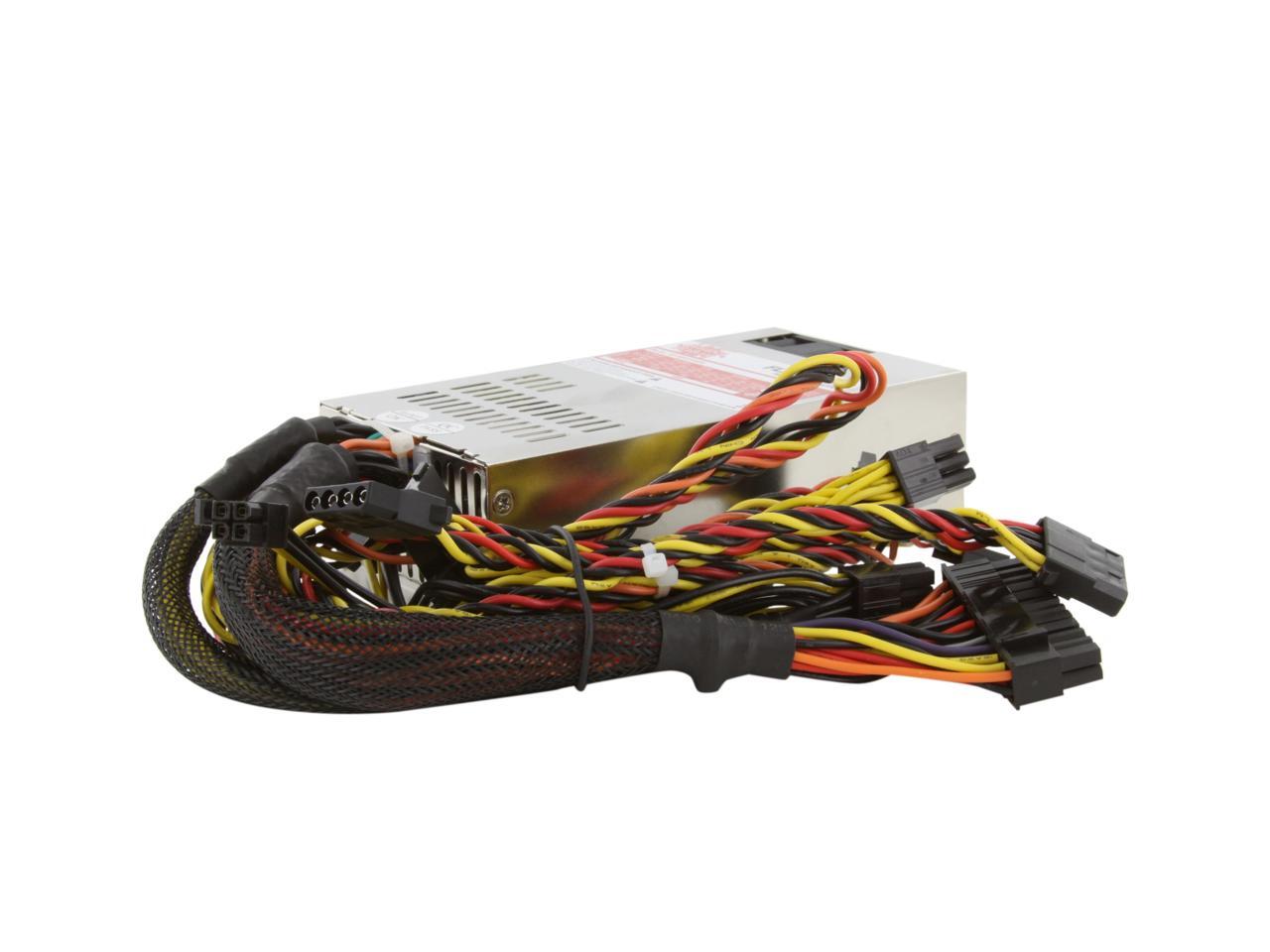

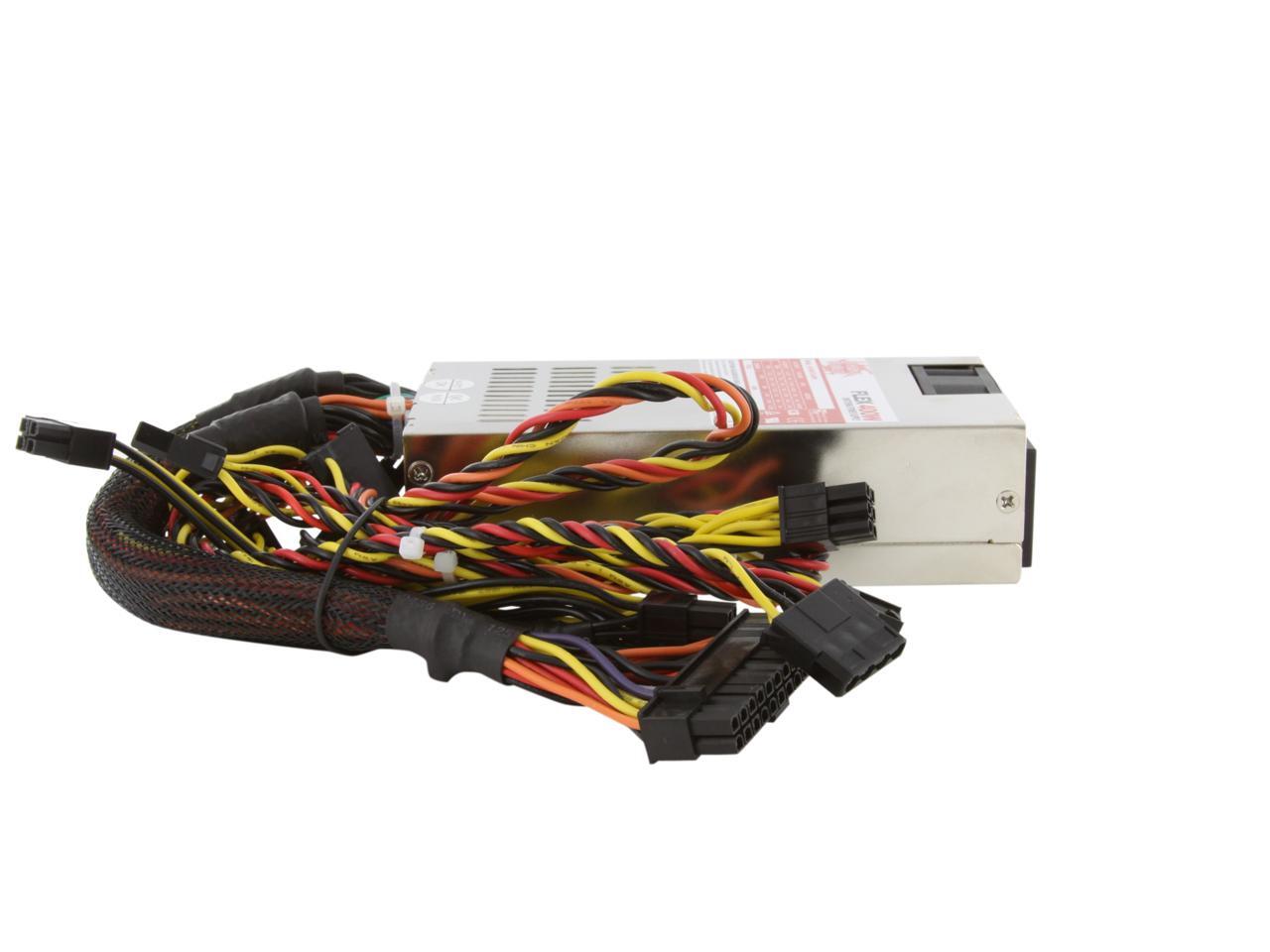

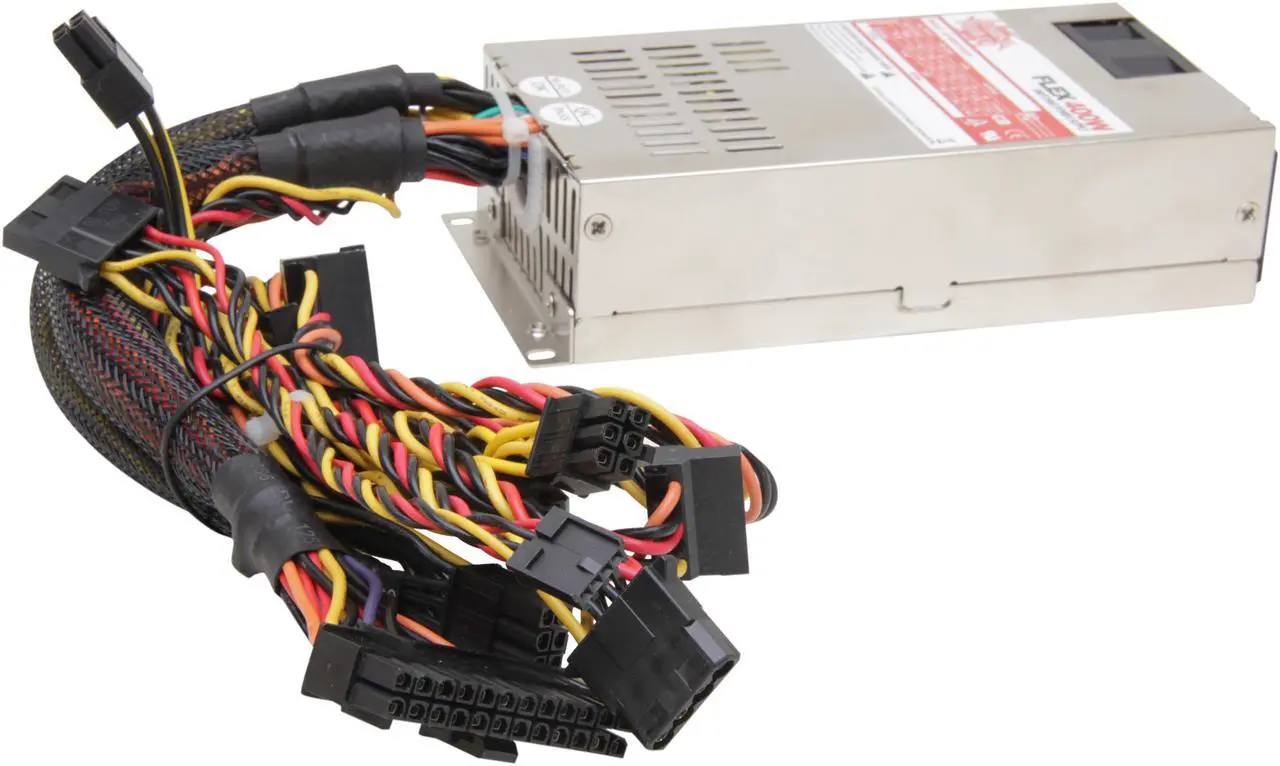

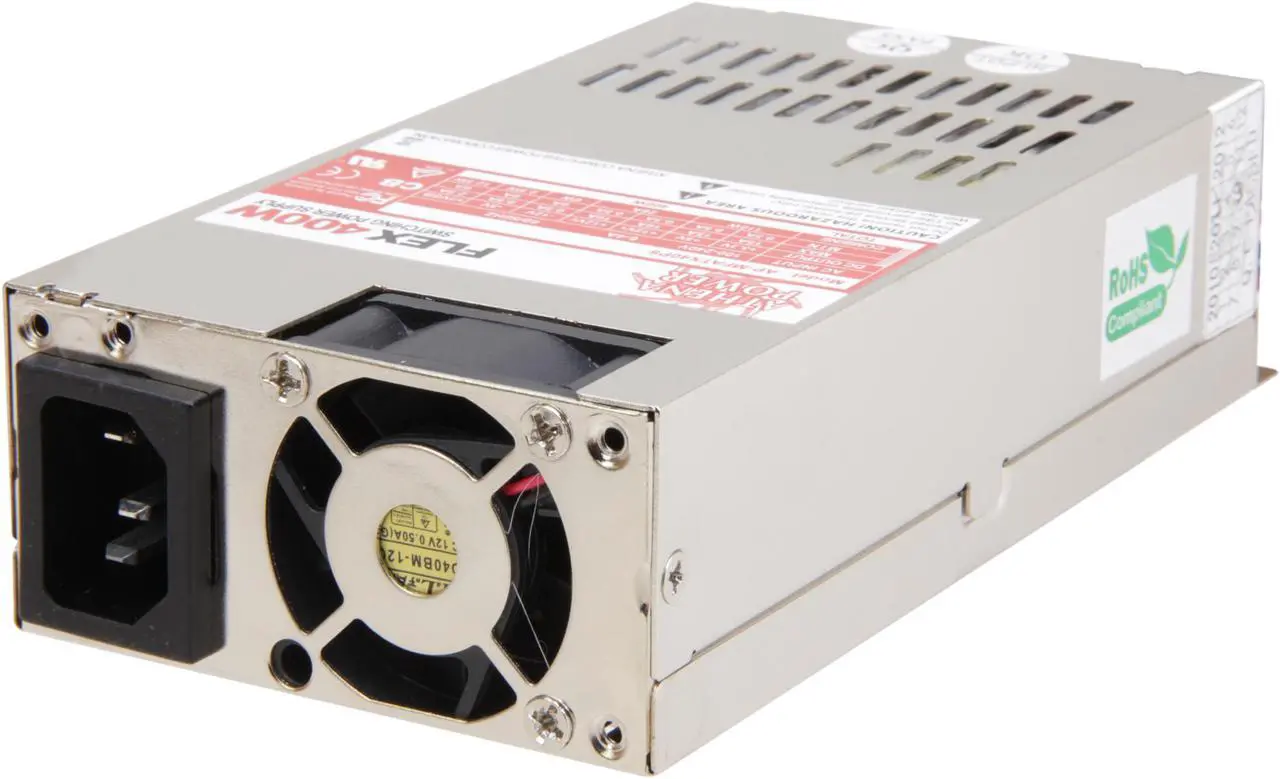

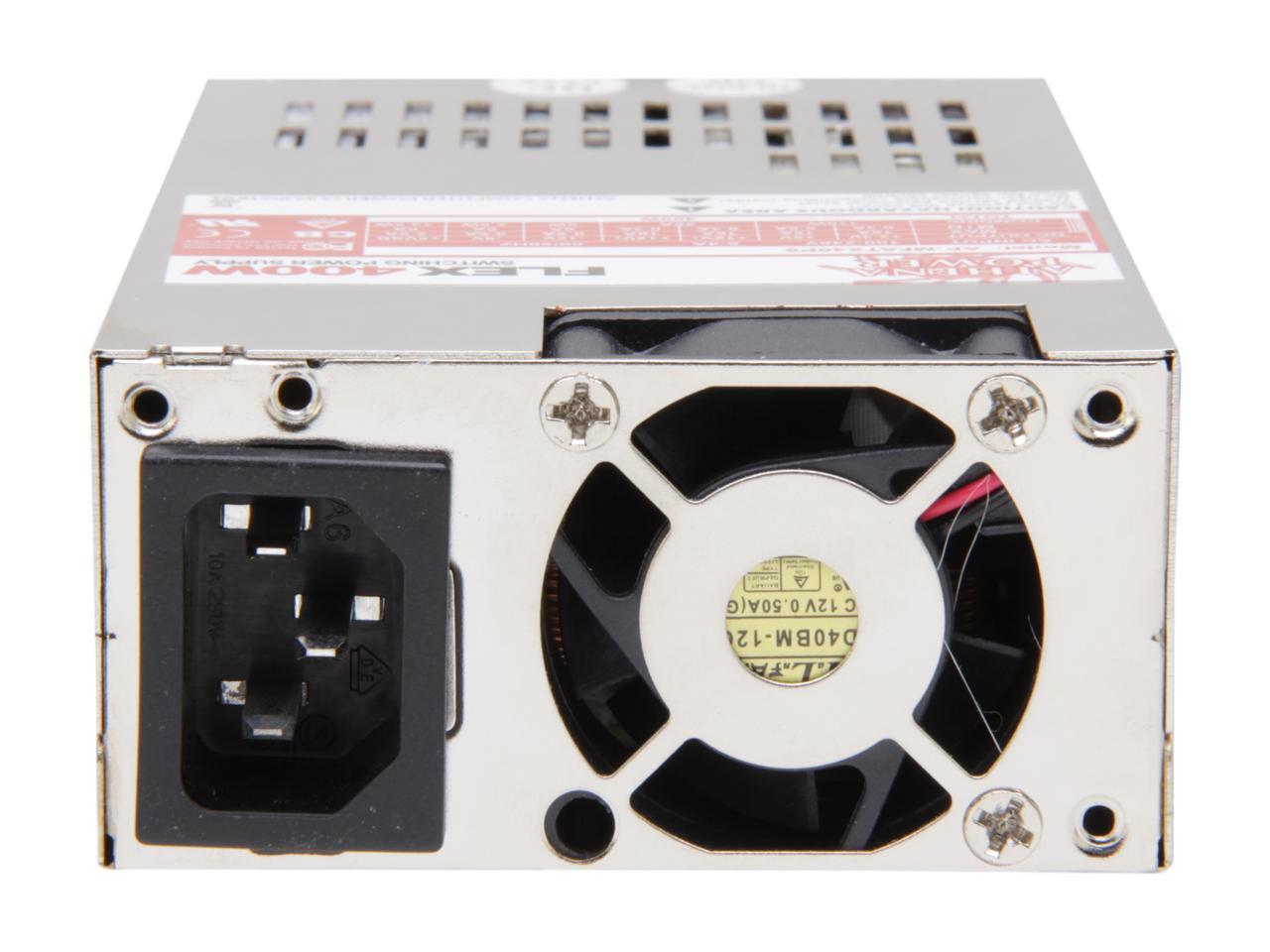

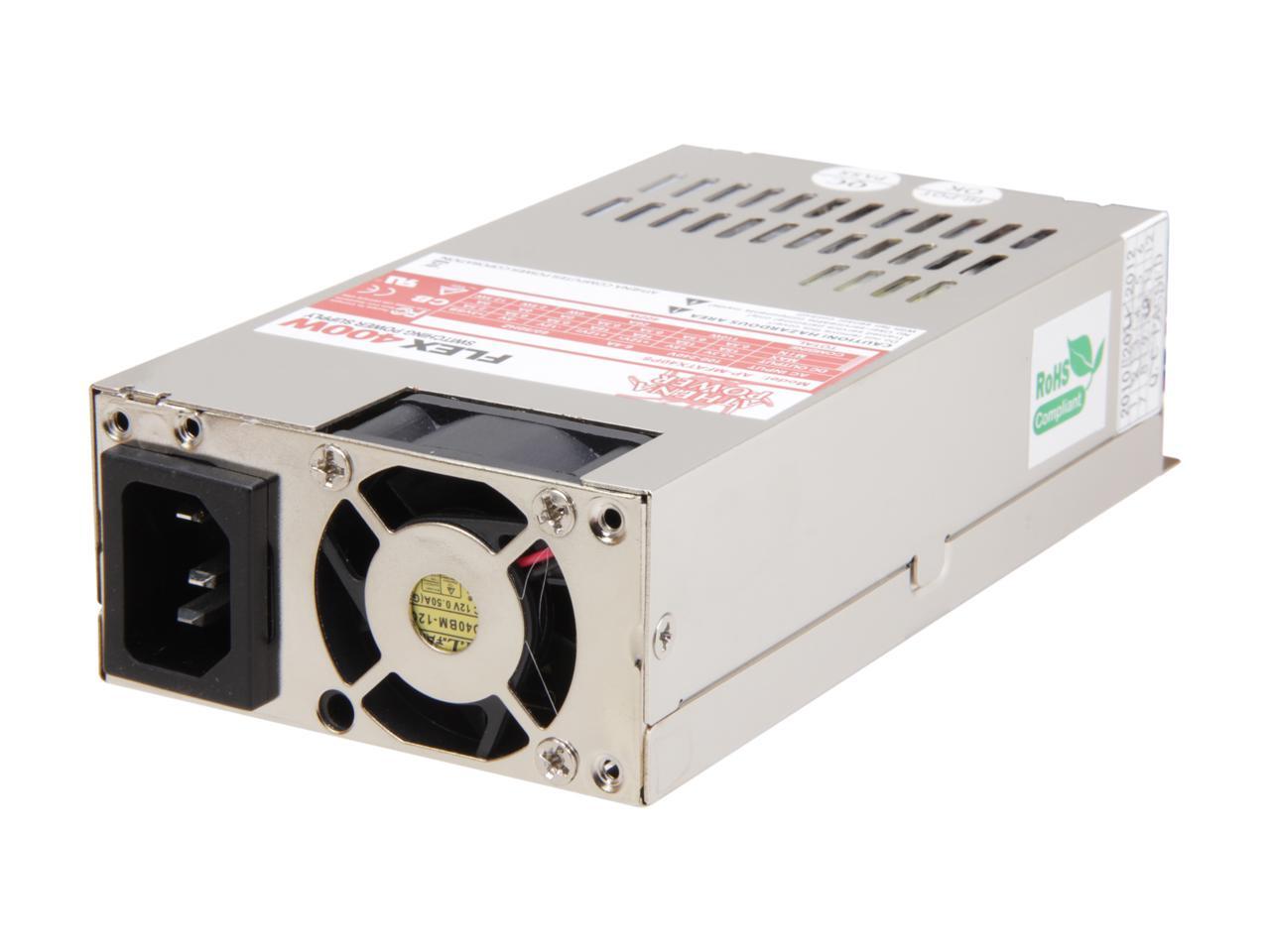

Athena Power AP-MFATX40P8 20+4Pin 400W Single Server Power Supply 80+ Bronze Certified

Athena Power AP-MFATX40P8 Specifications

400 Watt Flex-ATX Power Supply
Power your 1U server or HTPC small-form factor system with this 400W 80+ bronze certified flex-ATX Power Supply! This high quality power supply features PCI-Express power connectors, for video cards and other high-end expansions and dual 16A +12V rails for terrific long term stability.
Buy 80+ Bronze HTPC Power Supply
Noise is always an issue in PCs, but is rarely more salient than in HTPC builds. This Athena Power AP-MFATX40P8 power supply is 80+ Bronze certified, which guarantees a high degree of efficiency and very low heat. This will keep your system cooler and quieter than would a non-certified power supply.
Athena Power AP-MFATX40P8

Power Output
400 Watt
Form Factor
Flex ATX
Efficiency
80+ Bronze
DC Power Output
+5V @ 15A
+3.3V @ 15A
+12V1 @ 16A
+12V2 @ 16A

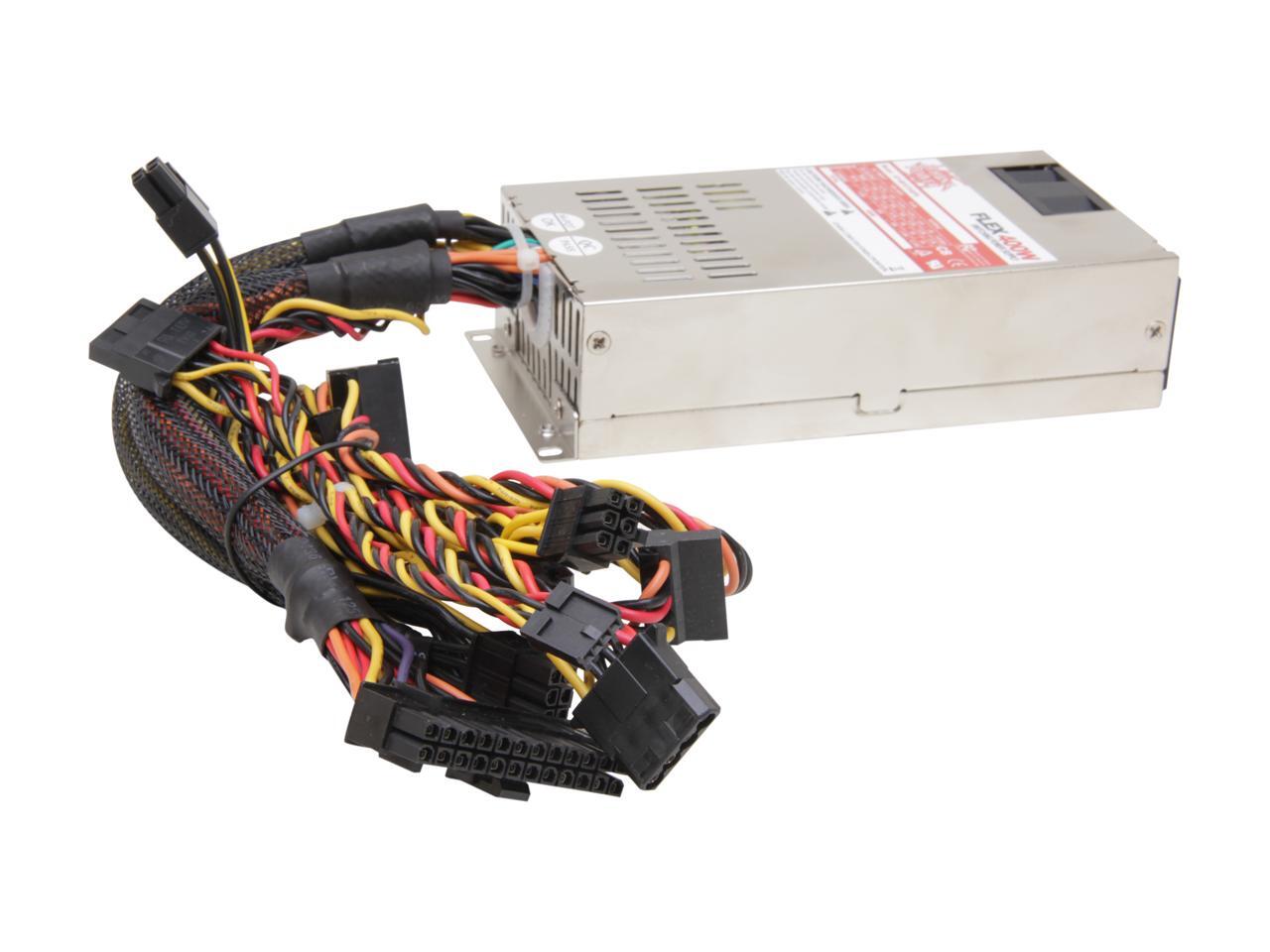

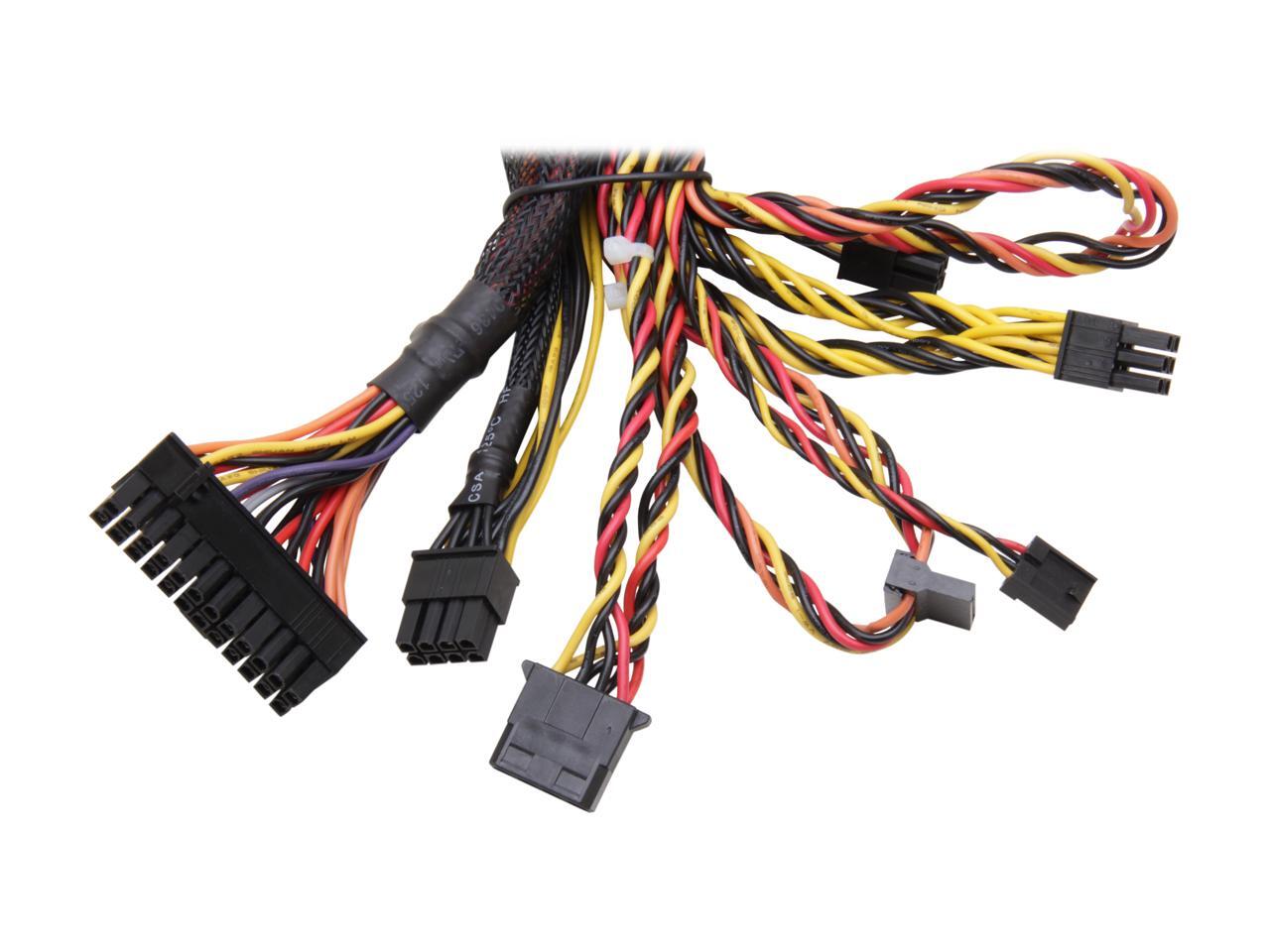

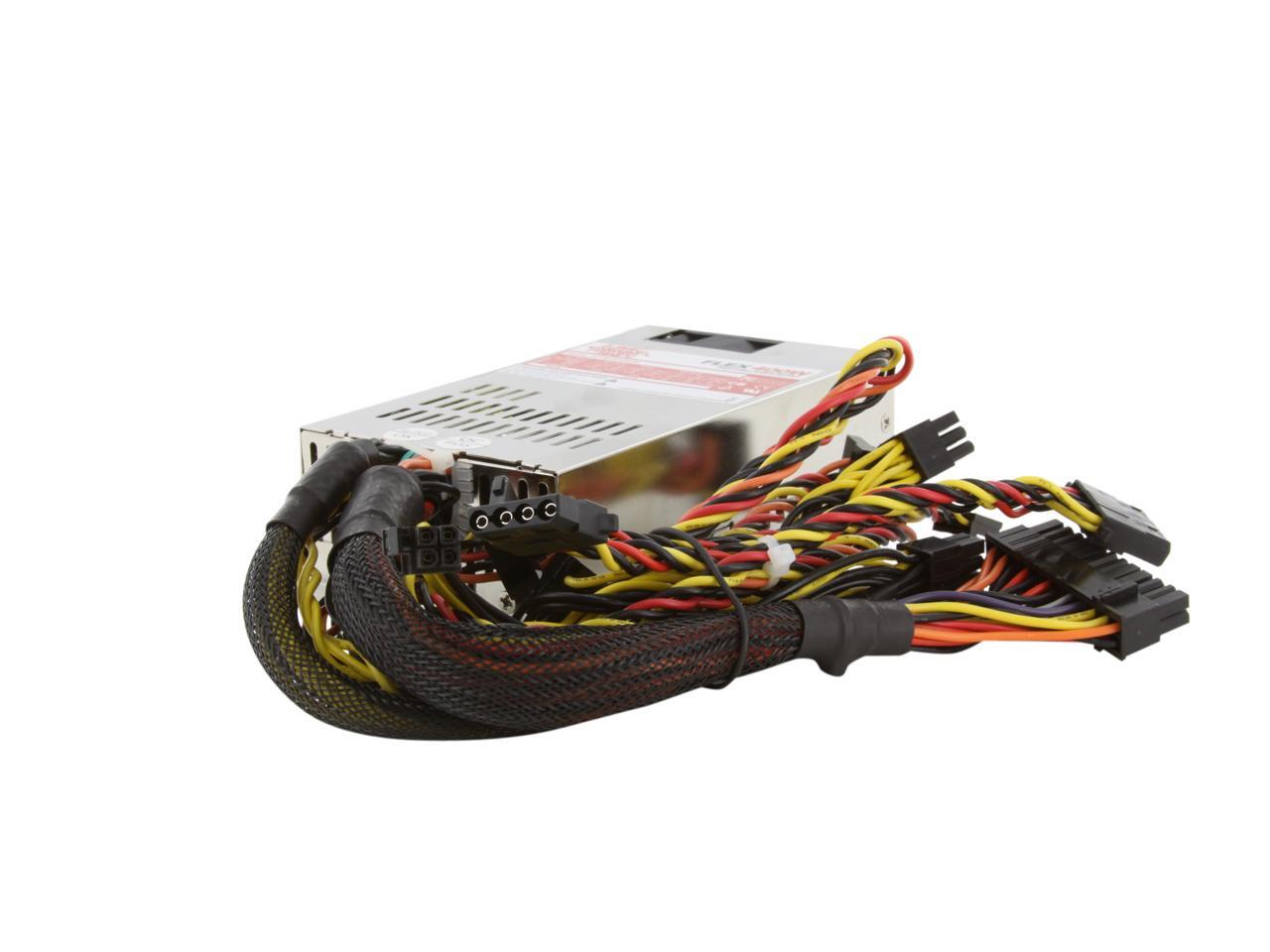

Power Connectors
One (1) ATX Connector 24-pin
One (1) EPS-12V 8-pin
One (1) P4-12V 4-pin
Two (2) PCIe 6-pin
Three (3) SATA 15-pin
Two (2) Molex 4-pin
One (1) Floppy 4-pin
Model Number
AP-MFATX40P8
Form Factor
Flex ATX
Output Power
400 Watts

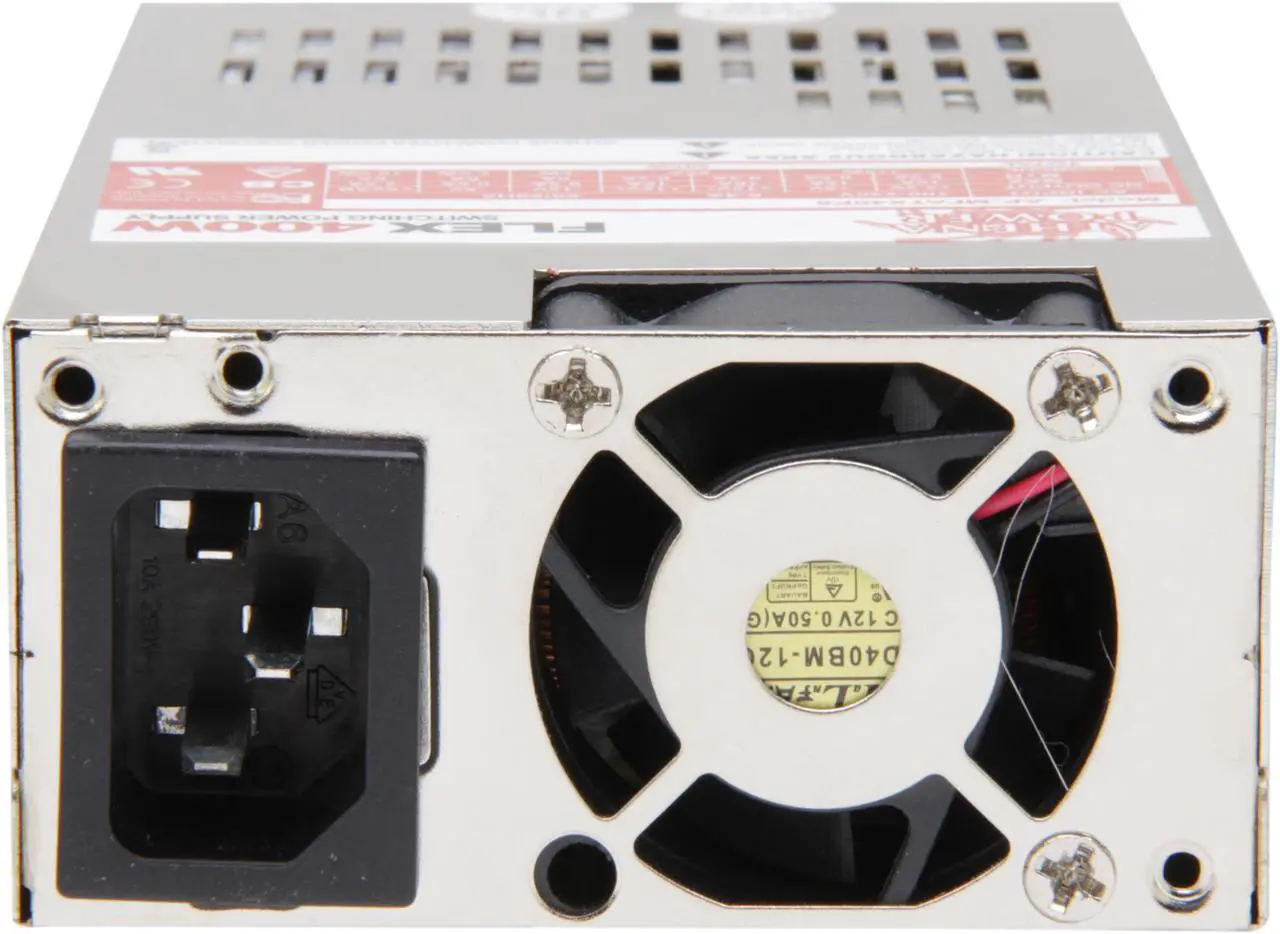

Input Voltage
88 ~ 264 Volts AC
Frequency
60/50 Hz
MTBF
100,000 Hours on Maximum Load at +25 Degrees C

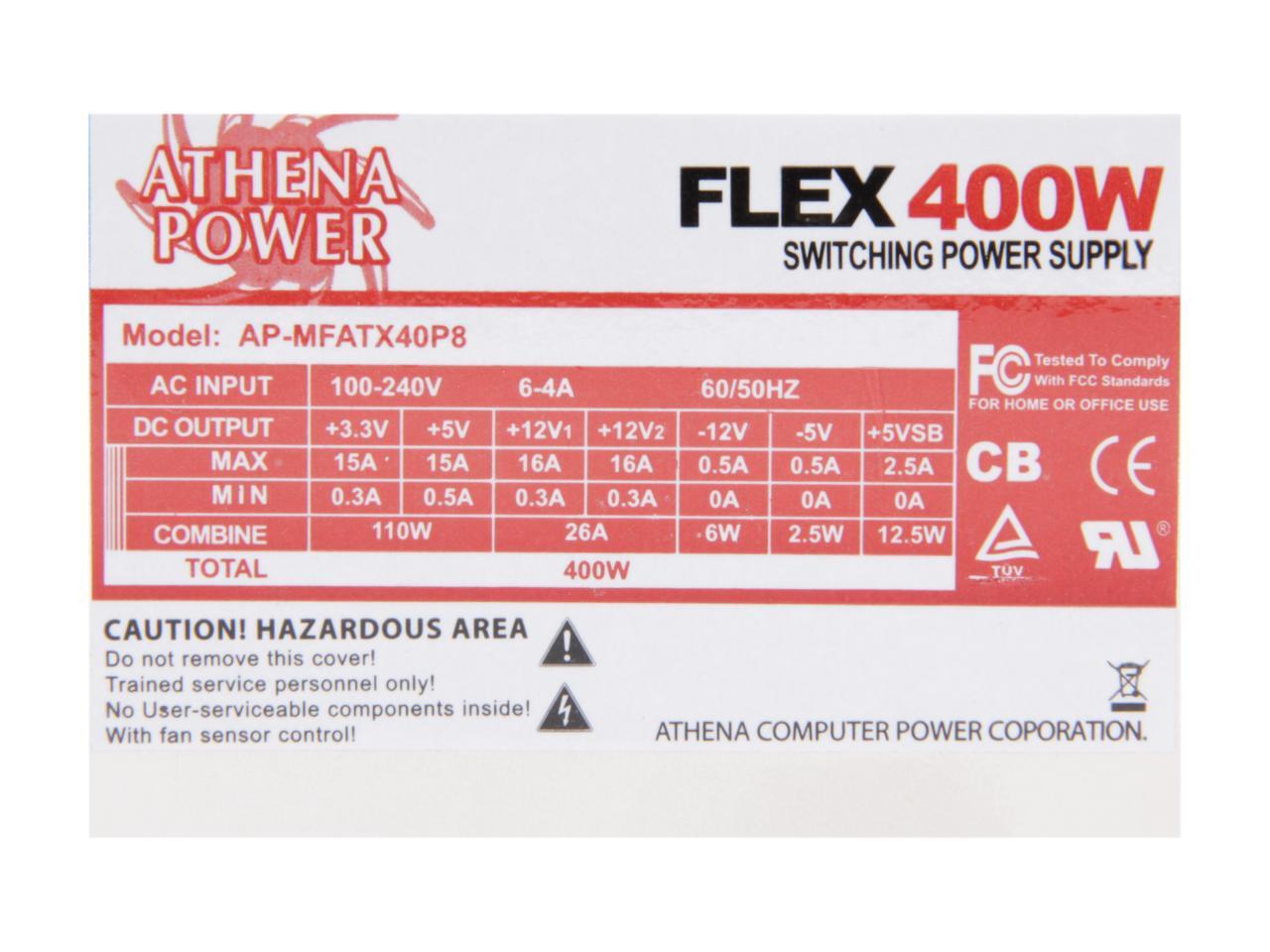

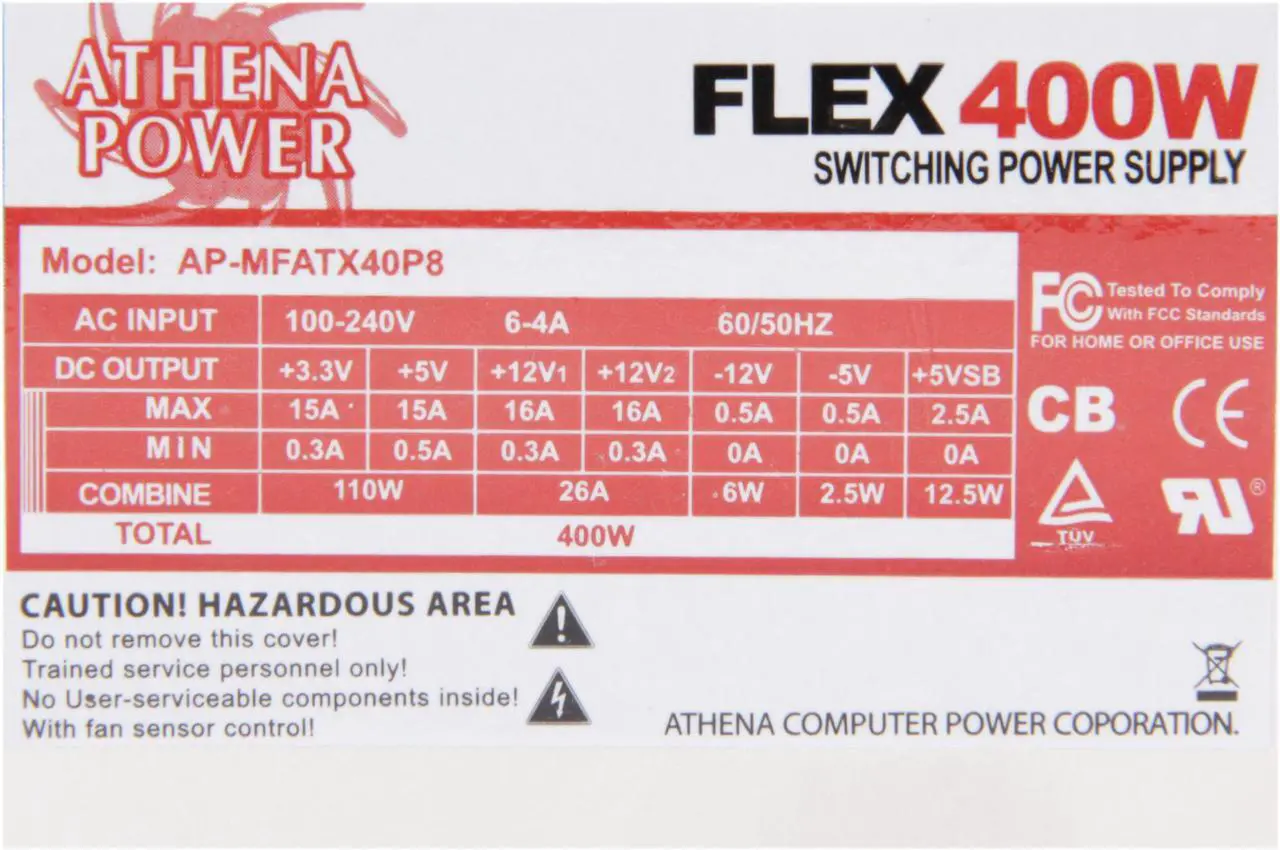

DC Power Output
+5V @ 15A
+3.3V @ 15A
+12V1 @ 16A
+12V2 @ 16A
-12V @ 0.5A
-5V @ 0.5A
+5V-SB @ 2.5A

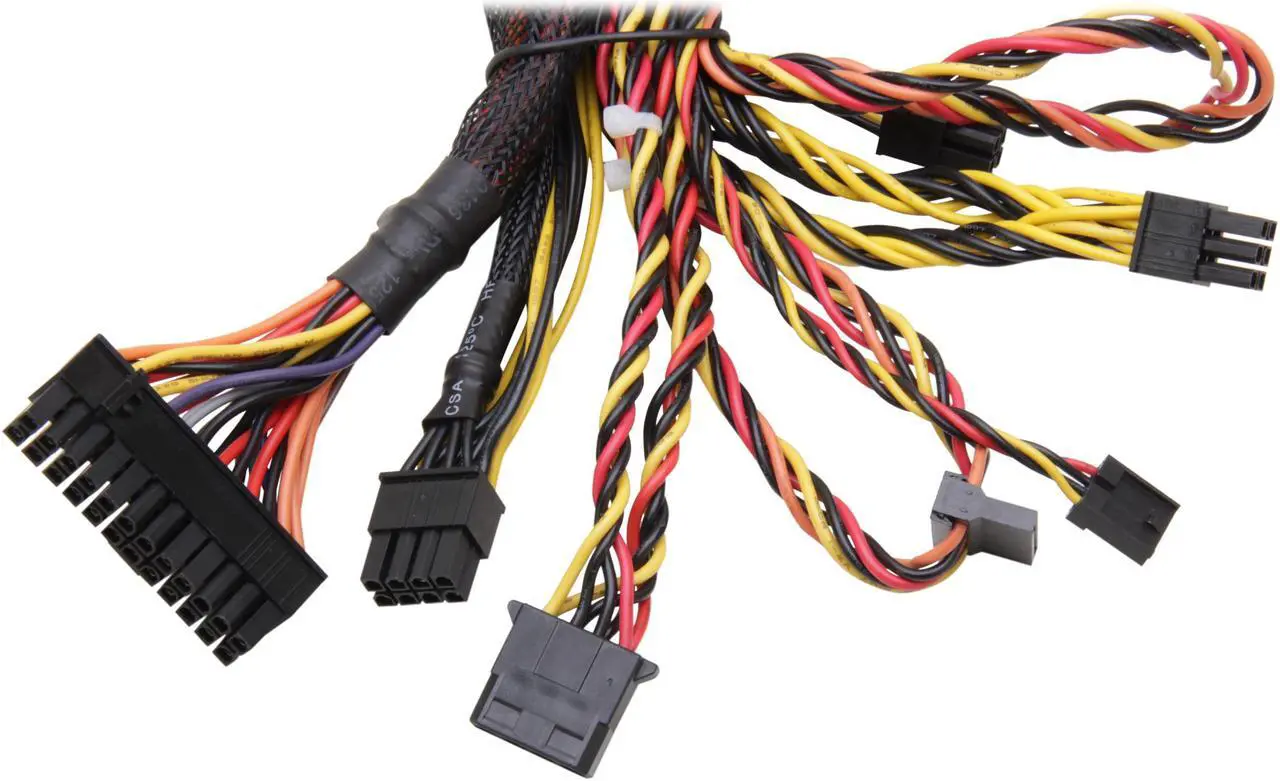

Power Connectors
One (1) ATX Connector 24-pin
One (1) EPS-12V 8-pin
One (1) P4-12V 4-pin
Two (2) PCIe 6-pin
Three (3) SATA 15-pin
Two (2) Molex 4-pin
One (1) Floppy 4-pin
Dimensions
3.2" x 1.7" x 6" (W x H x D)
Weight
2 Lbs

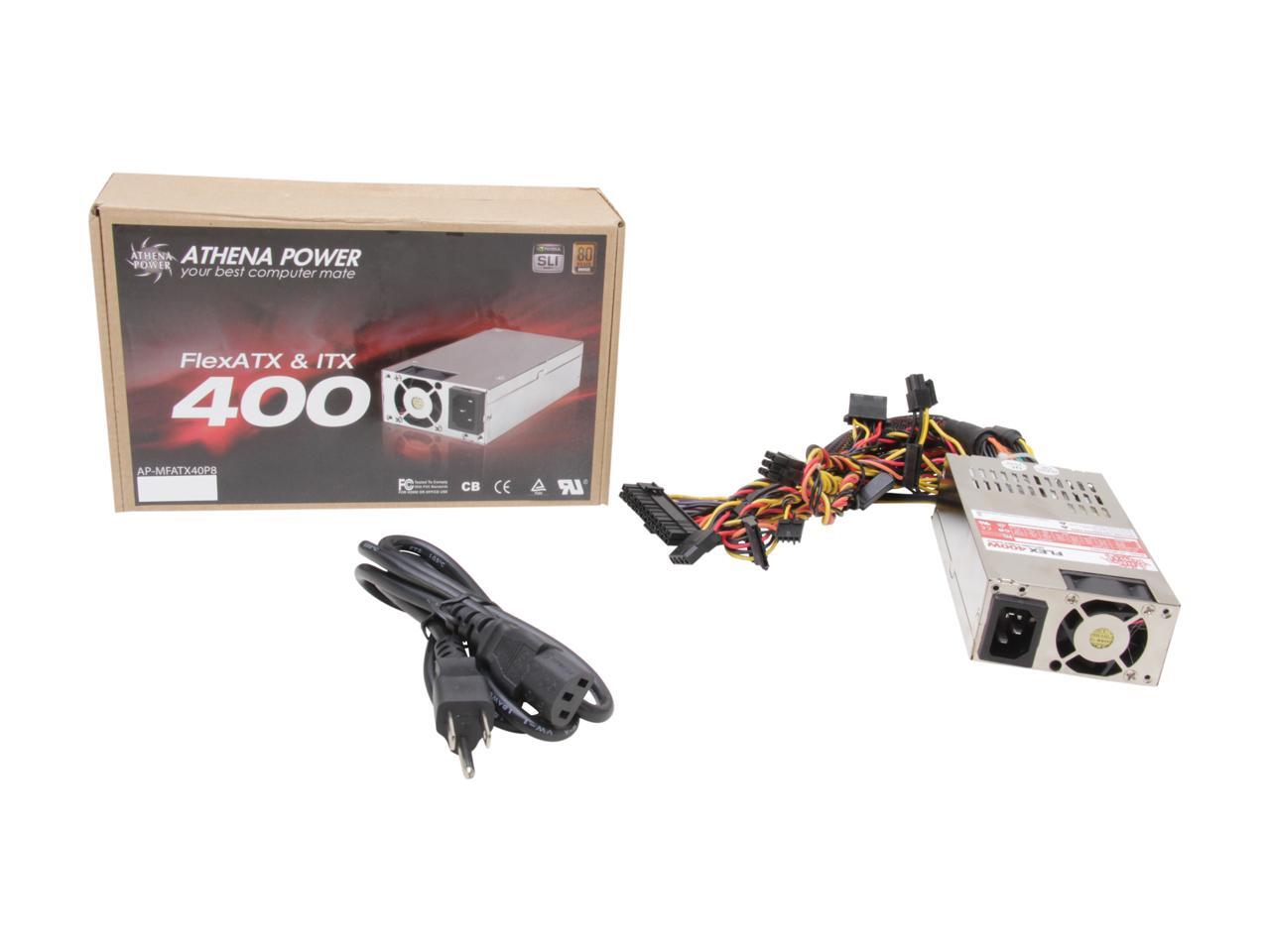

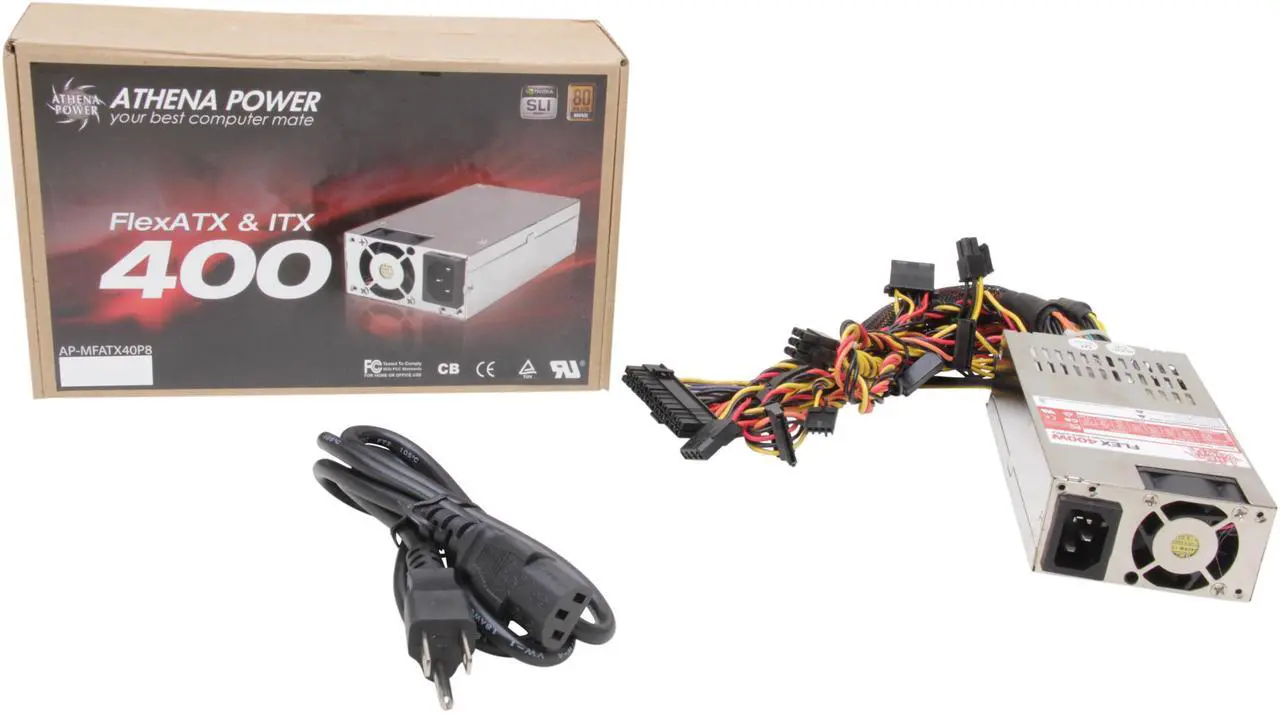

Package Includes
One (1) Athena Power AP-MFATX40P8
