Athena Power AP-MP4ATX30 300 W SFX-12V ATX-12V eMachines, HP Upgrades/Replacement Power Supply

Athena AP-MP4ATX30 300 Watt MicroATX Power Supply

Product Overview:

The APOLLO 300Watt is the 2nd model released in Athena Power's  Micro SFX series, it has increased overall performance and maintains its green efficient standard.  Featuring a Smart Fan Speed Controller and with its reduced noise and ripple features this power supply was designed especially for E-machine,  HP, IBM, Compaq, and Gateway PCs.

The Micro SFX Design

Micro SFX power supplies are known mostly as a replacement power supply but it has now evolved and can be used for mini-ATX cases, custom built computers, mini-servers and more.  With the increase of wattage and efficiency the micro SFX is a conventional PSU that can be used for multiple purposes.

Designed for custom built PCs, mini-servers, and HTPCs.

The APOLLO 300 Watt power supply will support the most current ATX motherboards V2.2 and lower. Its PCI-E 6-pin connector supports an additional VGA card. This PSU is ideal for custom-built PCs, mini-servers and HTPCs.

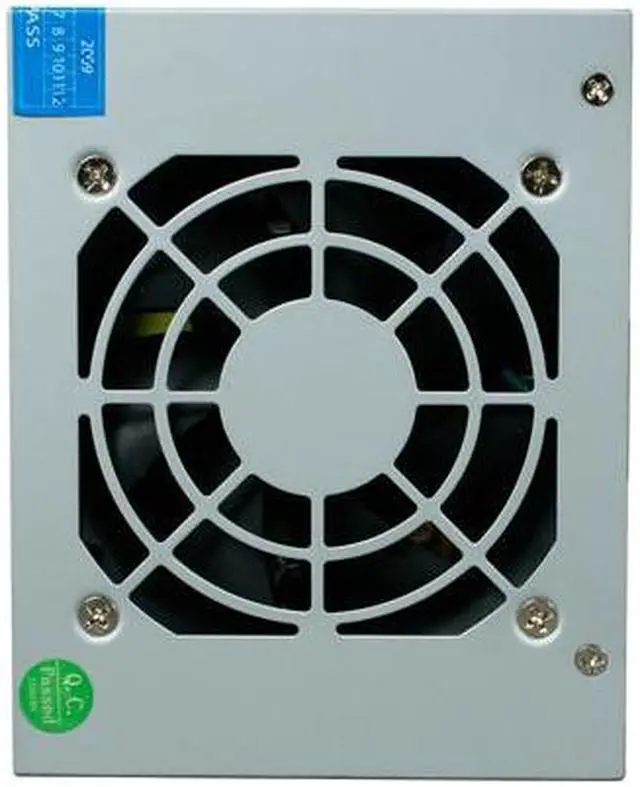

Smart Auto Fan Speed Controller

With its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly.  Using this controller to detect the heat levels of the PSU it will adjust the fan speed accordingly, with this feature built in, worrying about the heat level of a PSU becomes almost non-existent.

• Model: AP-MP4ATX30
• Brand: Athena Power
• High efficiency
• Low Ripple & Noise
• Output over voltage protection
• Short circuit protection on all outputs
• Reset table power shut down
• Approved by UL, CB & CE
• HP Video Power Connector for HP PCs replace only
• FCC part 15 subpart J Class B at 115VAC operation & CISPR 22 Class B at 230 VAC operation
• 100% burn-in under high ambient temperature (50°C)
• Vacuum-impregnated transformer
• 100% Hi-pot tested

• Maximum Power: 300W

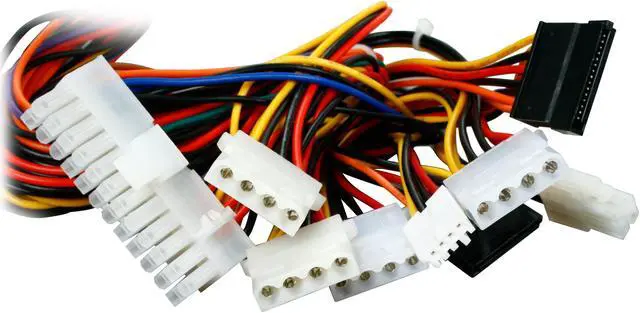

• Main Connector: 20+4Pin
• +12V Rails: Single
• Over Voltage Protection
• Input Voltage: 115 / 230 V
• Input Frequency Range: 50/60 Hz
• Output: +3.3V@13A, +5V@13A, +12V1@16A, -12V@0.8A, -5V@0.5A, and +5VSB@2.5A
• MTBF: >100,000 Hours
• Rise time: Less than 70ms
• Hold-up Time: 17ms Minimum at Nominal Input Voltage
• Dimensions: 5"(W) x 2.5"(H) x 4"(D)
