Question 1

Will this support a motherboard that requires 2 8 pins for the CPU?

Accepted Answer

Yes, the AP-U2ATX80FEP8 contains EPS-12V 8 Pin x 2

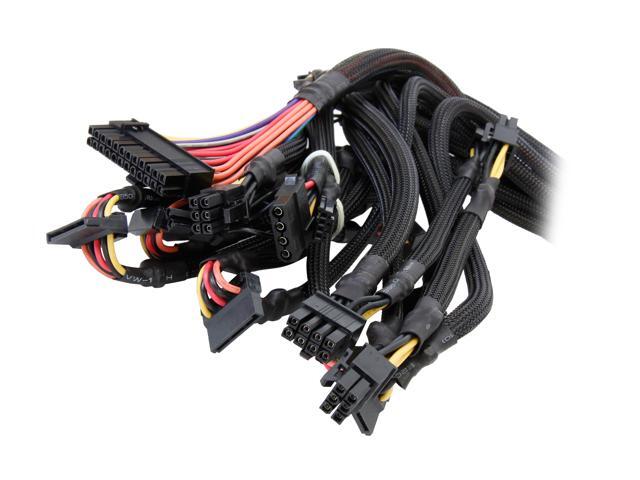

Here's a list of all connectors.

ATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
EPS-12V 8 Pin x 2
PCIE 6 Pin x 2
PCIE 6 + 2 Pin x 2
SATA 15 Pin x 8
Molex x 4 Pin x 2
Floppy 4 Pin x 1

Question 2

will this work on a dual cpu motherboard?

Accepted Answer

Sure it will. Just calculate your CPU TDP x 2 plus an average of all your devices. Ideally you wouldn't want to push the PSU above 80% of the rated power to ensure a long and healthy lifespan.

Question 3

Hi would this work on a mini ITX desktop build and what is the dbA on these fans?

Accepted Answer

It should work but seems a bit of overkill at 800W.  Just be sure the connectors on your chosen motherboard are all available on the power supply. I run this Power supply 24/7 on a 16 cam security system.  After a few months it has become too noisy to sit around a work station.  Good Luck with your project.

Question 4

Would this fit in a full case?

Accepted Answer

Physically, yes, but there would be no way to properly mount it.
