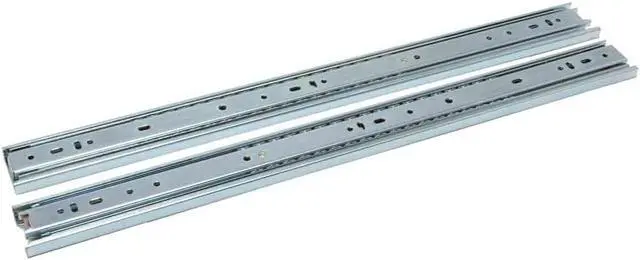

Athena Power RM-Slider 20 20" Length 2U-4U IPC Rack Mount Case Slider Rail
- RM-Slider 20
+
+
Specs
Reviews (6)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the Athena Power RM-Slider 20
| Brand | Athena Power |
|---|---|
| Model | RM-Slider 20 |
| Type | Rackmount Slider |
|---|---|
| Specifications | Cage Color: Silver Dimension: 20" x 1.79" x 0.5"( Thickness ) |
| Features | 20" Length 2U-4U IPC Rack mount Case Slider Rail Full travel 3-members Heavy-Duty 15 gauge cold-rolled steel inner, intermediate and outer member, compare to third-party's 10-12 gauge steel. Load Rating is up to 145 lbs Ball-bearings intermediate member provides precise linear motion with smooth, silent travel. Lock-open and close to secure the chassis in position for easy access, more tapped screw holes for easy mounting the L-brackets directly onto the outer member without the time consuming task of tightening the nuts and screws. |
|---|
| First Listed on Newegg | December 13, 2007 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 626-810-5008 x 106
- Support Email: service@athenapower.us
- Support Website
- View other products from Athena Power
LOADING...
LOADING...
The Athena Power RM-Slider 20 is a 20-inch, full-travel, three-member rackmount slider rail for 2U–4U IPC cases, with a load rating of up to 145 lb; it suits users who need smooth chassis access for installation or maintenance.
Recommended For
- Homelab and small-server operators using a 2U–4U chassis who want to slide it out for maintenance instead of lifting it off fixed supports.
- IT technicians servicing compatible rackmount servers or IPC chassis who need full-travel access to the chassis and a lock-open position during hands-on work.
- Rack builders mounting a heavier 2U–4U chassis who need sliding rails rated for loads up to 145 lb, provided the chassis and mounting setup are compatible.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack-mounting a server chassis and providing sliding access for compatible 2U–4U IPC cases |
| Model Identifiers | Athena Power RM-Slider 20 |
| Dimensions And Color | 20 × 1.79 × 0.5 in; silver |
| Construction And Load Capacity | 15-gauge cold-rolled steel, with an alloy-steel enclosure; rated for loads up to 145 lb |

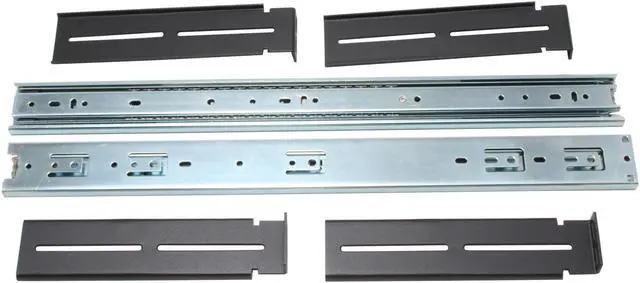

| Slider Design And Access | Full-travel, three-member rails with ball-bearing intermediate members for smooth movement; lock-open and lock-closed positions secure the chassis, and tapped holes allow L-brackets to mount directly to the outer member |
| Package Contents And Setup | 1-count package; assembly not required |
