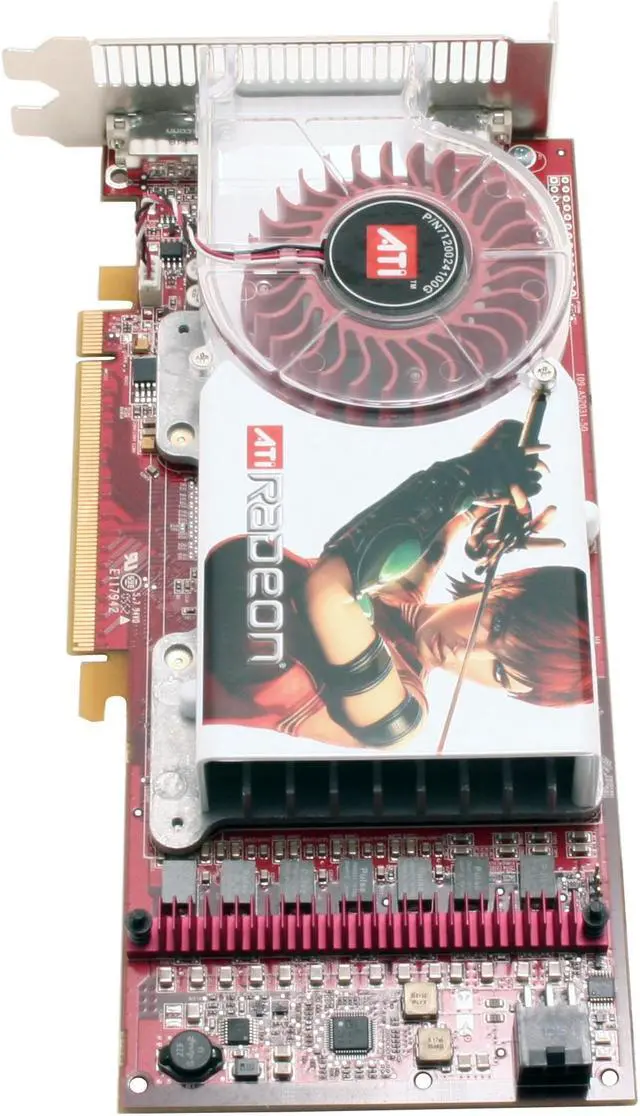

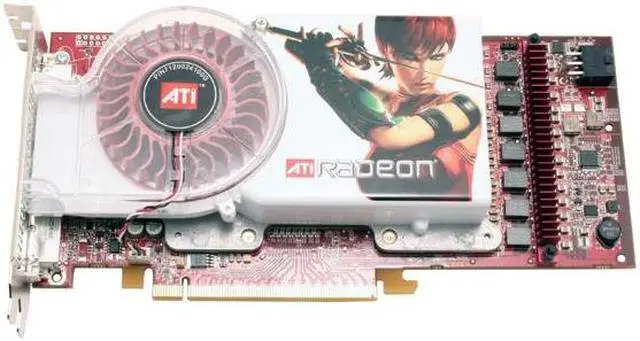

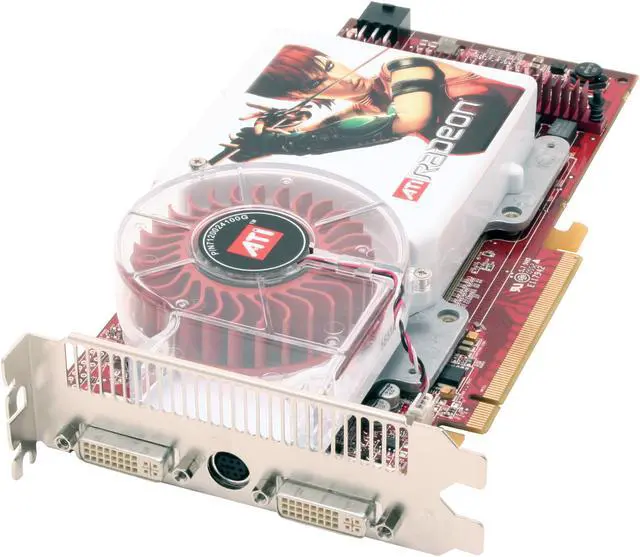

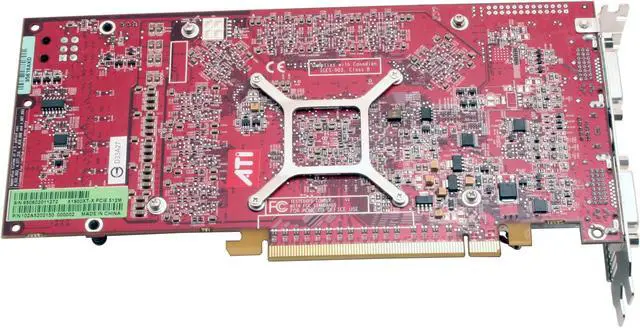

ATI Radeon X1900XTX 512MB GDDR3 PCI Express x16 CrossFireX Support VIVO Video Card 100-435805

OUT OF STOCK.
  • 512MB 256-Bit GDDR3
  • Core Clock 650 MHz
  • 2 x DVI
  • PCI Express x16
Specs
Reviews

Learn more about the ATI 100-435805

Model
Brand ATI
Model 100-435805
Interface
Interface PCI Express x16
Chipset
Chipset Manufacturer AMD
GPU Radeon X1900XTX
Core Clock 650 MHz
PixelPipelines 16(48 pixel shader processors)
Memory
Effective Memory Clock 2000MHz
Memory Size 512MB
Memory Interface 256-Bit
Memory Type GDDR3
3D API
DirectX DirectX 9
OpenGL OpenGL 2.0
Ports
DVI 2 x DVI
TV-Out HDTV / S-Video / Composite Out
VIVO Yes
Details
Tuner None
RAMDAC 400MHz
Max Resolution 2560 x 1600
CrossFireX Support Yes
Cooler With Fan
Operating Systems Supported Windows XP/XP x64/MCE 2005
System Requirements PCI Express based PC is required with one x16 lane graphics slot available on the motherboard.
Connection to the system power supply is required:
450-Watt power supply or greater, 30 Amps on 12 volt rail recommended (assumes fully loaded system)
PCI Express compliant power supply required. Connect directly to the power supply with a 6 pin PCI Express power connector
For CrossFire: 550 watt power supply or greater, 38 Amps on 12 volt rail
512MB of system memory
Installation software requires CD-ROM drive
DVD playback requires DVD drive and decoder software (not included)
Dual-Link DVI Supported Yes
Windows Vista Certified for Windows Vista
Features
Features Ring Bus Memory Controller
Ultra-Threaded Shader Engine
Advanced Image Quality Features
Avivo Video and Display Engine
384 million transistors on 90nm fabrication process
48 pixel shader processors
8 vertex shader processors
Dual-Link TMDS transmitter
Packaging

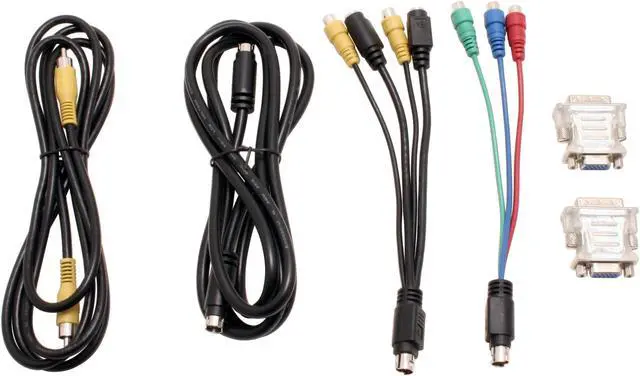

Package Contents 100-435805
2 x DVI to VGA Adapter
HDTV Cable
S-Video Cable
Composite Cable
VIVO Cable
Drivers Disk
User Manual
Additional Information
Date First Available January 24, 2006
