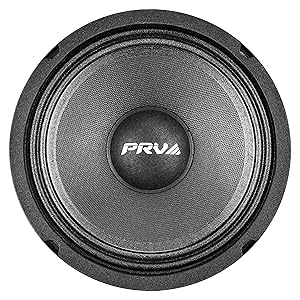

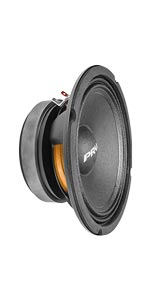

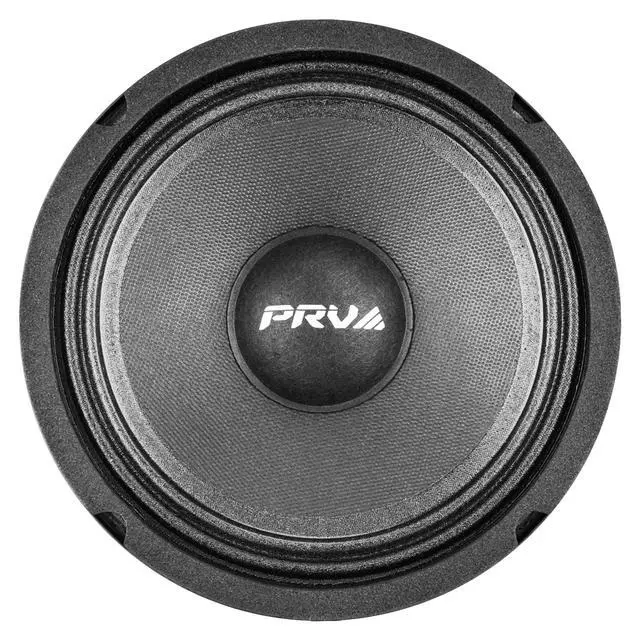

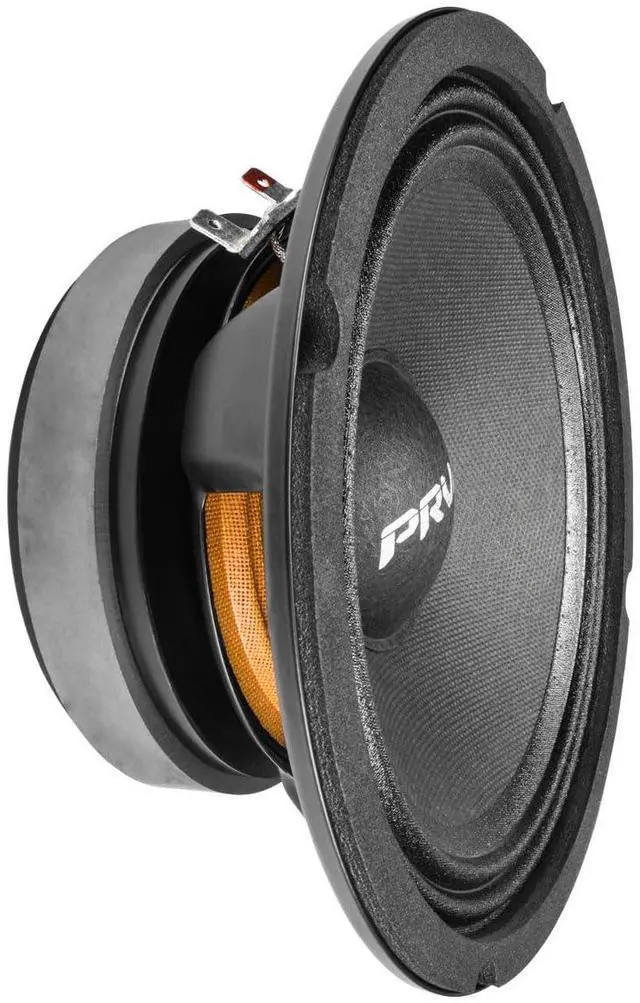

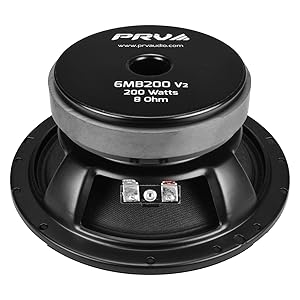

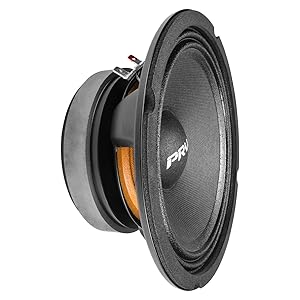

The PRV Pro Audio 6MB200 v2 midbass woofer offers exceptional durability and smooth punch of mid bass response in a small enclosure. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.
The 6MB200 v2 now has a more extended midrange response, up to 6.5 kHz giving it clean vocals. A perfect option for mid bass speaker replacements in three-way cabinets.

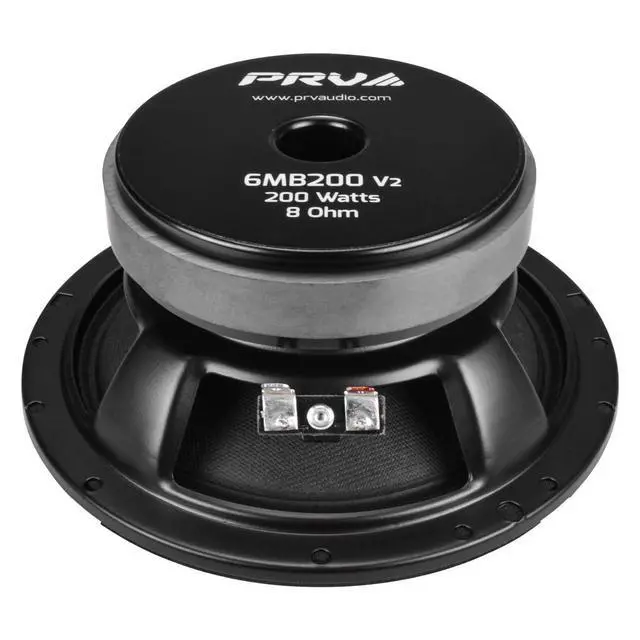

The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment.
Its light weight of only 3.3 Lbs helps to keep your enclosure light, making it perfect for portable audio applications.
GENERAL SPECIFICATIONS

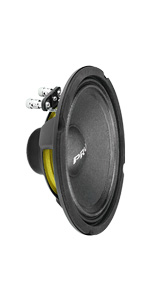

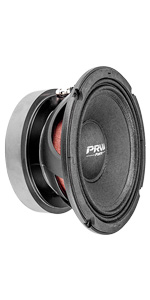

 6MB200-4 v2 | 6MB200 v2 |  6MB250-NDY-4 | 6MB250-NDY |  6MB550FT | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Nominal Power | 100W | 100W | 125W | 125W | 275W |
| Program Power | 200W | 200W | 250W | 250W | 550W |
| Sensitivity 2.00V at 1m | 93.5 dB | 93.5 dB | 94 dB | 94 dB | 94.5 dB |
| Frequency Response at -10dB | 125 – 6500 Hz | 125 – 6500 Hz | 115 – 6500 Hz | 115 – 6500 Hz | 85 – 7500 Hz |
| Voice Coil Diameter | 1.5? (38 mm) | 1.5? (38 mm) | 1.5? (38 mm) | 1.5? (38 mm) | 2? (51 mm) |
| Nominal impedance | 4 Ohm | 8 Ohm | 4 Ohm | 8 Ohm | 8 Ohm |
| Mounting Depth | 2.6? (66 mm) | 2.6? (66 mm) | 2.5? (65 mm) | 2.5? (65 mm) | 3.33? (84.5 mm) |
The PRV Pro Audio 6MB200 v2 midbass woofer offers exceptional durability and smooth punch of mid bass response in a small enclosure. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.
The 6MB200 v2 now has a more extended midrange response, up to 6.5 kHz giving it clean vocals. A perfect option for mid bass speaker replacements in three-way cabinets.
The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment.
Its light weight of only 3.3 Lbs helps to keep your enclosure light, making it perfect for portable audio applications.
GENERAL SPECIFICATIONS
| Nominal Diameter | 6? (152 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 100 Watts |
| Continuous Program Power (RMS) | 200 Watts |
| Max Peak Power | 400 Watts |
| Sensitivity 2.00V at 1m | 93.5 dB |
| Recommended Hi Pass Crossover* | 125 Hz** (*For Full Power Handling, **12db Per Octave Crossover) |
| Frequency Response at -10dB | 125 – 6,500 Hz |
| Voice Coil Diameter | 1.5? (38 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 12.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.8 mm |
| Frame Material | Stamped Steel |

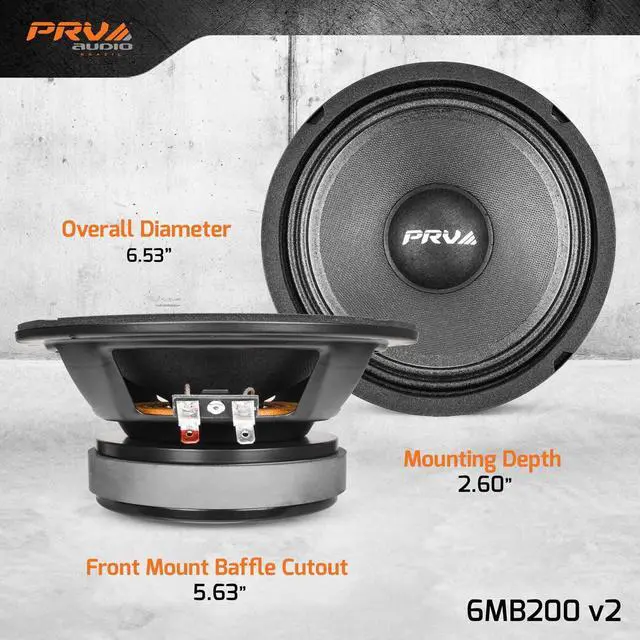

| Front Mount Baffle Cutout | 5.63? (143 mm) |
| Mounting Depth | 2.6? (66 mm) |
6MB200-4 v2 | 6MB200 v2 | 6MB250-NDY-4 | 6MB250-NDY | 6MB550FT | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Nominal Power | 100W | 100W | 125W | 125W | 275W |
| Program Power | 200W | 200W | 250W | 250W | 550W |
| Sensitivity 2.00V at 1m | 93.5 dB | 93.5 dB | 94 dB | 94 dB | 94.5 dB |
| Frequency Response at -10dB | 125 – 6500 Hz | 125 – 6500 Hz | 115 – 6500 Hz | 115 – 6500 Hz | 85 – 7500 Hz |
| Voice Coil Diameter | 1.5? (38 mm) | 1.5? (38 mm) | 1.5? (38 mm) | 1.5? (38 mm) | 2? (51 mm) |
| Nominal impedance | 4 Ohm | 8 Ohm | 4 Ohm | 8 Ohm | 8 Ohm |
| Mounting Depth | 2.6? (66 mm) | 2.6? (66 mm) | 2.5? (65 mm) | 2.5? (65 mm) | 3.33? (84.5 mm) |
