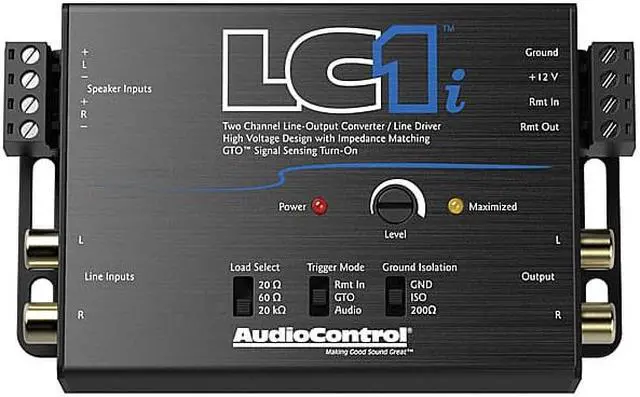

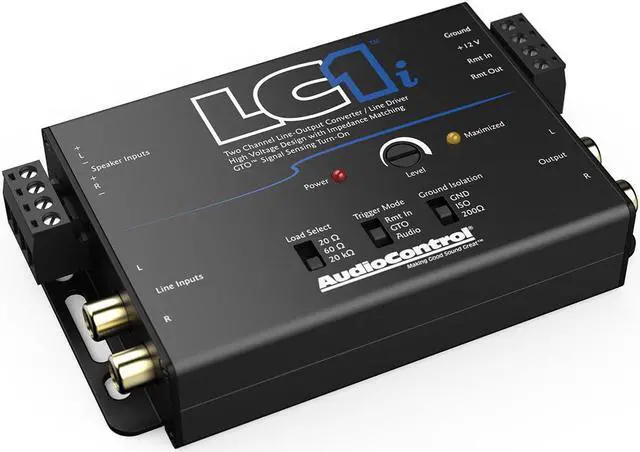

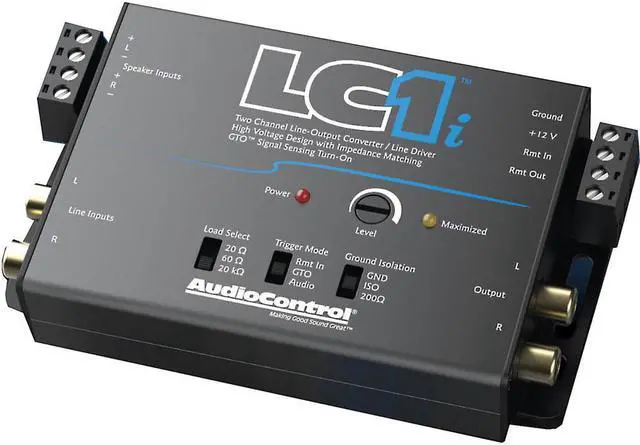

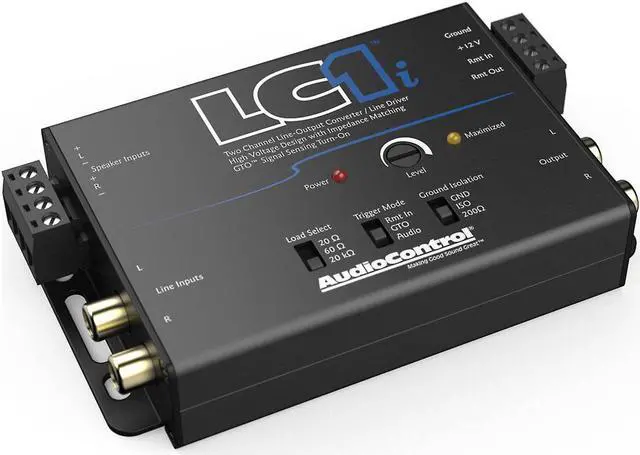

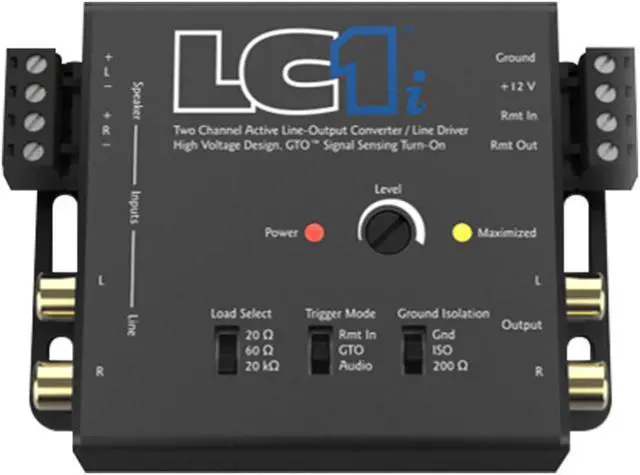

Audiocontrol LC1i 2-Channel Line Output Converter And Line Driver

Car Audio 2-Channel Line Output Converter and Line Driver with Impedance Matching
Model: LC1i
Two channels of active speaker level inputs (up to 40V input handling)
Two channels of line level inputs
GTO™ Signal Sensing
Power Status LED
Load Selection Switch
Trigger Mode Switch
Ground Isolation Switch
Output level Knob
Maximized LED
Line Level Outputs
Power Connector (Lc1i Requires Constant +12V Power)
Compact design
Inputs
Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kO setting)
Speaker Level Input Impedance (selectable): 20O, 60O, 20kO
Line Level Input: 1 (2 channels)
Line Level Input Impedance: 7kO
Outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms/13V peak
Output Gain: +/- 12 dB
Output Impedance: 150O
Performance
Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 20 Hz – 50 kHz ±1 dB
Control
Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)
General
Current Draw: 120 mA
Recommended Fuse Rating: 1 A
Weights & Dimensions
Dimensions: 4.8?L x 3?D x 1?H (including speaker connectors)
Weight: 0.55 lbs. (0.25 kg)
