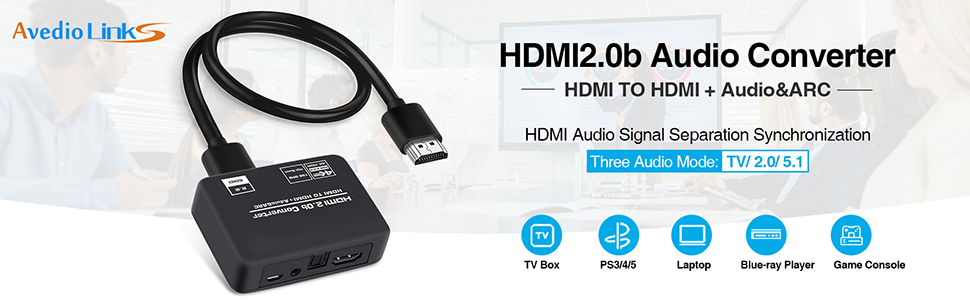

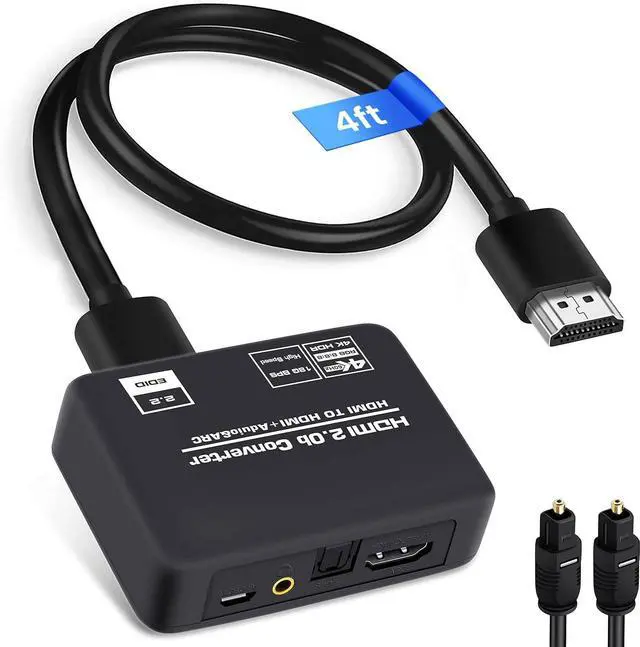

avedio links 4K@60Hz HDMI 2.0b Audio Extractor Splitter Converter

Allows the HD Source connected to single HD Display and adds extra one 3.5mm and SPDIF audio out port.

Optical Toslinks SPDIF and 3.5mm audio support ARC function.

Note:

1. To receive audio from both Optical and L/R output ports, the input source device format must be set to PCM/stereo.

2. This HDMI ARC port doesn't support connecting audio devices, only TVs.

3.This audio extract has no power indicator, only an input device indicator. When using the ARC function, the input indicator light is flashing a little bit, but not always on, this is normal.

-- This 4k HDMI audio extractor splitter supports ARC Function, you can listen to music at any time. --

------------------------------------------------NOTE----------------------------------------------------------------------------

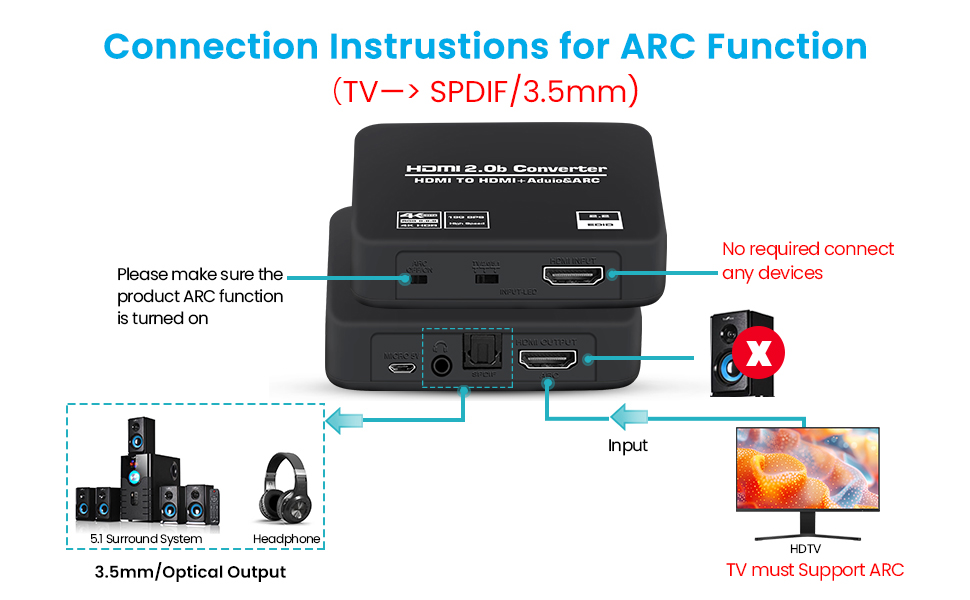

For ARC Function(TV —> SPDIF/3.5mm):

1.Your TV must have an ARC HDMI port.(Otherwise the TV sound cannot be transmitted to any audio device.)

2.For ARC Function, there is no sound output from the TV, only output audio devices have sound.

3.Does not support CEC function.(Cannot control output volume via TV remote, you can only adjust the volume on your speaker/ sounder/ home theater)

4.Supports memory function.(Restore the last working state after restarting the product)

5.Audio input only supports PCM/LPCM and stereo.(simulated 5.1 surround sound)

6.To achieve 4K@60Hz resolution, you must use HDMI 2.0 specification cables.

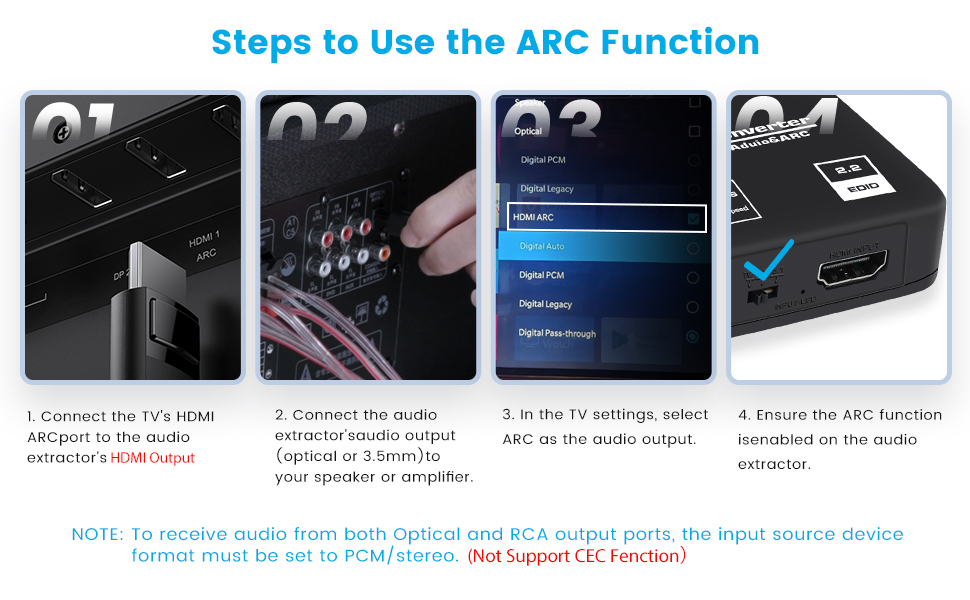

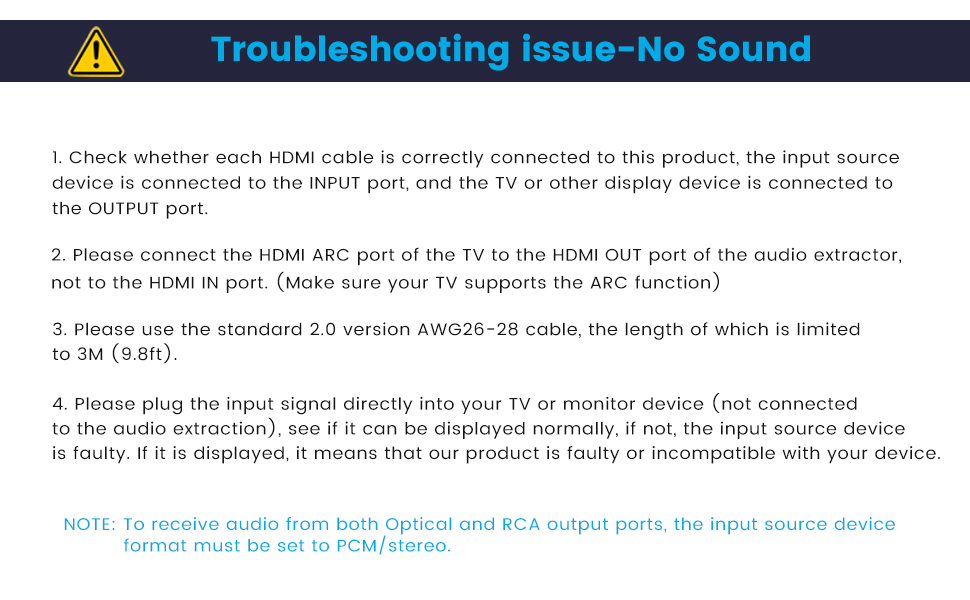

Troubleshooting: No sound from optical output audio device (ARC)

1. Please confirm if your TV supports ARC (Audio Return Channel) functionality. If not, unfortunately, the audio will not be transmitted to your audio device.

2. If your TV does support ARC, please connect your TV's “HDMI ARC” port to the “HDMI ARC OUT “port on the extractor.

3. Ensure that the ARC feature on the extractor is turned on.

4. You should also set your TV’s audio output channel to the ARC channel.

5. Finally, please make sure the input channel on your audio device is set to optical.

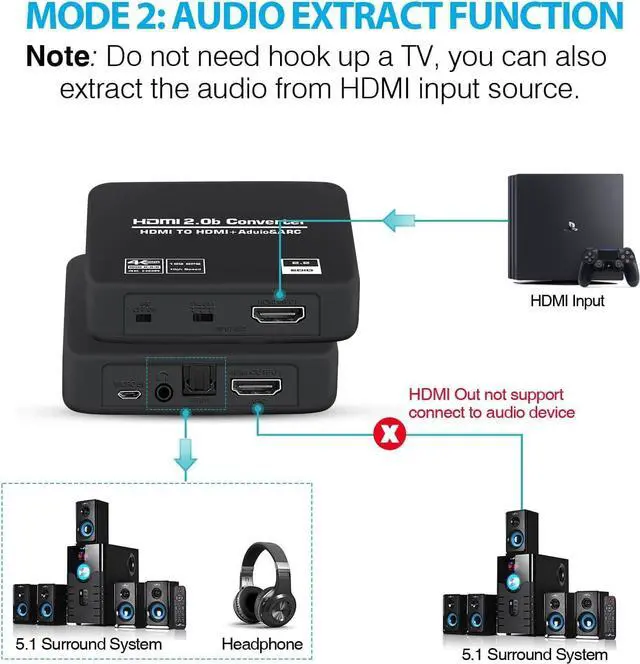

For HDMI Audio Extractor:

1. Does not support CEC function.(cannot control output volume via TV remote control)

2. Audio input only supports PCM/LPCM and stereo input.(simulated 5.1 sound effect)

3. To achieve 4K@60Hz resolution, you must use HDMI 2.0 specification cables.

4. All output audio devices have audio output.

4K@60Hz HDMI Audio Extractor, Have fun with your friends

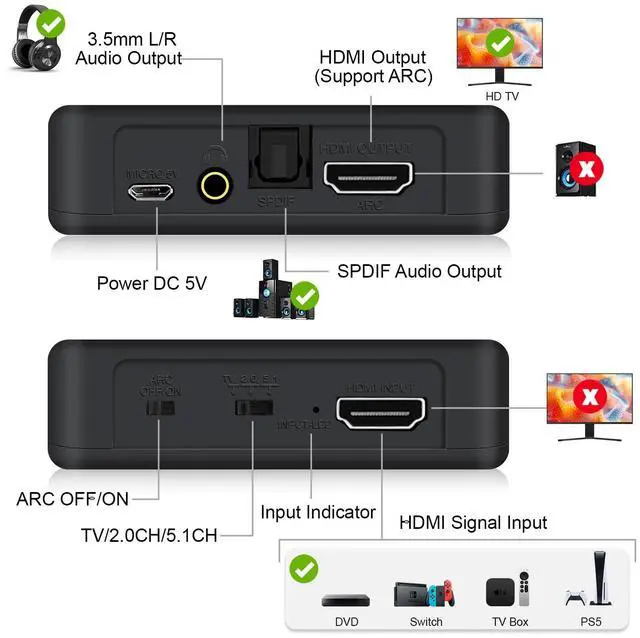

One HDMI input converted to one HDMI + Audio (SPDIF+3.5mm) Output to achieve the synchronization of audio signal separation.
Support ARC Function (Audio Return Channel)
Support 4Kx2K@60Hz, Support 3D HDCP 2.2
Support blue-ray 24/ 50/ 60fs/ hd-dvd/ XVYCC
Digital audio format, as dts-hd/ dobly-true hd/ LPCM7.1/ DTS/ dobly-ac-3 (Not Support Always Dobly Digital plus)

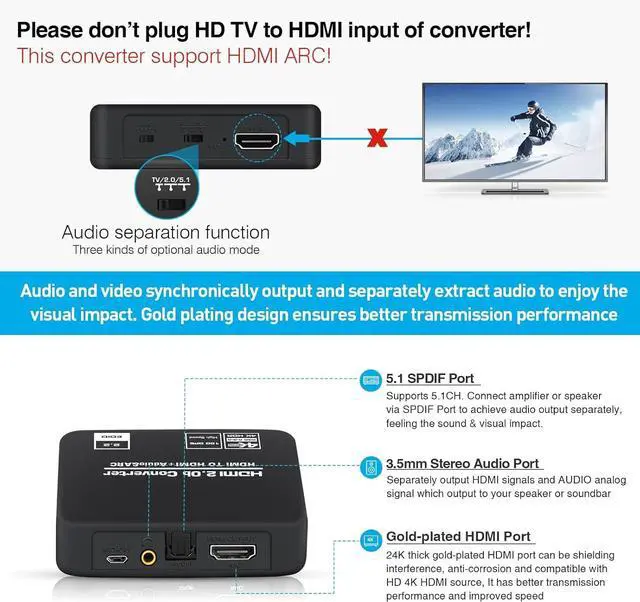

Three Audio EDID Settings Could be Switched Freely

TV Mode: The audio output format depends on the HDMI input signal.
2.0 Channel Stereo Mode: The HDMI/ SPDIF and L/R output stereo audio.
5.1 Channel Mode: The HDMI/ SPDIF output 5.1 channel audio. 3.5mm audio no output.

Package included

1 x HDMI Audio Extractor Converter
1 x Digital Optical Cable
1 x USB Power Adapter
1 x HDMI Cable
1 x User Manual

Wide Compatible

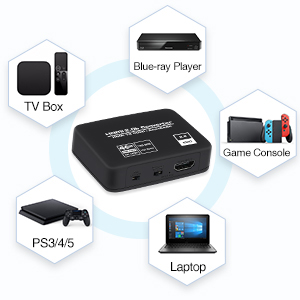

HDMI input: Blu-ray/ DVD/ HD player, cable/ satellite box, Fire TV, PS3/ PS4/ PS5, Xbox, PC/laptop etc.

HDMI Output: Full HD TV, Monitor, Projector. Audio output: Speaker, Amplifier, Soundbar or other sound systems

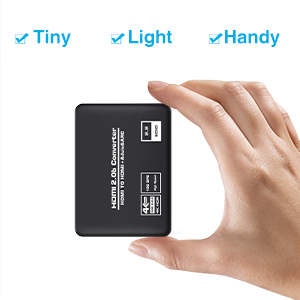

Tiny Light Handy

This HDMI sound inserter extractor supports resolution up to 4Kx2K@60Hz, Max bandwidth of 18 Gbps.

HDMI audio splitter adapter provides impressive high-quality UHD video, bringing you an amazing visual experience.

Wide Application

This audio video to hdmi converter is easy to setup and operate.

Just connect your HDMI devices and the power adapter, then you can share the most luxurious video and audio with your friends or family.
