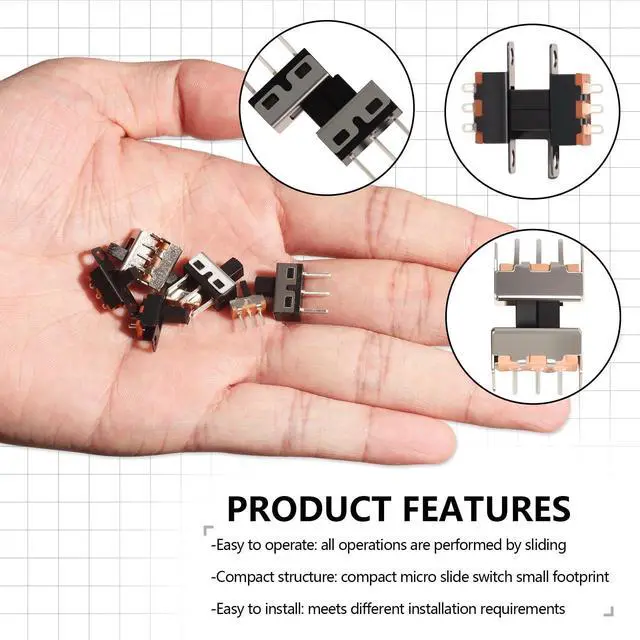

VEXUNGA 80 Pcs high knob vertical slide switches breadboard spdt slide switch
Size Tips: Due to manual measurement, there may be 0.5 to 1 mm error

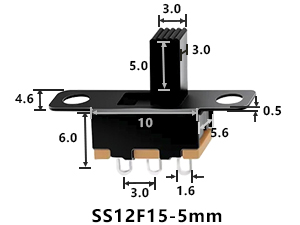

SS12F15
Rated Current and Voltage: 0.5A 30V
Size: 19.4 x 5.7 x 13mm (L x W x H)
Pin Pitch: 3mm
Sliding Knob Length: 5mm
Feature: with screw fixing holes

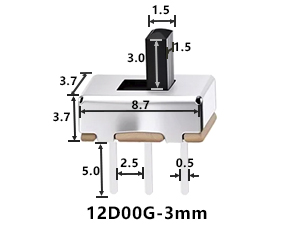

SS12D00G - 3mm
Rated Current and Voltage: 0.5A 30V
Size: 8.7 x 3.7 x 11.4mm (L x W x H)
Pin Pitch: 0.1" / 2.5mm
Terminal Length: 5mm
Feature: different handle height

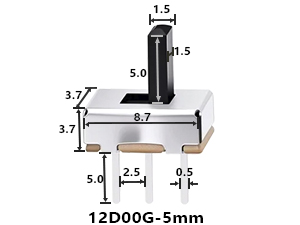

SS12D00G - 5mm
Rated Current and Voltage: 0.5A 30V
Size: 8.7 x 3.7 x 13.4mm (L x W x H)
Pin Pitch: 0.1" / 2.5mm
Terminal Length: 5mm
Feature: different handle height

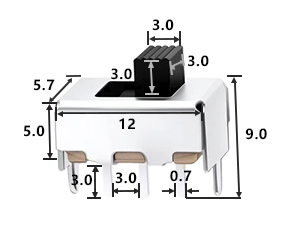

SS12F44
Rated Current and Voltage: 0.5A 30V
Size: 12 x 5.7 x 12mm (L x W x H)
Pin Pitch: 3mm
Terminal Length: 3mm
Features: vertical slide switch with bracket

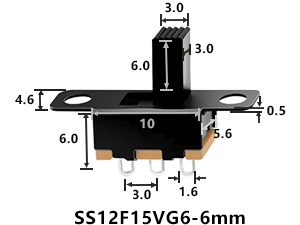

SS12F15VG6
Rated Current and Voltage: 0.5A 30V
Size: 19.6 x 5.9 x 14mm (L x W x H)
Pin Pitch: 3mm
Sliding Knob Length: 6mm
Features: one of the SS12F15 series

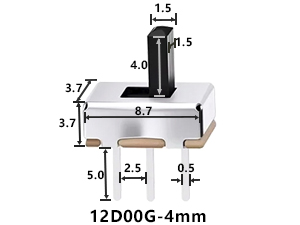

SS12D00G -4mm
Rated Current and Voltage: 0.5A 30V
Size: 8.7 x 3.7 x 12.4mm (L x W x H)
Pin Pitch: 0.1" / 2.5mm
Terminal Length: 5mm
Feature: different handle height

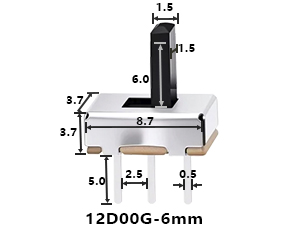

SS12D00G -6mm
Rated Current and Voltage: 0.5A 30V
Size: 8.7 x 3.7 x 14.4mm (L x W x H)
Pin Pitch: 0.1" / 2.5mm
Terminal Length: 5mm
Feature: different handle height

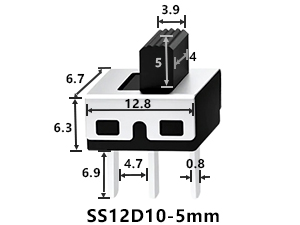

SS12D10
Rated Current and Voltage: 3A 250V
Size: 12.8 x 6.7 x 18.2mm (L x W x H)
Pin Pitch: 4.7mm
Terminal Length: 6.9mm
Features: All plastic material
Application scenarios
Slide switch are mainly used in consumer electronics, household appliances, toys and other fields, such as power control and function switching of some small electronic devices. Used to realize power switch or gear switching function. Suitable for DIY enthusiasts, amateurs and professionals.

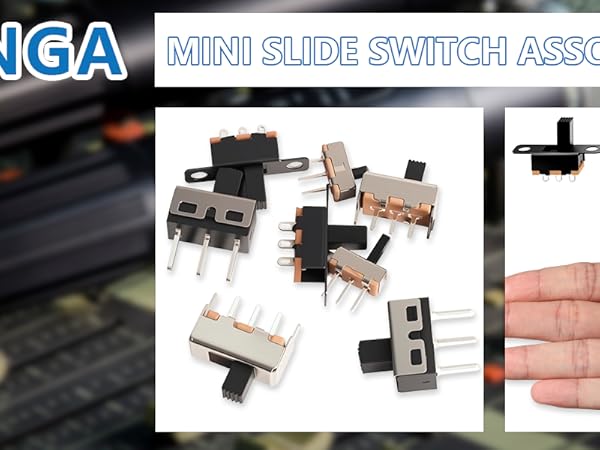

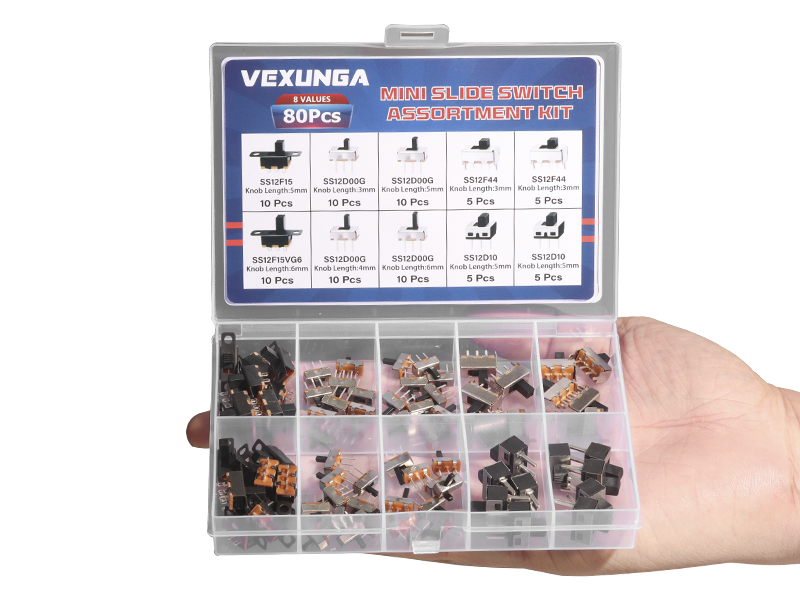

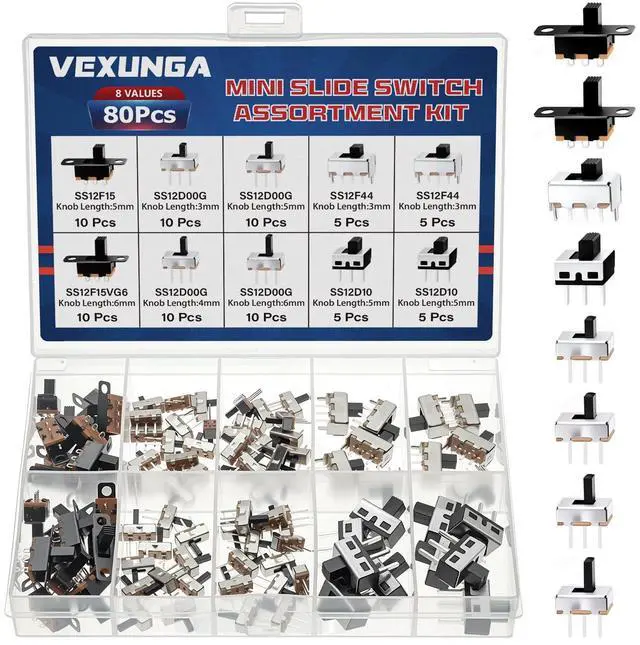

Package Contents

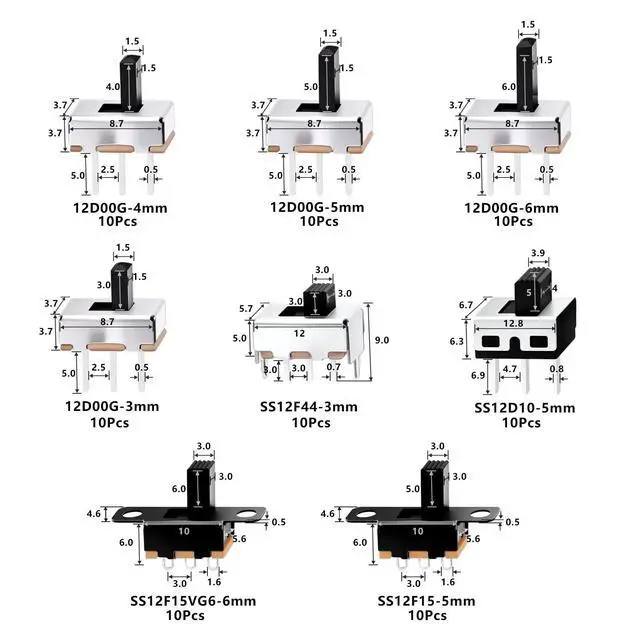

10pcs x 5MM SS12F15 mini micro slide switch 10pcs x 6MM SS12F15VG6 mini micro slide switch
10pcs x 3MM SS12DOOG mini micro slide switch 10pcs x 4MM SS12DOOG mini micro slide switch
10pcs x 5MM SS12DOOG mini micro slide switch 10pcs x 6MM SS12DOOG mini micro slide switch
10pcs x 3MM SS12F44 mini micro slide switch 10pcs x 5MM SS12D10 mini micro slide switch
*Total 80 pieces of slide switches are packaged in 1 classified plastic box for easy classification and organization.
Note:
- Before purchasing, please confirm whether the model and specifications and dimensions match your needs (such as current and voltage parameters, number of gears, etc.) to avoid circuit failure or safety hazards caused by inconsistent models.
- Please note during installation and maintenance: scattered small parts must be collected in time. Children under 3 years old are at risk of suffocation if they come into contact with them, and adult supervision is required!
