This switching box works for either two amps connected to one set of speakers, or two speaker sets connected to one amp. You can select only one position at the same time.
>> 2 AMPs switch:
it work to accept two amplifiers or receivers to share use of one pair of loudspeakers through the toggle switch on the front (Switch AMP/A or AMP/B) on this way you can quickly compare 2 amps, A/B test them without having to make long pauses for switching the amps off, disconnecting speaker wires from one amp and connecting them to the other amp
>> 2 pairs speakers switch:
it work to accept one amplifiers or receivers to switch two pairs of loudspeakers(Note:this way is switch one pair loudspeaker A or loudspeaker B work,They don't work at the same time )
This is a good idea to solve the problem of unplugging and plugging the speaker wires.

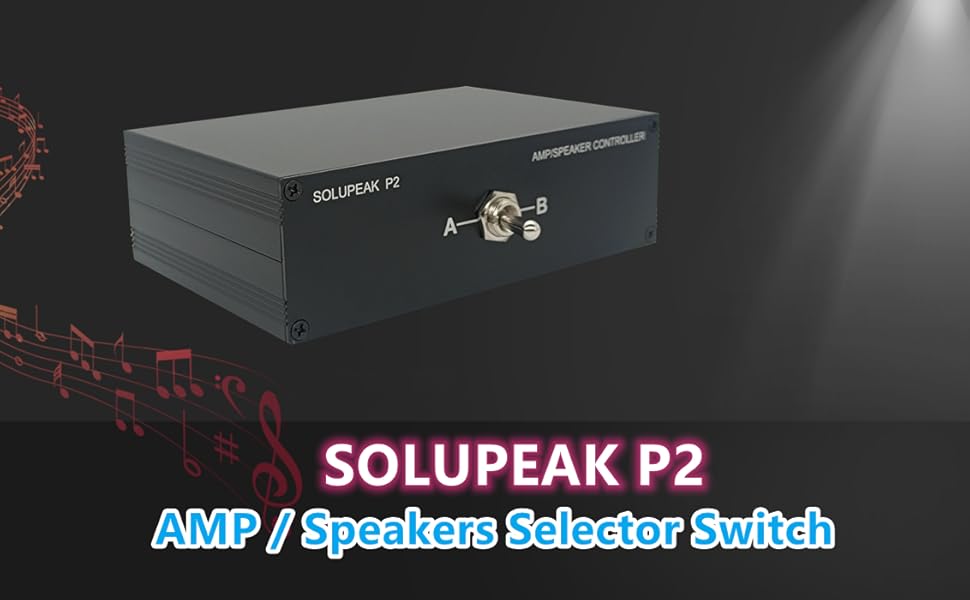

Model: SOLUPEAK P2
Color: Black
Net weight: 543g
Package weight: 638g
Dimensions of device: 15 x 10 x 4.6 cm
Package size: 19 x 17 x 7 cm
If you want a switcher that will accommodate two amps and two sets of speakers, you can choose solupeak P3 (2 IN 2 OUT version)

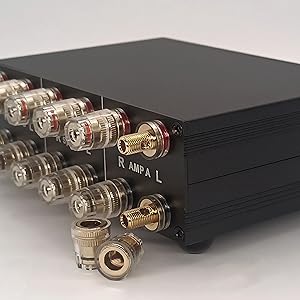

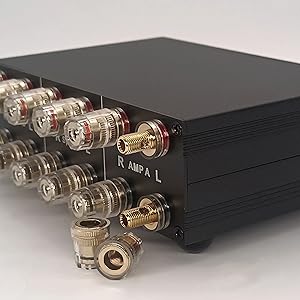

- IN/OUT ports through the high quality golden plated banana jacks, which can accept up to 12 gauge wires.
- The internal connection wire uses UL1015 14 AWG wire, which is enough to pass high current.
- No protection or impedance matching circuits internal, so could not affect sound quality, but there is one exception for many tube amps it is very unhealthy to be on with no load (no speakers connected), so If you have a tube amp you need to make sure the tube amplifier is connected to a load before switching.
- Using a high quality 10A contacts silver plated 4PDT Toggle switch, has 12 connectors/2 position ON/ON
- P2 does not have common ground(we do not want to have common ground between two amps, this could negatively affect their performance (and sound quality) and in some cases also case damage – there are amps that have fully balanced outputs and cannot have common ground between speaker connectors, for example some Class D amps.)
 RCA Switch box |  2 Ways AMP/Speaker selector switch |  Speaker selector switch |  RCA Switch box |  XLR Switch | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Feature | 4 IN 1 OUT: 4 way audio source input,select 1 way output | 2 IN 2 OUT: 2 ways amp and 2 pairs speaker selector switch | 1 IN 2 OUT: 2 zone speaker speaker swich | 4 IN 2 OUT: 4 way audio source input, 2 output | 3 IN 1 OUT: 3 way xlr input, select 1 output |
| I/O Port | RCA | Banana Plug | Banana Plug | RCA | XLR |
| Power | Fully passive; No power required | Fully passive; No power required | Fully passive; No power required | Fully passive; No power required | Fully passive; No power required |
