ASHATA HDMI RF Modulator Coax Converter, HDMI Modulator HDM61 1080P PAL Control Converter for NTSC Format Output Home TV Game Console
NTSC Format Support: The HDMI to RF modulator supports NTSC format output with frequency ranges of CH3=55.25MHz and CH4=62.25MHz, catering to diverse resolution needs like 1080P, 1080i, 720P, 576P, 576i, and 480P.

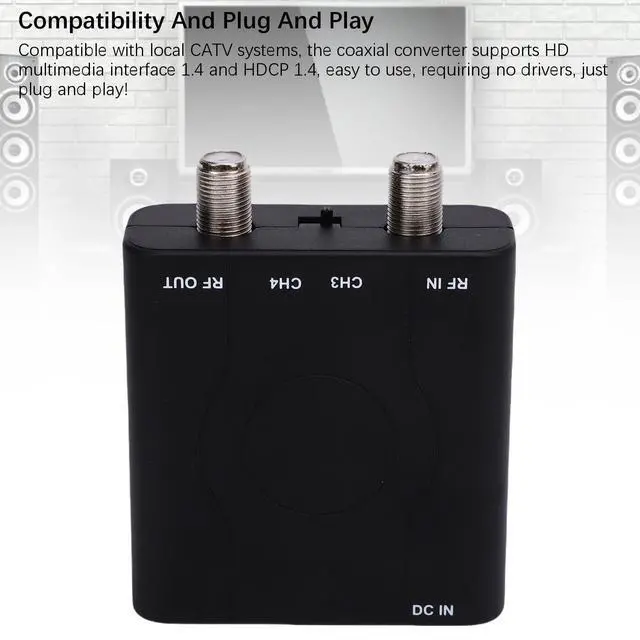

Compatibility And Plug And Play: Compatible with local CATV systems, the coaxial converter supports HDMI interface 1.4 and HDCP 1.4, easy to use, requiring no drivers, just plug and play!

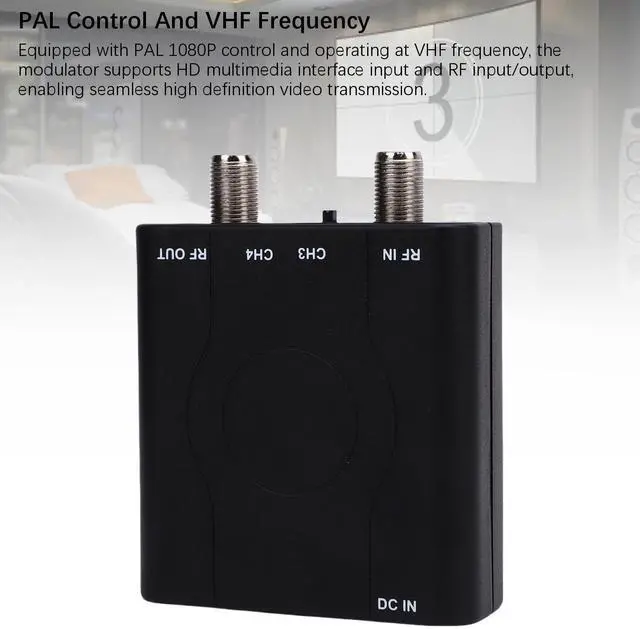

PAL Control And VHF Frequency: Equipped with PAL 1080P control and operating at VHF frequency, the modulator supports HDMI interface input and RF input/output, enabling seamless high definition video .
Specification:
Item Type: HDMI to RF Modulator
Material: ABS
TV Standard Format: PAL
Frequency Range: PAL: CH3=55.25MHz, CH4=62.25MHz
Output Level: 80±5dBuV
Input Level: 0.77Vp-p (80%+/-10% modulation)
Sound System: B=5.5MHz
Input Port: HDMI interface
RF Input: F type female connector
RF Output: F type female connector
Input Resolution: 1080P, 1080i, 720P, 576P, 576i, 480p
HDMI Interface Version: 1.4
HDCP Version: 1.4

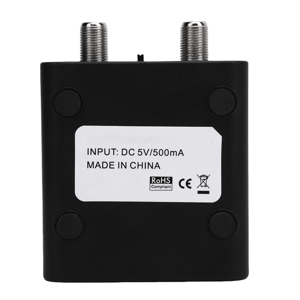

Power Consumption: 500mA (minimum) at 5V DC
Operating Temperature: 0? to +40?
How to Use:
Connect and use
PackageList:
1 x HDMI to RF Modulator
1 x USB Cable
1 x User Manual
