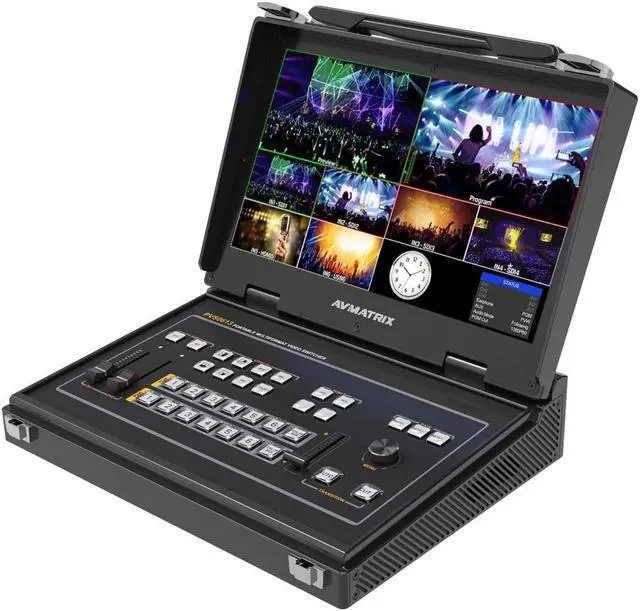

AVMATRIX PVS0613 13.3" FHD LCD Portable 6CH SDI/HDMI Multi-Format Video Switcher
- PVS0613 is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while for PGM output can be scaled, which can be compatible with more different equipment and more flexible. The unit integrated a 13.3 inch Full HD LCD monitor which can be used in wide variety of venues for events,seminars,etc.
- 4×3G/HD/SD-SDI, 2×HDMI SDI Input Format1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC HDMI Input Format1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 SDI Video RateAuto detection, SD/HD/3G-SDI SDI ComplianceSMPTE 259M/ SMPTE 292M/ SMPTE 424M Color Space and Precision
- OutputsPGM Outputs2×3G/HD/SD-SDI; 1×HDMI Type A PGM Output Format1080p 60/50/30/25/24; 1080i 50/60 Multiview Output1×3G-SDI; 1×HDMI Type A Multiview Output Format1080
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PVS0613
Portable 6CH SDI/HDMI Multi-format Video Switcher
Inputs: 4×SDI and 2×HDMI inputs
Outputs: 2×SDI &1×HDMI PGM, 1×SDI PVW, 1×SDI & HDMI multiview 13.3 inch FHD LCD monitor
Portable design, metal case
T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
PiP mode, both size and position is adjustable
Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
GPIO interface for live tally system
FTB for emergency situation
1.2.Main Features
?Portable All-In-One design with 13.3 inch FHD LCD display
?6 channel inputs:4×SDI & 2×HDMI inputs
?2×SDI & 1×HDMI PGM outputs, 1×SDI & 1×HDMI multiview output
?1×SDI AUX output, can be selected as PGM or PVW
?Multi-format support, input format auto-detected and PGM outputs select-able
?T-Bar/AUTO/CUT transitions
?Mix/ Fade/ Wipe transition effects
?PIP mode size and position adjustable
?Audio mixing
?GPIO for Tally, LAN for update
?FTB for emergency situation
Portable 6CH SDI/HDMI Multi-format Video Switcher
Inputs: 4×SDI and 2×HDMI inputs
Outputs: 2×SDI &1×HDMI PGM, 1×SDI PVW, 1×SDI & HDMI multiview 13.3 inch FHD LCD monitor
Portable design, metal case
T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
PiP mode, both size and position is adjustable
Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
GPIO interface for live tally system
FTB for emergency situation
1.2.Main Features
?Portable All-In-One design with 13.3 inch FHD LCD display
?6 channel inputs:4×SDI & 2×HDMI inputs
?2×SDI & 1×HDMI PGM outputs, 1×SDI & 1×HDMI multiview output
?1×SDI AUX output, can be selected as PGM or PVW
?Multi-format support, input format auto-detected and PGM outputs select-able
?T-Bar/AUTO/CUT transitions
?Mix/ Fade/ Wipe transition effects
?PIP mode size and position adjustable
?Audio mixing
?GPIO for Tally, LAN for update
?FTB for emergency situation
