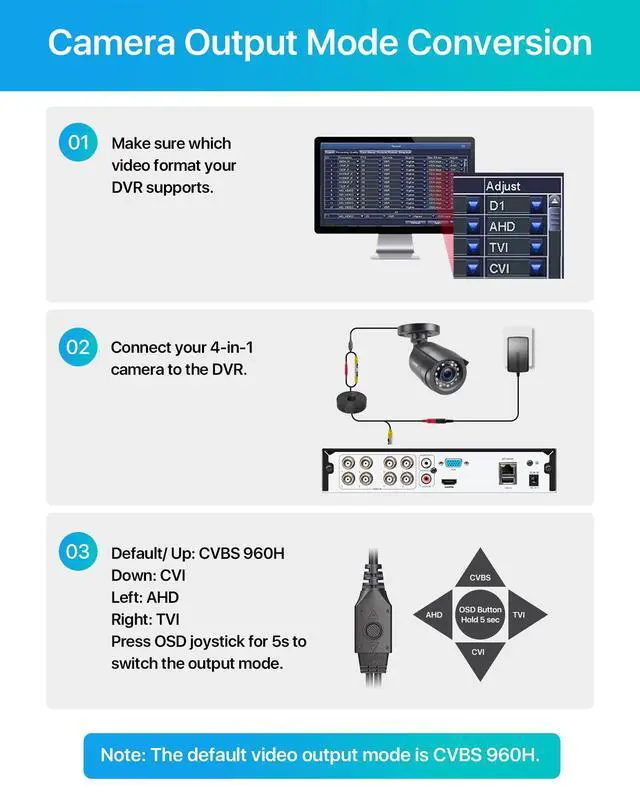

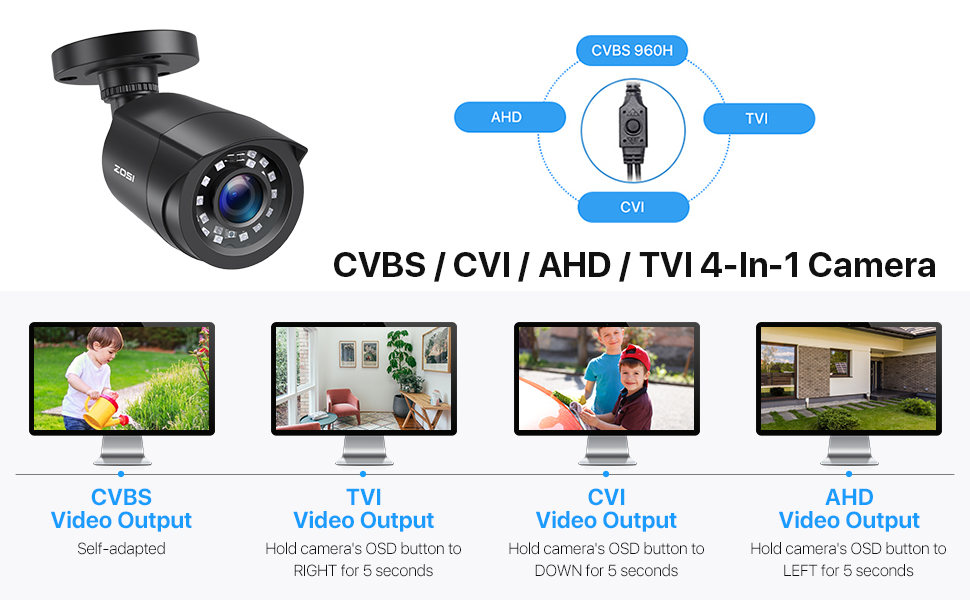

4 Video Output Mode Optional
Press OSD joystick to switch the output mode:
- Default / Up for 5 seconds: CVBS 960H
- Right for 5 seconds: TVI
- Down for 5 seconds: CVI
- Left for 5 seconds: AHD

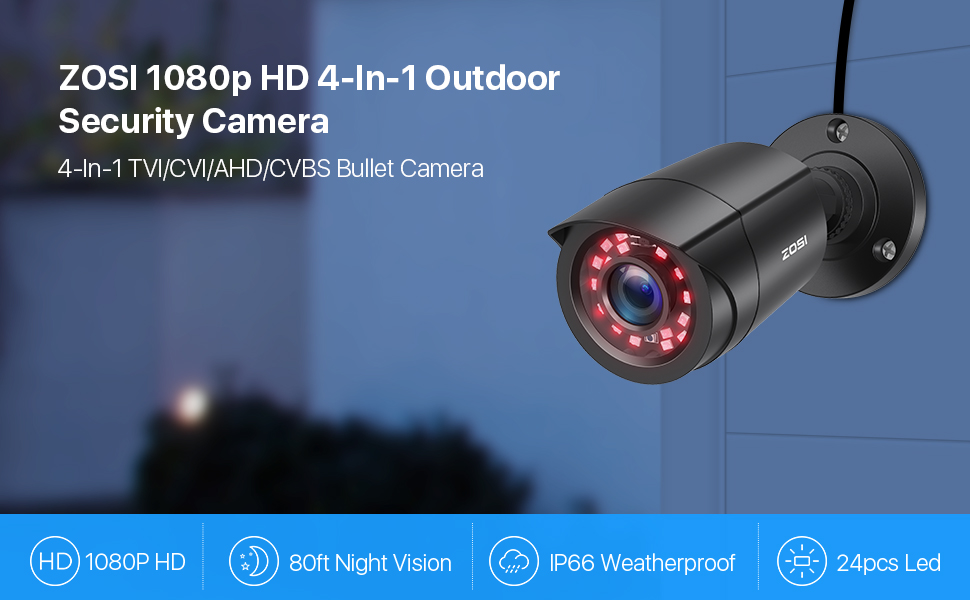

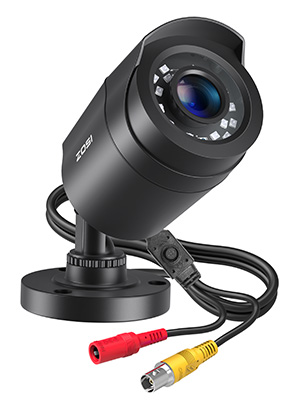

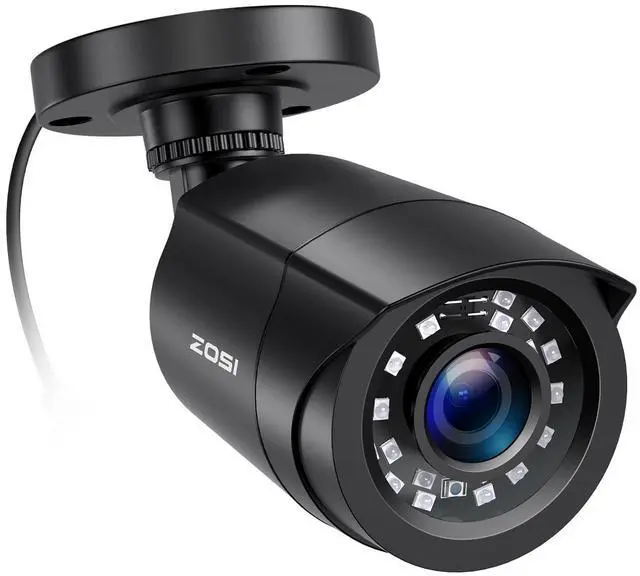

ZOSI 4-IN-1 Security Camera Specification
coaxial cable control via DVR directly
Noted:
This is a hard wired security camera. It could not work with any PoE or Wireless Security System.
- Image Sensor: 1/3?CMOS CMOS with IR-Cut.
- Active Pixels: 1920(H)×1080(V).
- Resolution: 1080P .

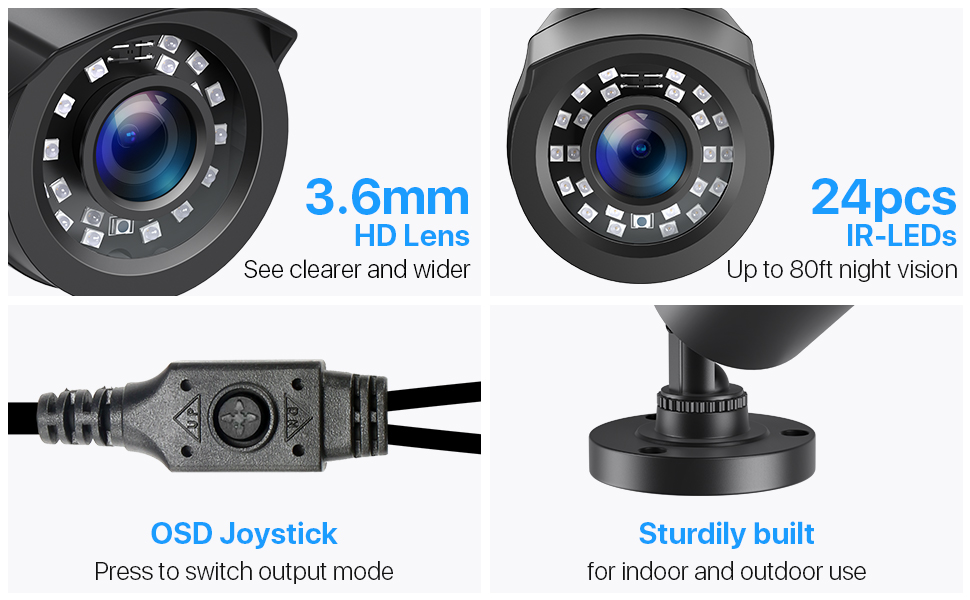

- Lens: 3.6mm
- LEDs Amount: 24pcs, 5mm LEDs
- Singal mode: TVI/AHD/CVI/CVBS 960H.
- IR Distance: up to 80ft
- Weather - Resistant

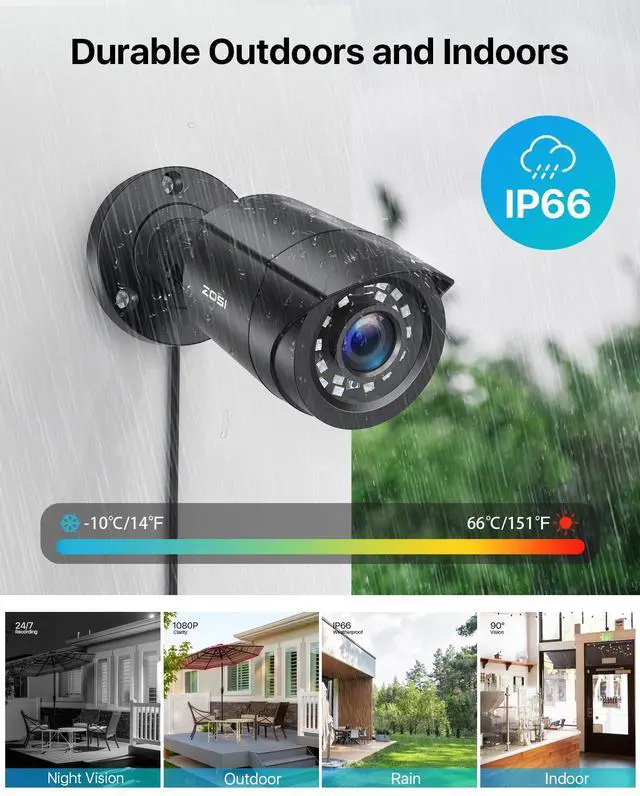

Weather resistant camera
Camera used high quality materials, can effectively prevent rust, water, etc. Can be installed outdoor or indoor.
1080p Full HD resolution
See everything in details with true 1080p HD resolution. Get clearer and smoother images/videos than 720p cameras.
Multiple Application Camera
It could be widely installed in home, store, office, school and any place. Protect your family, parents, baby, property and everything.

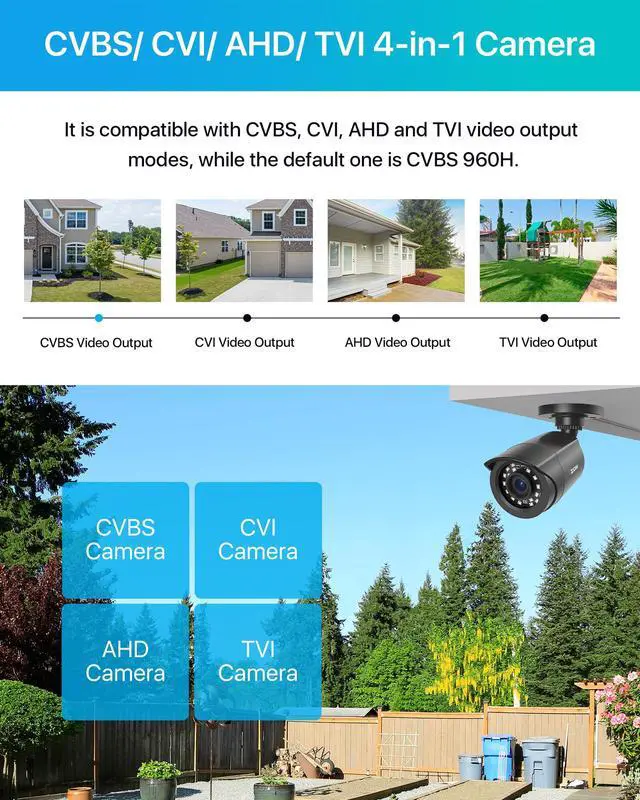

This 1080p full HD camera has a built-in OSD menu that can change the 4 different video outputs:HD-TVI, AHD, CVI, and CVBS(960H), and adjust the video settings.
Operation Mode:
Switch from AHD: Press Leftward for 5 Seconds
Switch from TVI: Press Rightward for 5 Seconds
Switch from CVBS: Press Upward for 5 Seconds
Switch from CVI: Press Downward for 5 Seconds
Noted: Default Video Mode is Analog 960H Mode
Troubleshooting
Q: Video Loss appears where the image from my camera should be displaying on my DVR?

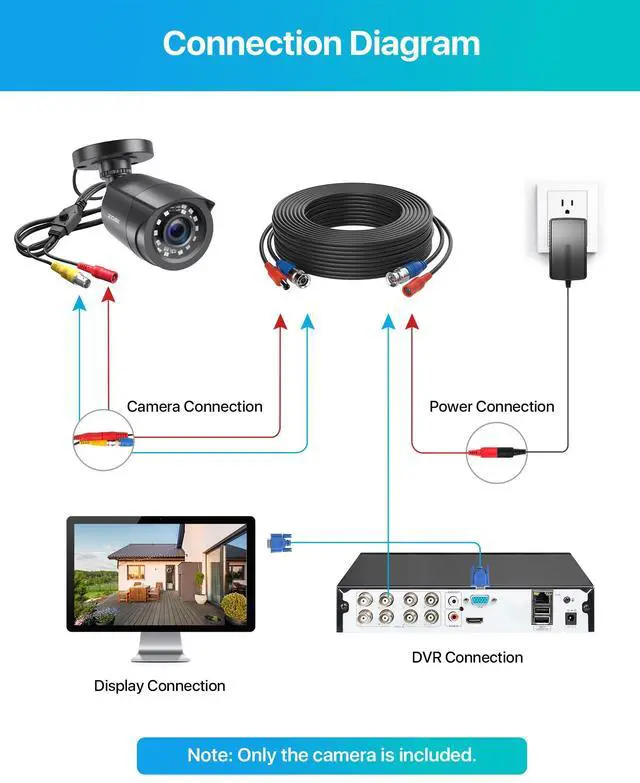

A: 1.Check the extension cable (power and video) is securely connected to the camera.
2.Check the video output from the camera is securely connected to a video input channel on the DVR.
3.Check the power from the camera is securely connected to a power supply.
4. The camera mode do not match your DVR.there is 2 ways to setup . (1) Press OSD menu “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR. (2) Make sure the signal of your DVR, Use OSD menu to change the mode of the camera according to your DVRs video Mode.
