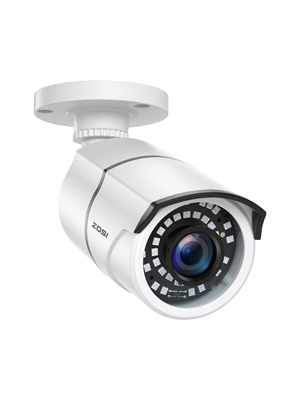

4-in-1 Security Bullet Camera

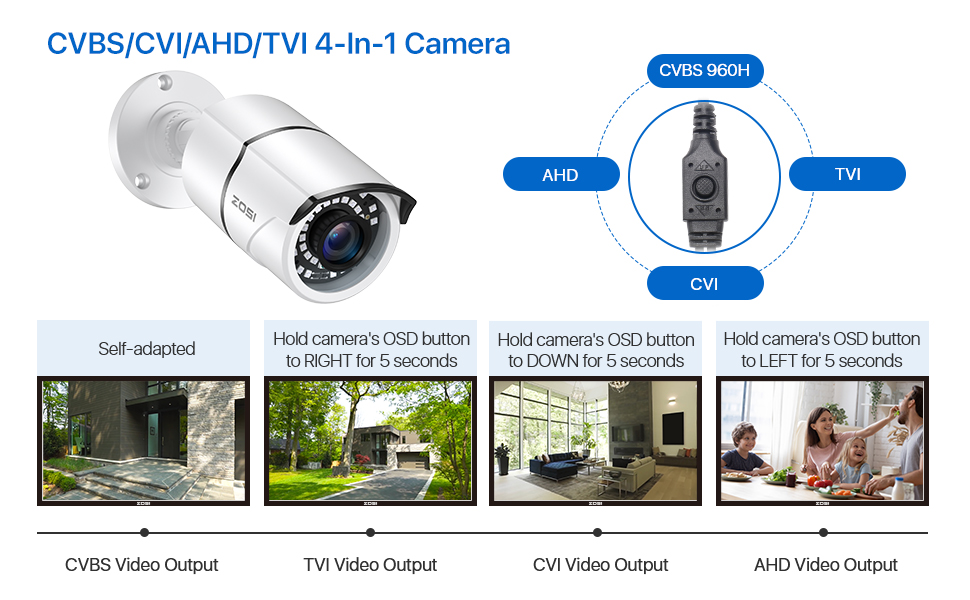

Press OSD joystick to switch the output mode:
- Default / Right for 5 seconds: CVBS 960H
- Down for 5 seconds: CVI
- Left for 5 seconds: AHD
- Up for 5 seconds: TVI

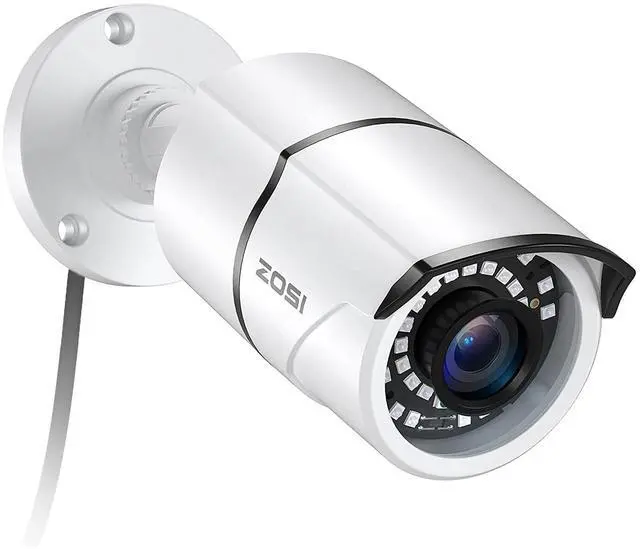

1080P 4-in-1 Security Bullet Camera
Security Camera Specification
- This camera is recommended to work with a security DVR.
- This camera needs to be wired with bnc video cable and power cable.

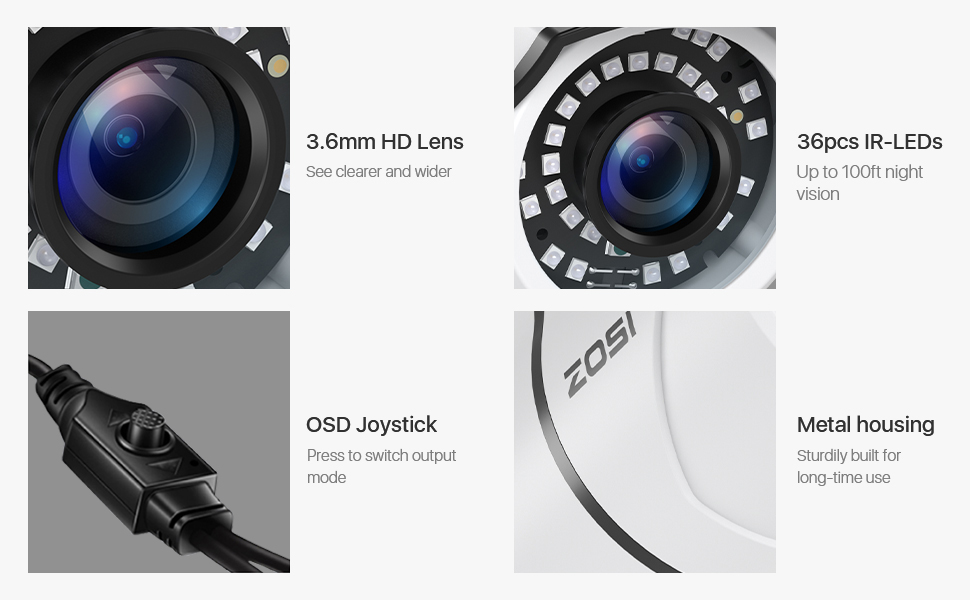

- Image Sensor: 1/3?CMOS CMOS with IR-Cut.
- Lens: 3.6mm
- Active Pixels: 1920(H)×1080(V).
- Singal mode: CVBS 960H / TVI / AHD / CVI.
- IR LEDs Amount: 36pcs, 5mm LEDs.
- IR Distance(night vision): up to 100ft.
- Made: Aluminum Metal Casing
- Power supply: 12V 500mA
This 1080p full HD camera has a built-in OSD menu that can change the 4 different video outputs:HD-TVI, AHD, CVI, and CVBS(960H), and adjust the video settings.
Operation Mode:
Switch from AHD: Press Leftward for 5 Seconds
Switch from TVI: Press Rightward for 5 Seconds
Switch from CVBS: Press Upward for 5 Seconds
Switch from CVI: Press Downward for 5 Seconds
Noted: Default Video Mode is Analog 960H Mode
Q: Video Loss appears where the image from my camera should be displaying on my DVR?
A: 1.Check the extension cable (power and video) is securely connected to the camera.
2.Check the video output from the camera is securely connected to a video input channel on the DVR.
3.Check the power from the camera is securely connected to a power supply.
4. The camera mode do not match your DVR.there is 2 ways to setup . (1) Press OSD menu “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR. (2) Make sure the signal of your DVR, Use OSD menu to change the mode of the camera according to your DVRs video Mode.
1080p Full HD
See everything in details with true 1080p HD resolution. Get clearer and smoother images/videos than 720p cameras.
Flexible Installation
Mount this camera on the ceiling or on the wall. It’s simple to place it anywhere indoor and outdoor for all-round surveillance.

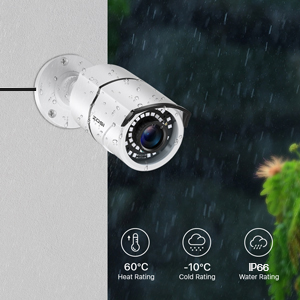

Ready for Outdoor Surveillance
With weatherproof and full metal housing , this security camera can stand on guard anywhere, outdoor or indoor, even in harsh weather conditions.

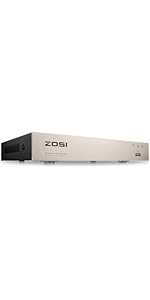

 ZOSI 3K Lite 8CH CCTV DVR Recorder with AI Human/Vehicle Detection, 8 Channel... |  ZOSI 8CH 3K Lite Home Security Camera System Outdoor,AI Human/Vehicle Detecti... |  ZOSI 4K POE Security Camera System Outdoor, 4PCS 4K Spotlight Wired Cameras f... |  ZOSI 4K PoE Security Camera System,16 Port 32CH 8MP NVR with 4TB HDD,8pcs 4K ... |  ZOSI 16CH 4K PoE Security Camera System,8pcs 4K C186 Aurora Lux Outdoor PoE C... | |
|---|---|---|---|---|---|
