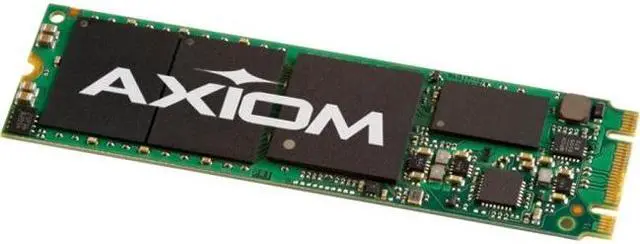

Main image of Axiom Signature III M.2 2280 480GB SATA III MLC Internal Solid State Drive (SSD) SSDM22280480-AX

Alt view image 2 of 2 - Axiom Signature III M.2 2280 480GB SATA III MLC Internal Solid State Drive (SSD) SSDM22280480-AX

Shop All Axiom Products

Axiom Signature III M.2 2280 480GB SATA III MLC Internal Solid State Drive (SSD) SSDM22280480-AX

Be the first to review this product...

M.2 2280
480GB
SATA III

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Axiom offers complete lines of notebook, desktop and server hard drive upgrades guaranteed in compatibility and performance with your system.

High quality components combined with Axiom's industry recognized customer service make Axiom Storage Products the right choice for all of your storage solution needs.

Model
Brand	Axiom
Series	Signature III
Model	SSDM22280480-AX
Device Type	Internal Solid State Drive (SSD)

Details
Form Factor	M.2 2280
Capacity	480GB
Memory Components	MLC
Interface	SATA III

Performance
Max Sequential Read	Up to 550 MBps
Max Sequential Write	Up to 500 MBps
4KB Random Read	Up to 60,000 IOPS
4KB Random Write	Up to 60,000 IOPS
MTBF	1,500,000 hours

Features
Features	Axiom's M.2 Type 2280 Signature III SATA 6Gb/s SSD combines enterprise class performance and reliability with low power operation to make the ideal embedded SSD. Providing an industry-leading bandwidth of more than 550MB/sec transfers, the Axiom M.2 SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 60,000 IOPS while providing advanced power management for low consumption or extended battery life. A robust ECC algorithm and redundant storage technology protects the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. (Self-monitoring, analysis, and reporting technology) attributes. The combination of these techniques provides data protection unrivaled in the embedded storage industry. - JEDEC standard M.2 2280-D5-B-M form factor - Lifetime performance - will not degrade over time - TRIM support (O/S support required) - Windows (32-bit & 64-bit), Linux, and Mac OSX - Ultra-efficient Block Management and Wear Levelin

Environmental
Operating Temperature	0°C ~ +70°C
Operating Humidity	5% to 95% RH
Max Shock Resistance	1500G/0.5ms
Max Vibration Resistance	2-500Hz at 3.1G

Dimensions & Weight
Height	5.00mm
Width	80mm
Depth	22mm
Weight	40g

Additional Information
First Listed on Newegg	May 12, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
