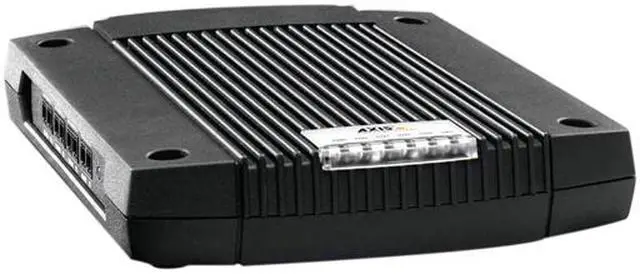

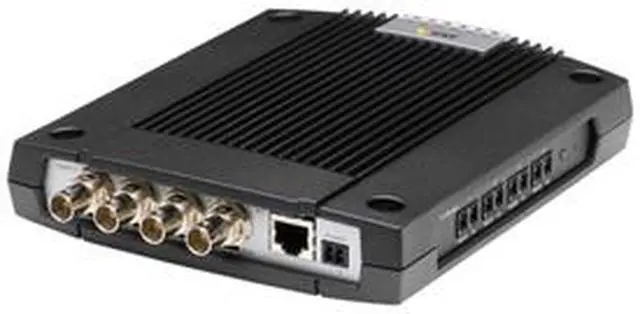

Learn more about the Axis Communications Q7404
| Brand | AXIS |
|---|---|
| Model | Q7404 |
| Type | Video Encoder |
|---|---|
| Specifications | Video encoder Video compression: H.264 (MPEG-4 Part 10/AVC) Motion JPEG Resolutions NTSC: 720x480 to 176x120 PAL: 720x576 to 176x144 Frame rate H.264: 30/25 (NTSC/PAL) fps in all resolutions Frame rate Motion JPEG: 30/25 (NTSC/PAL) fps in all resolutions Video streaming: Multiple, individually configurable streams per channel in H.264 and/or Motion JPEG: 3 simultaneous streams in max. resolution at 30/25 fps from each channel; more streams if identical or limited in frame rate/resolution Controllable frame rate and bandwidth VBR/CBR H.264 Image settings: Compression, color, brightness, contrast Rotation: 90°, 180°, 270° Aspect ratio correction Mirroring of images Text and image overlay Privacy mask Enhanced deinterlace filter Audio Audio streaming: Two way, half-duplex on Channel 1 Audio compression: AAC-LC 8 kHz 32 kbit/s, 16 kHz 64 kbit/s G.711 PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 or 24 kbit/s Audio input/ output: External microphone input or line input Line level output Network Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, digest authentication, user access log Supported protocols: IPv4/v6, HTTP, HTTPS*, IEEE 802.1X*, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS System integration Application Programming Interface: Open API for software integration, including VAPIX from Axis Communications available at www.axis.com Intelligent video: Video motion detection, active tampering alarm, audio detection Alarm triggers: Intelligent video, external inputs, video loss Alarm events: File upload via FTP, HTTP and email Notification via email, HTTP and TCP External output activation PTZ presets Video buffer: 64 MB pre- and post-alarm per channel |
| Features | AXIS Q7404 Video Encoder is a high performance, four-channel standalone solution that integrates four analog cameras at a time into an IP-based video surveillance system. AXIS Q7404 delivers superb video quality and significant savings in bandwidth and storage with H.264. AXIS Q7404 offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. AXIS Q7404 can deliver multiple video streams simultaneously from each video channel at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The video streams can be individually configured with different compression formats, resolutions and frame rates for different needs. AXIS Q7404 offers intelligent video capabilities such as video motion detection, active tampering alarm and audio detection. Each video channel has two configurable inputs/outputs for connections to external devices such as sensors and relays, which enable the system to receive and respond to alarms. High-quality, two-way audio is provided on one video channel. All four video channels support pan/tilt/zoom control for PTZ and PTZ dome cameras. It is also possible to control daisy-chained cameras from one RS-485/RS-422 serial port as long as they operate on the same protocol. |
|---|
| First Listed on Newegg | October 24, 2018 |
|---|
