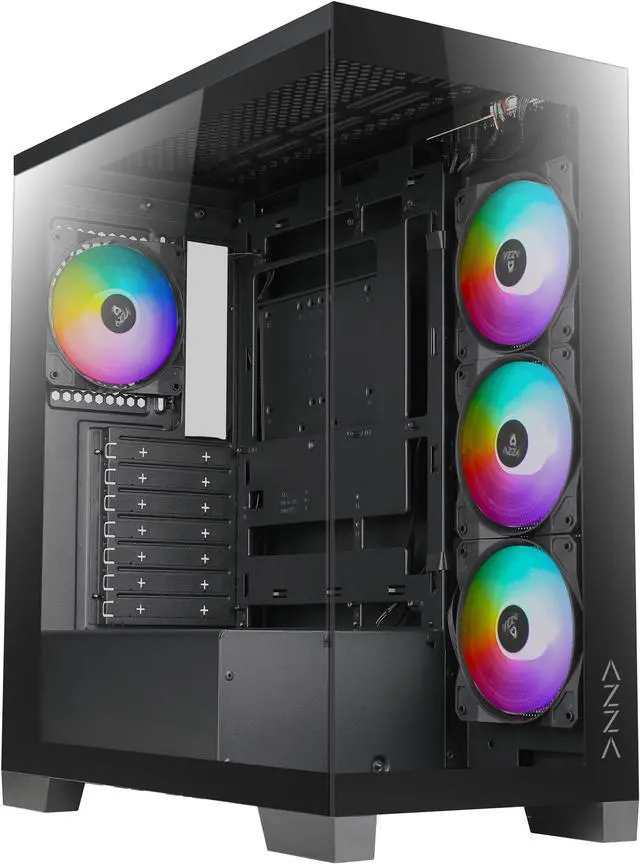

270° full-view tempered glass panel. The Cove is reminiscent of the oceans waves cascading onto the shore at midnight. The inner space supports back-connect motherboards for a cleaner build and a better visual showcase.
Learn more about the AZZA CSAZ-570B
Model
Brand
AZZA
Model
CSAZ-570B
Details
Type
ATX Mid Tower
Color
Black
Power Supply Mounted
Bottom
Motherboard Compatibility
ATX (Back Connect) / ITX / Micro ATX
Side Panel Window
Tempered Glass
Dust Filters
Bottom / Top
Expansion
External 5.25" Drive Bays
0
Internal 3.5" Drive Bays
1
Internal 2.5" Drive Bays
3
Expansion Slots
7
Front Panel Ports
Front Ports
USB 2.0 / USB 3.0 / USB 3.1 Type-C / Audio
Cooling System
Fan Options
3x120mm or 2x140mm fan ports on the top 1x120mm fan port in the rear (1 x 120mm LFO-5512D ARGB fan included) 1x120mm fan port on the bottom 3x120mm fan ports on the MB side (3 x 120mm LFO-5512DR ARGB fan included) 2 x 120 mm fan ports on the PSU shroud
Radiator Options
Supports radiators up to 360/280mm in the Top
Supports radiators up to 360mm on the mb side
120mm Fans
3x120mm LFO-5512DR ARGB Fan on the MB side
1x120mm LFO-5512D ARGB Fan in the rear
Dimensions & Weight
Max GPU Length
400 mm
Max CPU Cooler Height
170 mm
Dimensions (H x W x D)
490x230x435mm / 19.3.1x9.1x17.1 inches
Weight
8Kg /17.6lbs
Additional Information
First Listed on Newegg
September 02, 2024
