B&B Industrial RS-232 to RS-422/485 Converter
- 485LDRC9
+
+
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES: Adapter Type: SerialConnector on First End: 1 x 9-pin DB-9 Female RS-232 SerialConnector on Second End: 1 x Terminal Block - RS-422/485 SerialMaterial: Plastic - HousingHeight: 6"Width: 5.5"Weight (Approximate): 7.20 ozEnvironmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: United StatesLimited Warranty: Lifetime
- Extend Data up to 4000 ft / 1.2 km
- 2000V Optically Isolated Data Lines
- Wide Operating Temperature
- Modbus ASCII/RTU
- Automatic Send Data Control
- Switchable 120? Termination

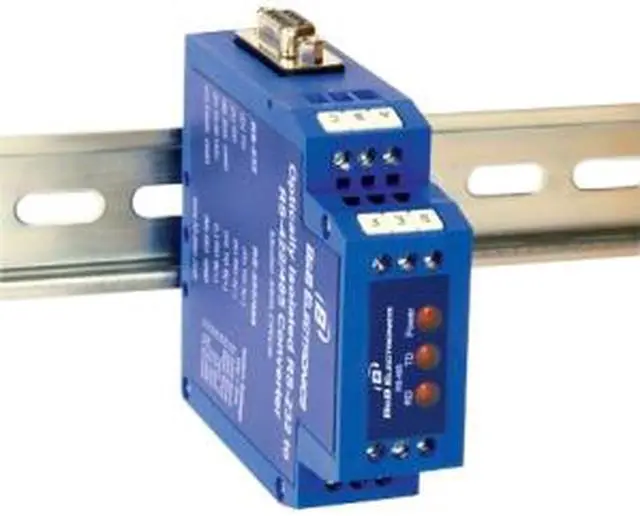

The 485LDRC9 is an optically isolated RS-232 to RS-422/485 Converter. RS-232 signals interface through a convenient DB9 F connector or through a terminal block. RS-422/485 signals and the power inputs connect to the terminal block. Built in Send Data Control circuitry eliminates the need for external software to control handshake signals. Optically isolated data lines, with 500W surge suppression, ensures that the connected equipment is protected even in the harshest of environments.
Optically isolated data lines, with 500W surge suppression, ensures that the connected equipment is protected even in the harshest of environments. The converter operates on externally sourced 10 - 30 VDC power. The enclosure has a DIN rail mount that is designed to fit easily on a standard 35mm rail. The 485LDRC9 is ideal for your critical industrial communications needs.
