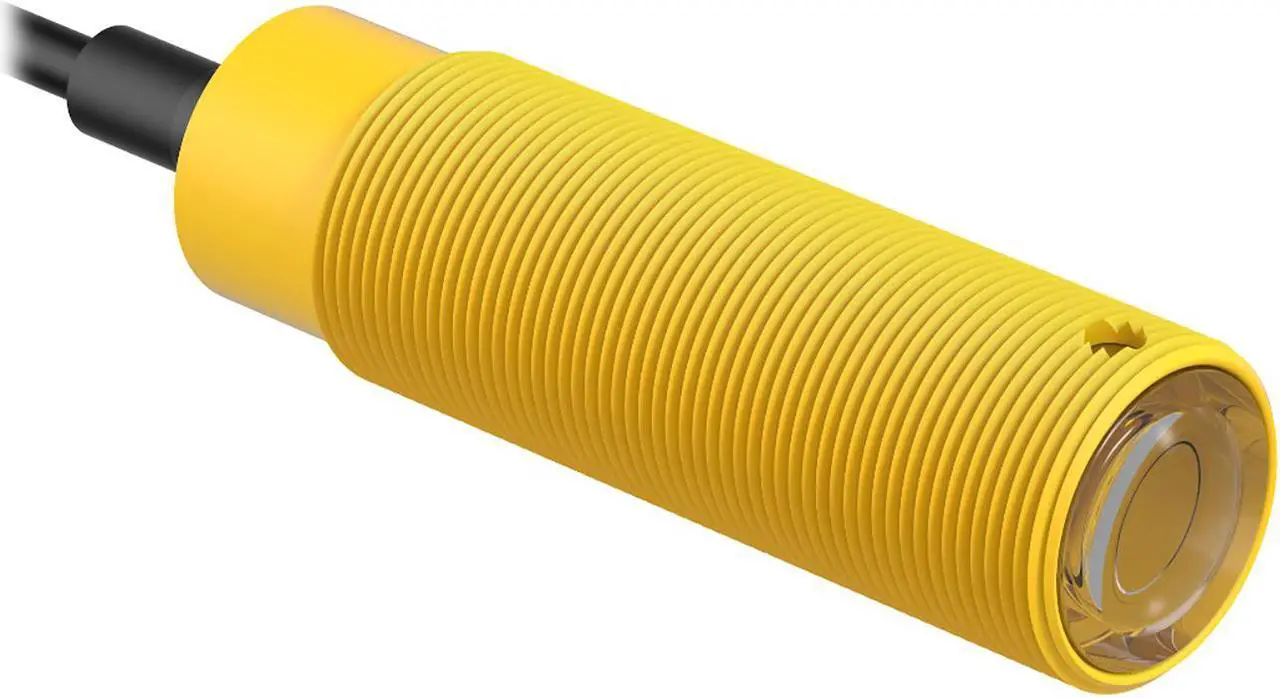

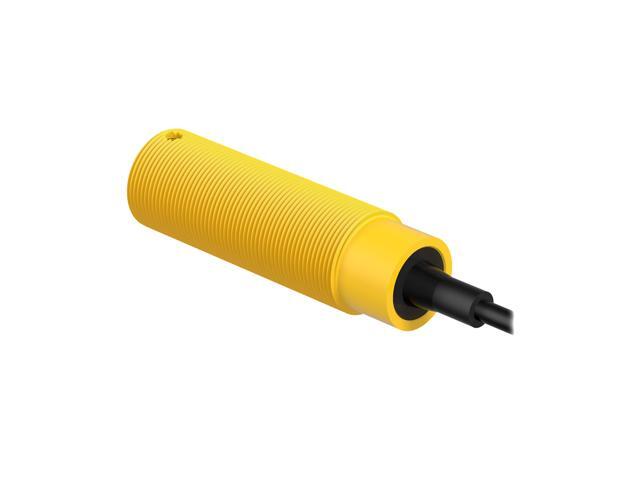

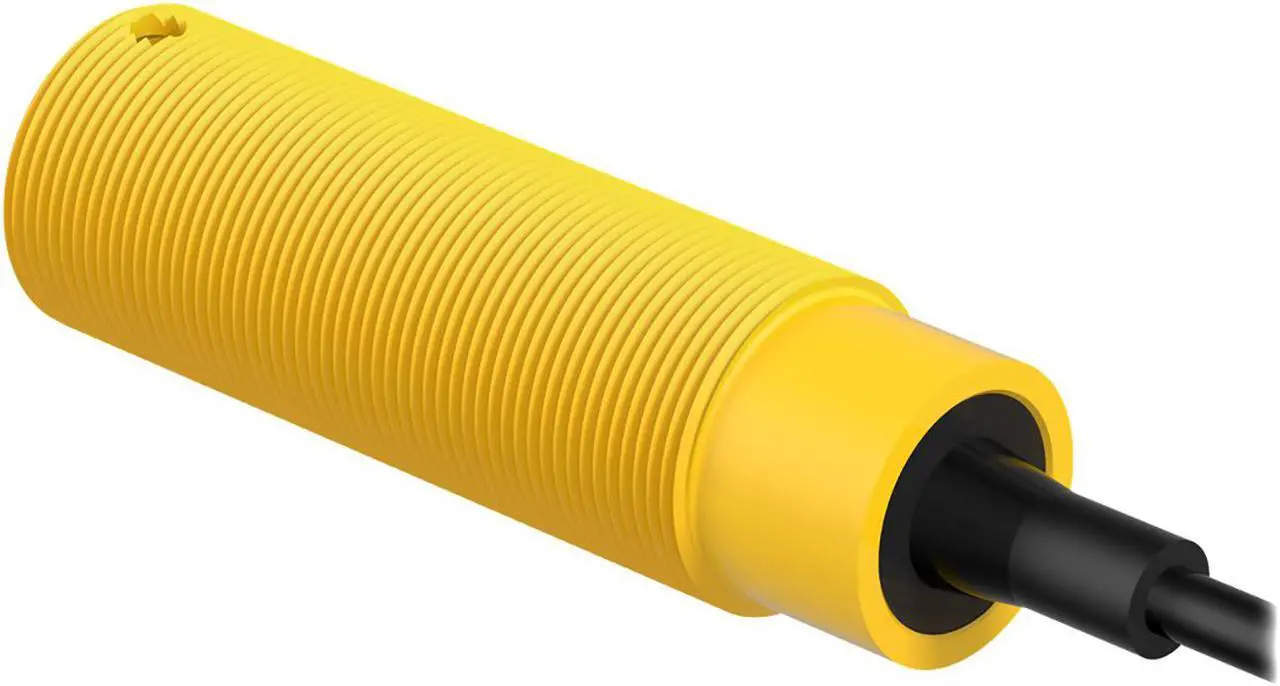

BANNER SMA30PELB 150 M Range Opposed Mode Barrel Sensor New

SM30 Series: Emitter - Frequency B PBT Polyester
Range: 150 m; Input: 10-30V dc / 12 to 240Vac
Output: Not applicable - No outputs
2 m (6.5 ft) cable
Part Number: 27374
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Barrel
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 150000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc or 12-240 V ac
Connection Cable
Quick Disconnect Type No QD
Operation N/A
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) N/A
Repeatability (µs) N/A
Number of Pins 2
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
