Brand | BBC |
---|---|
Model | Micro:Bit |
CPU | ARM Cortex M0 32-Bit CPU |
---|
CPU Type | ARM Cortex |
---|

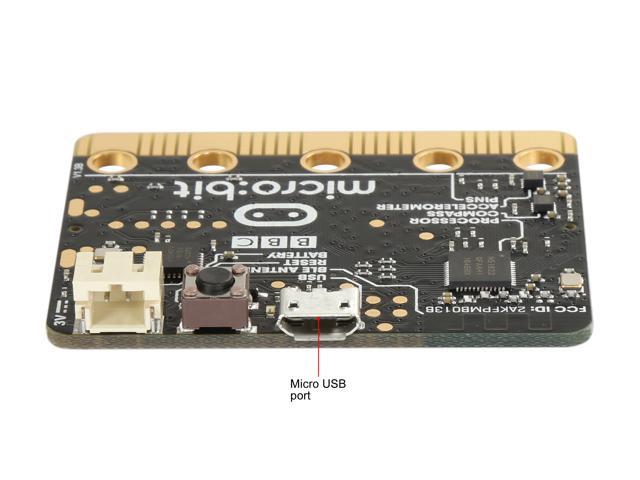

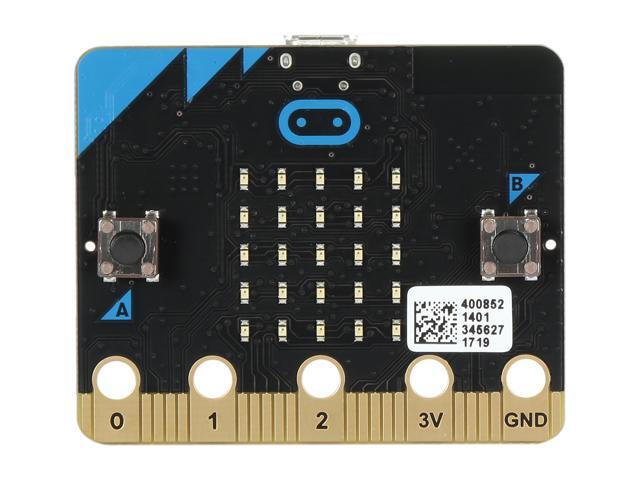

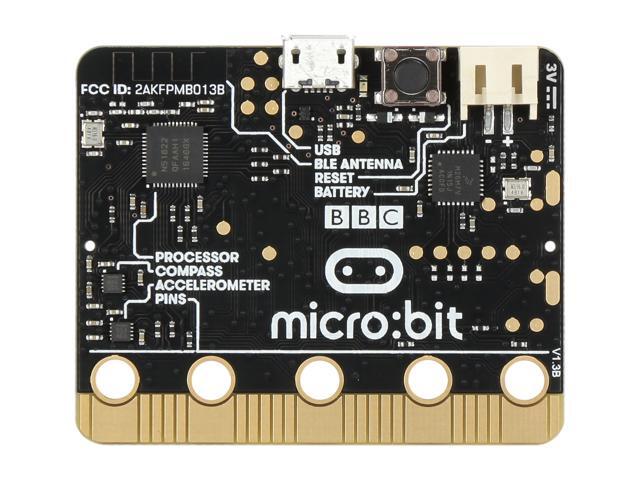

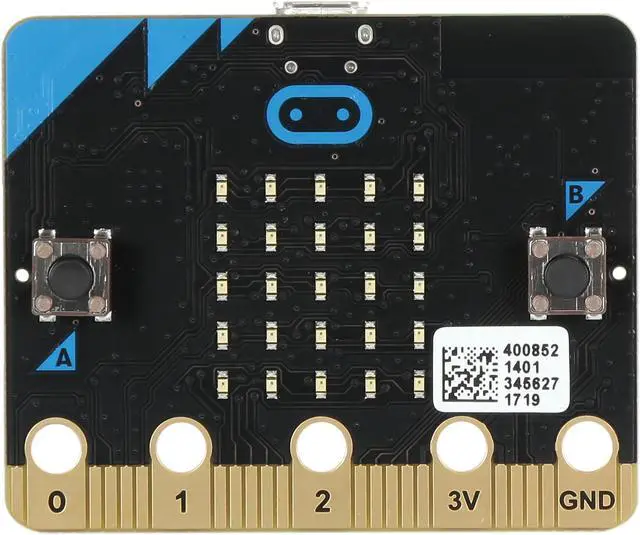

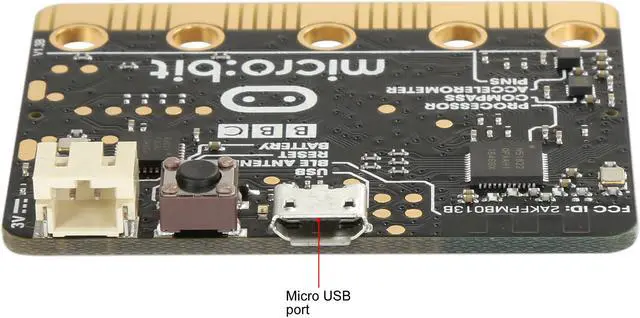

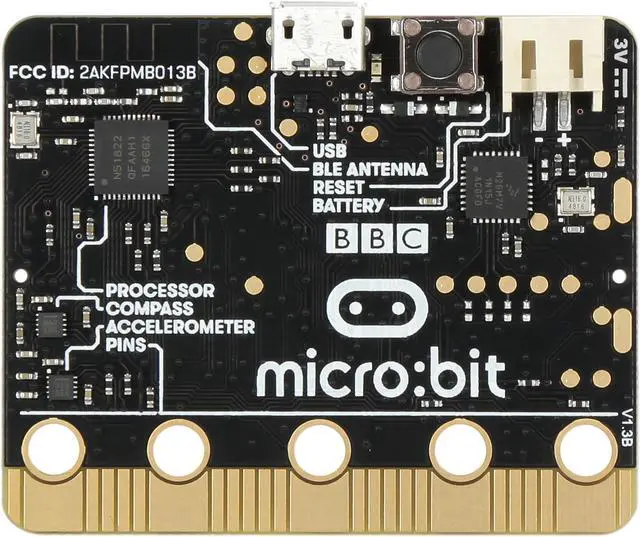

Features | Microprocessor: 32-bit ARM Cortex M0 CPU A 5x5 LED matrix with 25 red LEDs to light up and can display animiated patterns, scrolling text and alphanumeric characters Two programmable buttons. Use them as a games controller, or control music on a smart phone On-board motion detector or 3-AXIS digital accelerometer that can detect movement e.g. shake, tilt or free-fall A built-in compass, 3D magnetometer to sense direction and your movement in degrees also the presence of certain metals and magnets Bluetooth Smart Technology. Connect the micro:bit to other micro:bits, devices, phones, tablets, cameras and other everday objects Five Ring Input and Output (I/O) including power (PWR), ground (GRD) and 3 x I/O. To read values from sensors and control things like motors or robots 20-pin edge connector: This allows the micro:bit to be connected to other devices such as Raspberry Pi, Arduino, Galileo and Kano through a standard connector Micro-USB controller: This is controlled by a separate processor and presents the micro:bit to a computer as a memory stick System LED x 1 yellow System push button switch x 1 System push button switch x 1 |
---|
Dimensions (W x L) | 1.97" x 1.57" |
---|

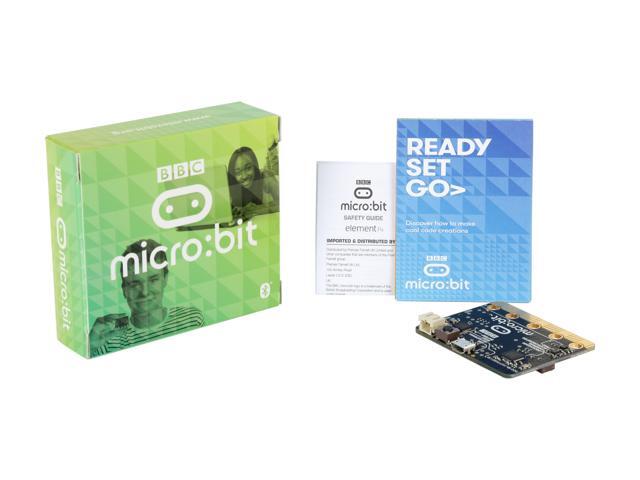

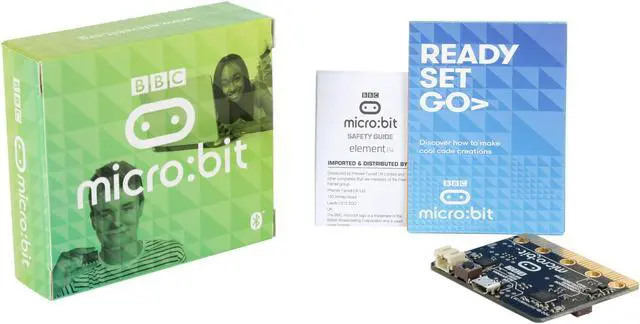

Package Contents | 1x BBC micro:bit and a Quick Start Guide |
---|
First Listed on Newegg | May 23, 2019 |
---|
