    be quiet! Dark Power PRO 13 1600W ATX 3.0 Power Supply | 80 Plus Titanium Efficiency | PCIe 5 | Modular | Overclocking Support | 10 Year Warranty | BN501

    (152)(5) Write a Review
    • Dark Power 13
    • Dark Power Pro 13
    • 1000W
    • 1300W
    • 1600W
    • 750W
    • 850W

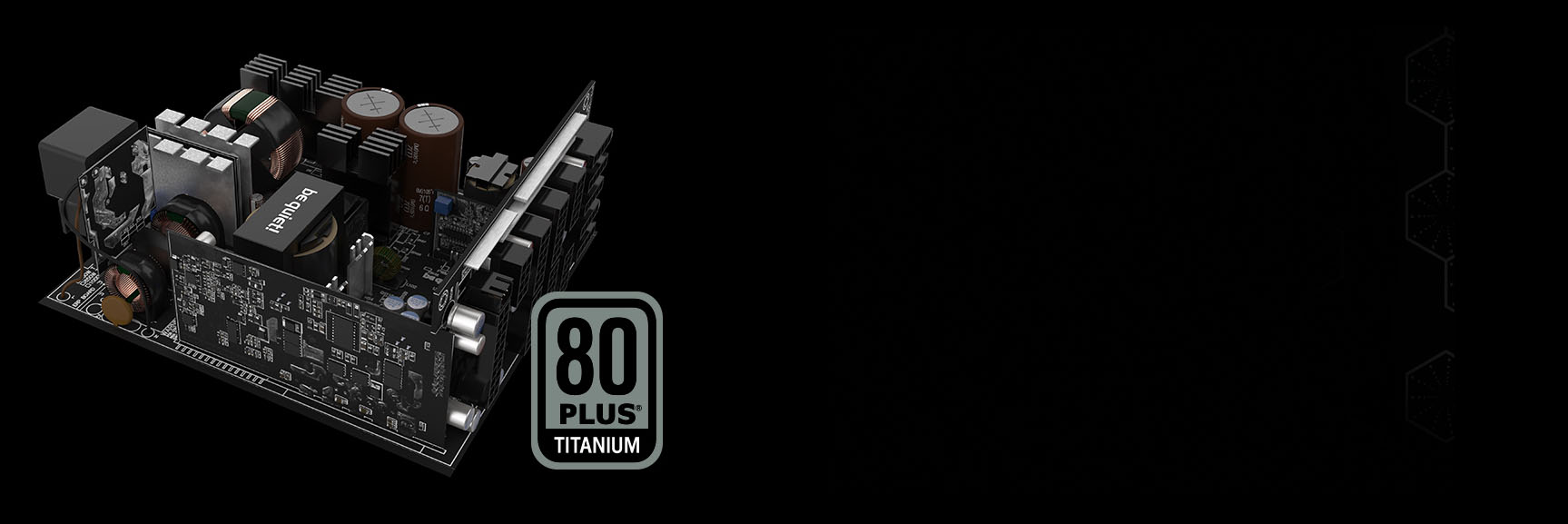

    • TITANIUM EFFICIENCY: 80 PLUS Titanium efficiency up to an impressive 94.5% efficiency for significant power savings.
    • CUTTING-EDGE PSU COMPATIBILITY: Designed as an ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors, ensuring compatibility with the latest hardware.
    • POWER SURGE HANDLING: Built to handle massive power excursions, ensuring stability.
    • ADVANCED SIGNAL STABILITY: Features fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability.

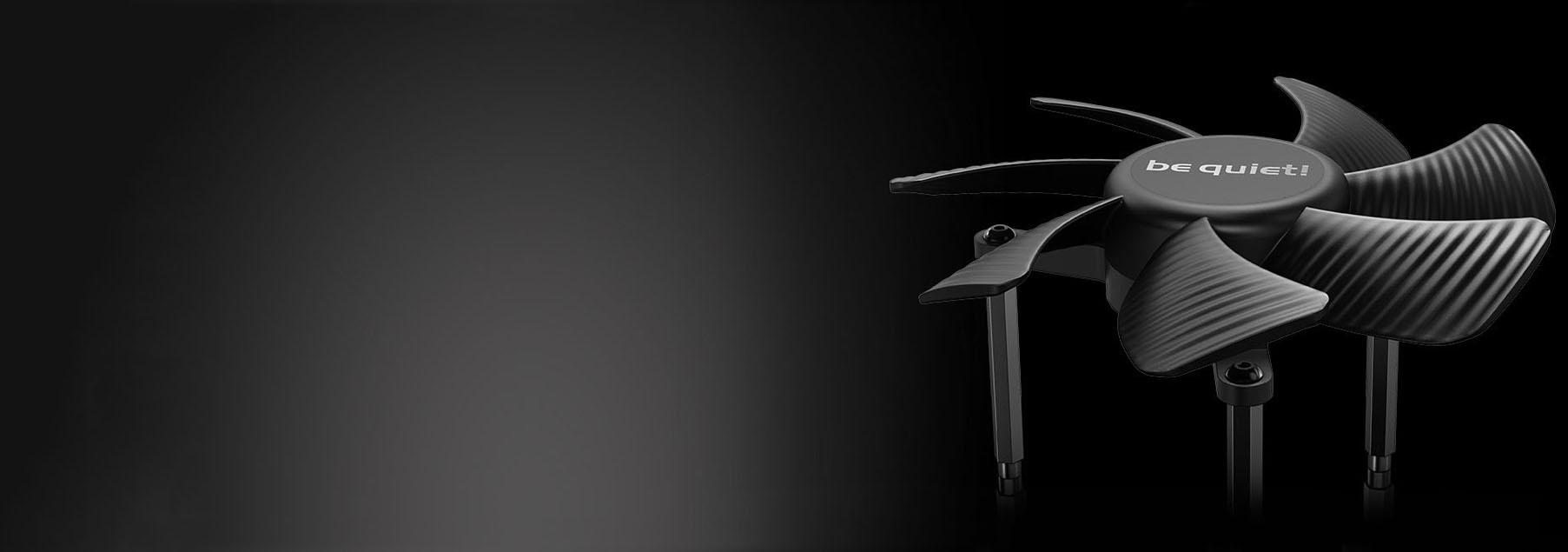

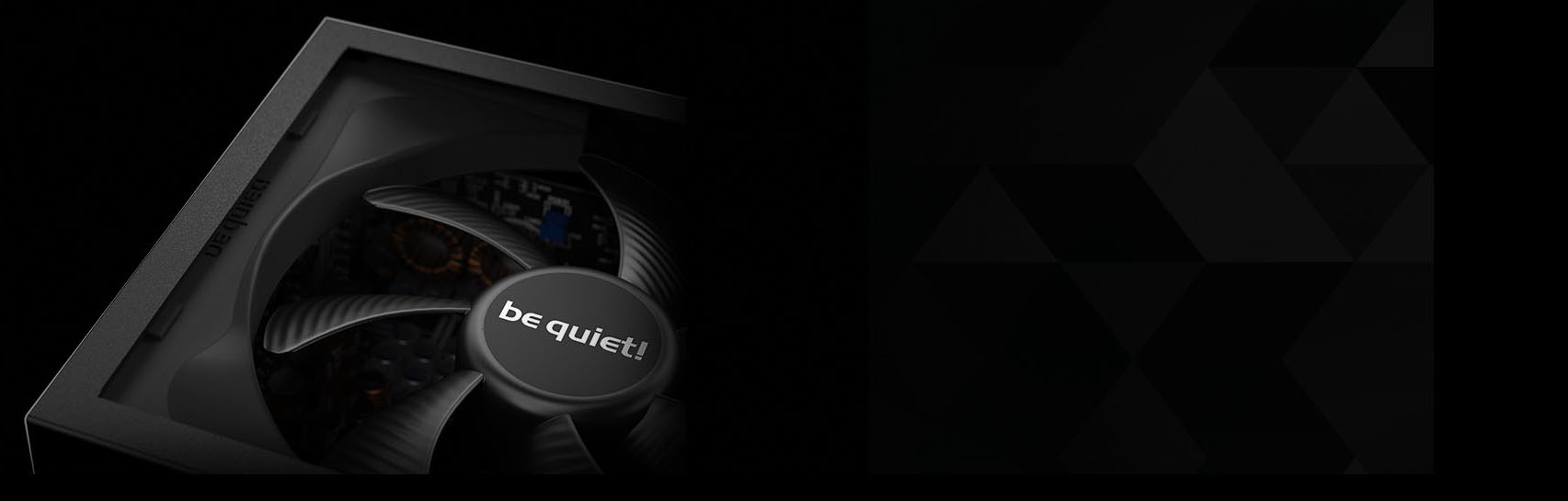

    • QUIET OPERATION: Incorporates an improved and patented frameless Silent Wings fan that delivers virtually inaudible operation at ordinary loads.
    • FLEXIBLE POWER DISTRIBUTION: The overclocking key allows you to switch between six 12V rails and one massive 12V rail.
    • ELEGANT APPEARANCE: The aluminum case and modular individually sleeved cables create a magnificent look.
    • LONG WARRANTY: Backed by a 10-year manufacturer's warranty.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (152)
    See all Q & A

    Learn more about the Detailed Specifications

    General
    Brand be quiet
    Details
    Color Black
    Type ATX 3.0 Compatible
    Maximum Power 1600 W
    Fans 1 x 135 mm
    PFC Active
    Main Connector 20+4Pin
    +12V Rails 6
    PCI-Express Connector 6 x 6+2-Pin
    SATA Power Connector 16
    Max PSU Length 200 mm
    Modular Full Modular
    Energy-Efficient 80 PLUS TITANIUM Certified
    Over Voltage Protection Yes
    Overload Protection Yes
    Input Voltage 100 - 240 V
    Input Frequency Range 50/60 Hz
    Input Current 16 / 8
    PFC Active
    Modular Yes
    Input
    Input Voltage 100 - 240 V
    Frequency Range 50/60 Hz
    Input Current 16 / 8
    Output
    +3.3V Max. Current 25A
    +5V Max. Current 25A
    +12V1 Max. Current 40A
    +12V2 Max. Current 40A
    +12V3 Max. Current 45a
    +12V4 Max. Current 45a
    -12V Max. Current 0.5A
    +5VSB Max. Current 3.5A
    Connectors
    Main Connector 20+4 Pin
    12V Power Connector 1 x 4+4 Pin ATX/EPS 12V, 1 x 8 Pin EPS 12V
    PCI-Express Connector 6 x 6+2 Pin
    Floppy Connector 0
    Peripheral Connector 5
    Fans
    Fans Total Quantity 1
    Top Fans Size 135mm
    Protection
    Over Voltage Protection Yes
    Over Load Protection Yes
    Short Circuit Protection Yes
    Under Voltage Protection Yes
    Over Current Protection Yes
    Over Power Protection Yes
    Over Temperature Protection Yes
