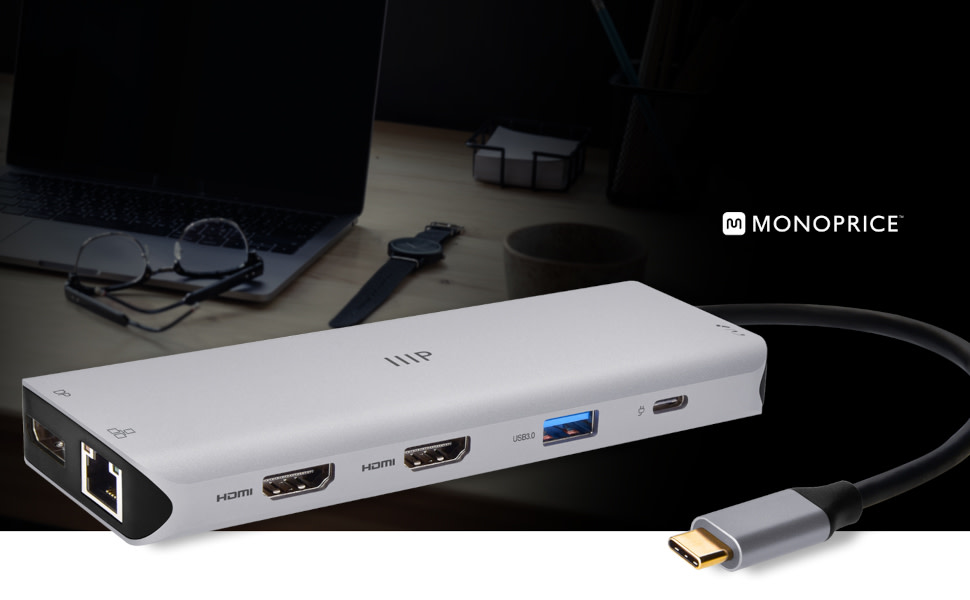

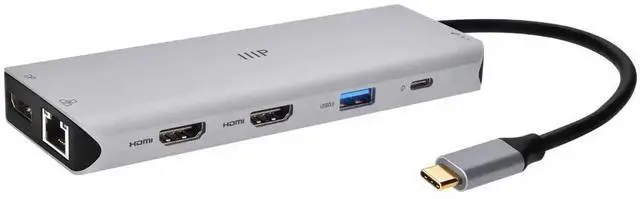

Monoprice 13-in-1 Triple Display Docking Station
Dual 4K HDMI, 4K DisplayPort, 5Gbps USB-A, Gigabit Ethernet, SD/MicroSD Readers, 100W PD Passthrough
Charging, 3.5mm Dual Audio/Microphone Jack Charging, 3.5mm Dual Audio/Microphone Jack

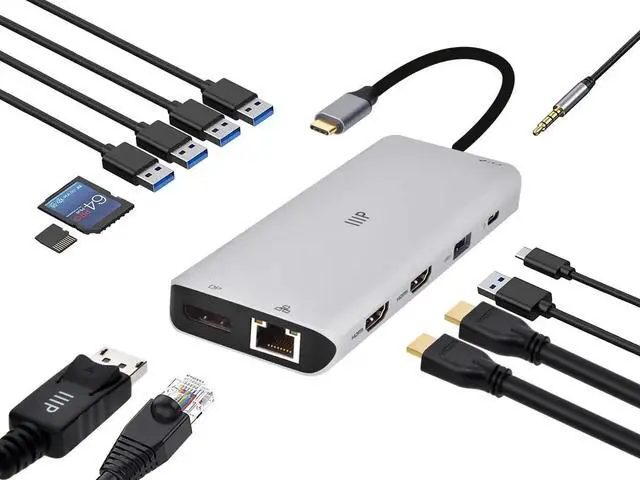

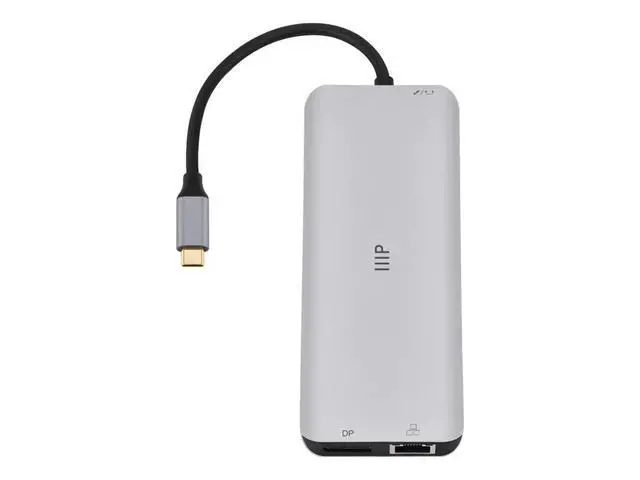

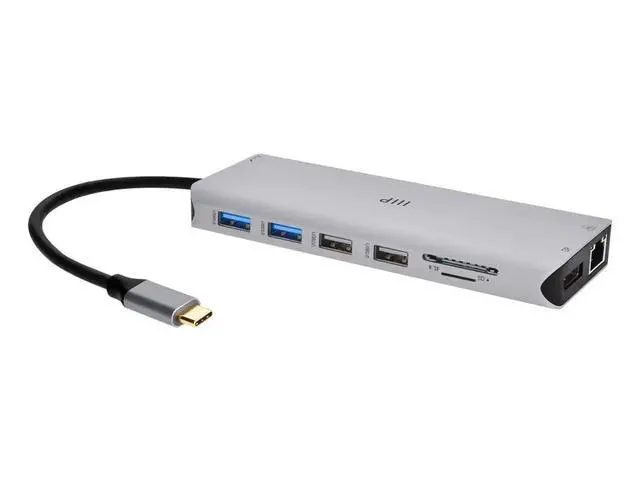

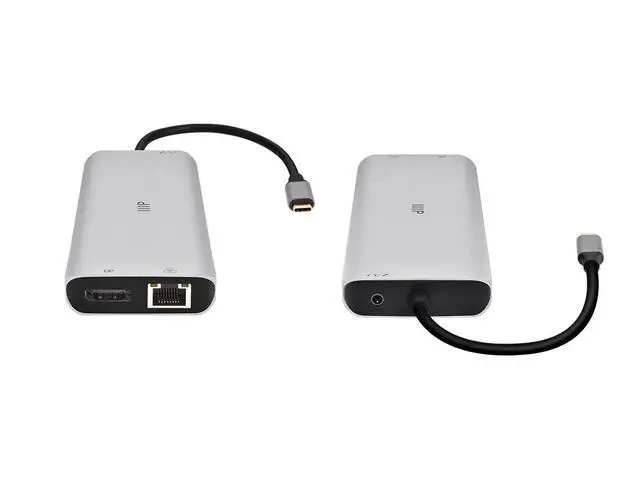

The Monoprice 13-in-1 Dual-HDMI + DisplayPort Universal Triple Display Dock is a compact yet powerful solution to all workplace setup needs. It extends just one USB-C (with DP1.4 or DP1.2 mode) or Thunderbolt port into 13 ports, including two 4K HDMI, one 4K DisplayPort displays, 5 high-speed USB-A data ports, Gigabit Ethernet port, simultaneous SD/MicroSD card readers (104Mb/s), 3.5mm 2-in-1 audio/mic port, and a USB-C port for 100W Power Delivery pass-through charging. Just plug in devices and start using with no driver or special setup necessary. Compatible with Windows and MacOS systems.
• For MacOS, only supports SST Mirror & SST Extend modes (all 3 external monitors have the same display). • For Windows, supports SST & MST modes (all 4 monitors have different displays) • Max resolution for single external display: HDMI 1: 4K@60Hz HDMI 2: 4K@30Hz DisplayPort: 4K@60Hz • Max resolutions for dual external displays: 4K@30Hz + 1080p@60Hz • Max resolutions for triple external displays: 3x 1080p@60Hz
IMPRESSIVE EXPANDABILITY

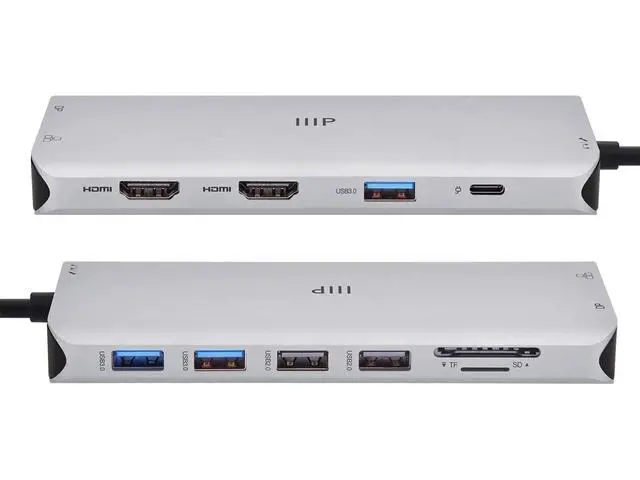

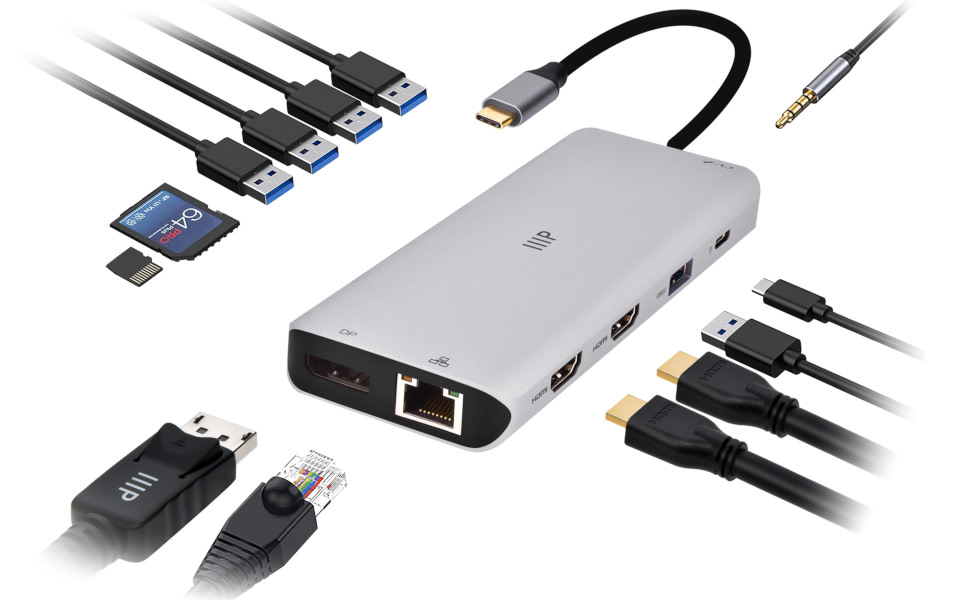

Turn one USB-C port into 13 ports that fulfill all your workstation needs, including adding extra monitors, mouse, keyboard, storage drives, etc.
• All-in-one docking station • Supports triple external monitor displays • Supports 4K high-resolution HDMI & DP • Multiple USB-A ports for peripheral devices such as mouse, keyboard, headset, storage drives, etc. and high speed data transfer at 5Gbps • USB-C ports support fast 100W Power Delivery passthrough charging to power host laptop • Plug-and-Play • Compatible with Windows (supports both MST & SST modes) & MacOS (only supports SST modes)

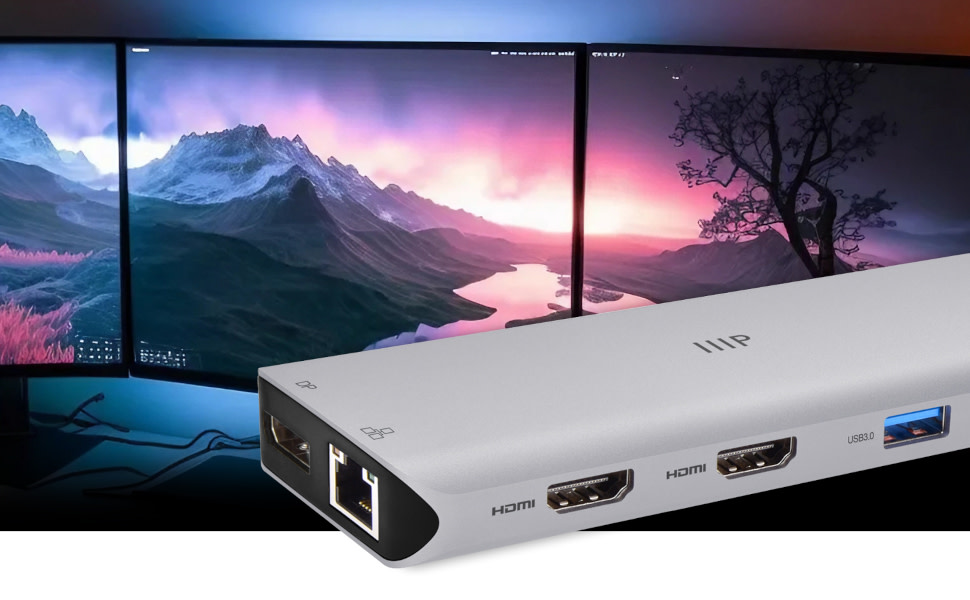

TRIPLE HIGH-RESOLUTION DISPLAYS
Connect the laptop to up to 2 HDMI & 1 DisplayPort external monitors simultaneously.
FASTER DATA TRANSFER
Enjoy fast 5Gbps USB transfer speed and Gigabit Ethernet.
POWER DELIVERY FAST CHARGING
USB-C supports up to 100W Power Delivery pass-through charging to your laptop and connected devices.
EASE OF USE & WIDE COMPATIBILITY
Plug-and-play (no driver or setup necessary), works with Windows, MacOS, and Thunderbolt (MacOS only supports SST modes).
PACKAGE CONTENTS
1x USB-C Docking Station
 144467 |  144466 |  129434 |  136656 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |

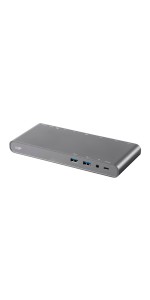

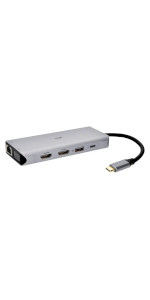

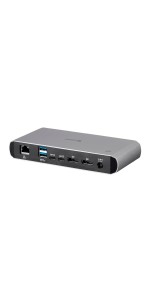

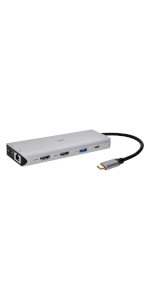

| Product Name | Monoprice 13-in-1 Dual-HDMI + DP MST Dock | Monoprice 12-in-1 Dual-HDMI + VGA MST Dock | Monoprice USB-C Dual-Monitor Docking Station for USB-C Laptops MST and Power Delivery up to 100W with USB-C Cable | Monoprice Thunderbolt 3 Dual DisplayPort Docking Station with USB-C MFDP Support for non-Thunderbolt 3 Devices with Thunderbolt 3 USB Type-C Cable (v2) |
| VGA Port | ? | 1 | 1 | ? |
| HDMI Port | 2 | 2 | 1 | ? |
| DisplayPort | 1 | 0 | 1 | 2 |
| USB-A Port | 5 | 4 | 4 | 3 |
| USB-C Port | 1 | 1 | 2 | 1 |
| Ethernet Port | 1 | 1 | 1 | 1 |
| Audio | 1x 3.5mm TRRS (stereo audio and microphone) | 1x 3.5mm TRRS (stereo audio and microphone) | 1x 3.5mm audio output 1x 3.5mm microphone input | 1x 3.5mm TRRS (stereo audio and microphone) |
| S/TF | SD/MicroSD 3.0 UHS-1 (allow 2 card slots to work simultaneously) | SD/MicroSD 3.0 UHS-1 (allow 2 card slots to work simultaneously) | ? | SD/MicroSD 3.0 UHS-1 (allow 2 card slots to work simultaneously) |
