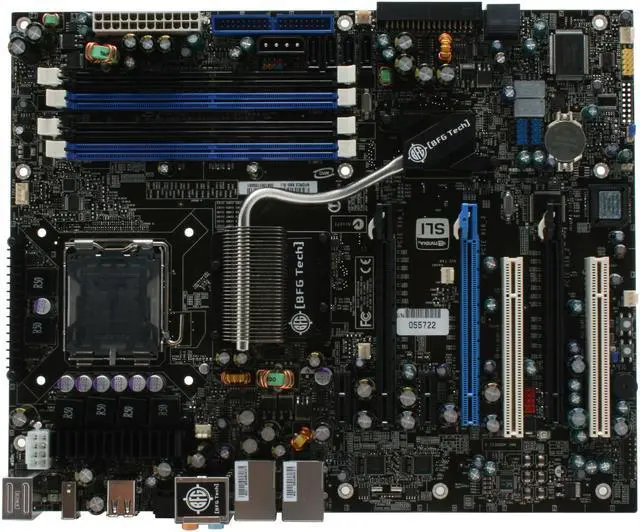

BFG Tech BFG680i SLi LGA 775 NVIDIA nForce 680i SLI ATX Intel Motherboard
- NVIDIA nForce 680i SLI
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 800
Specs
Reviews (68)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the BFG Technologies BFG680i SLi
| Brand | BFG Tech |
|---|---|
| Model | BFG680i SLi |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1333/1066 MHz |
| Chipset | NVIDIA nForce 680i SLI |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x8 | 1 x PCI Express x8 |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Audio Chipset | 8-Channel High Definition Azalia audio |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 2 x 1Gbps |
|---|

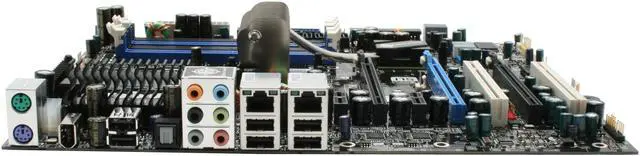

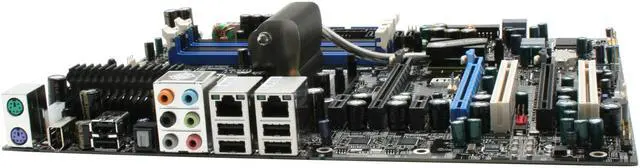

| Back I/O Ports | 1 x Optical S/PDIF Out / 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|---|
| Onboard 1394 | 1 x 1394a connector support 1 port |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

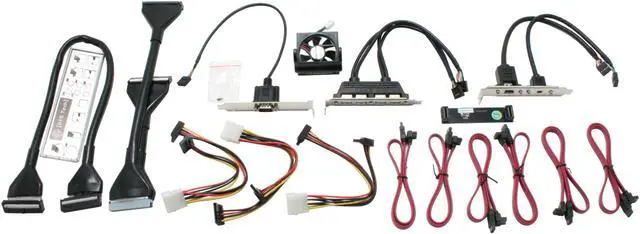

| Package Contents | BFG680i SLi Driver Disk User Manual Game Disk Fan Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cables 4-pin to SATA Power Cables USB Bracket IEEE 1394 Bracket Serial/COM Bracket |
|---|
| Date First Available | February 06, 2007 |
|---|
