BFG Tech BFGRINF680iLTS LGA 775 NVIDIA nForce 680i LT SLI ATX Intel Motherboard
- NVIDIA nForce 680i LT SLI
- Quad-core / Core 2 Extreme / Core 2 Duo / Pentium D / Pentium 4 / Celeron D
- DDR2 800
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the BFG Technologies BFGRINF680iLTS
| Brand | BFG Tech |
|---|---|
| Model | BFGRINF680iLTS |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Quad-core / Core 2 Extreme / Core 2 Duo / Pentium D / Pentium 4 / Celeron D |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | NVIDIA nForce 680i LT SLI |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/0+1/5 |
|---|
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|

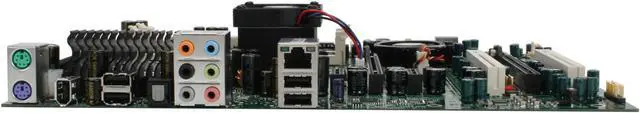

| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

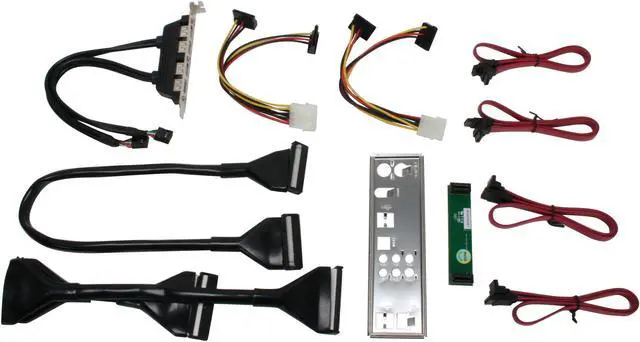

| Package Contents | BFGRINF680iLTS Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable 2 x 4-pin to 2SATA Power Cable SLI Bridge USB Bracket |
|---|
| First Listed on Newegg | August 29, 2007 |
|---|
