The A5 is descendants of the notorious A1 Series. While A1 Plus and A1 Prime only support Mini-ITX motherboards, the A5 support up to and E-ATX motherboards respectively. High-end graphics cards of length up to 340 mm, high efficiency power supplies of length up to 200 mm and multiple 2.5 / 3.5 storage devices can be accommodated. A total of five fans can be installed. Alternatively a 240 mm radiator can be installed at the top for robust liquid cooling. The compact size, vertical airflow layout, high expandability and modern design set the optimal conditions for a superior system.
Material toughened glass, SECC green steel plate, ABS, PC
Motherboard compatible with 12" x 11" E-ATX, ATX, Micro-ATX, Mini-ITX
Video card expansion slot 7 x PCI-E
High compatibility High specifications graphics card length: 340 mm
Support CPU heat sink height: 162 mm

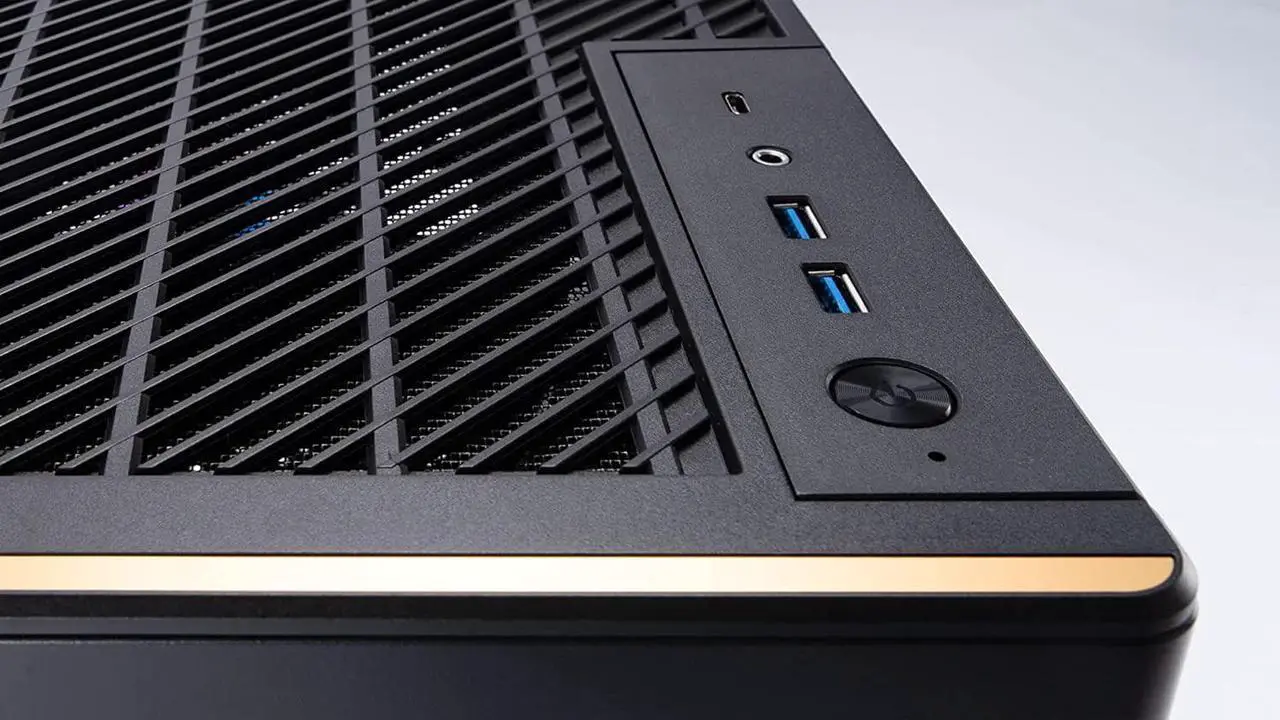

Front output/Port 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA standard Universal otomahole)
Hidden Hard Drive Bit 2 x 3.5" / 2.5"
2 x 2.5"
The heat dissipation system is compatible with fans
Top: 2 x 120 mm

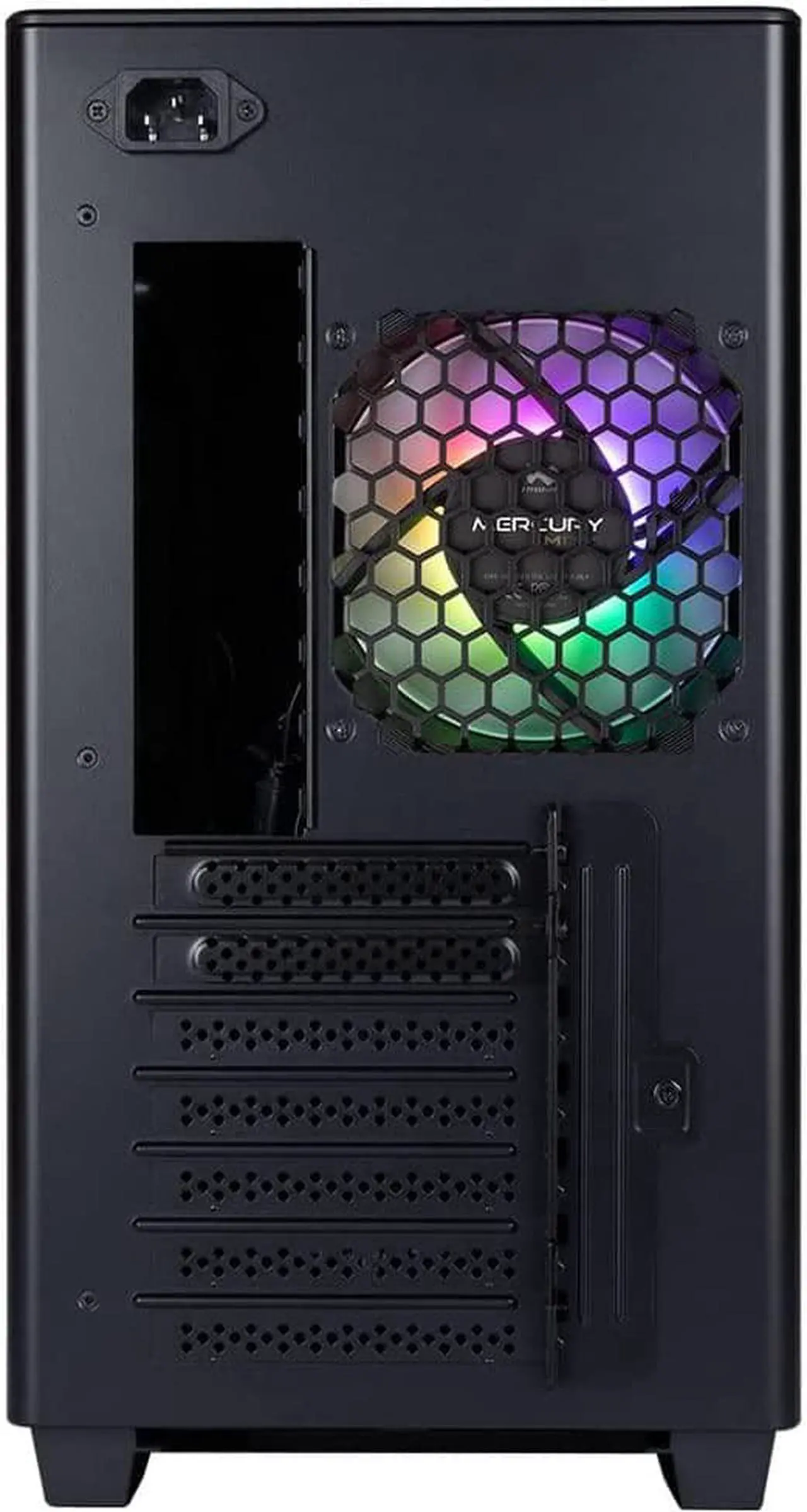

Back: 1 x 120 mm
Bottom: 2 x 120 mm
(Yingguang Mercury AM120S fan is standard)
Water cooling drainage:
Top: 1 x 240 mm
Power supply compatible with PSII: ATX12V
The length must be between 140-200 mm
(If the power supply is more than 170 mm, only a graphics card less than 280 mm can be used)
Product size
(L x W x H) 399 x 215 x 407 mm
Package size
(L x W x H) 473 x 277 x 483 mm
Net weight 5.86 kg
Gross weight 6.94 kg
