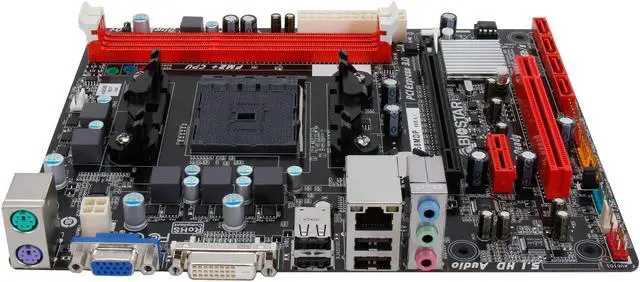

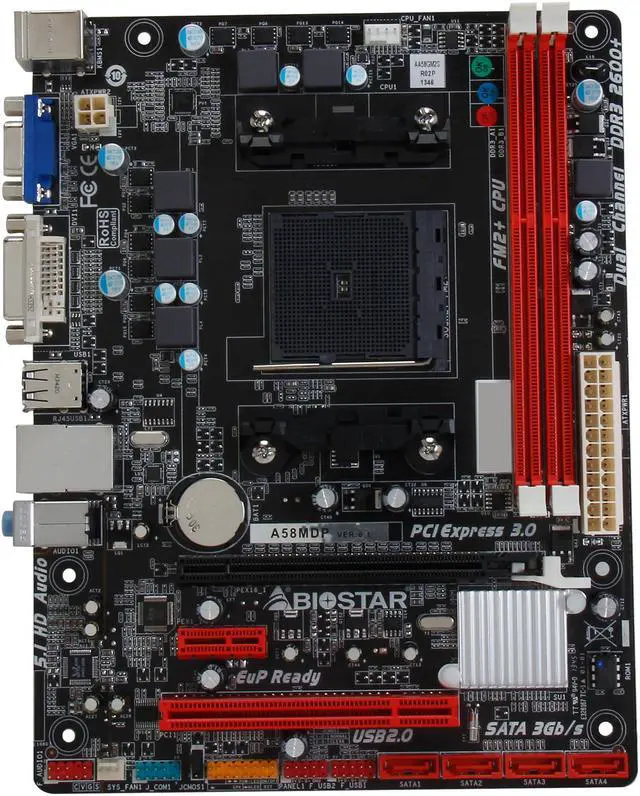

BIOSTAR A58MDP FM2+ / FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard

  • AMD A55 (Hudson D2)
  • A-series/ E2-series/Athlon II
  • DDR3 2600(OC)/2400(OC)/2133
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (5)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Biostar A58MDP

Model
Brand BIOSTAR
Model A58MDP
Supported CPU
CPU Socket Type FM2+ / FM2
CPU Type A-series/ E2-series/Athlon II
Chipsets
Chipset AMD A55 (Hudson D2)
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 (Supported by FM2+ CPU)
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek RTL8111G
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 1 x PS/2 Mouse
1 x PS/2 Keyboard
Video Ports 1 x DVI
1 x VGA
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Other Connectors 1 x Front Audio Header
1 x Front Panel Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 8.90" x 6.85"
Features
Features Windows 8 Ready
Supports Smart Speed LAN
Supports BIO-Remote2
Supports Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update
Packaging

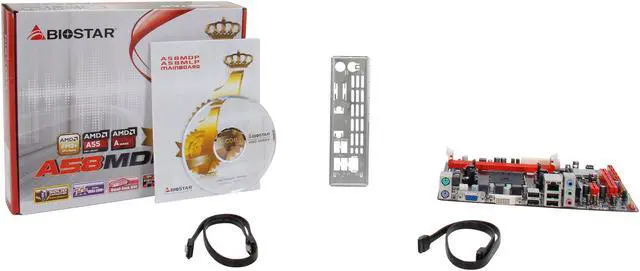

Package Contents BIOSTAR A58MDP Ver. 6.0/6.1 Motherboard
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
Additional Information
First Listed on Newegg January 14, 2014
