Question 1

Does it have built in Wifi and Bluetooth?

Accepted Answer

It does not. I'm looking for a PCI Wifi card now to resolve that. It will fit in there, even with a two slot video card.

Question 2

Will this motherboard support Windows 7?

Accepted Answer

According to the manufacturer's web site.  Yes.

Question 3

Can board operate with one Memory card/chip?

Accepted Answer

In can operate with one (correct spec.) DIMM, but will likely run faster with two matched DIMMs due to channel interleaving (one DIMM per channel).

Question 4

Will this board pass 5.1 sound through the DVI port?

Accepted Answer

We know DVI does not support audio. However, some pins may be used for audio through DVI to HDMI adapters. If you are using an HDMI adapter, it may work.
But unfortunately, I do not know if it works on this board. I use it for business and don't have HDMI TVs for testing there.

Question 5

How easy is it to turn off secure boot on this motherboard?

Accepted Answer

Having secure boot disabled simply allows access to external boot devices and other installation options. It is easier actually to enable it than to disable it. Disabling generally requires the entering of a multi-digit passcode that may or my not be displayed on the screen depending on the security level. Enabling generally requires a simple selection and, in greater security levels, setting the passcode.

Question 6

what is the power connecter pin number so i can selector what power pack is needed?

Accepted Answer

This motherboad has a 24pin main power connector with a 4pin north bridge power connector. (note) some power supplies have an 8pin north bridge for apu processor support. If using an apu, (A10/A8/A6/A4), I would recommended to use a board with an 8pin north bridge to deliver optimum power to the internal gpu.

Brand	BIOSTAR
Model	A68MD PRO

CPU Socket Type	FM2+
CPU Type	AMD A10/A8/A6/A4 / E2 / Athlon II X4 Processor

Number of Memory Slots	2x240pin
Memory Standard	DDR3 2600(OC) /2400(OC)/ 2133/ 1866/ 1600/ 1333/ 1066/ 800
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI-E x16 3.0 Slot (supported by FM2+ CPU)
PCI Express x1	1 x PCI-E x1 2.0 Slot
PCI Slots	1 x PCI Slot

Serial ATA (SATA)	4 x SATA 6Gb/s
SATA RAID	0/1/10

BIOSTAR A68MD PRO FM2+ AMD A70M USB 3.0 Micro ATX Motherboards - AMD

Learn more about the Biostar A68MD PRO

Customer Reviews of the Biostar A68MD PRO

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

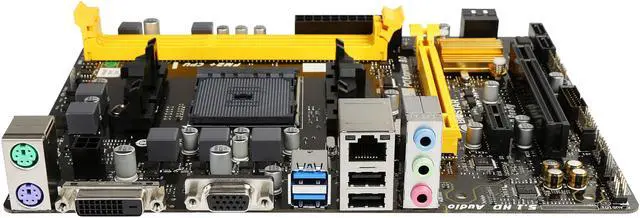

Back I/O Ports	1 x D-Sub / 1 x DVI / 2 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks
PS/2	1 x PS/2 Mouse 1 x PS/2 Keyboard
Video Ports	1 x DVI Connector 1 x VGA Port
RJ45	1 x RJ45
USB 3.0	2 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Onboard USB	1 x USB 3.0 Header 2 x USB 2.0 Headers
Other Connectors	1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8111G
Max LAN Speed	1Gbps

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.90" x 6.85"

Item#: N82E16813138434
