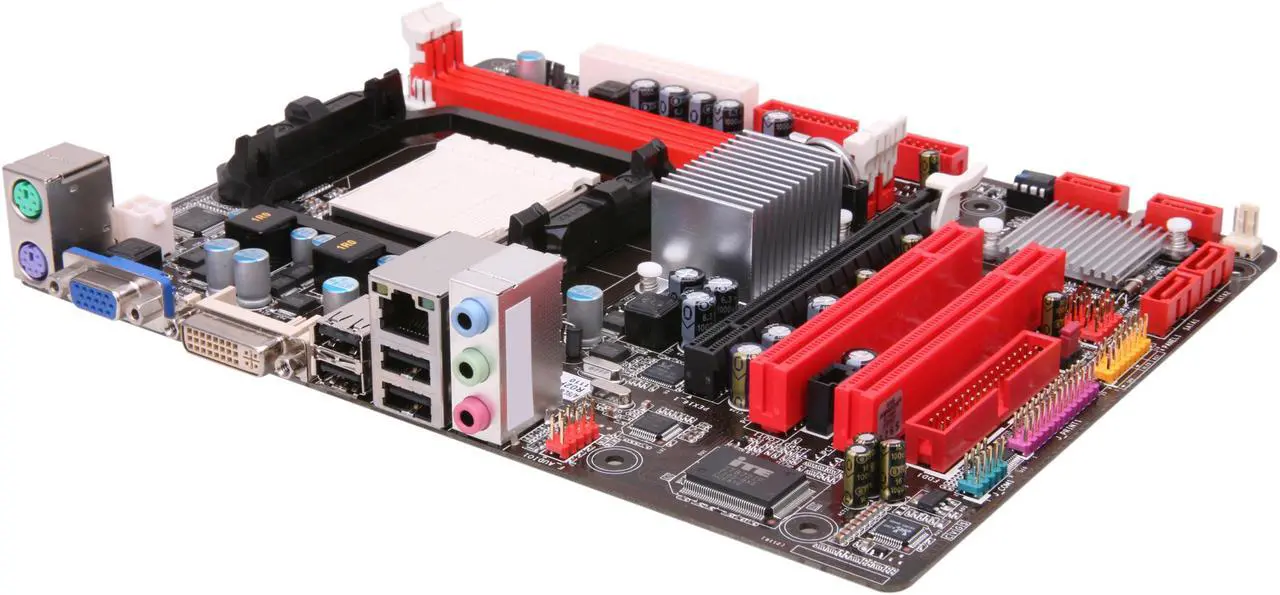

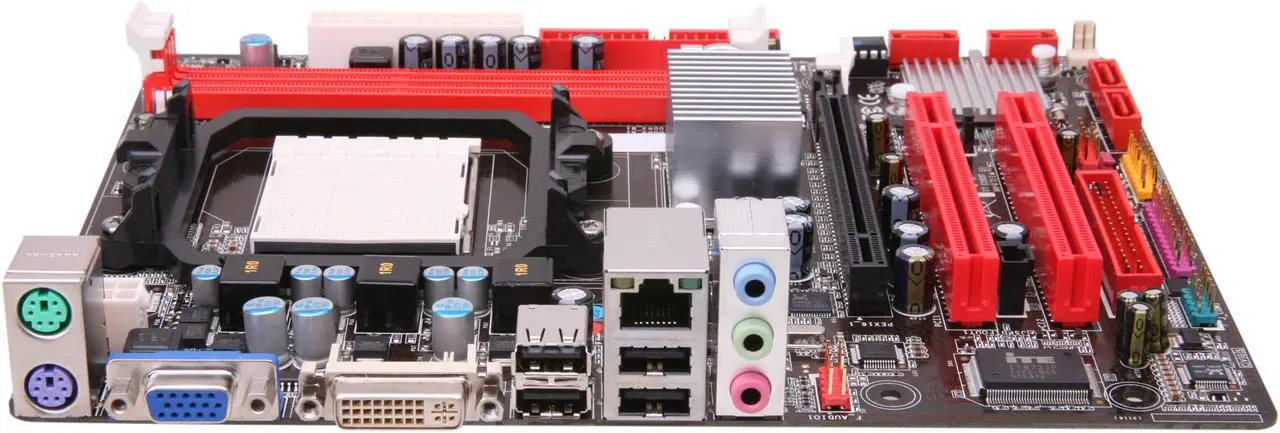

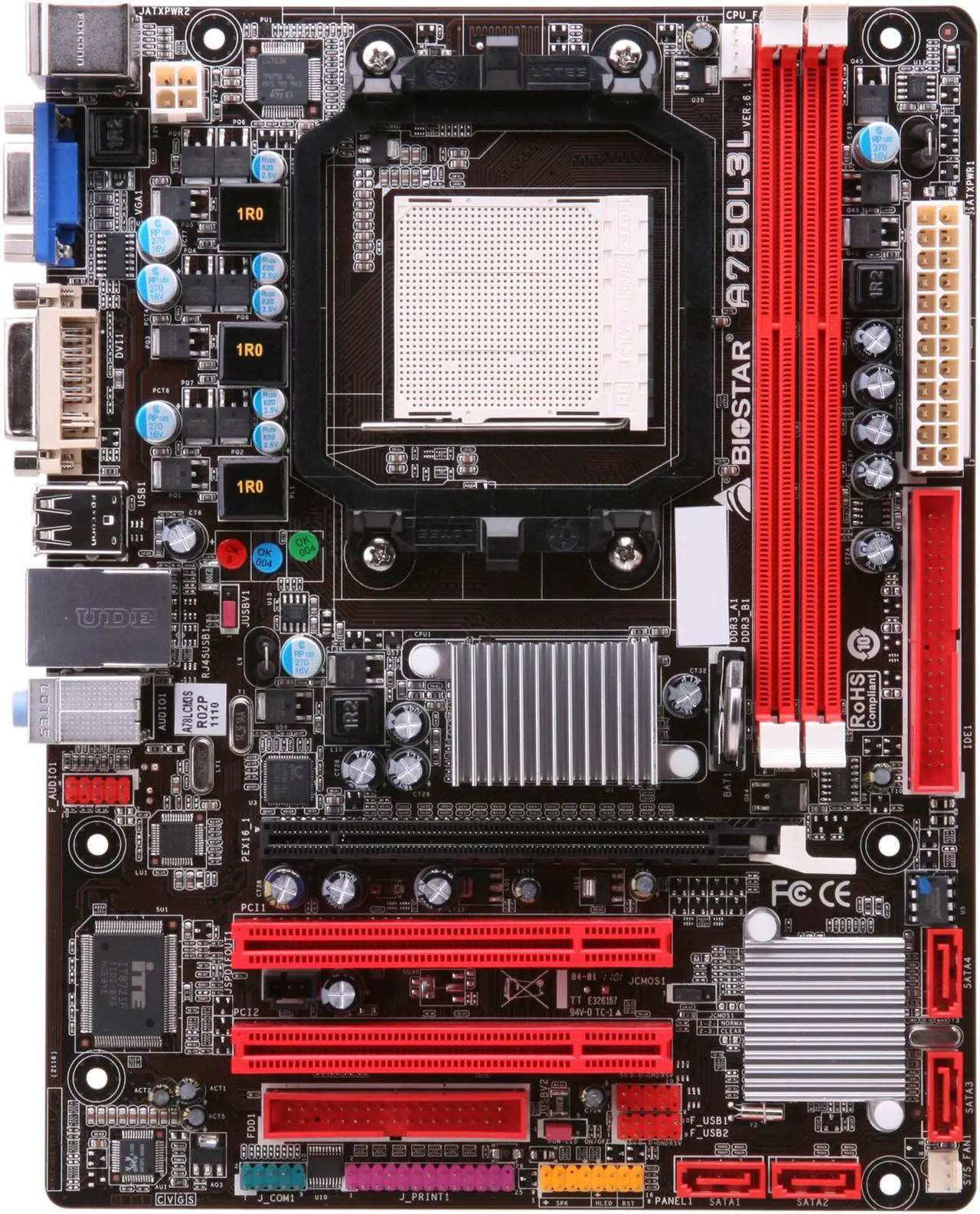

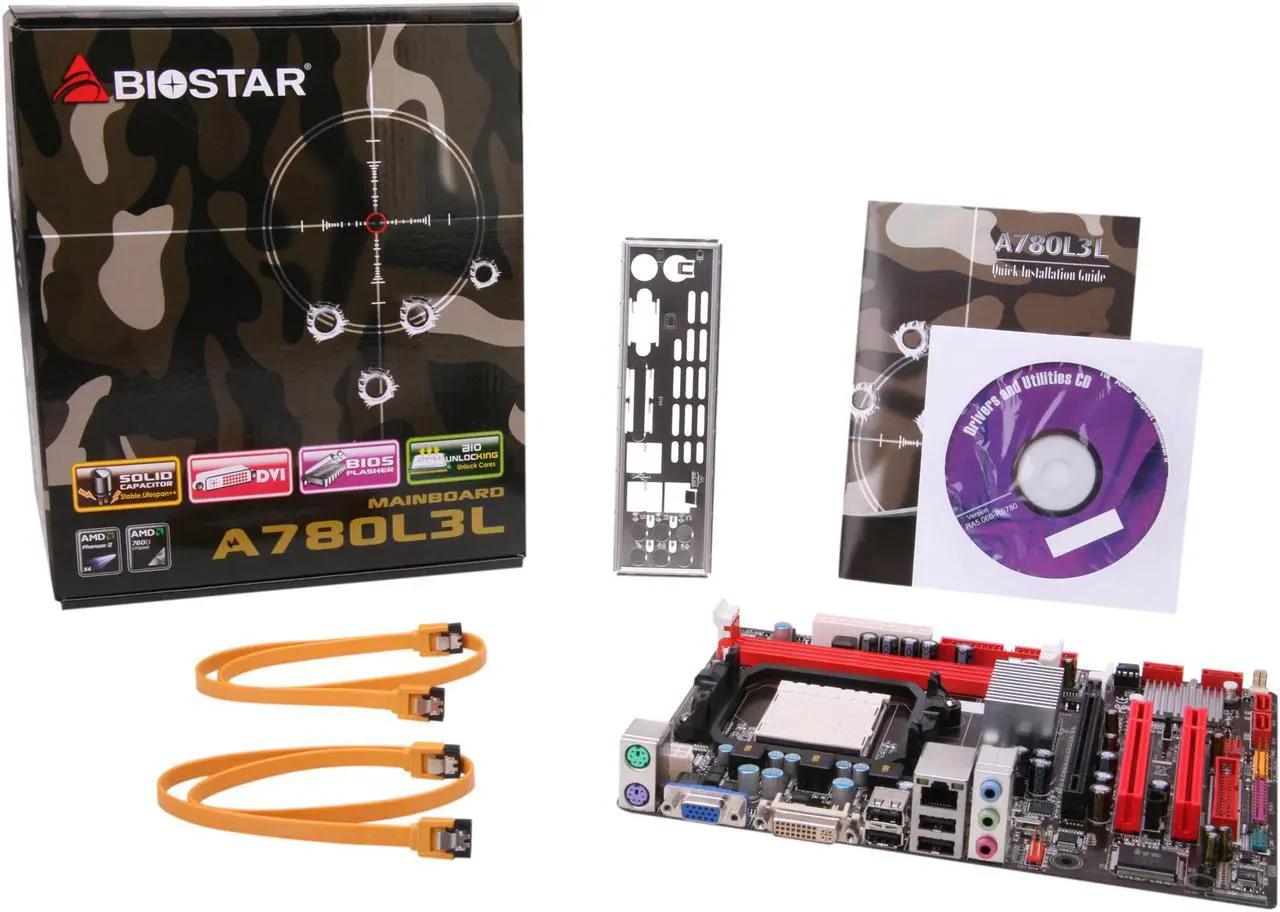

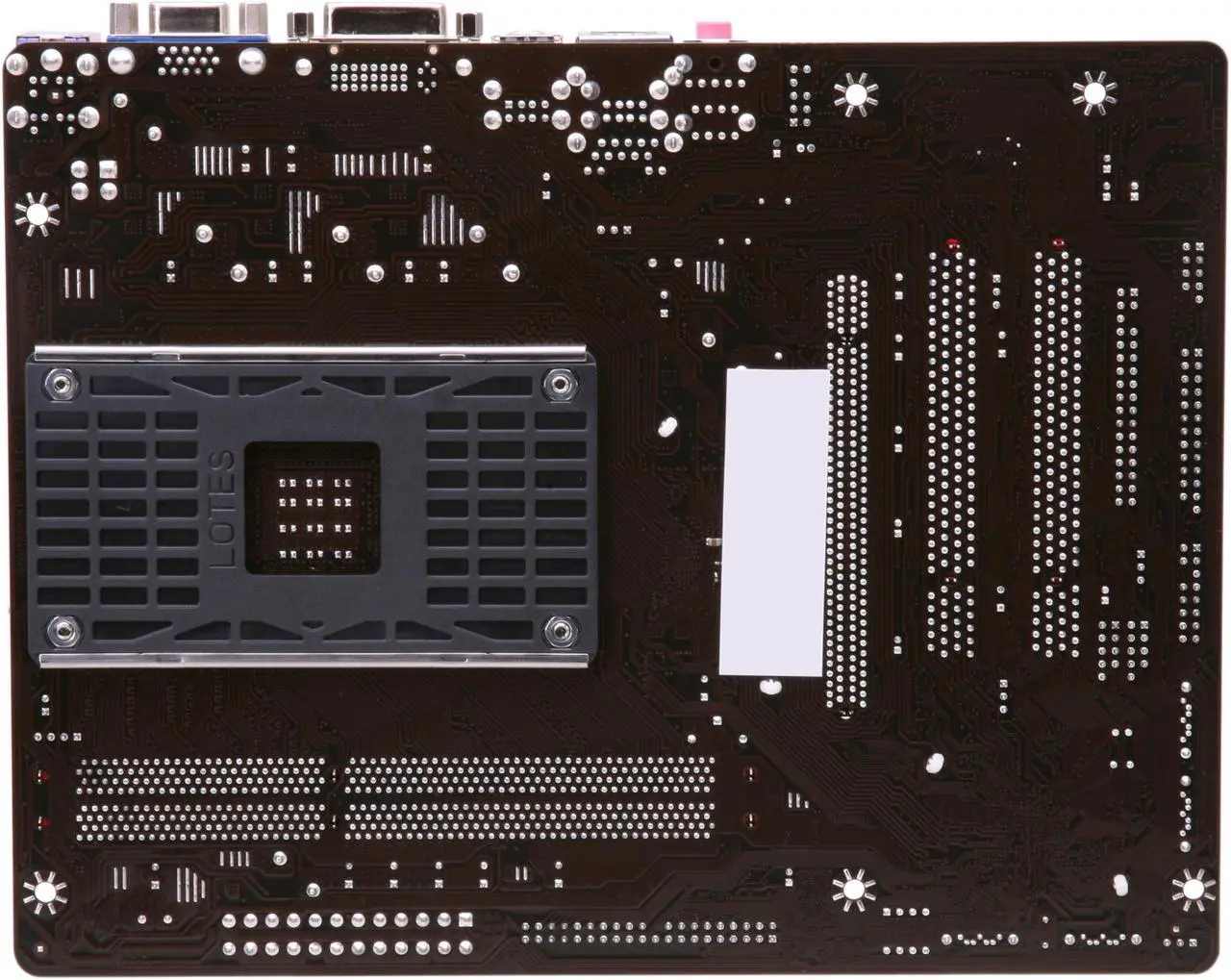

BIOSTAR A780L3L AM3 AMD 760G Micro ATX AMD Motherboard

(126) Write a Review
  • AMD 760G
  • AMD Phenom II X4 / X3 / X2 / Athlon II X4 / X3 / X2 / Sempron Processor
  • DDR3 800/1066/1333/1600(OC)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (126)

Learn more about the Biostar A780L3L

Model
Brand BIOSTAR
Model A780L3L
Supported CPU
CPU Socket Type AM3
CPU Type AMD Phenom II X4 / X3 / X2 / Athlon II X4 / X3 / X2 / Sempron Processor
Chipsets
Chipset AMD 760G
South Bridge AMD SB710
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 800/1066/1333/1600(OC)
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon 3000
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8103EL
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.25" x 7.17"
Power Pin 24 Pin
Features
Features Maximum CPU TDP (Thermal Design Power) : 95Watt

Supports AMD Cool'n'Quiet Technology

AMD OverDrive with ACC feature
Additional Information
Date First Available November 22, 2010
