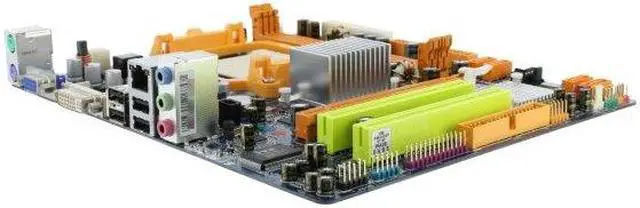

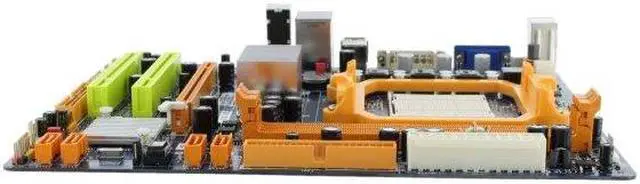

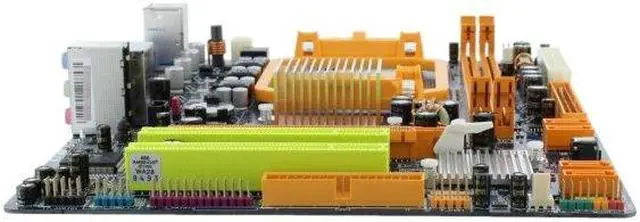

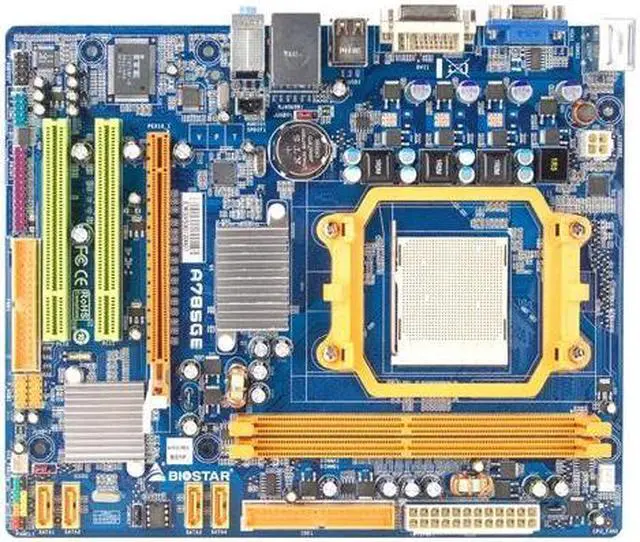

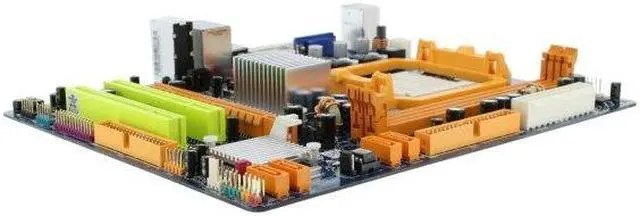

BIOSTAR A785GE AM3/AM2+ AMD 785G Micro ATX AMD Motherboard

(96) Write a Review
  • AMD 785G
  • Phenom II / Phenom / Athlon II / Athlon64 /Sempron (Maximum CPU TDP (Thermal Design Power) : 95Watt)
  • DDR2 533/667/800/1066(1066 by AM2+/AM3 CPU)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (96)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Biostar A785GE

Model
Brand BIOSTAR
Model A785GE
Supported CPU
CPU Socket Type AM3/AM2+
CPU Type Phenom II / Phenom / Athlon II / Athlon64 /Sempron
(Maximum CPU TDP (Thermal Design Power) : 95Watt)
Chipsets
Chipset AMD 785G
South Bridge AMD SB710
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 533/667/800/1066(1066 by AM2+/AM3 CPU)
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Slots 2 x PCI Slots
Storage Devices
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 4200
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB header (support 4 ports)
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.9"
Power Pin 24 Pin
Features
Features AMD Cool ‘n’ Quiet Technology
Low ESR polymer solid capacitor designation for CPU power supply up to 95W
X.D.C Solid Caps
BIO-Flash, BIO-Relife2
BIOScreen
Additional Information
First Listed on Newegg August 10, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
