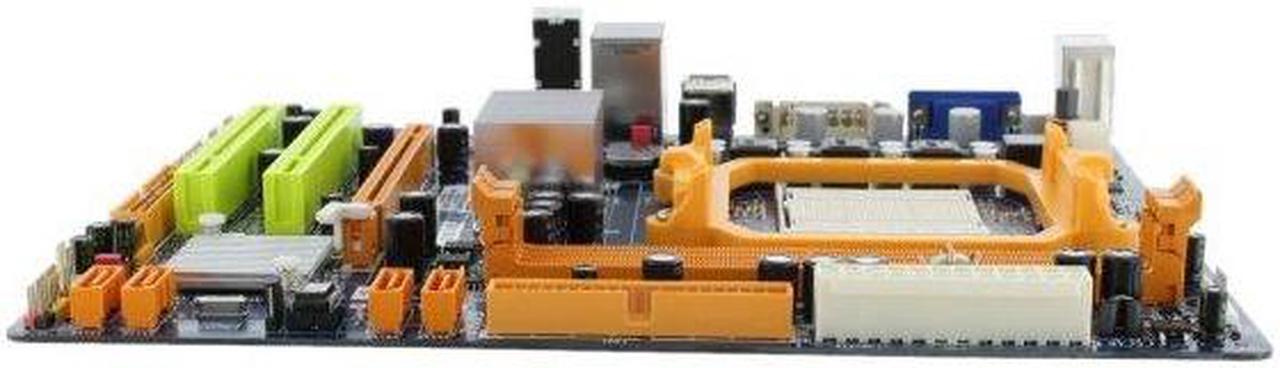

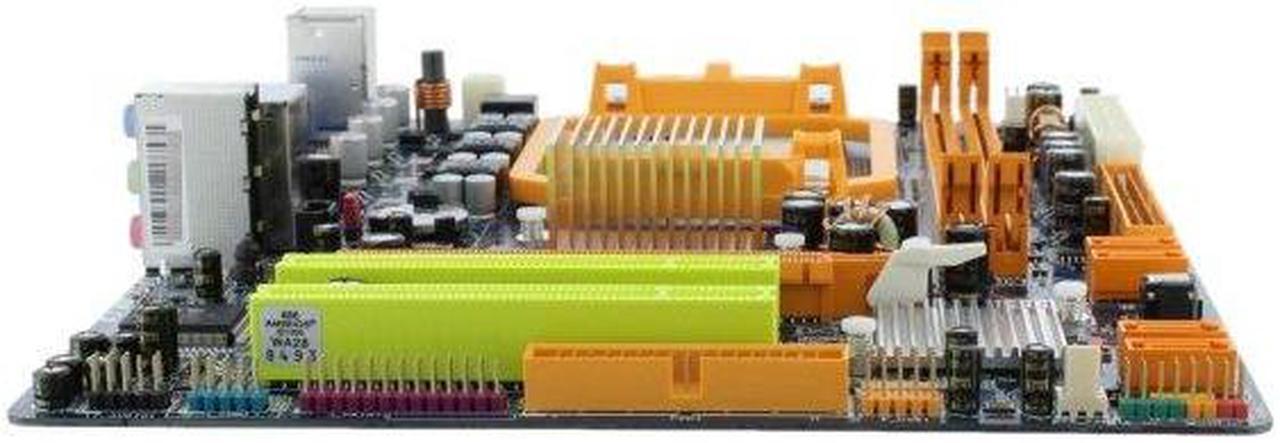

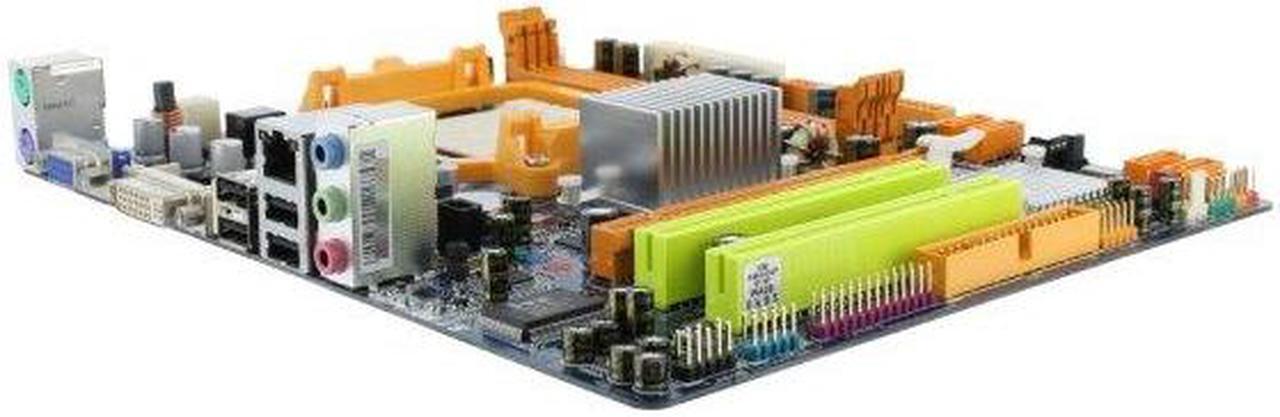

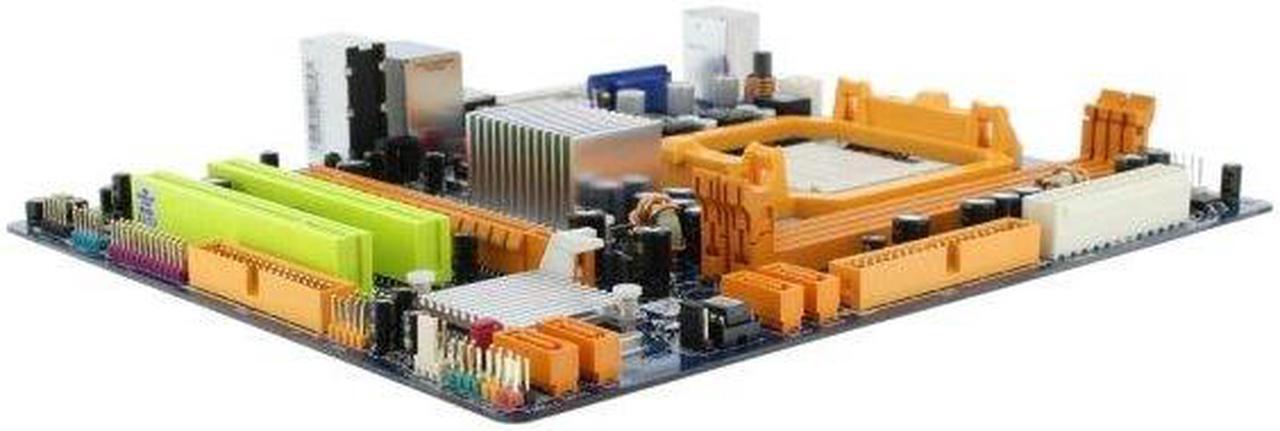

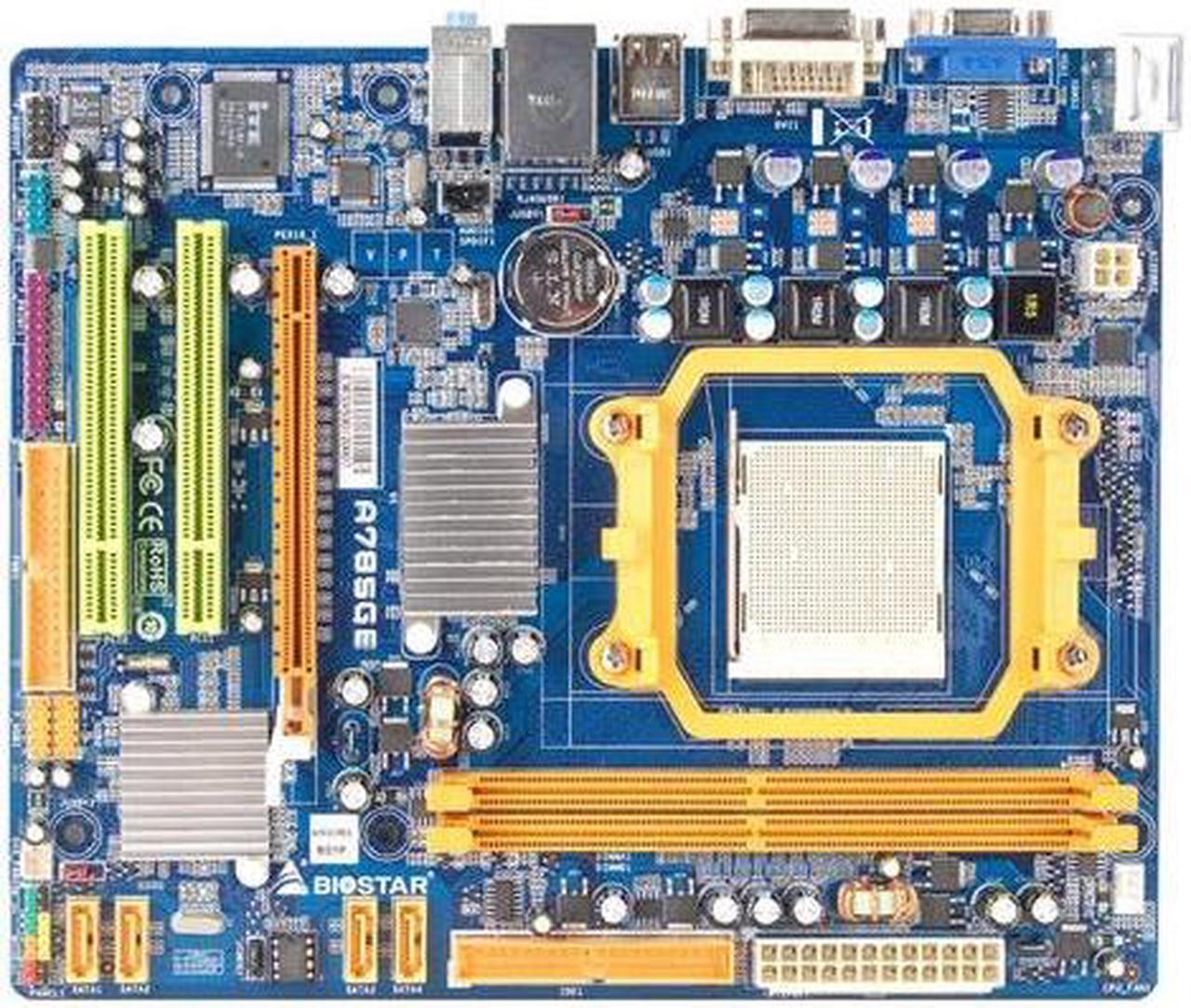

    BIOSTAR A785GE AM3/AM2+ AMD 785G Micro ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD 785G
    • Phenom II / Phenom / Athlon II / Athlon64 /Sempron (Maximum CPU TDP (Thermal Design Power) : 95Watt)
    • DDR2 533/667/800/1066(1066 by AM2+/AM3 CPU)
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the Biostar A785GE

    Model
    Brand BIOSTAR
    Model A785GE
    Supported CPU
    CPU Socket Type AM3/AM2+
    CPU Type Phenom II / Phenom / Athlon II / Athlon64 /Sempron
    (Maximum CPU TDP (Thermal Design Power) : 95Watt)
    FSB Support HT3.0 up to 5.2GT/s (Depends on AMD CPU Specification)
    Chipsets
    Chipset AMD 785G
    South Bridge AMD SB710
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR2 533/667/800/1066(1066 by AM2+/AM3 CPU)
    Maximum Memory Supported 8GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express 2.0 x16
    PCI Slots 2 x PCI Slots
    Storage Devices
    PATA 1 x ATA133 2 Dev. Max
    SATA RAID 0/1/10
    Onboard Video
    Onboard Video Chipset ATI Radeon HD 4200
    Onboard Audio
    Audio Chipset Realtek ALC662
    Audio Channels 6 Channels
    Onboard LAN
    LAN Chipset Realtek 8111DL
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
    PS/2 2
    Video Ports D-Sub + DVI
    USB 1.1/2.0 4 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB header (support 4 ports)
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 7.9"
    Power Pin 24 Pin
    Features
    Features AMD Cool ‘n’ Quiet Technology
    Low ESR polymer solid capacitor designation for CPU power supply up to 95W
    X.D.C Solid Caps
    BIO-Flash, BIO-Relife2
    BIOScreen
    Additional Information
    Date First Available July 18, 2024
