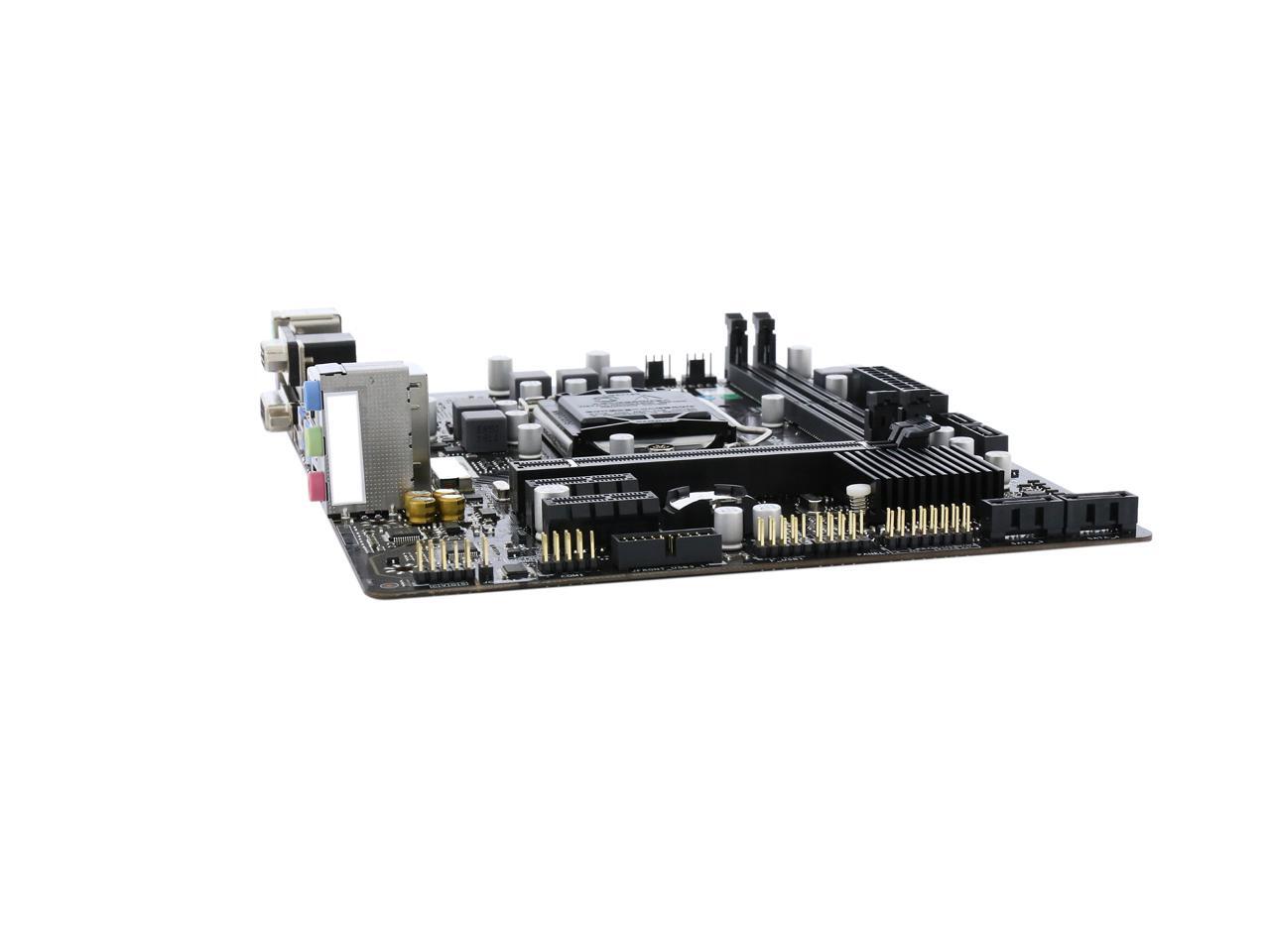

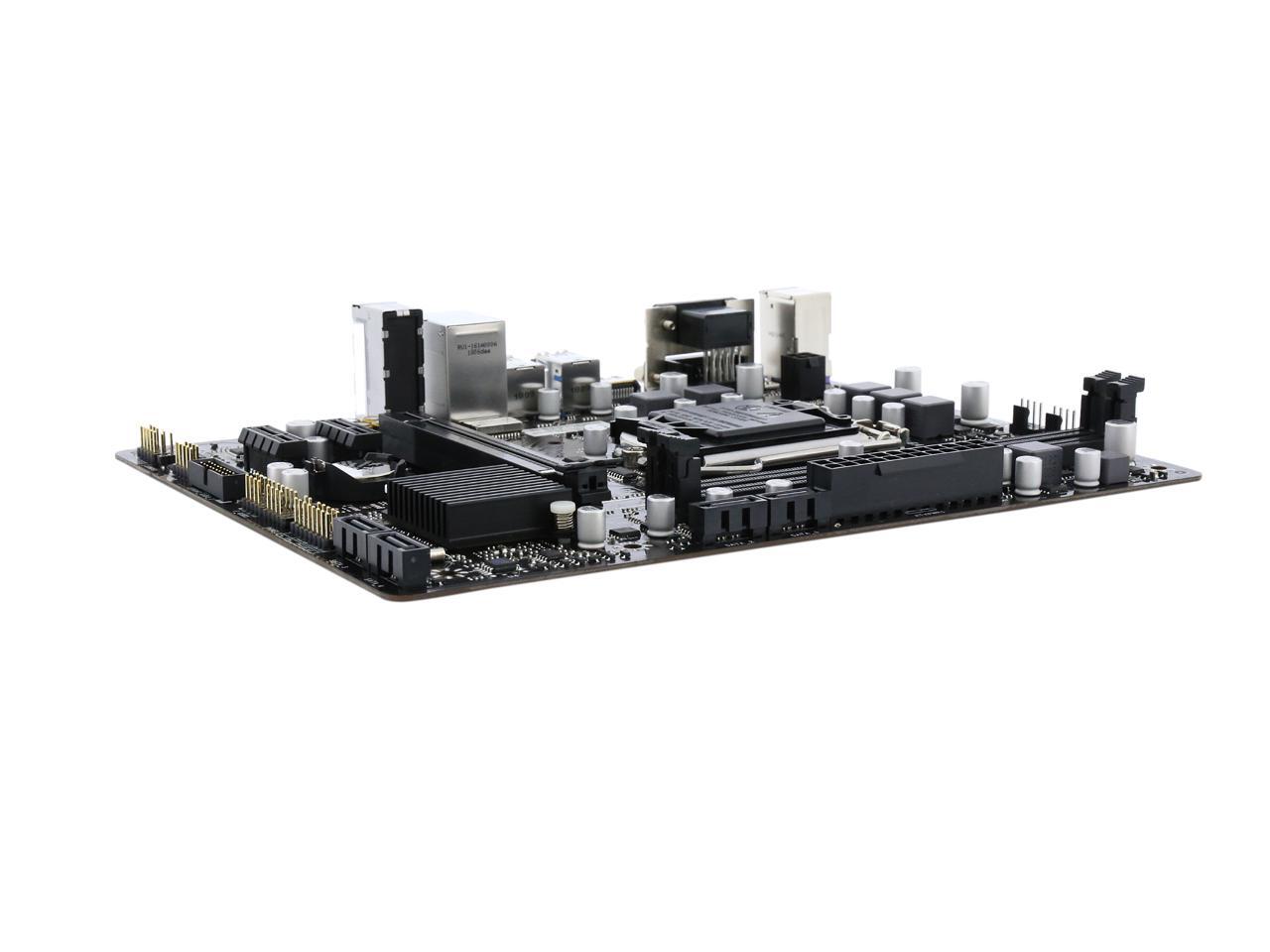

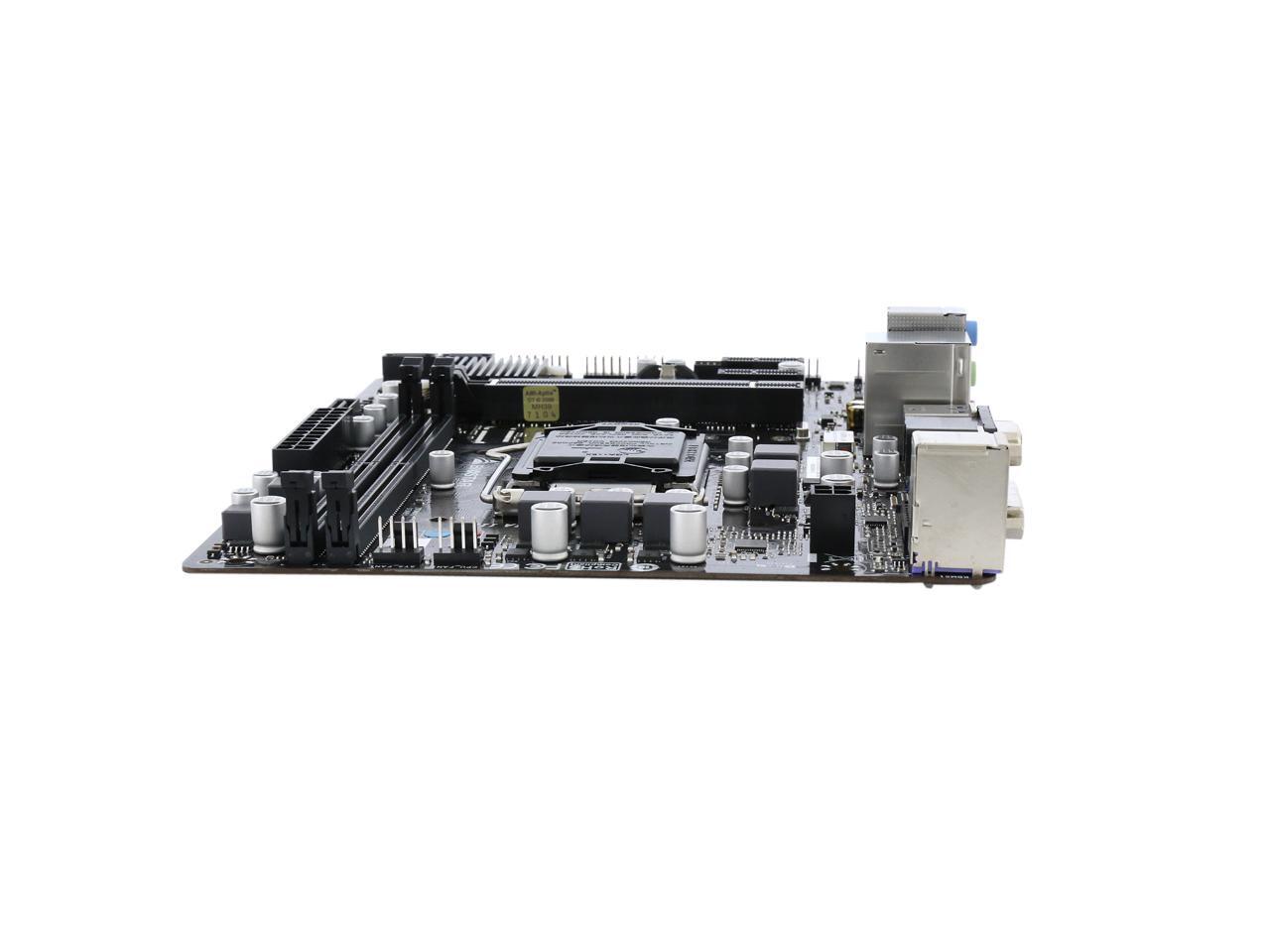

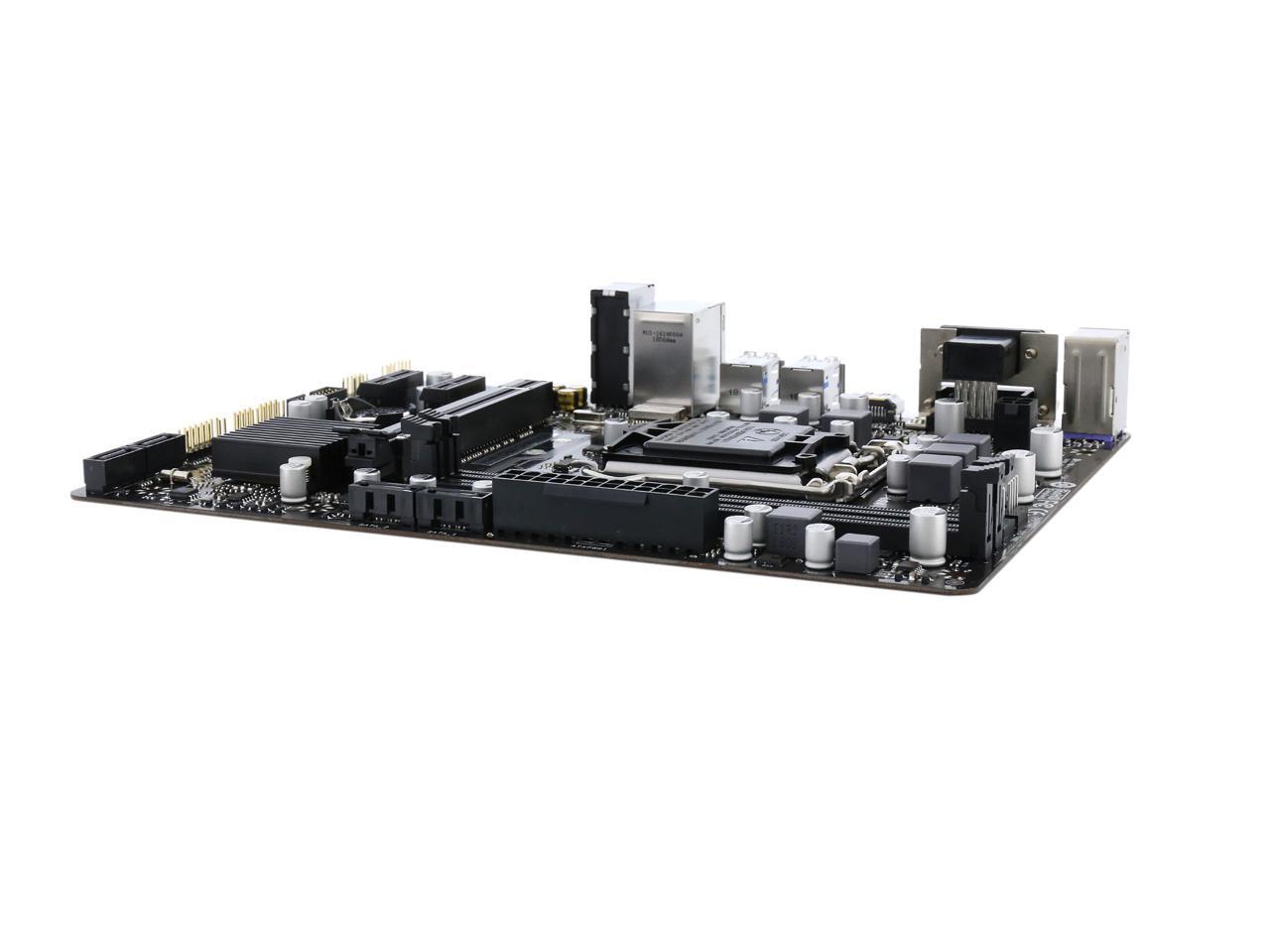

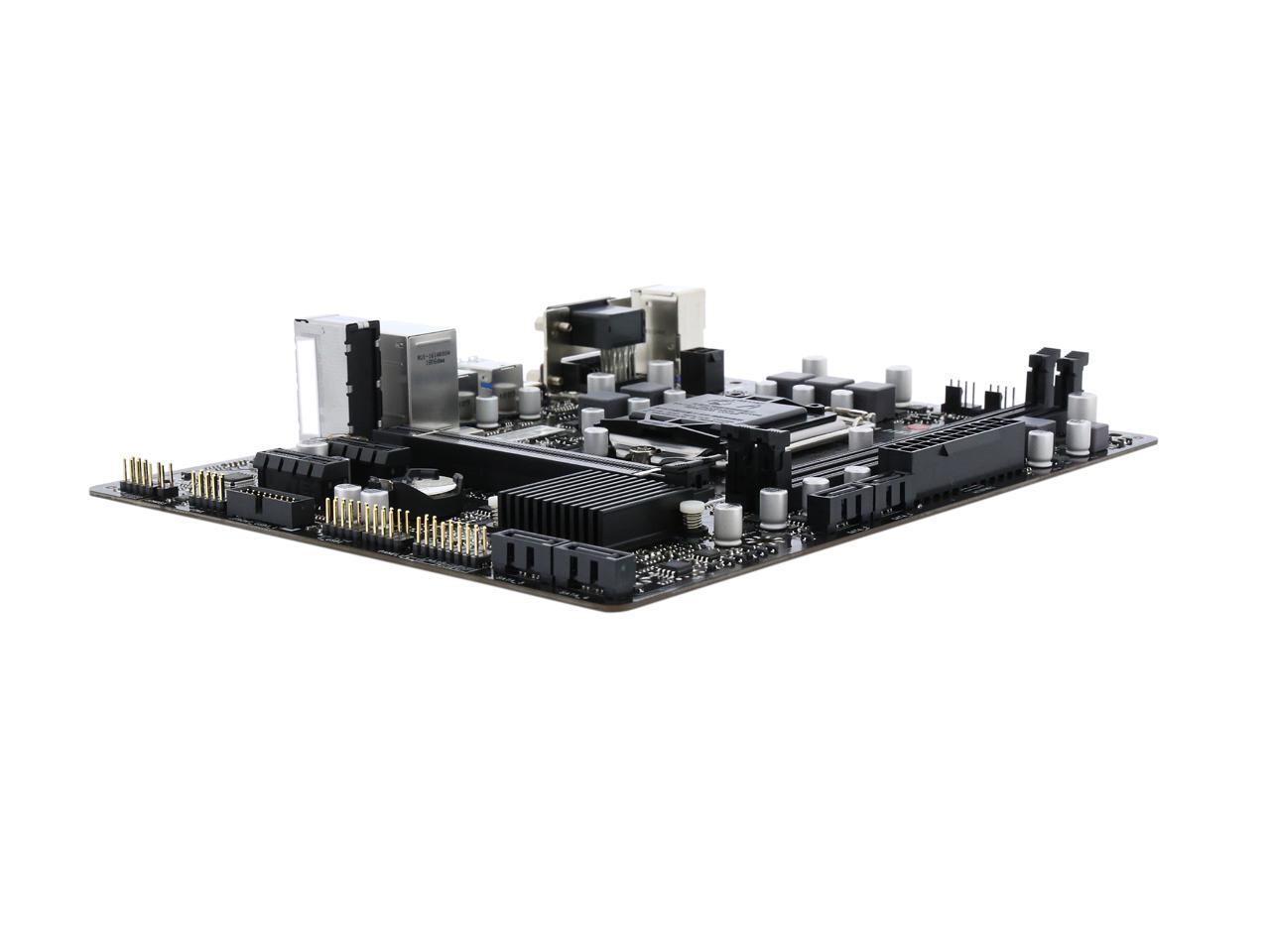

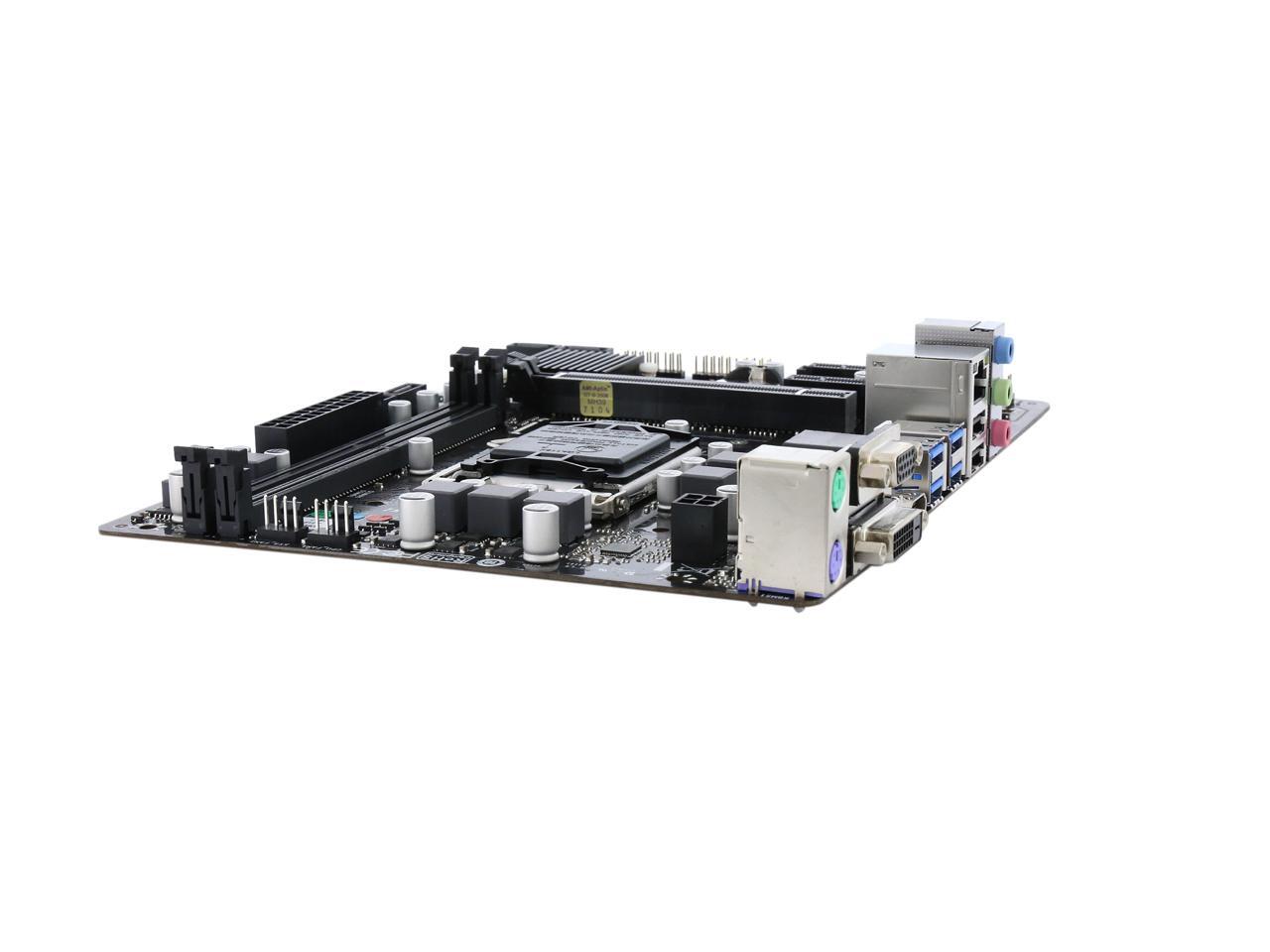

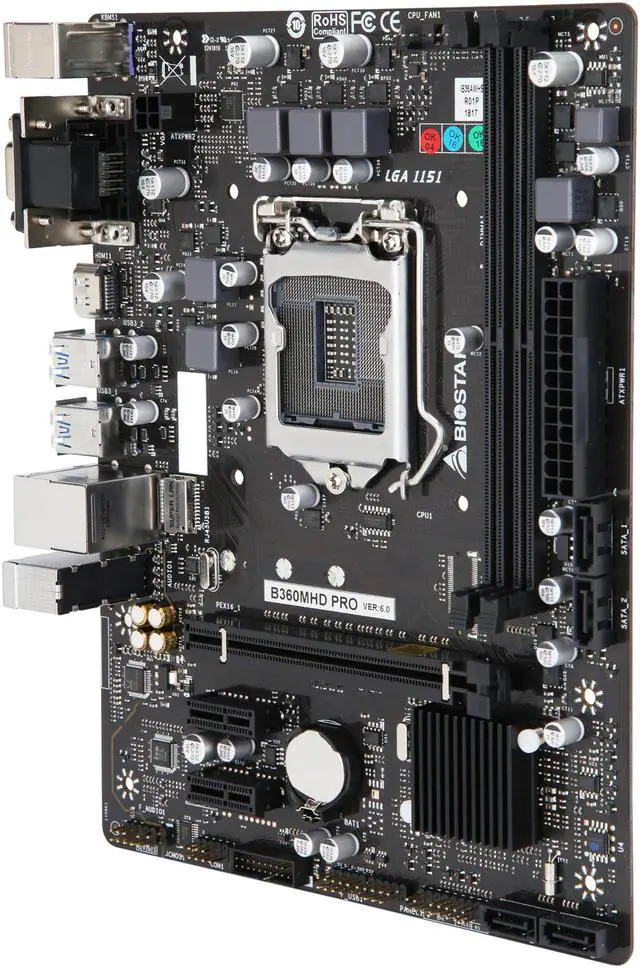

BIOSTAR B360MHD PRO LGA 1151 (300 Series) Intel B360 HDMI USB 3.1 Micro ATX Intel Motherboard
- Intel B360
- 8th Gen Intel Core i7 LGA 1151 Processor
- 8th Gen Intel Core i5 LGA 1151 Processor
- 8th Gen Intel Core i3 LGA 1151 Processor
- 8th Gen Intel Pentium LGA 1151 Processor
- 8th Gen Intel Celeron LGA 1151 Processor
- * Not backward compatible with older generation of LGA 1151 CPUs
- DDR4 2666/ 2400/ 2133/ 1866
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar B360MHD PRO
| Brand | BIOSTAR |
|---|---|
| Model | B360MHD PRO |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | 8th Gen Intel Core i7 LGA 1151 Processor 8th Gen Intel Core i5 LGA 1151 Processor 8th Gen Intel Core i3 LGA 1151 Processor 8th Gen Intel Pentium LGA 1151 Processor 8th Gen Intel Celeron LGA 1151 Processor * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel B360 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2666/ 2400/ 2133/ 1866 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI-E 2.0 x1 Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |

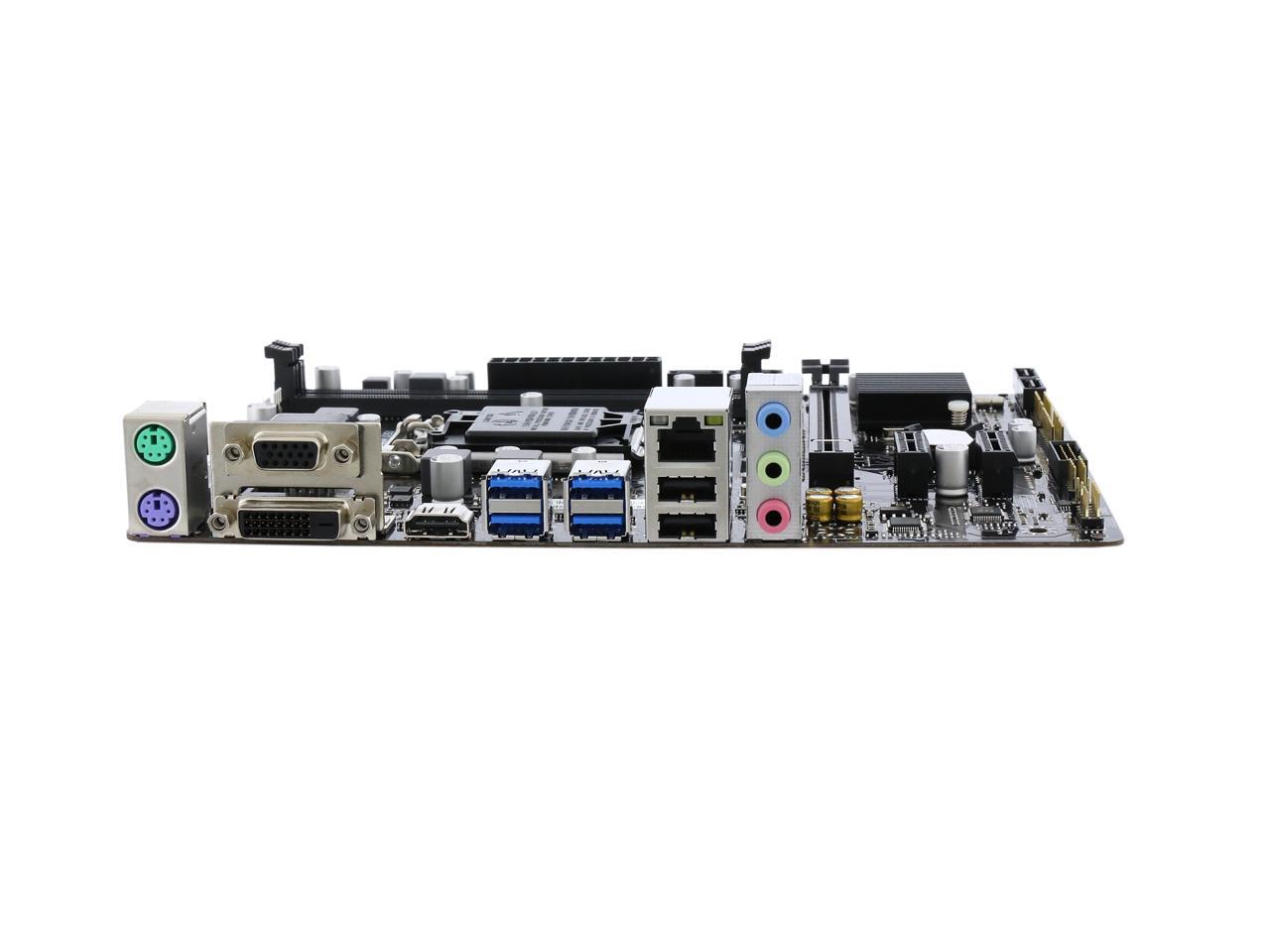

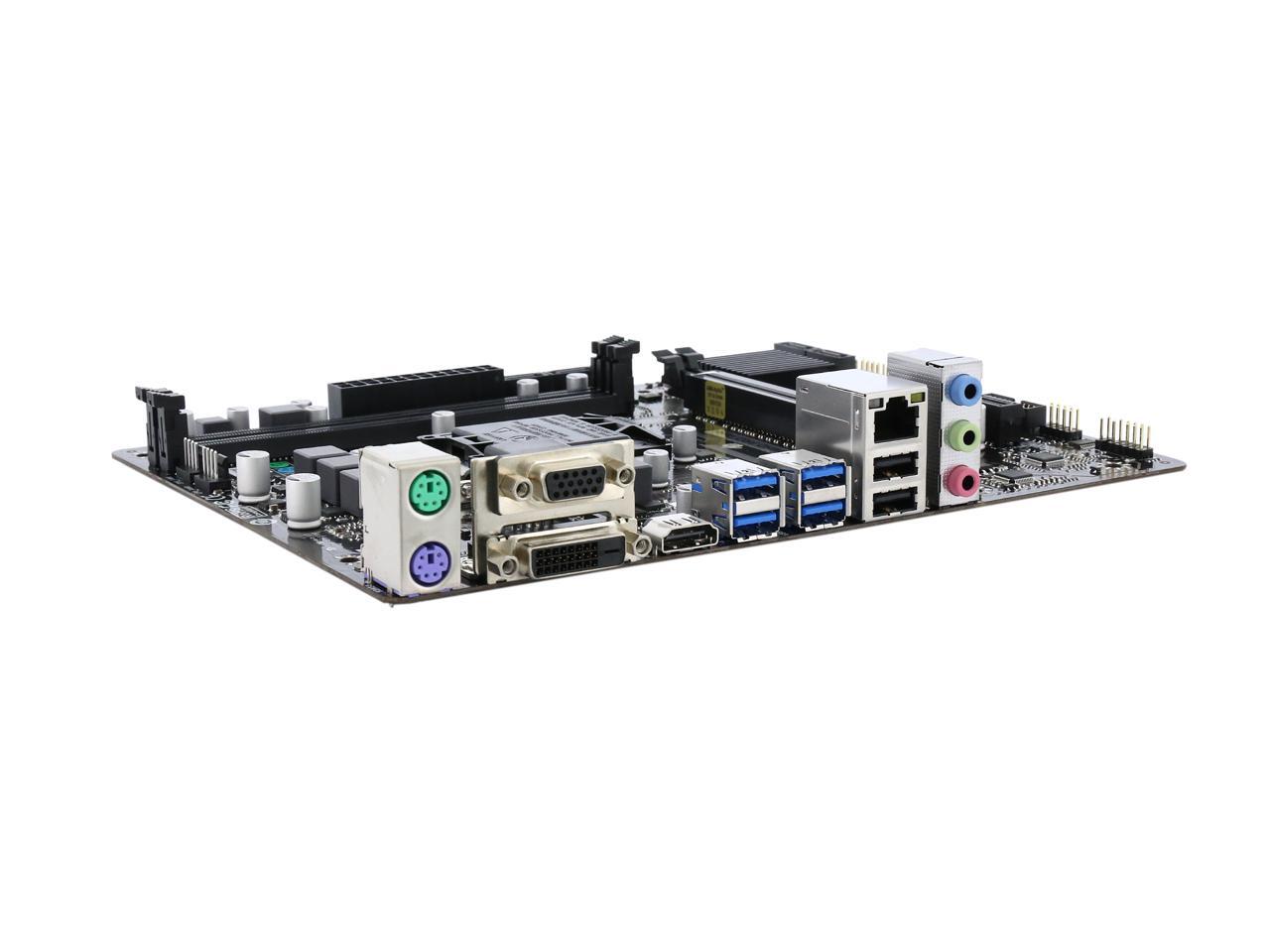

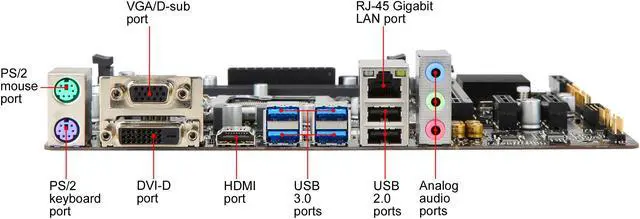

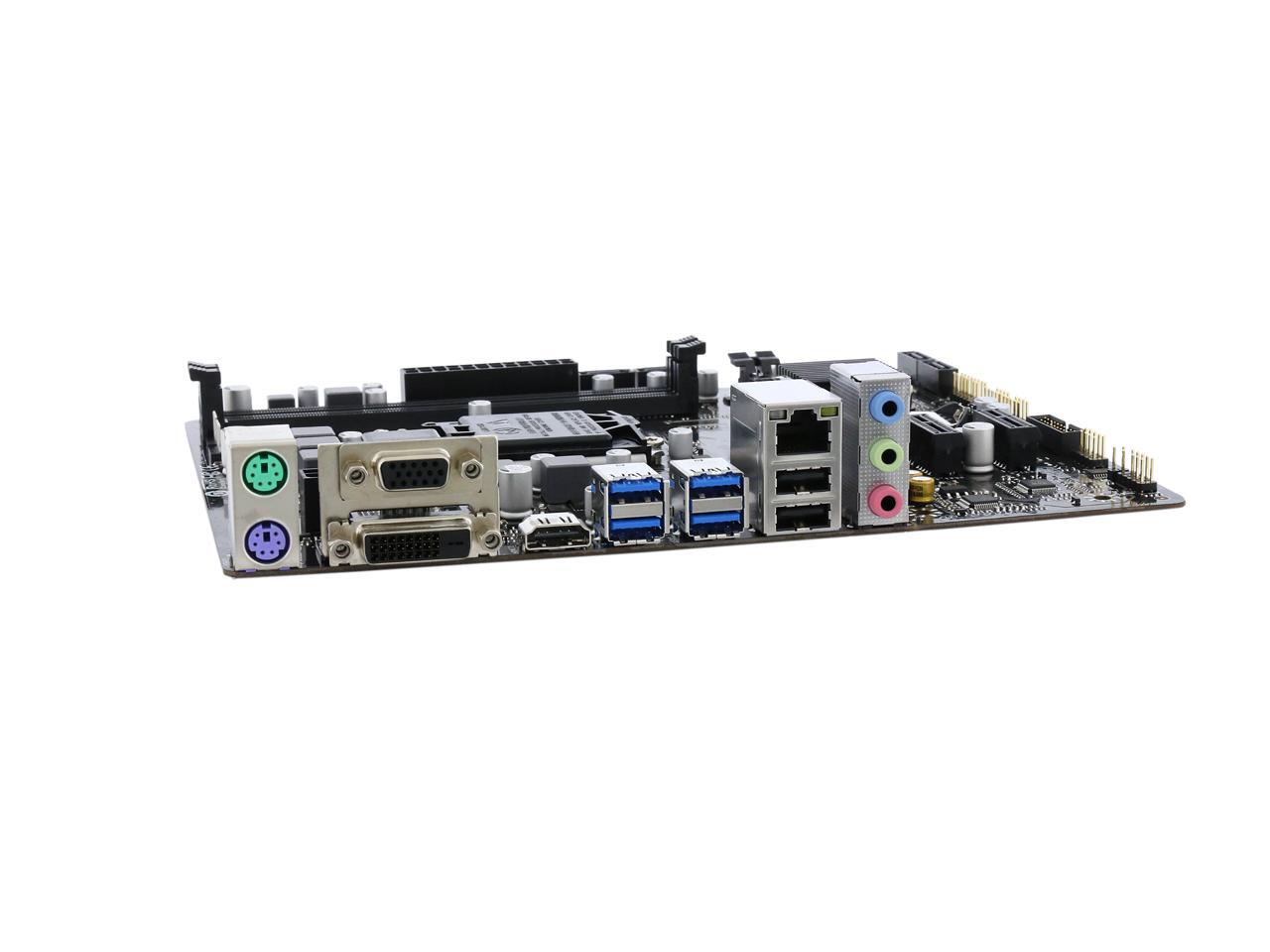

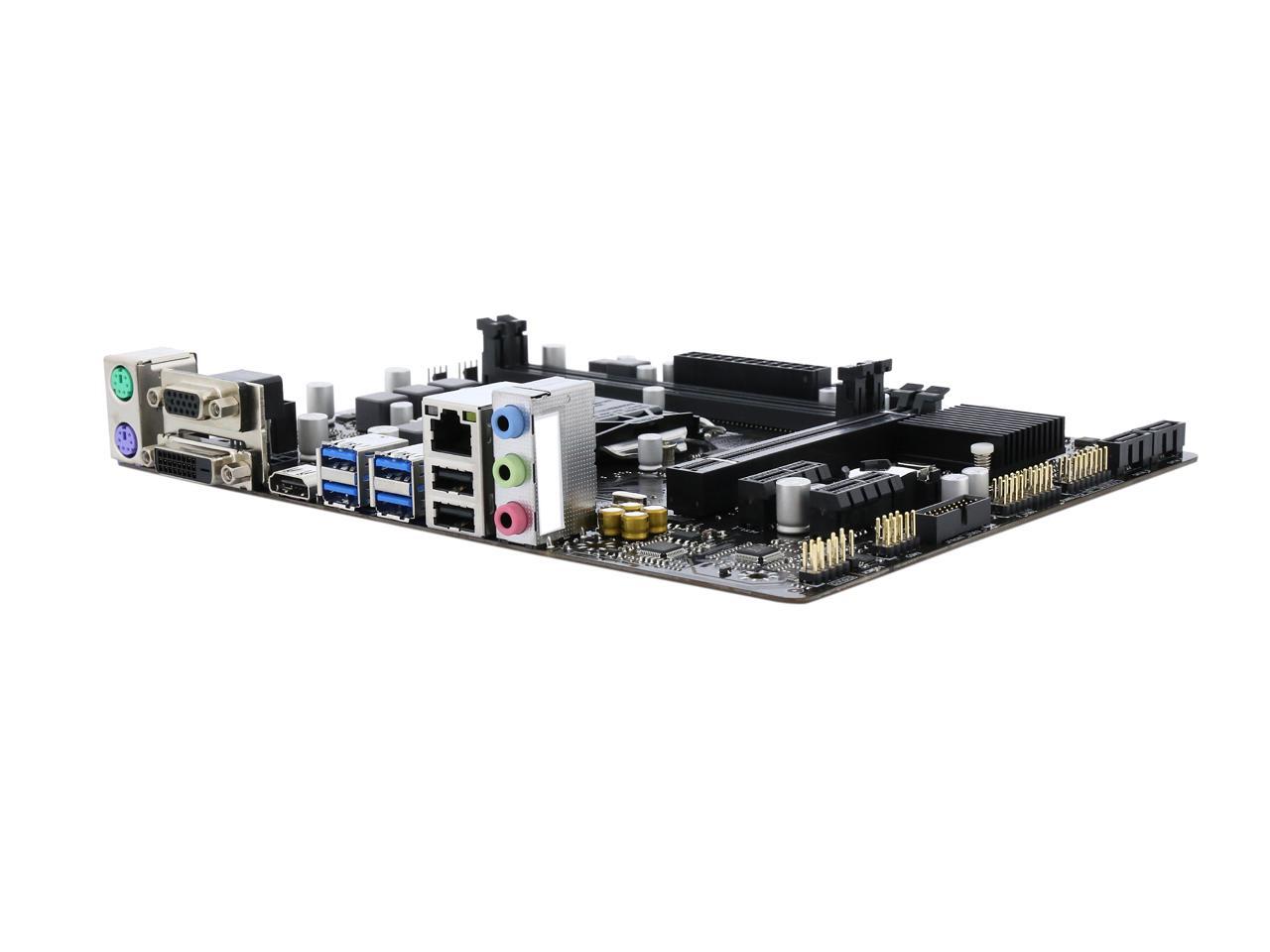

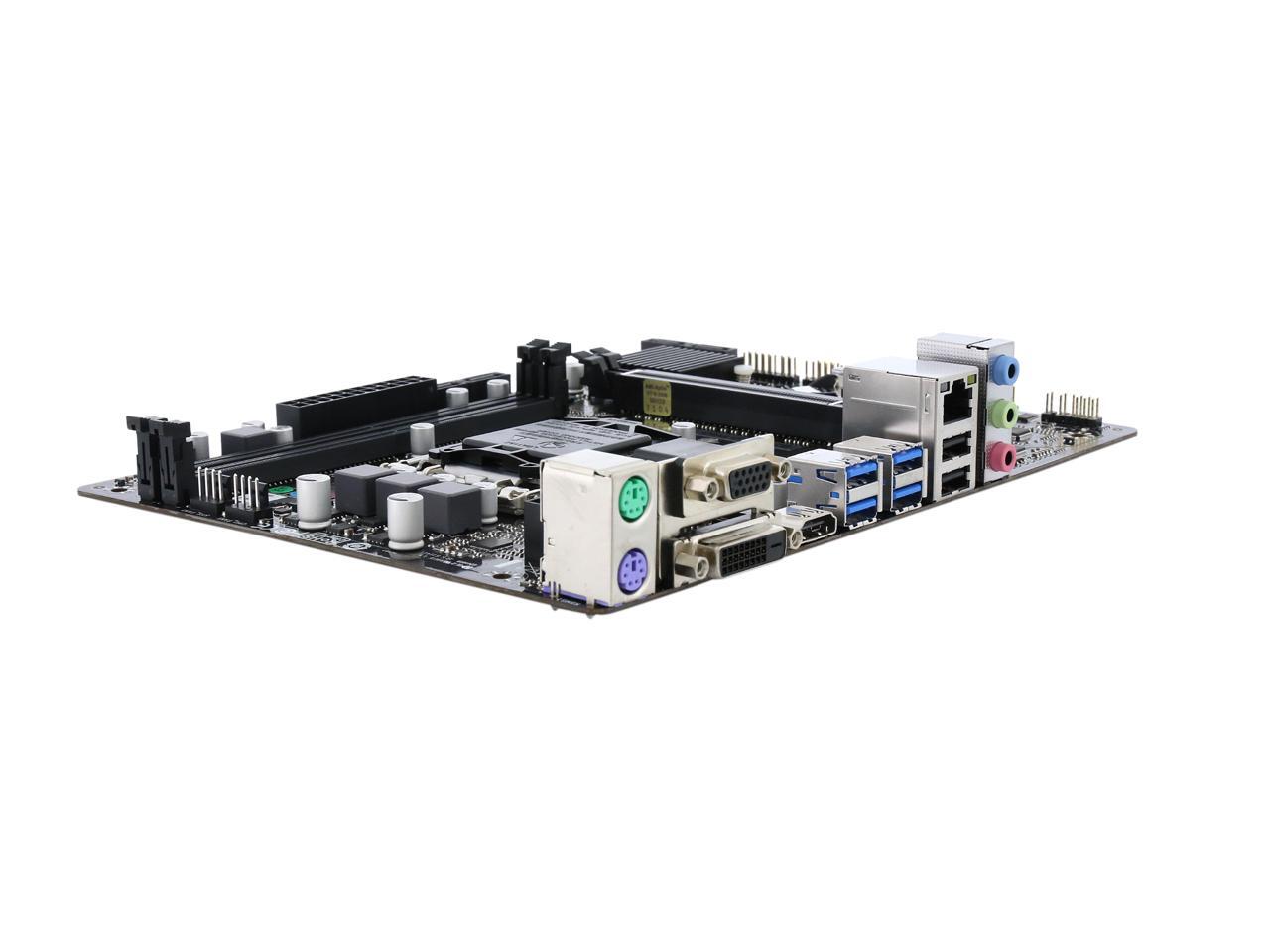

| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A |
|---|---|
| PS/2 | 1 x PS/2 Mouse 1 x PS/2 Keyboard |
| Video Ports | 1 x DVI-D Connector, resolution up to 1920x1200@60Hz 1 x VGA Port, resolution up to 1920x1600@60Hz |
| HDMI | 1 x HDMI Connector, resoltuion up to 4096x2160@24Hz, compliant with HDMI 1.4 |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen1 Port |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 3.1 Gen1 Header 2 x USB 2.0 Header |
|---|---|
| Other Connectors | 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.0" x 7.0" |
| Features | Supports 8th Generation Intel Core Processor Intel B360 single chip architecture Support 2-DIMM DDR4-2666/ 2400/ 2133/ 1866 up to 32G maximum capacity Support USB 3.1 Gen1 Support HDMI display port Support GbE LAN INTEGRATED VIDEO: By CPU model Supports DX12 Supports HDCP H/W MONITORING: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring OS SUPPORT: Support Windows 10 (64-bit) |
|---|

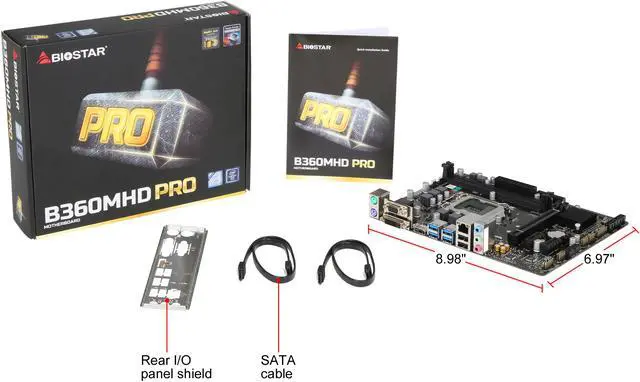

| Package Contents | ACCESSORIES: 1 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
|---|
| First Listed on Newegg | May 18, 2018 |
|---|
