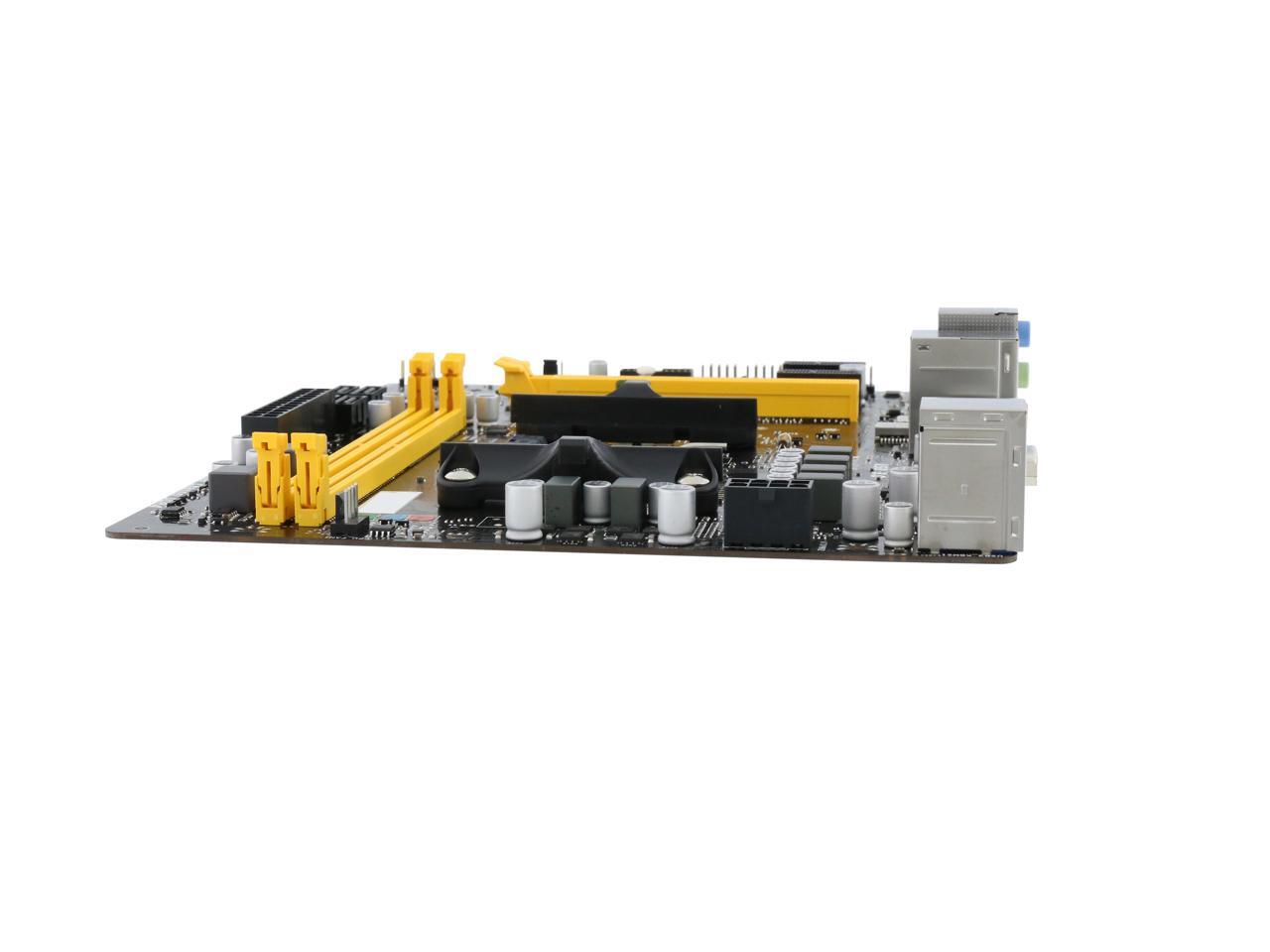

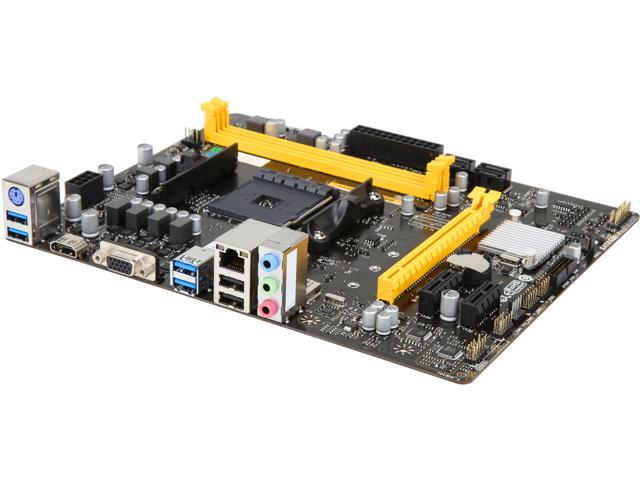

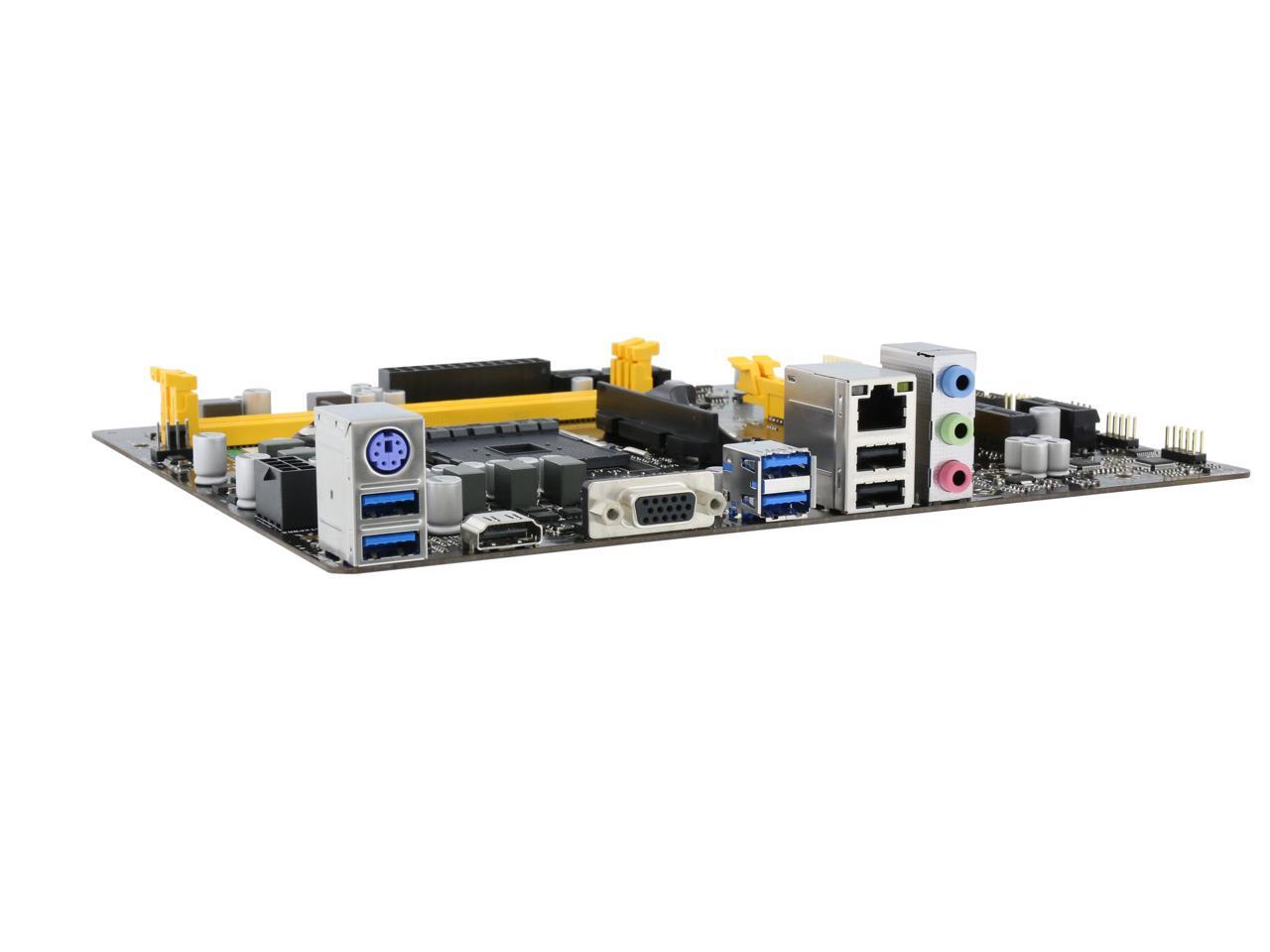

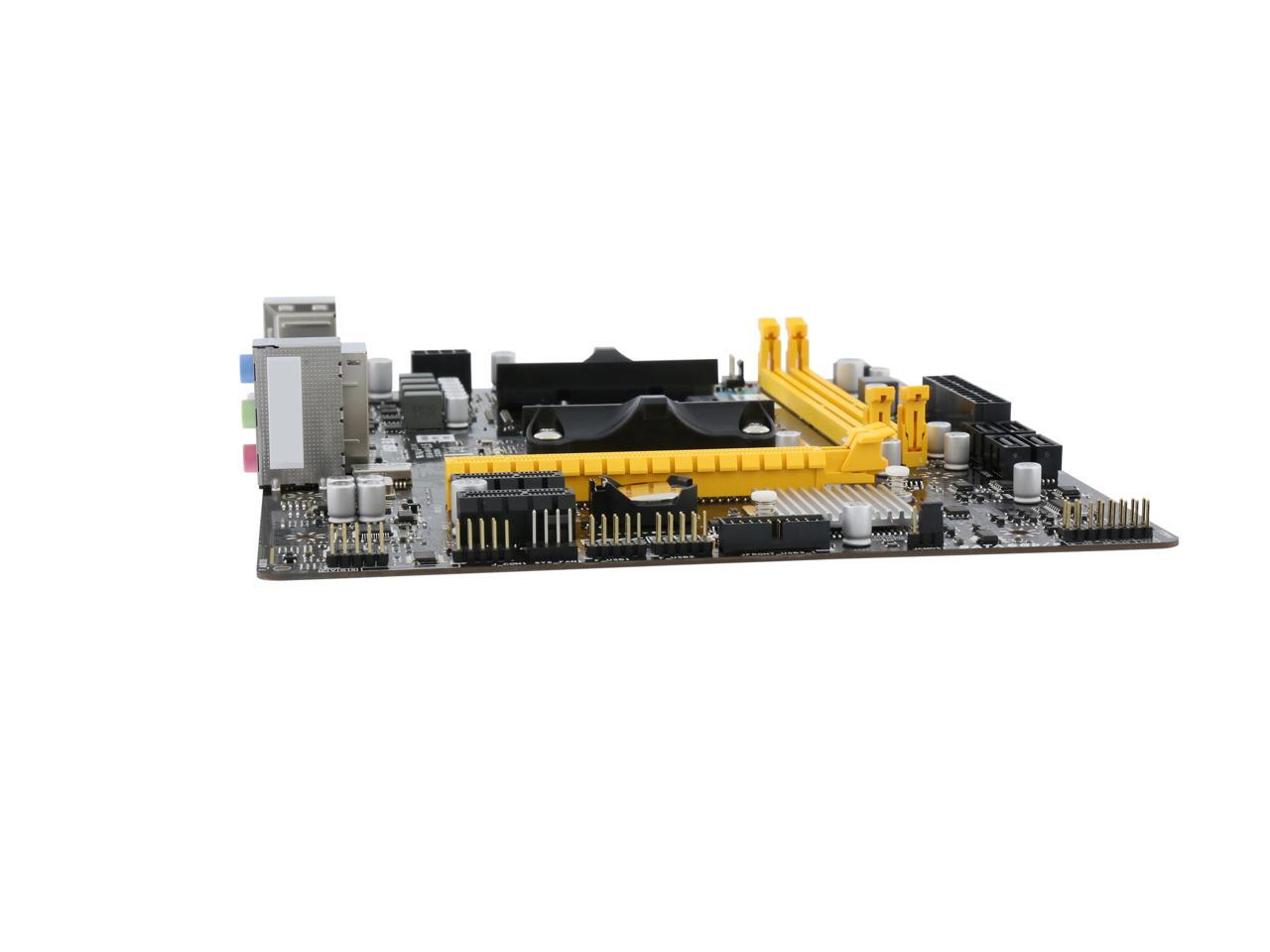

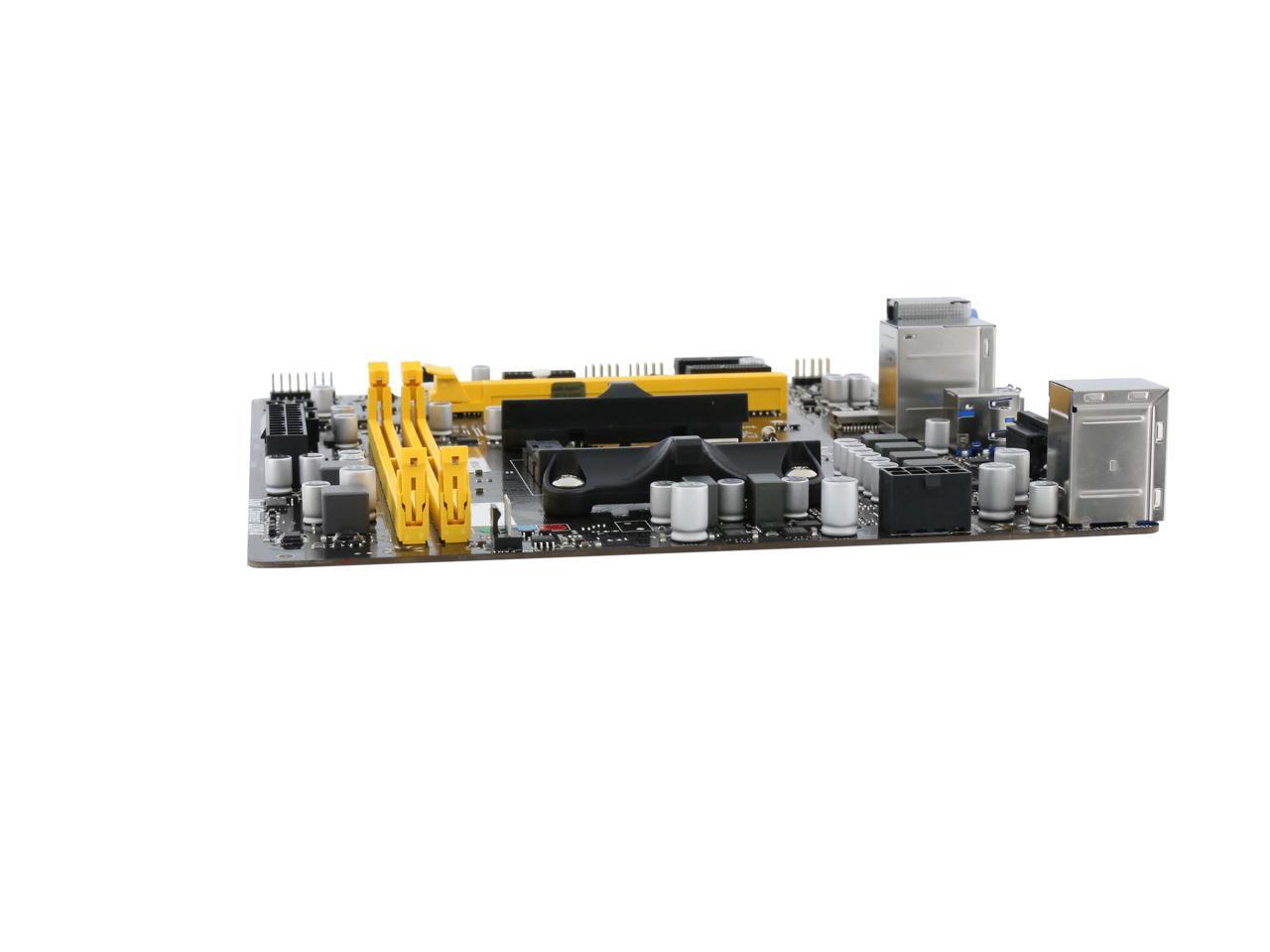

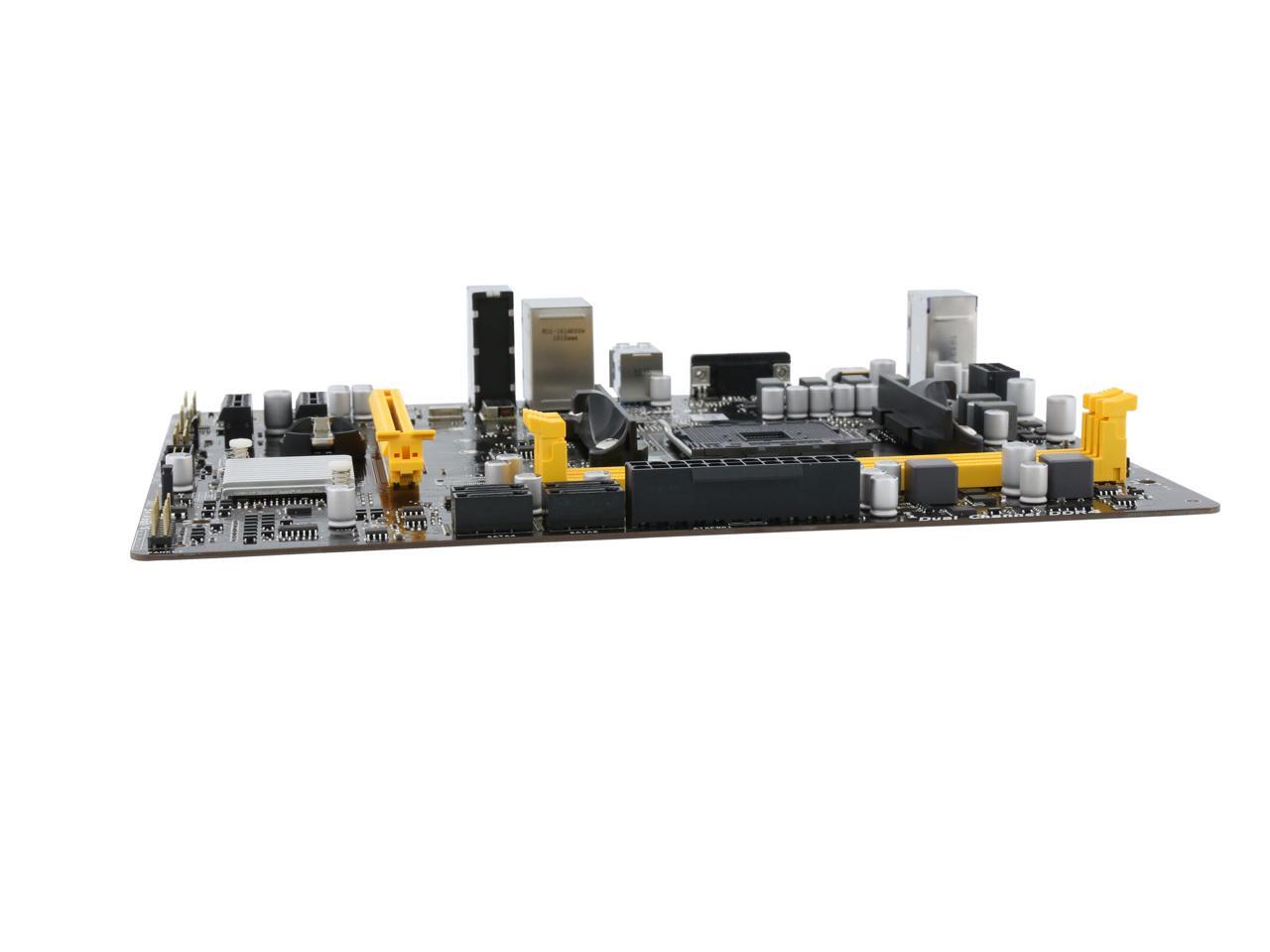

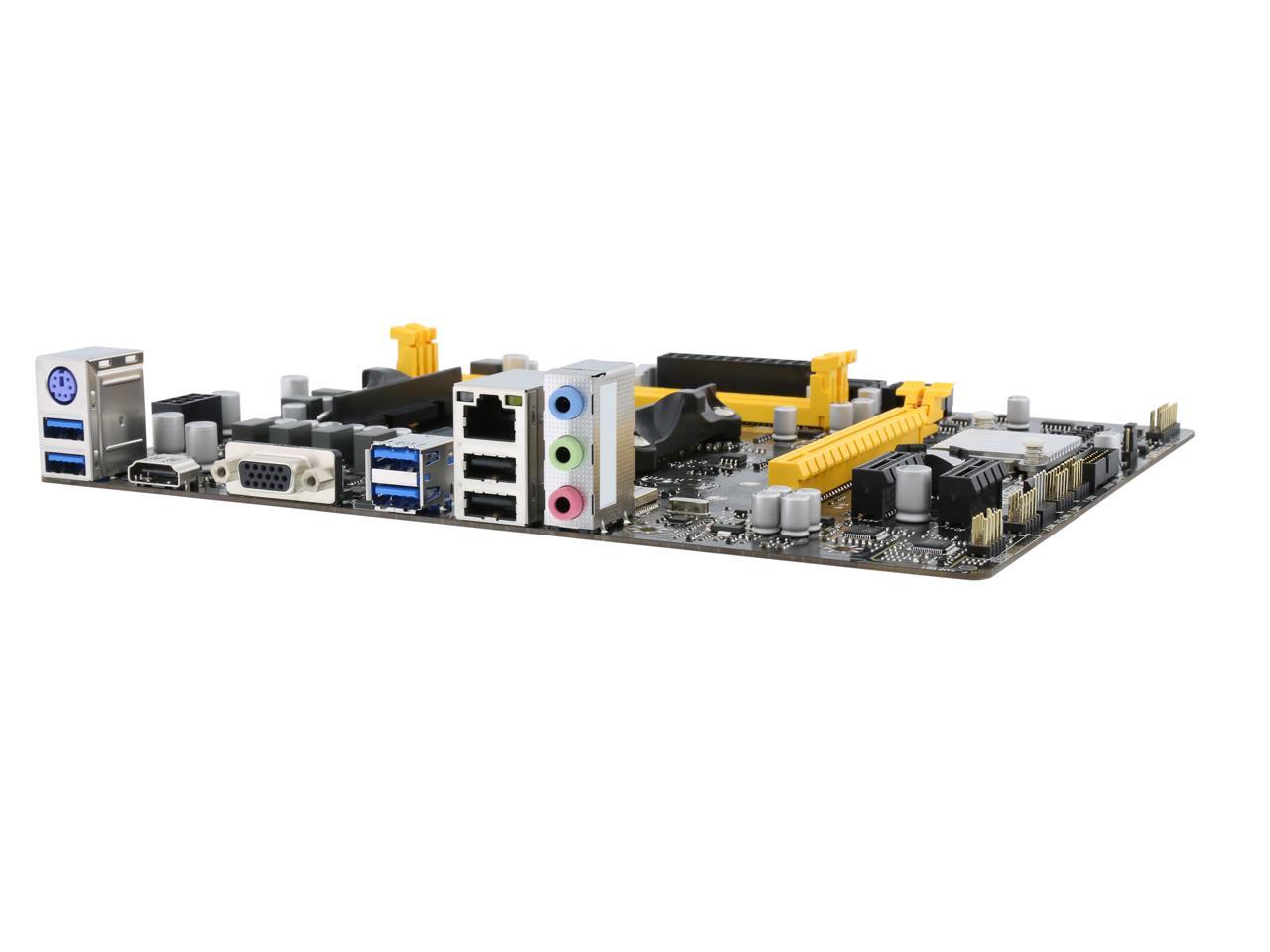

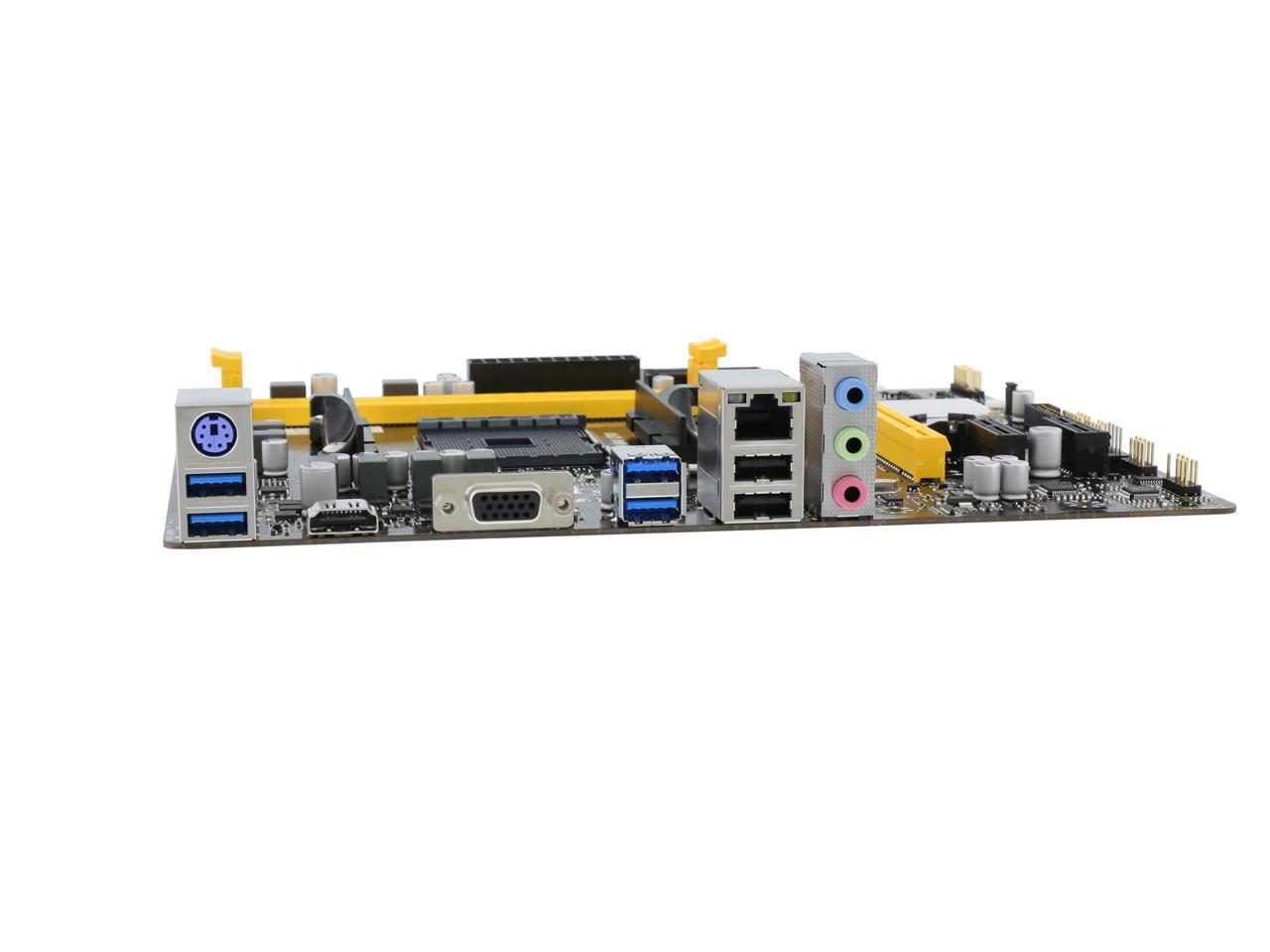

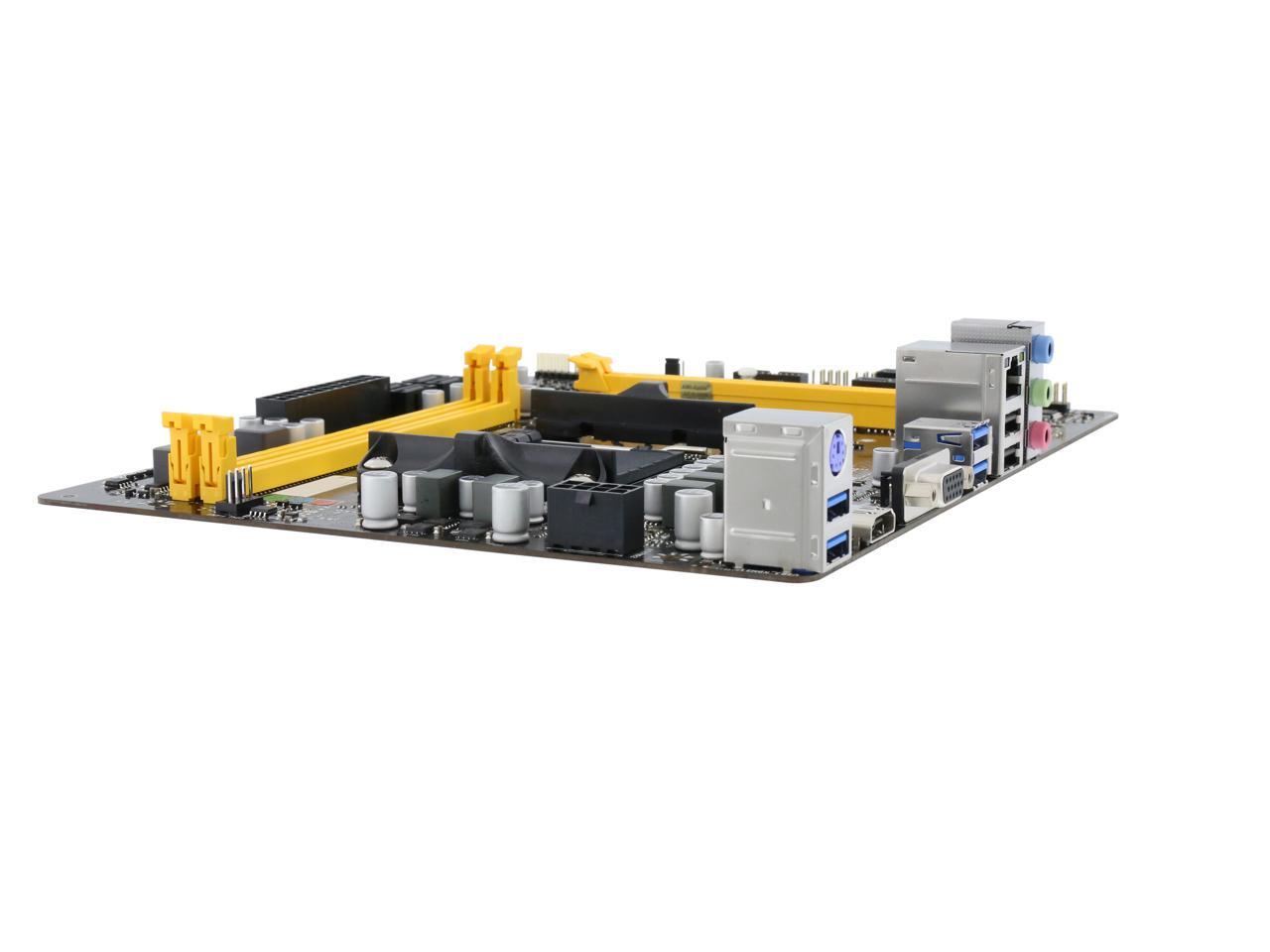

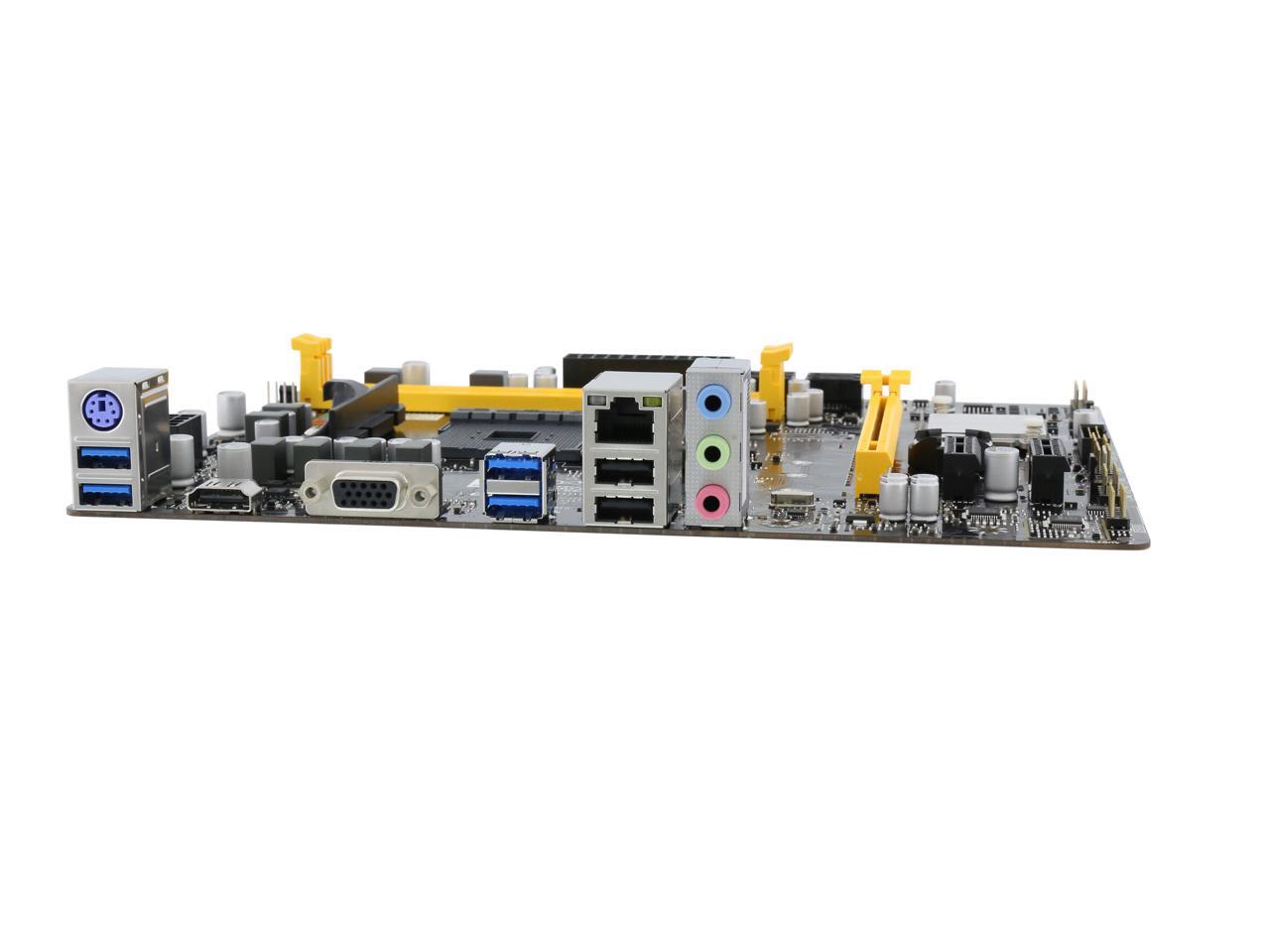

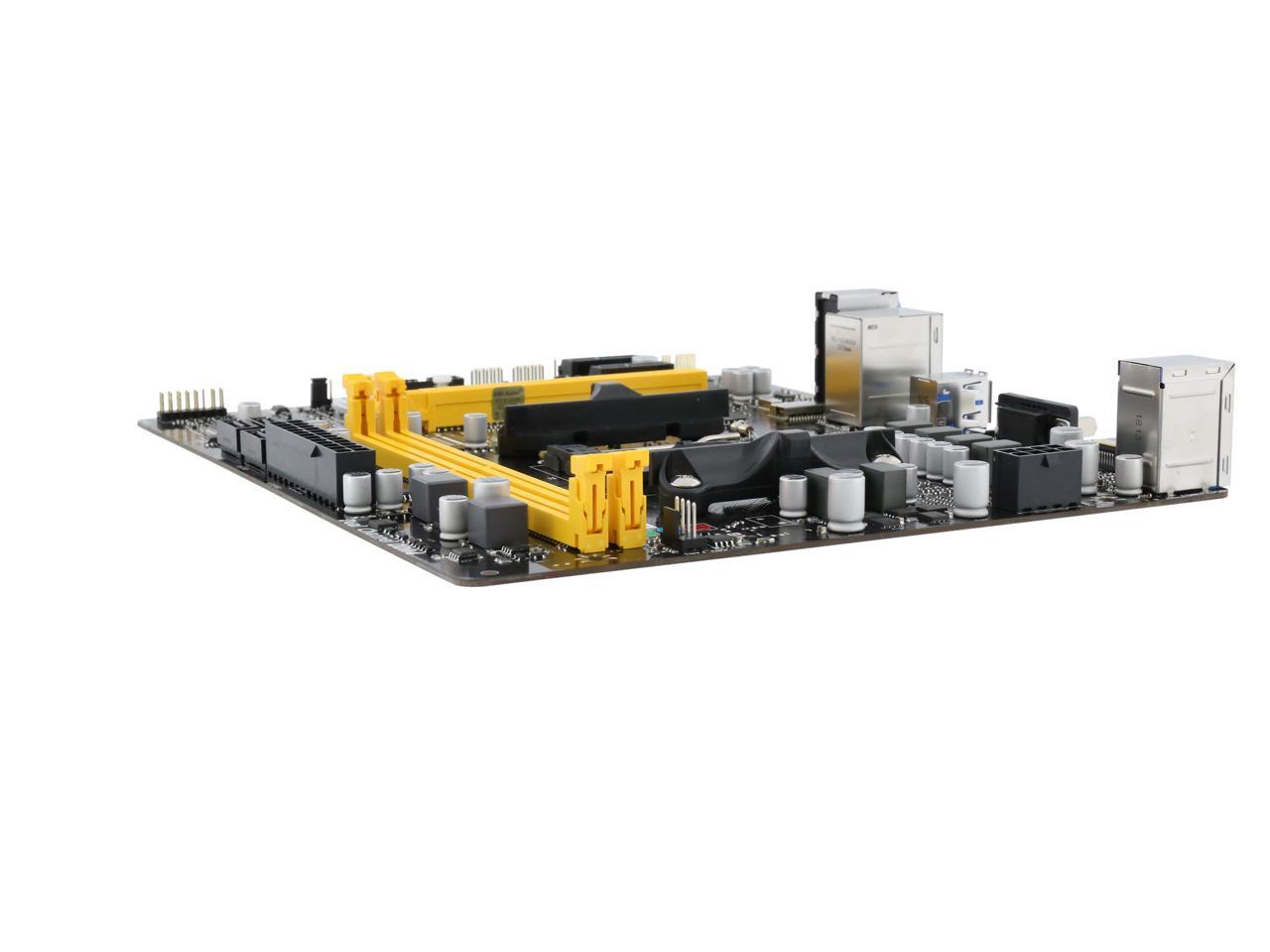

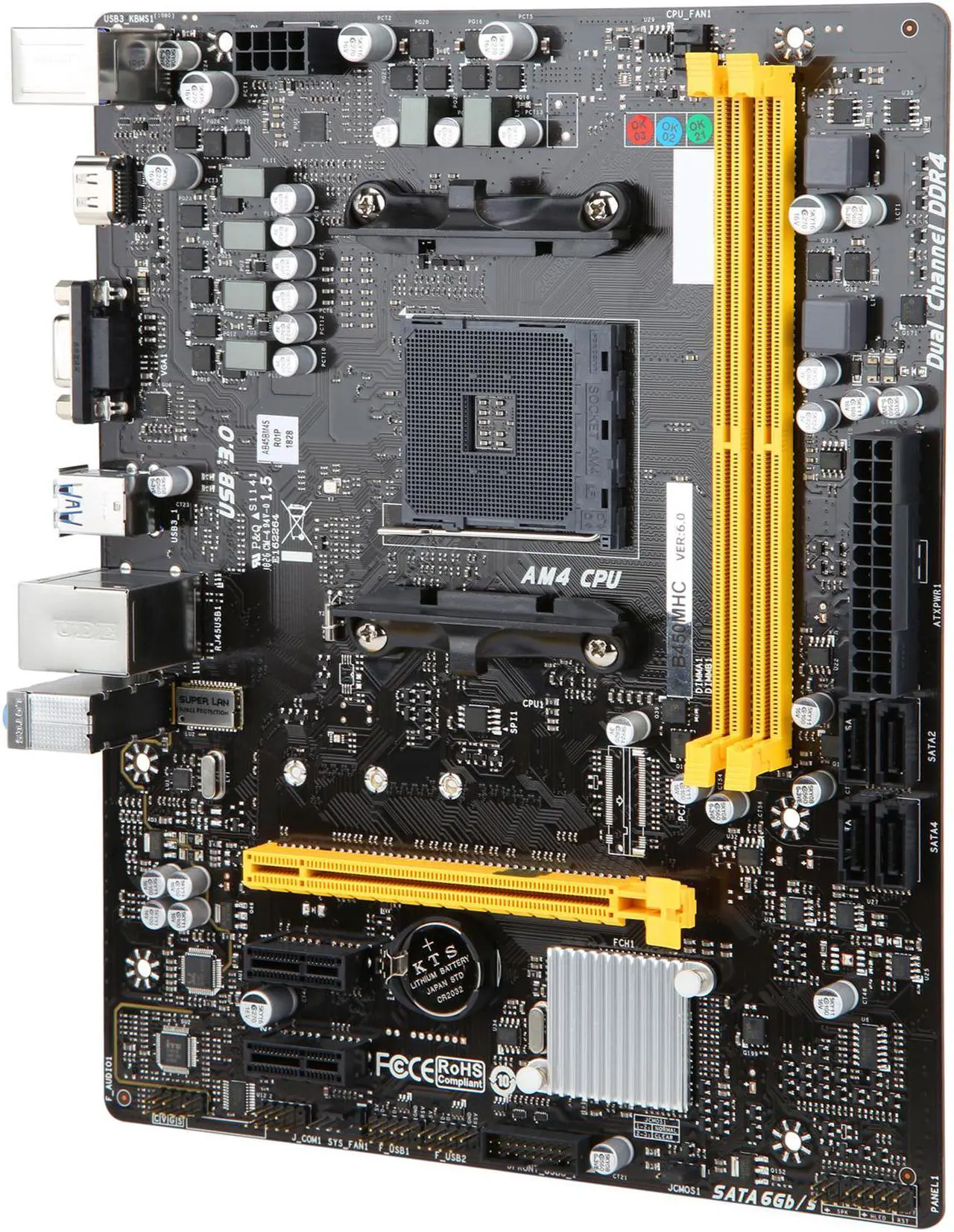

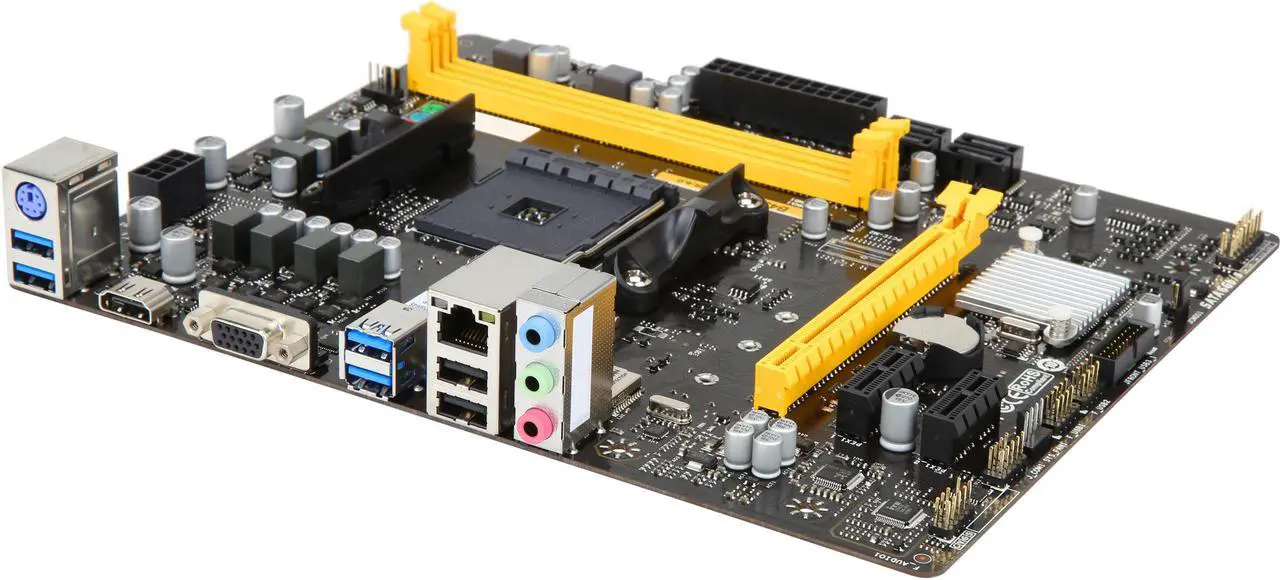

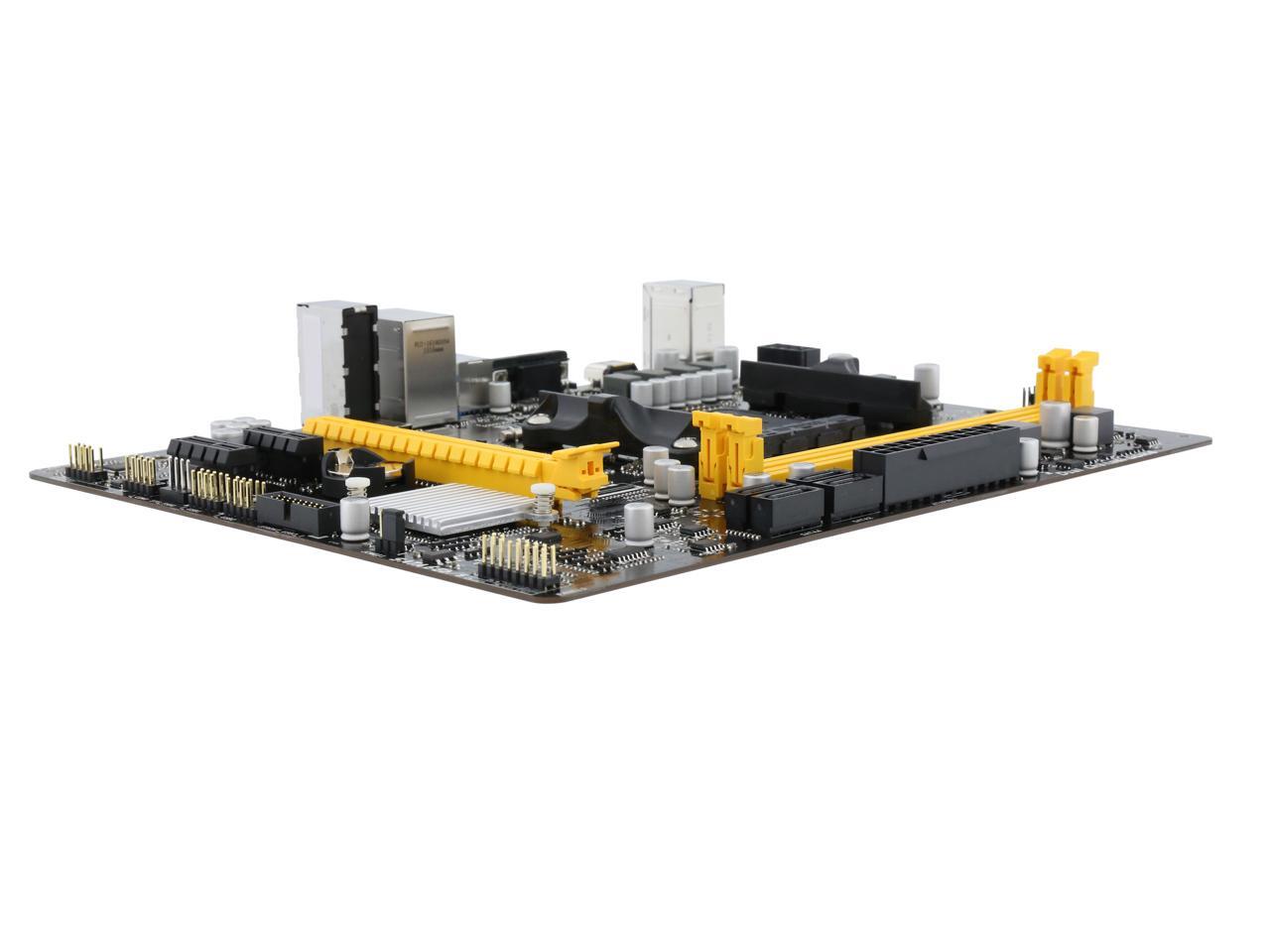

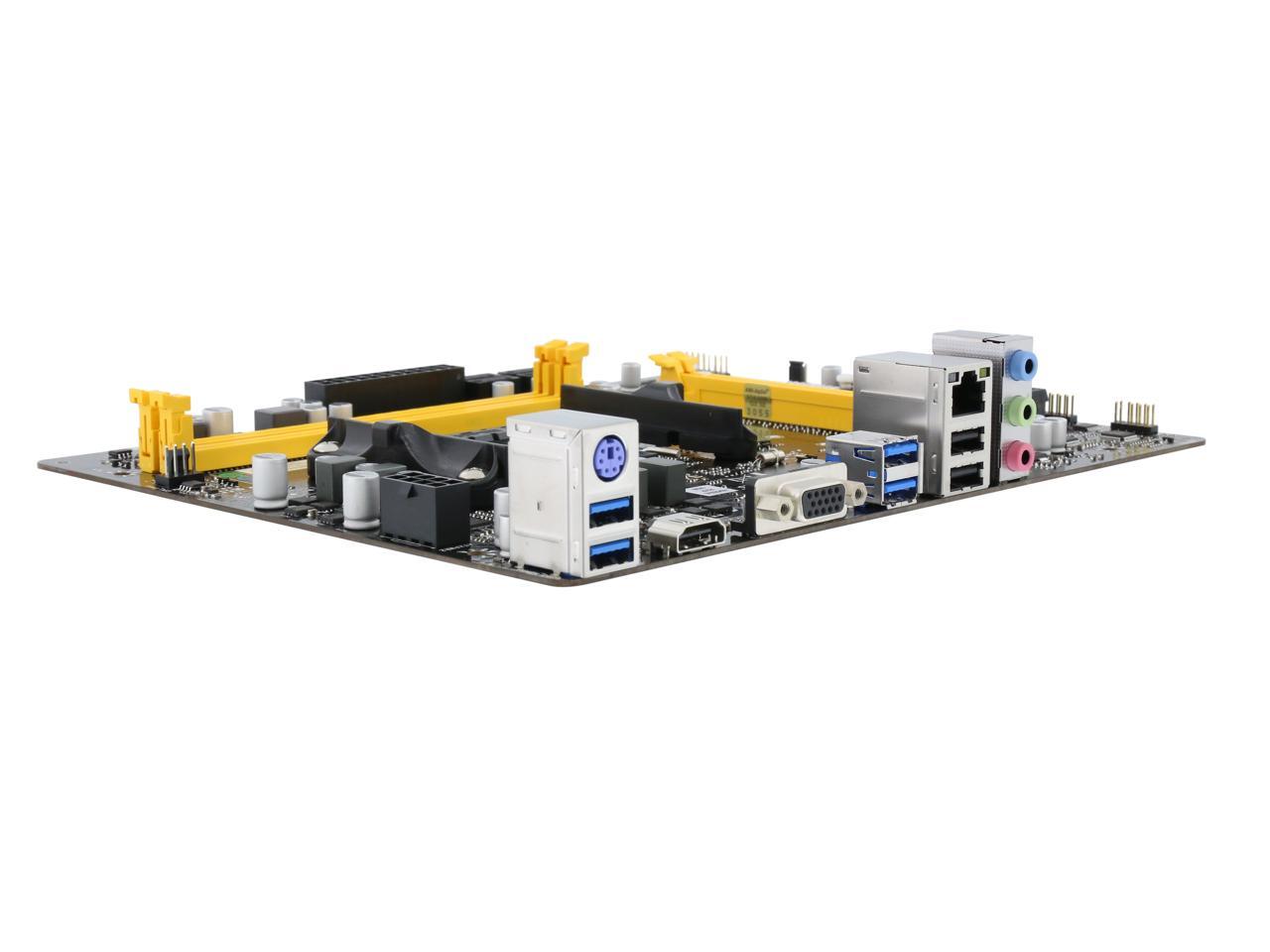

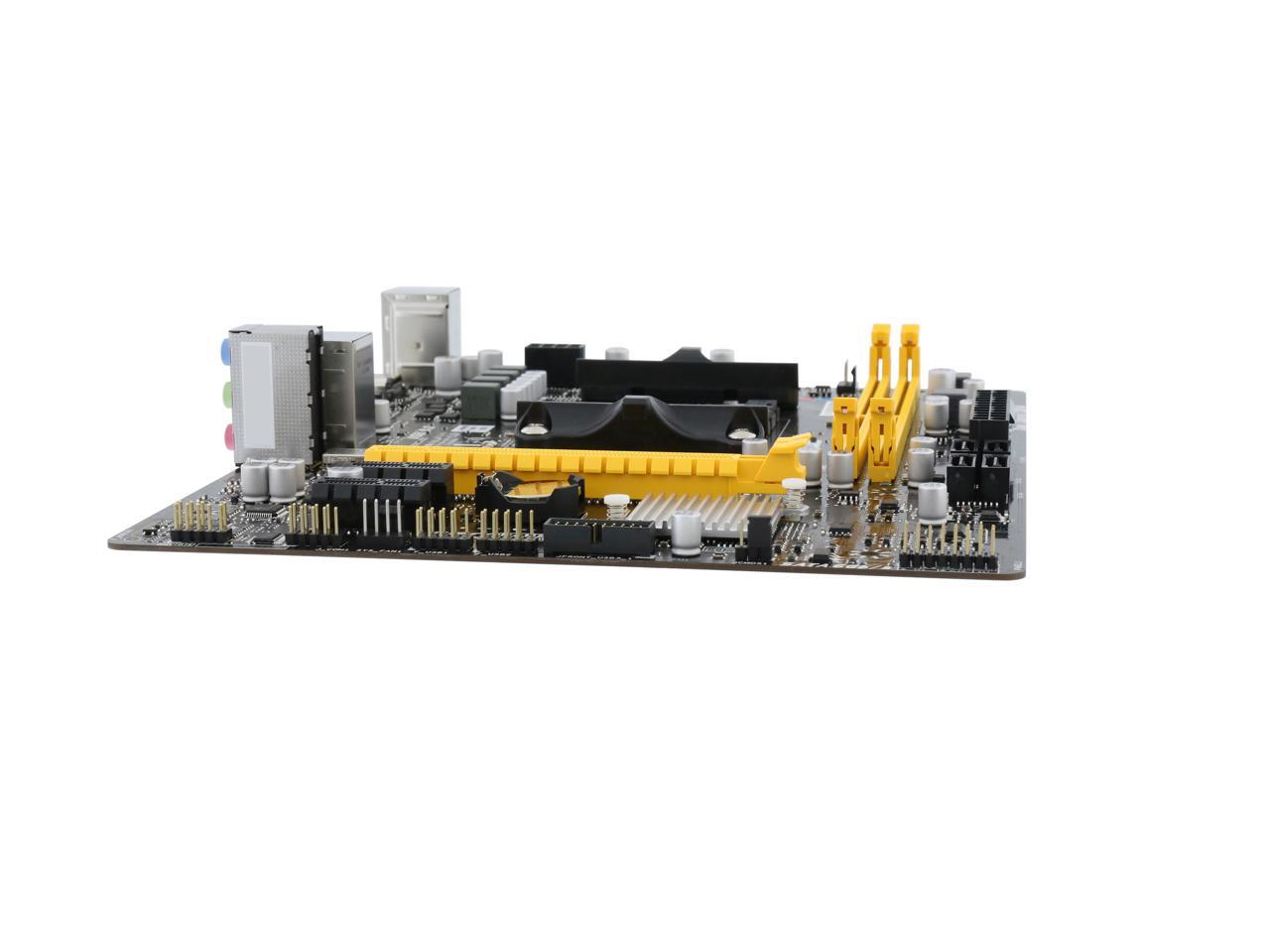

    BIOSTAR B450MHC AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD B450
    • AMD A-series APU / Ryzen CPU / NPU for Socket AM4
    • Maximum CPU TDP (Thermal Design Power): 105W
    • DDR4 3200(OC)/ 2933/ 2667/ 2400/ 2133/ 1866
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Biostar B450MHC

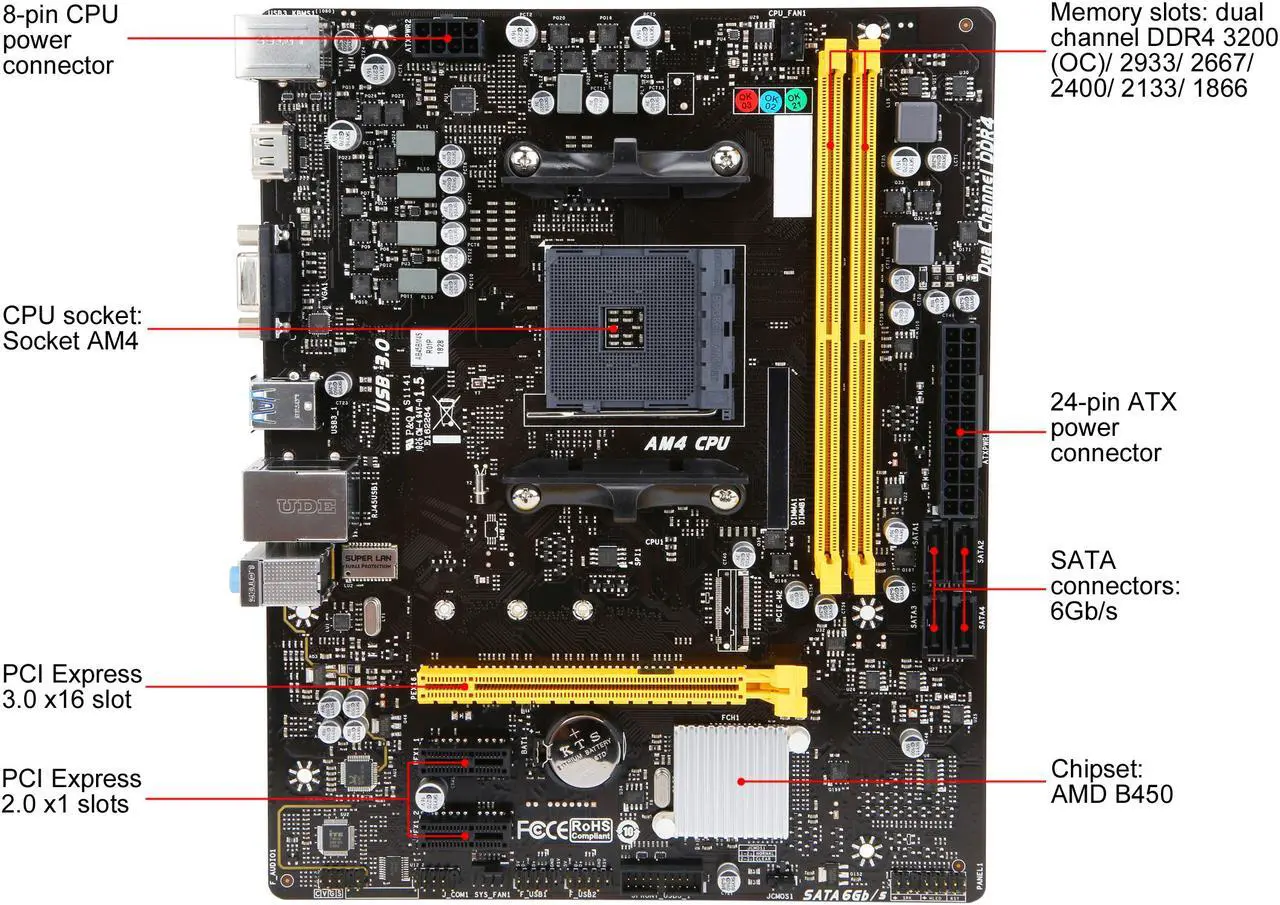

    Model
    Brand BIOSTAR
    Model B450MHC
    Supported CPU
    CPU Socket Type AM4
    CPU Type AMD A-series APU / Ryzen CPU / NPU for Socket AM4
    Maximum CPU TDP (Thermal Design Power): 105W
    Chipsets
    Chipset AMD B450
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard DDR4 3200(OC)/ 2933/ 2667/ 2400/ 2133/ 1866
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16
    PCI Express x1 2 x PCI-E 2.0 x1 Slots
    Storage Devices
    Serial ATA (SATA) 4 x SATA3 Connectors (6Gb/s): Supports AHCI & RAID
    SATA RAID 0/1/10
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8111H
    Max LAN Speed 1Gbps

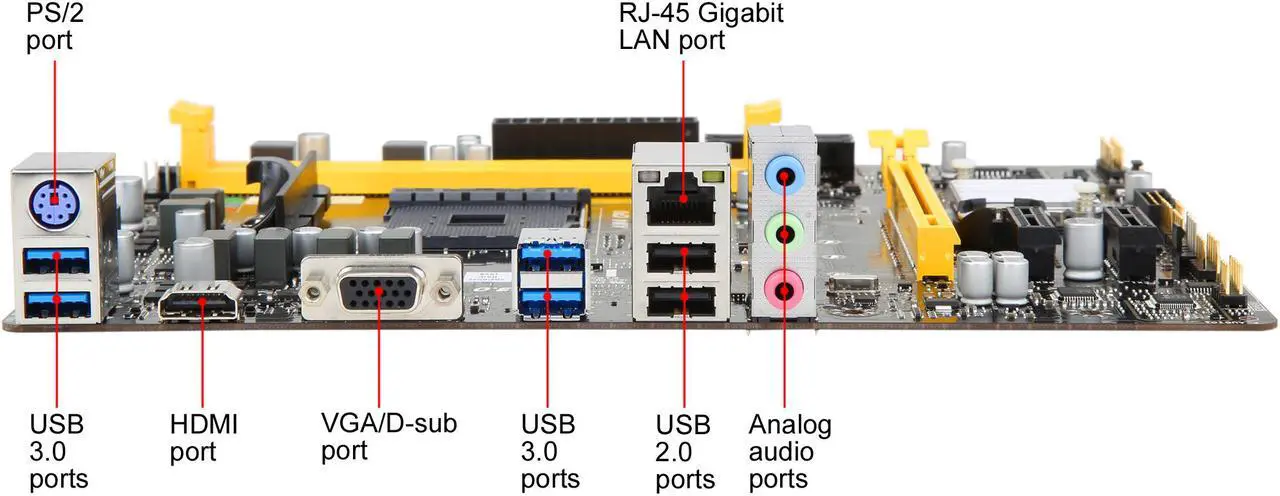

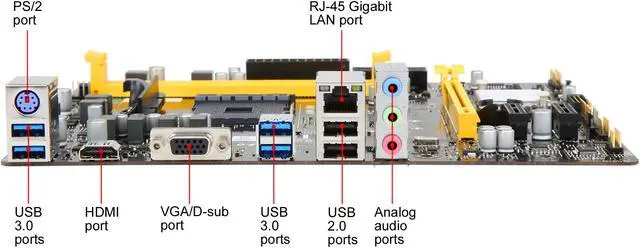

    Rear Panel Ports
    Back I/O Ports 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1
    PS/2 1 x PS/2 keyboard/mouse port
    Video Ports 1 x VGA Port, resolution up to 1920 x 1200@60Hz
    HDMI 1 x HDMI Connector, resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4
    RJ45 1 x RJ45
    USB 3.1 4 x USB 3.1 Gen1 (5Gb/s) Ports
    USB 1.1/2.0 2 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 3.1 Gen1 Header (5Gb/s) (each header supports 2 USB 3.1 Gen1 ports)
    2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
    Other Connectors 1 x Front Audio Header
    1 x Front Panel Header
    1 x CPU Fan Connector
    1 x System Fan Connector
    1 x Clear CMOS Header
    1 x COM Port Header
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 7.8"
    Power Pin 1 x 8-Pin Power Connector
    1 x 24-Pin Power Connector
    Features
    Features Support AMD Ryzen CPU / APU

    AMD B450 single chip architecture

    Support 2-DIMM DDR4 3200(OC)/ 2933/ 2667/ 2400/ 2133/ 1866

    Support Realtek Gigabit LAN

    Support USB 3.1 Gen1

    Support HDMI, VGA Ports

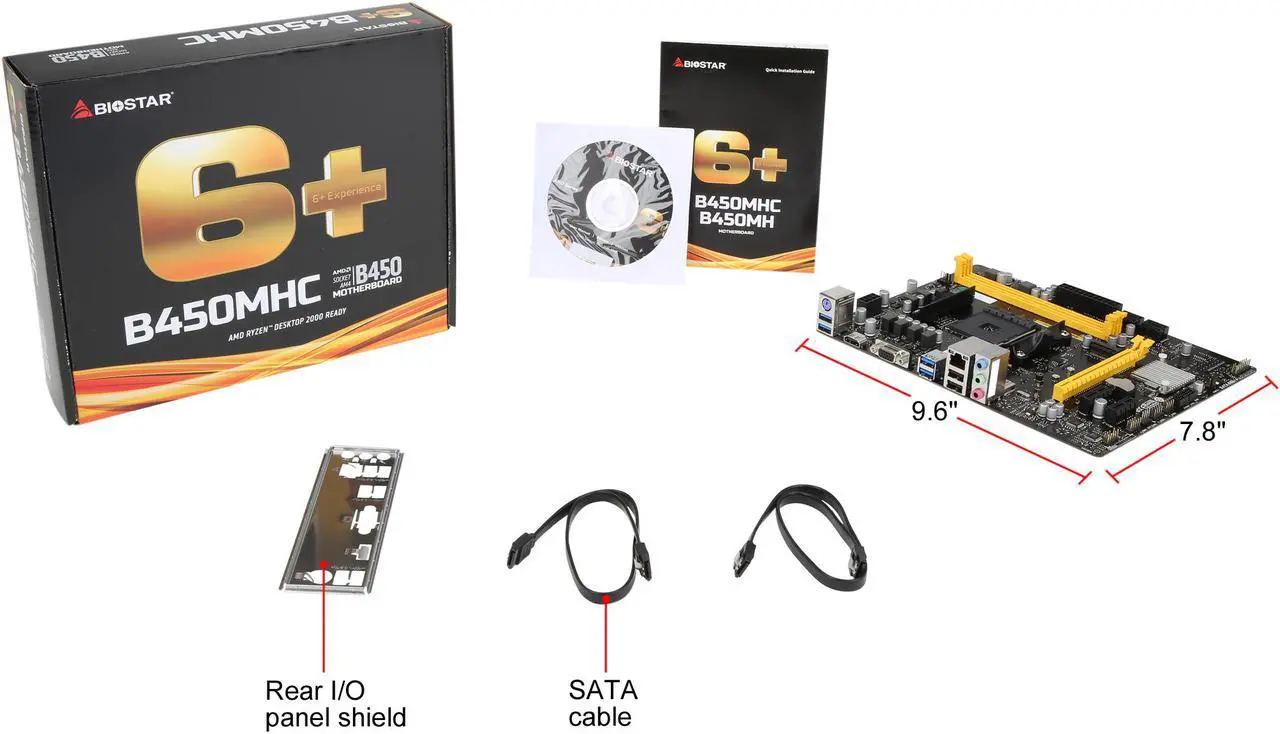

    Packaging
    Package Contents ACCESSORIES:
    2 x SATA Cables
    1 x I/O Shield
    1 x DVD Driver
    1 x Quick Guide
    Additional Information
    Date First Available July 18, 2024
