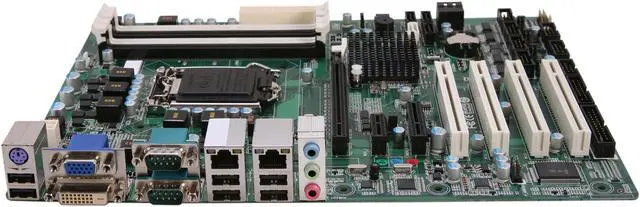

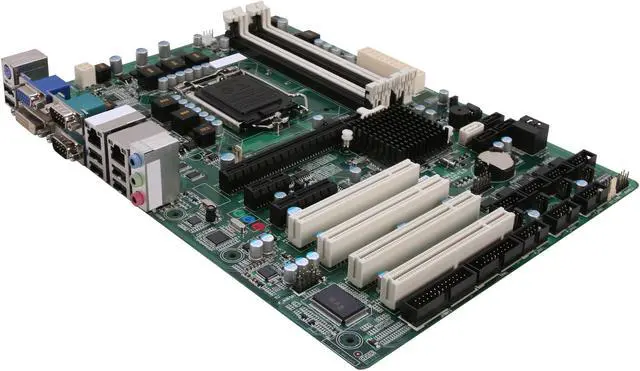

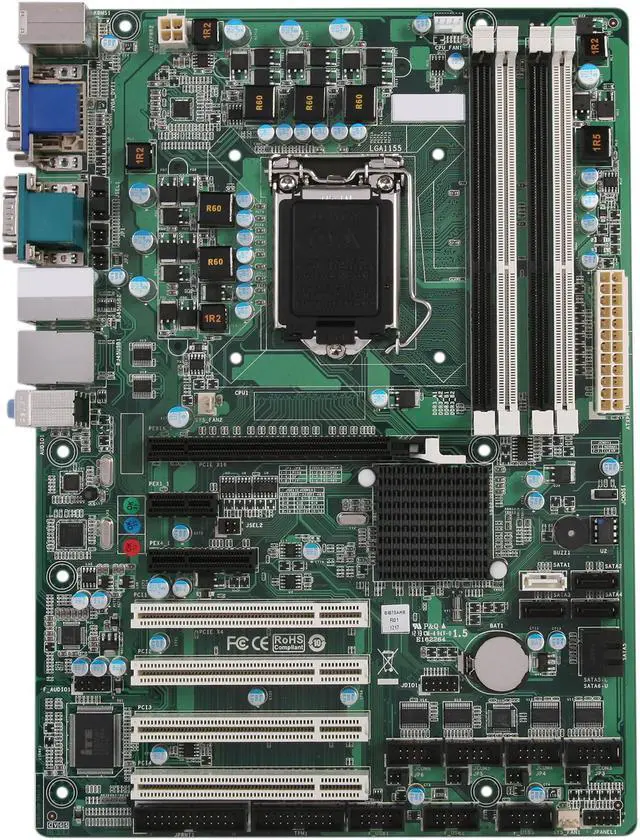

BIOSTAR BIB75-AHB LGA 1155 Intel B75 ATX Intel Motherboard
- Intel B75
- Core i7 / i5 / i3 (LGA1155)
- DDR3 1600
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar BIB75-AHB
| Brand | BIOSTAR |
|---|---|
| Model | BIB75-AHB |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Chipset | Intel B75 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 4 x PCI Slots |
| Serial ATA (SATA) | 1 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | 1 x Intel 82574LM |
|---|---|
| Second LAN Chipset | 1 x Intel 82579V |
| Max LAN Speed | 2 x 1Gbps |
| Back I/O Ports | 1 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| COM | 2 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 4 x Serial Header 1 x Parallel Header 1 x DIO(GPIO) Header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.66" |
| Power Pin | 24 Pin |
| Features | LGA1155 Intel Core i7/i5/i3/Pentium/Celeron processor supported up to 95W TDP 4 x 240pin DDR3 1600MHz SDRAM up to 32GB Intel AMT 8.0 supported by Q77 Option SATA 6Gb/s supported Support Dual view via VGA/DVI-D 6 x COM with Ring/5V/12V voltage selection 1 x PCIex16, 1 x PCIex1, 1 x PCIex4, 4 x PCI Slot Expansion 2 x INTEL GbE, 6 x COM, 5 x SATAII, 1 x SATAIII, 12 x USB 2.0, 5.1CH HD Audio integrated Maximum CPU TDP (Thermal Design Power) : 95Watt |
|---|
| First Listed on Newegg | June 18, 2012 |
|---|
